Gearshift Linkage: B2600

  1. Remove console covering gearshift lever in cab. Place gearshift lever in "P". Loosen lock nuts at bottom of gearshift lever. See Fig 1.
  2. Ensure transmission is in Park range. There should be .039" (1 mm) clearance between the adjust lever and front lock nut. After clearance is set, tighten rear lock nut to 69-95 INCH lbs. (7.8-11.0 N.m).
  3. Move gearshift lever to "N", "D" and "P". Make sure there is clearance between guide pin on bottom of gearshift lever and detent on gearshift lever bracket. Readjust if necessary.

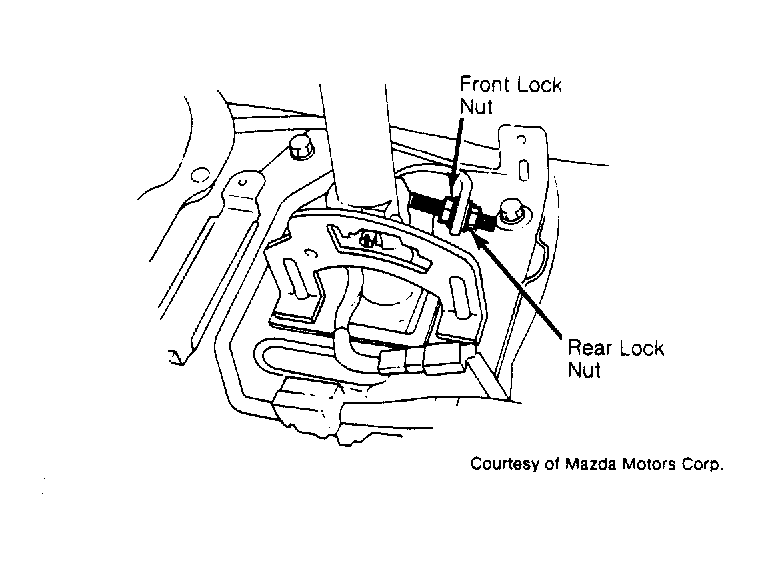

Fig 1: Adjusting B2600 Gearshift Cable
G82826Courtesy of MAZDA MOTORS CORP.
