Trouble Shooting: Notes

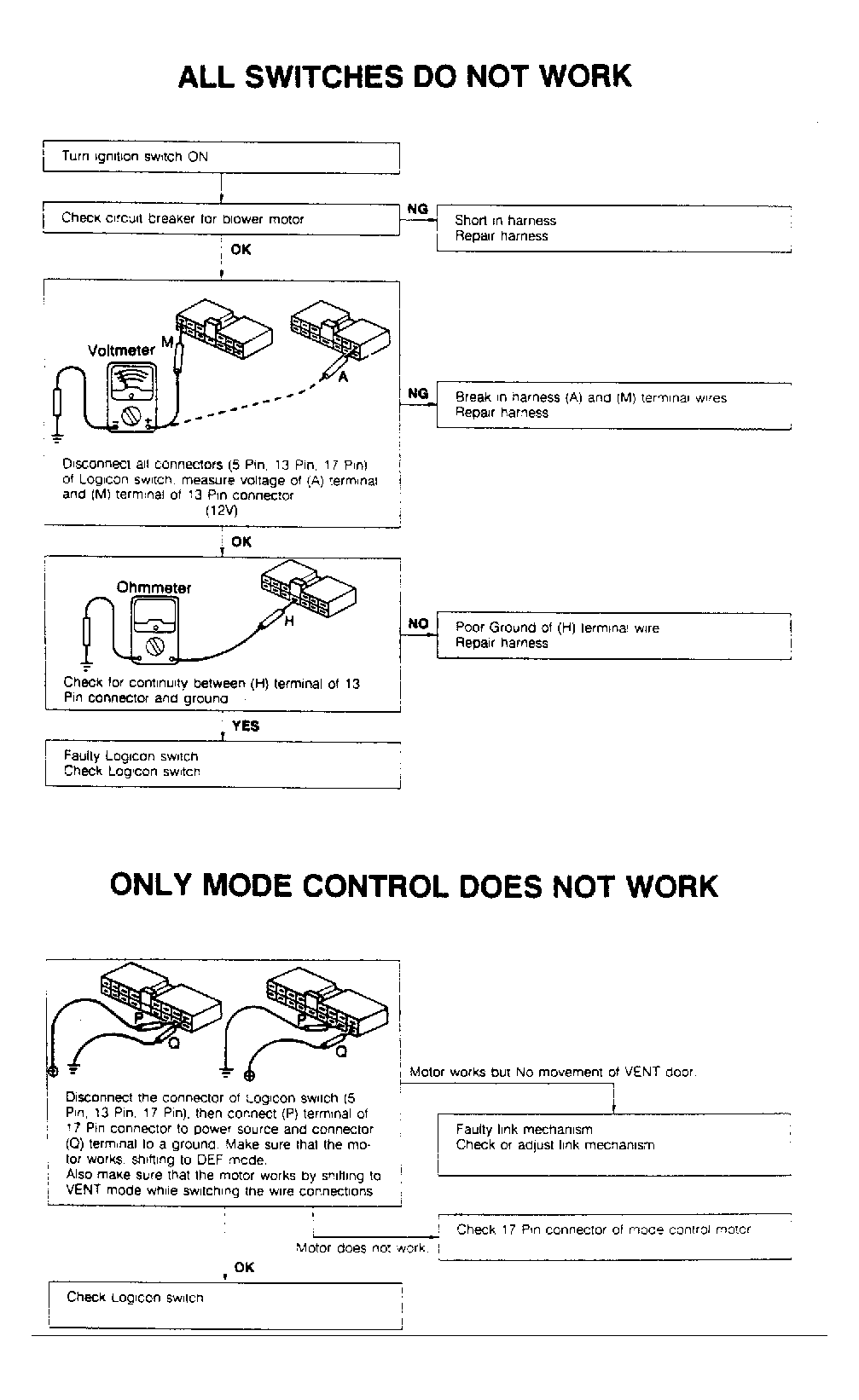

Fig 1: All Switches Do Not Work

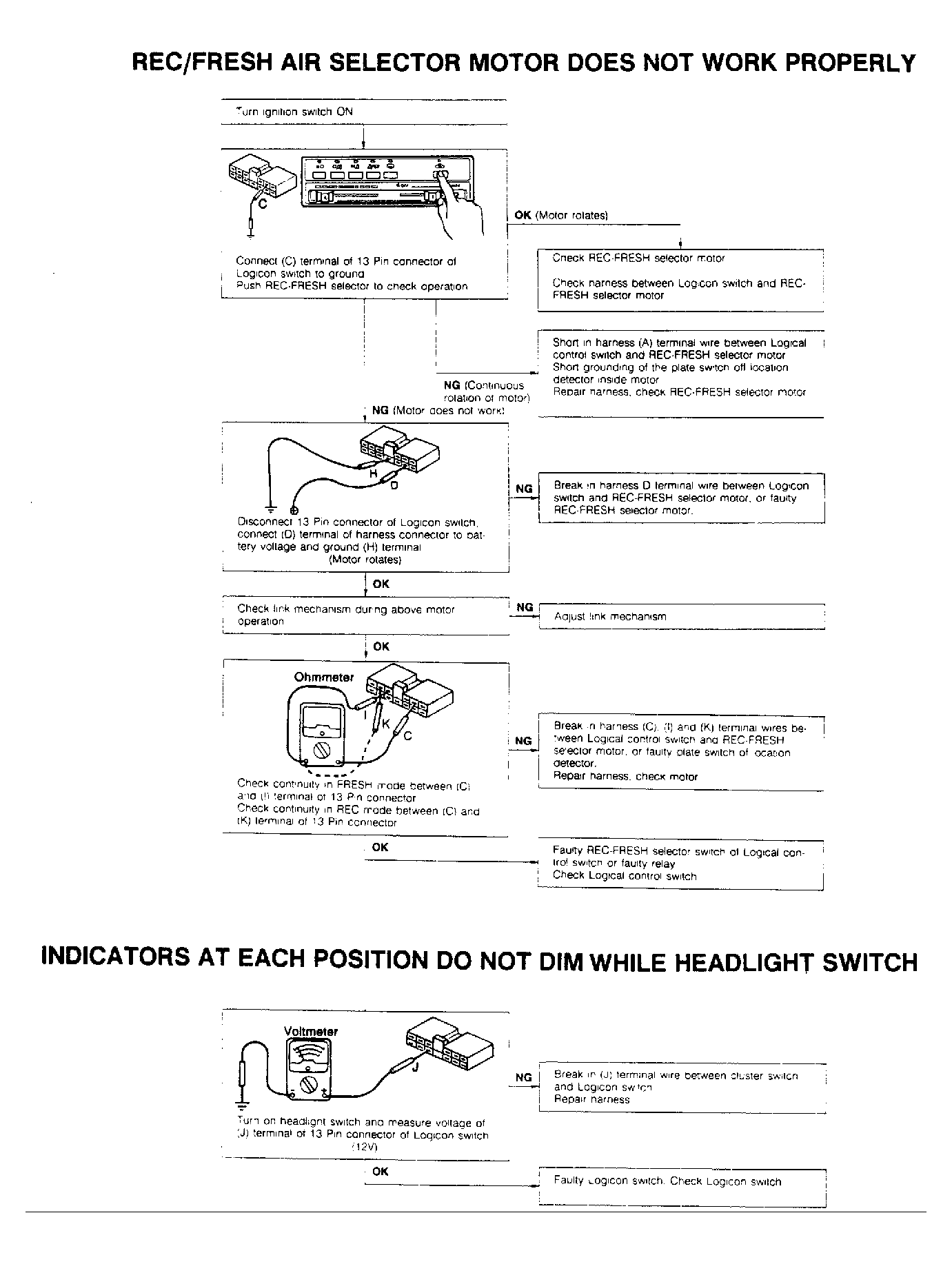

Fig 2: Rec/Fresh Air Selector Motor Does Not Work Properly

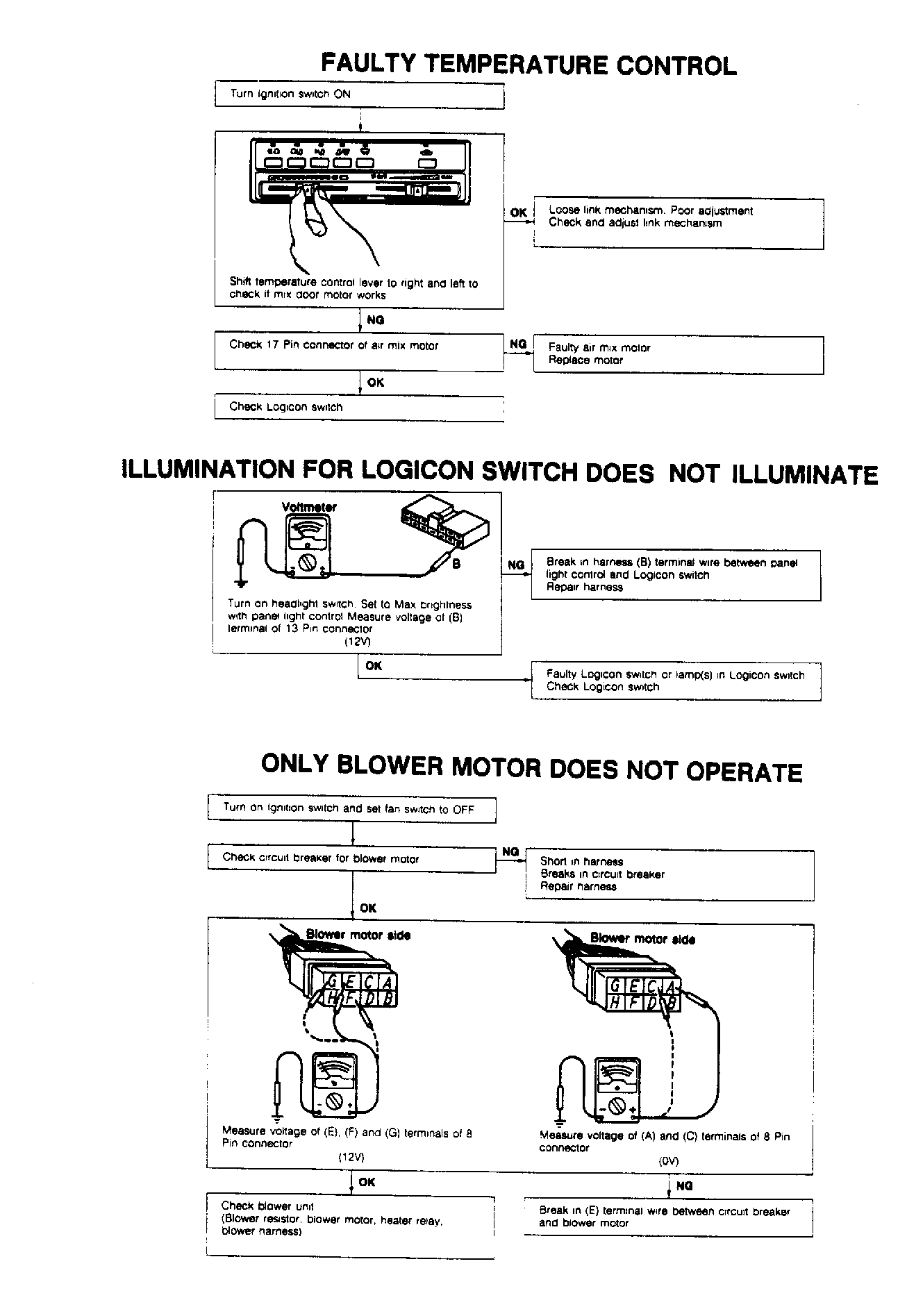

Fig 3: Faulty Temperature Control

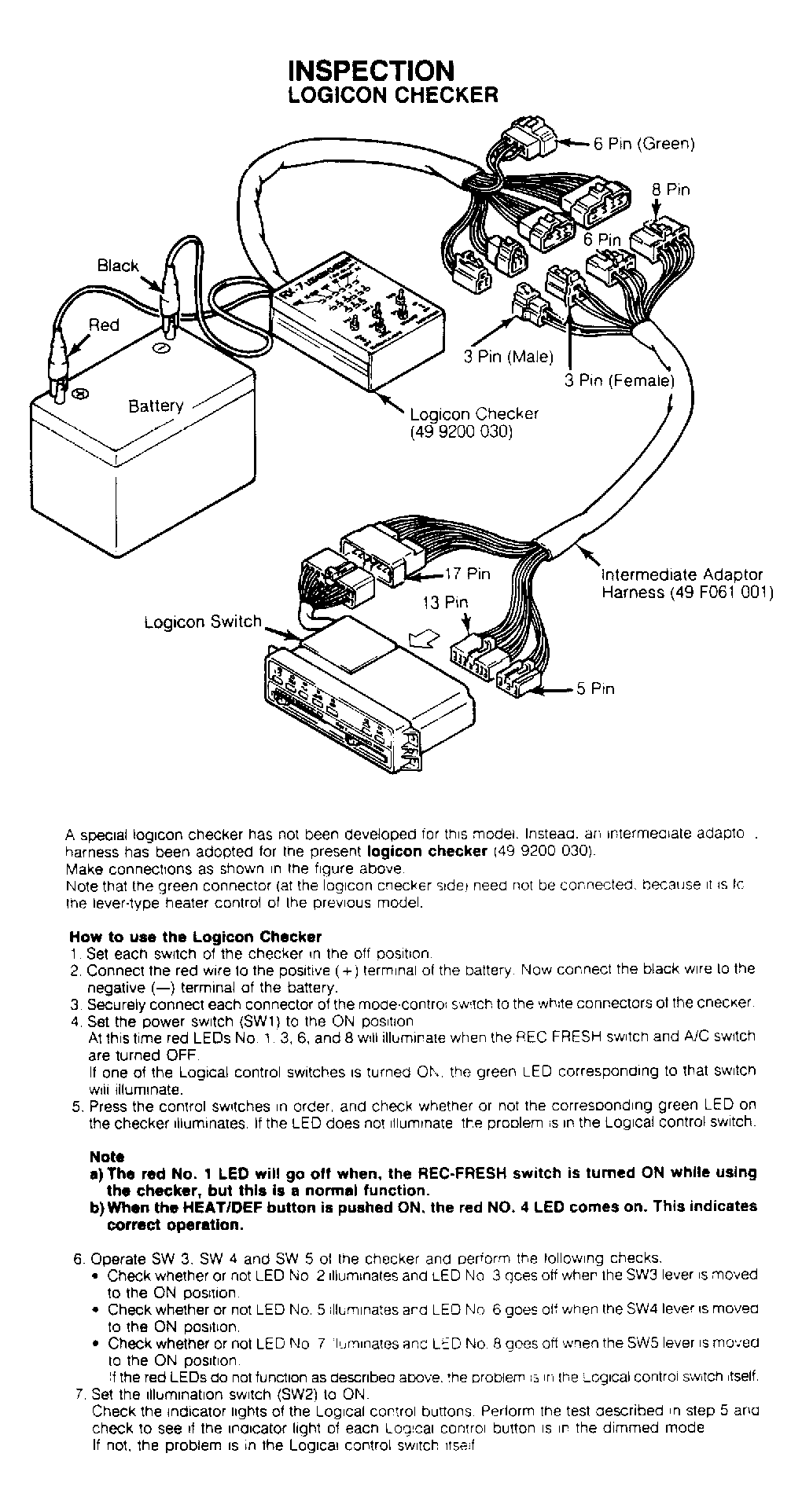

Fig 4: Inspection Logicon Checker

A special Logicon Checker has not been developed for this model. Instead, an Intermediate Adaptor Harness (49 F061 001) has been adopted for the present Logicon Checker (49 9200 030). Make connections as shown in the figure above.

Note that the green connector (at the logicon checker side) need not be connected, because it is for the lever-type heater control of the previous model.
