Mazda
>>
1986
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vacuum Switch
>>
Locations
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

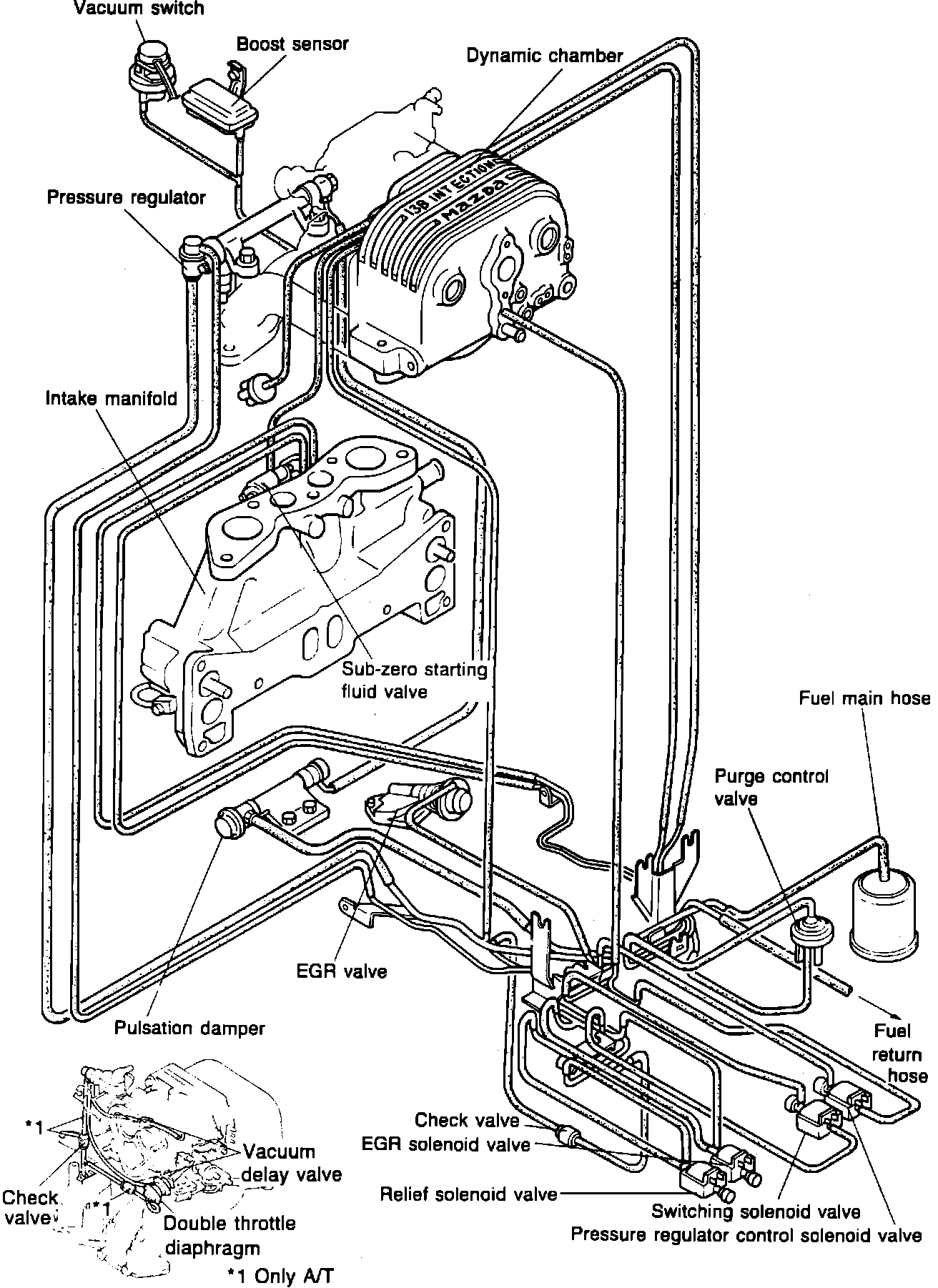

Vacuum Switch: Locations
Vacuum Hose Routing.:
Top Rear Of Engine
Applicable to: 1986 Models
