Crankshaft Position Sensor: Testing and Inspection

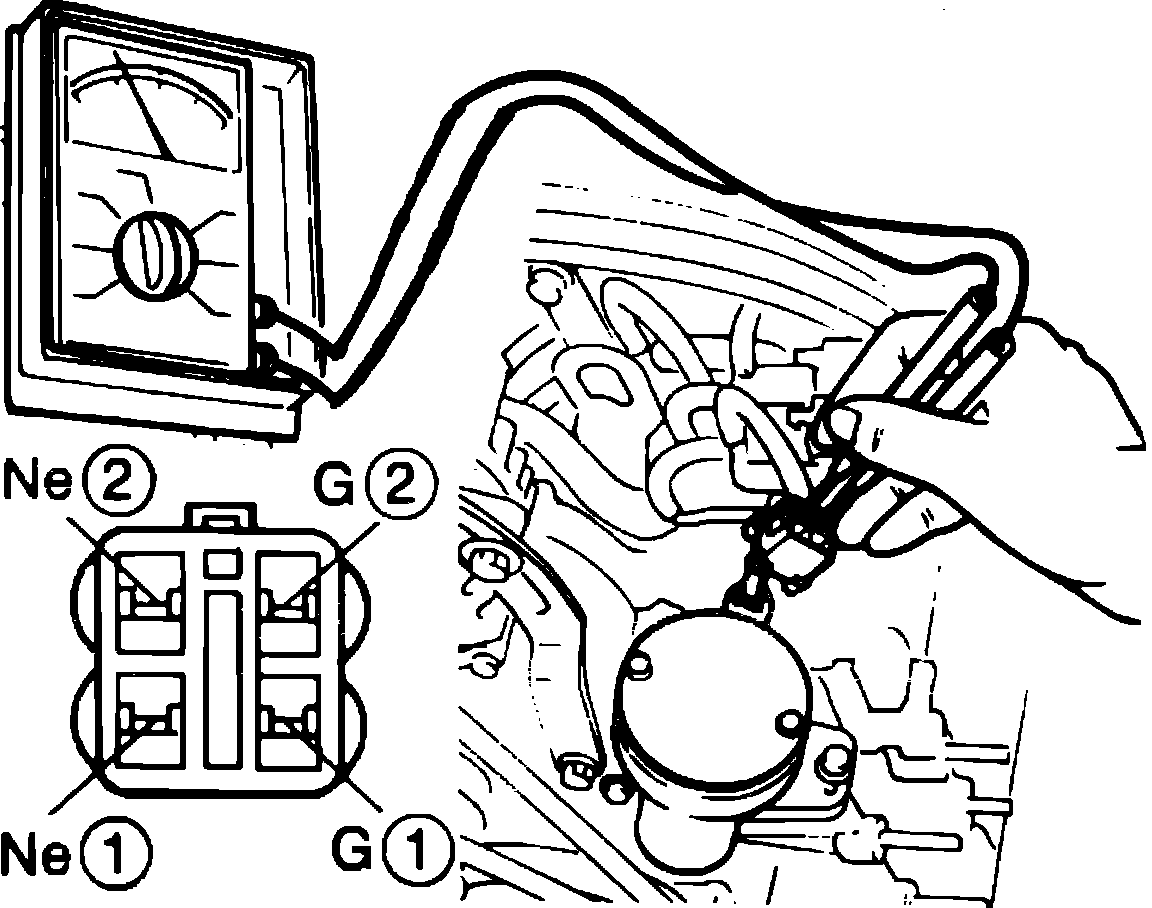

Fig. 79 Crank angle sensor connector terminal identification.:

1. Disconnect crank angle sensor connector.
2. Connect circuit tester to terminals of crank angle sensor, Fig. 79.
3. Ensure resistance is 110-210 ohms between terminals G1 and G2 and between terminals Ne1 and Ne2.
