Powertrain Management: Description and Operation

PART 1

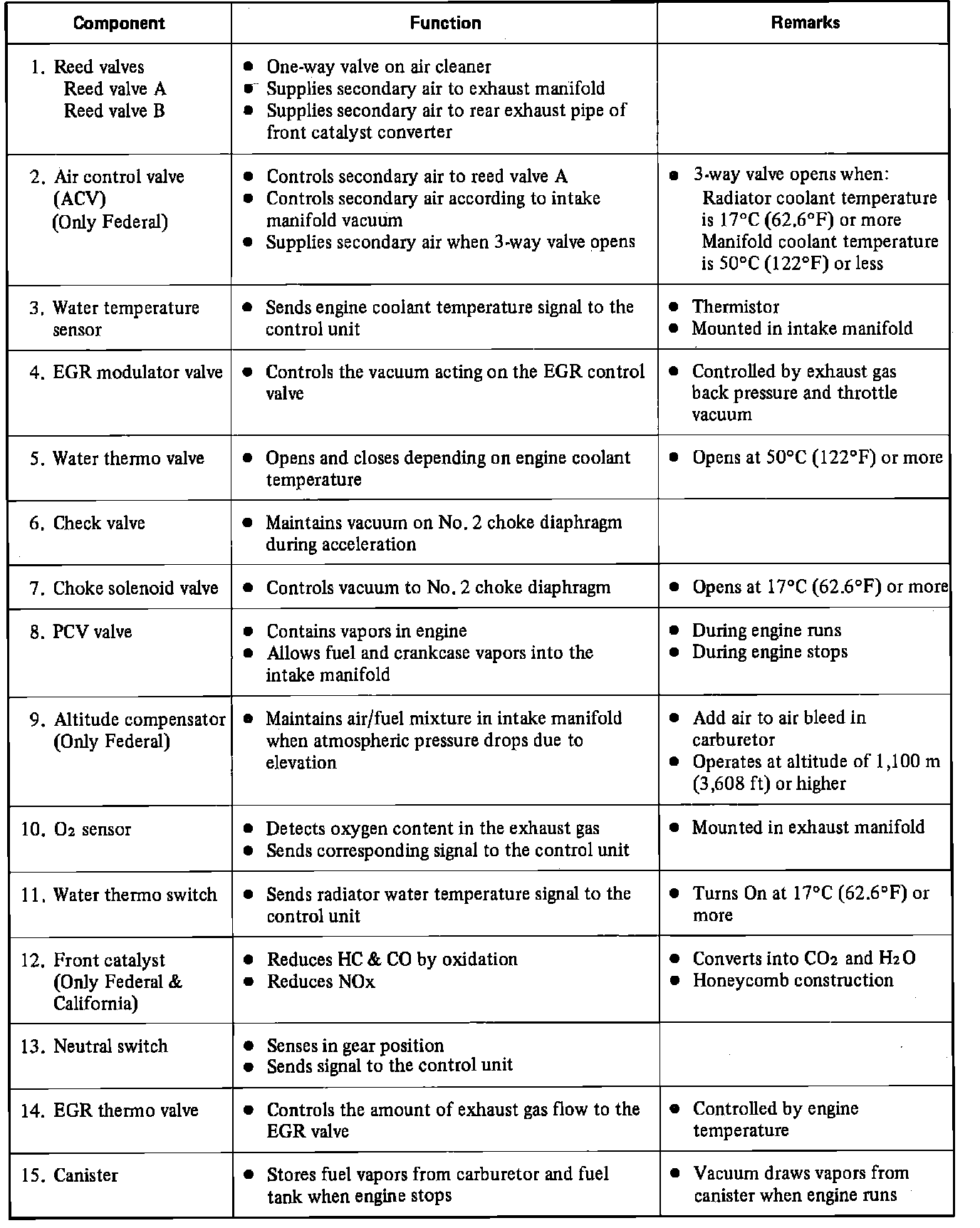

Fig. 2a Component Operation:






PART 2

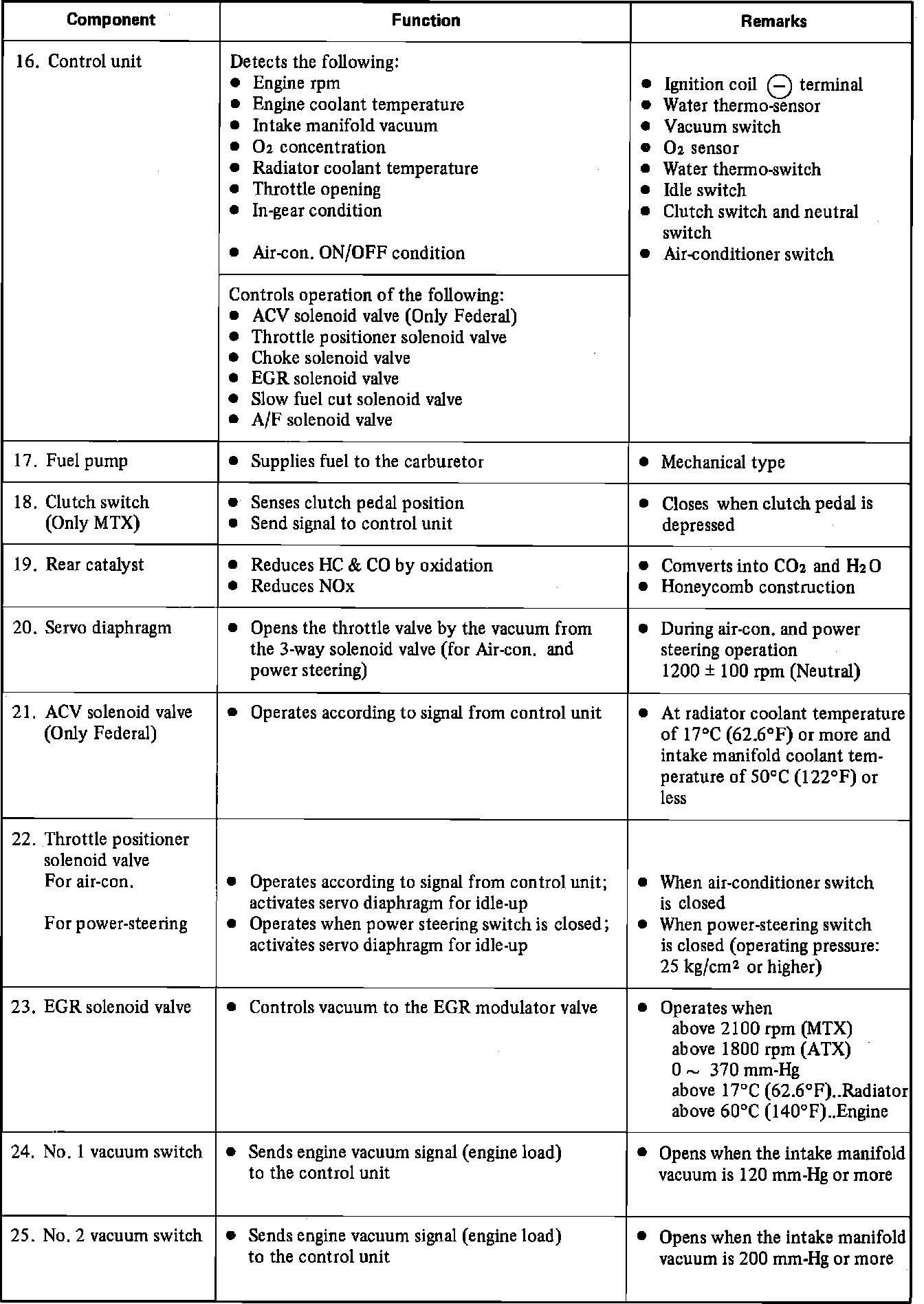

Fig. 2b Component Operation:






PART 3

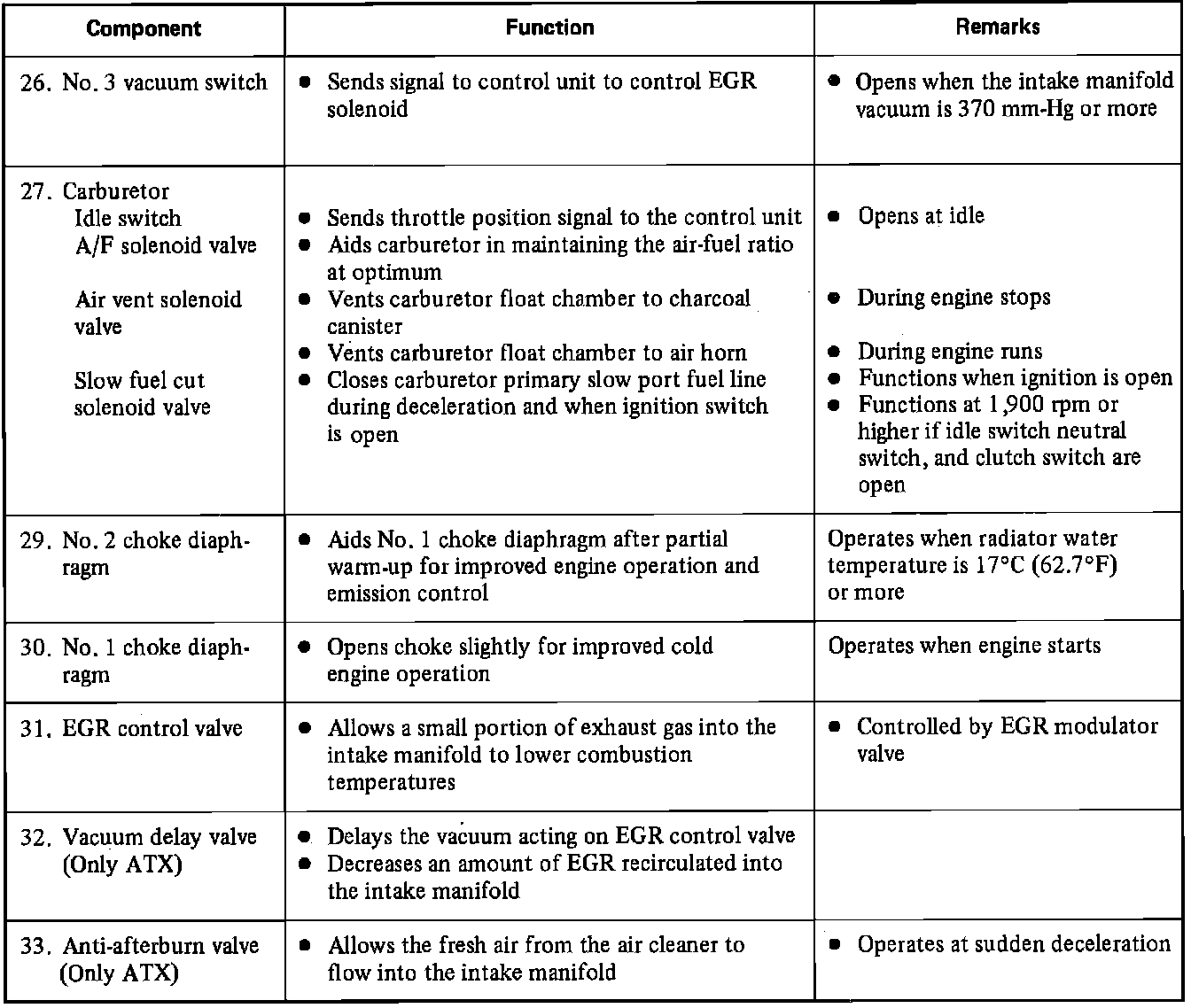

Fig. 2c Component Operation:
