Float Drop

  1. After checking float level, gently lift float until float stop contacts air horn projection. Hold float up in this position.
  2. Measure from bottom of float to air horn. Adjust by bending float stop. See Fig 1 .

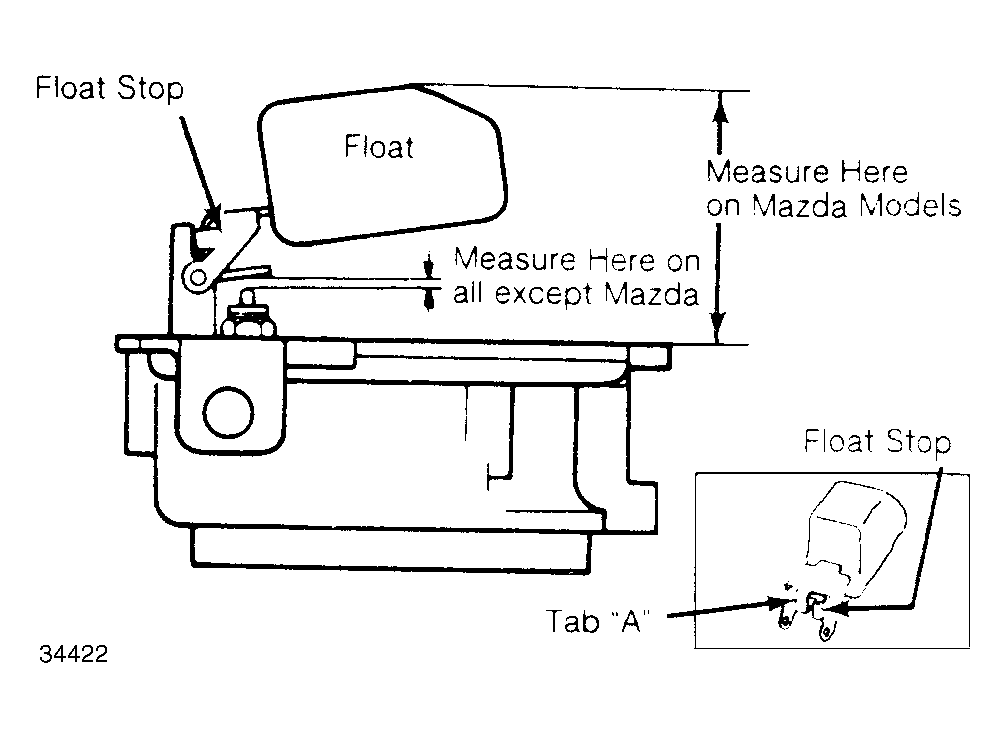

Fig 1: Float Drop Adjustment, Bend float stop to adjust
G34422
