Inner Lock Vessel - Modification

Category 14
Applicable Model/s 1984 626
Subject

INNER LOCK VESSEL MODIFICATION
Bulletin No.. 006/84
Issued 7/31/84
Revised

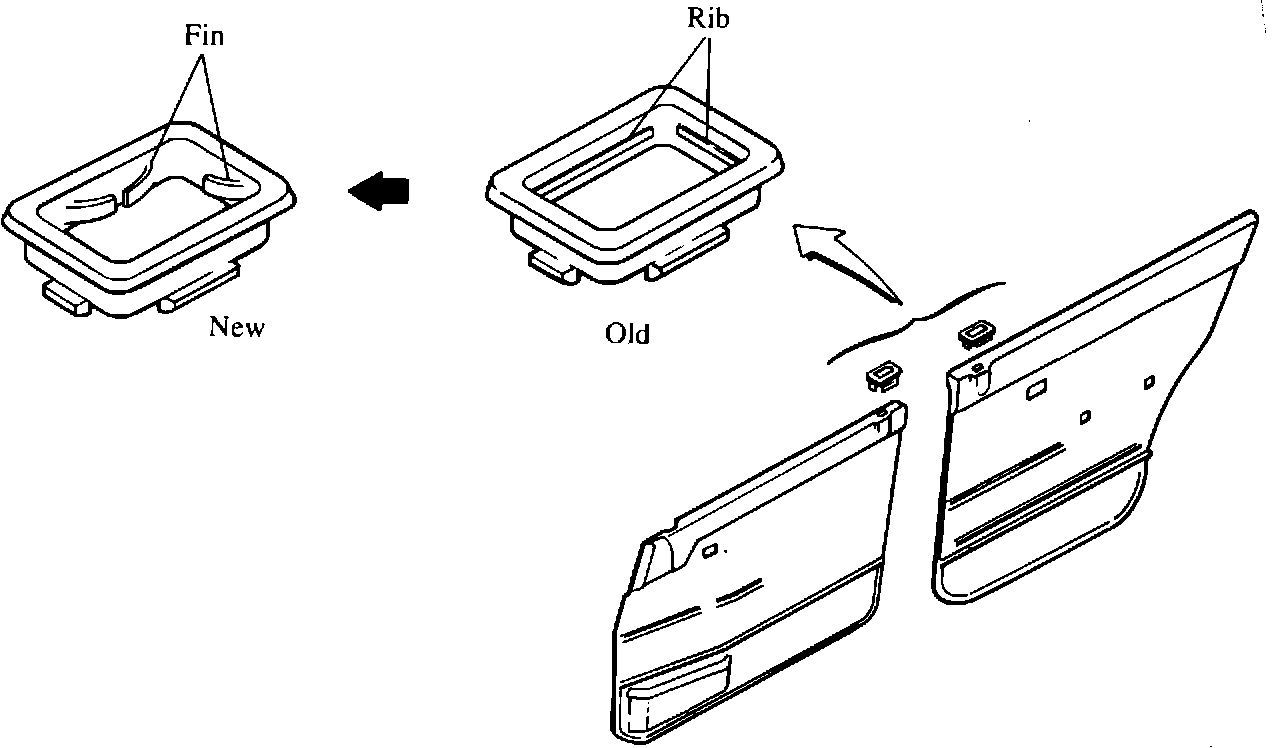

Inner Lock Vessel Configuration:




DESCRIPTION

The configuration of the inner lock vessel has been changed to allow the lock knob to move more smoothly since the production of May, 1984.

VIN OF PRODUCTION CHANGE

626 Sedan: JM1GC221 E1643225 May, 1984
Hatchback: JM1GC241 E1611520 May, 1984
Coupe: JM1GC311 E1621414 May, 1984

626DE Sedan: JM1GC222 E1500849 May, 1984

PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

G031 68 421 H045 68 421 Inner Lock Vessel NEW to OLD
