Idle Up Control Valve: Locations

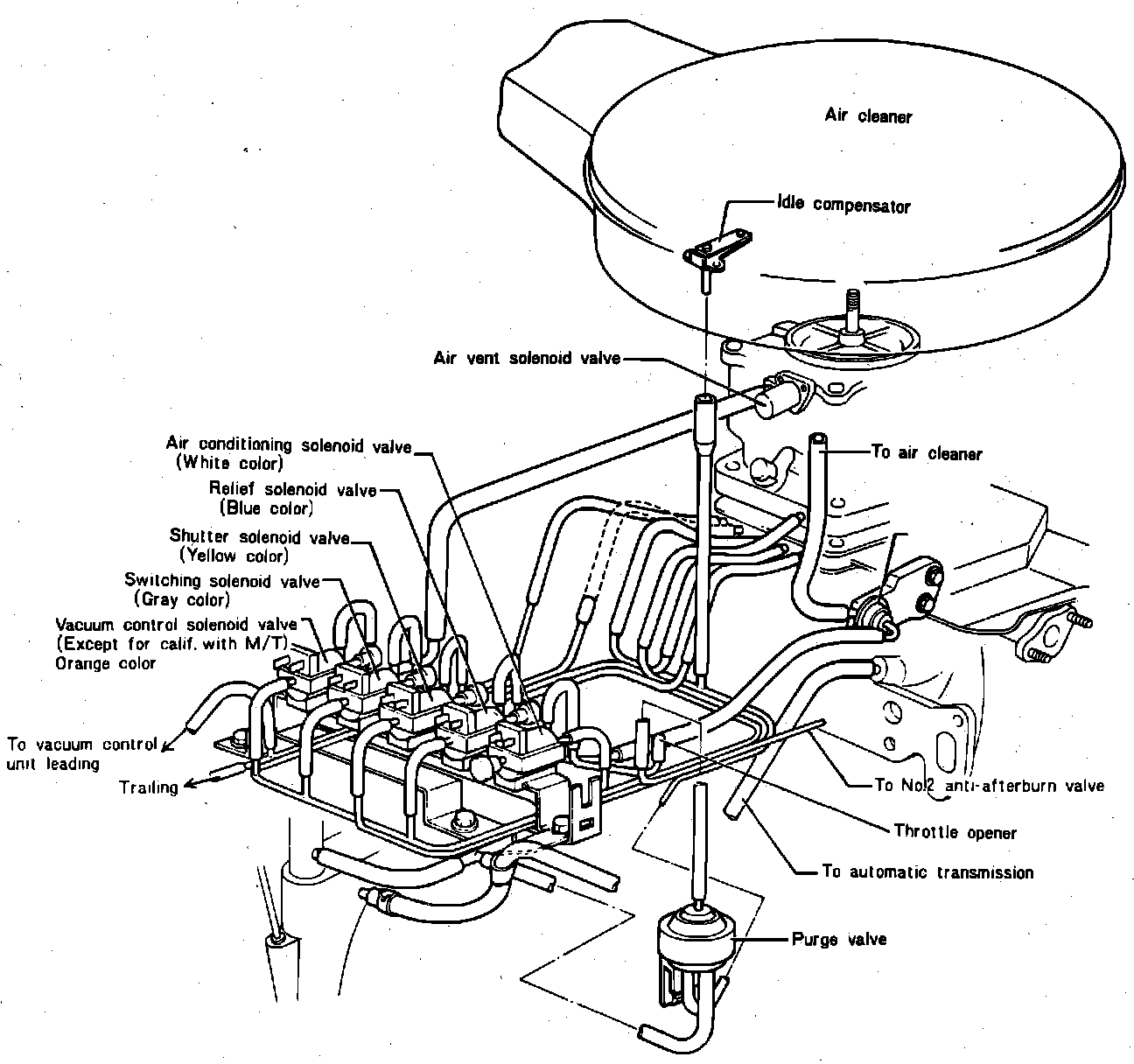

Vacuum Hose Routing.:

LH Side Of Engine

Applicable to: 1981-82 Models
