MAZDA Rotary Engine Vacuum Diagram

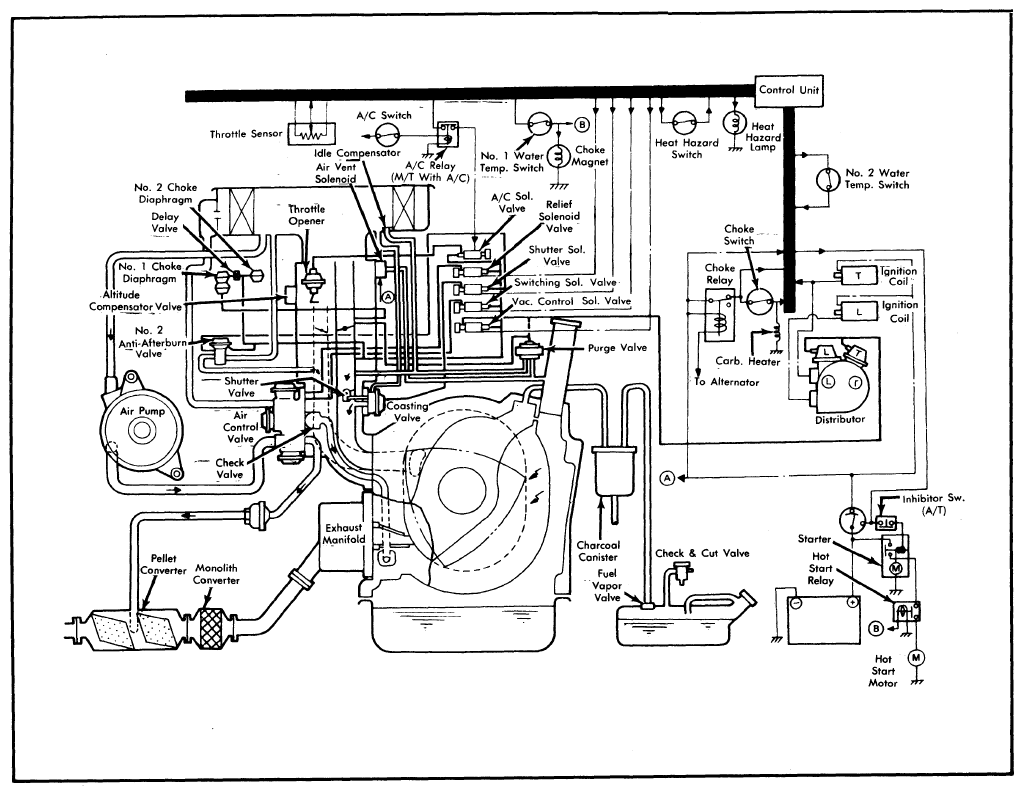

Fig 1: Vacuum Diagram for Mazda RX-7

G09313977

Courtesy of MAZDA MOTORS CORP.
