Wiring Diagrams: Wiring Diagram

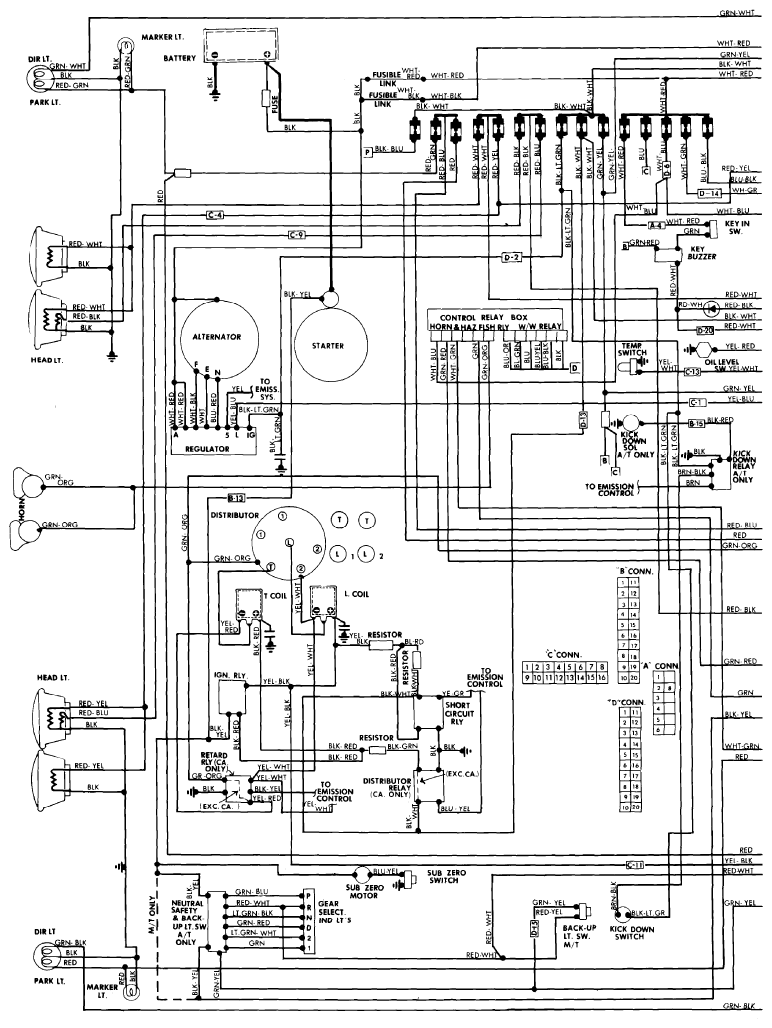

Fig 1: Wiring Diagram - Cosmo (1 of 2)
G09303537Courtesy of MAZDA MOTORS CORP.

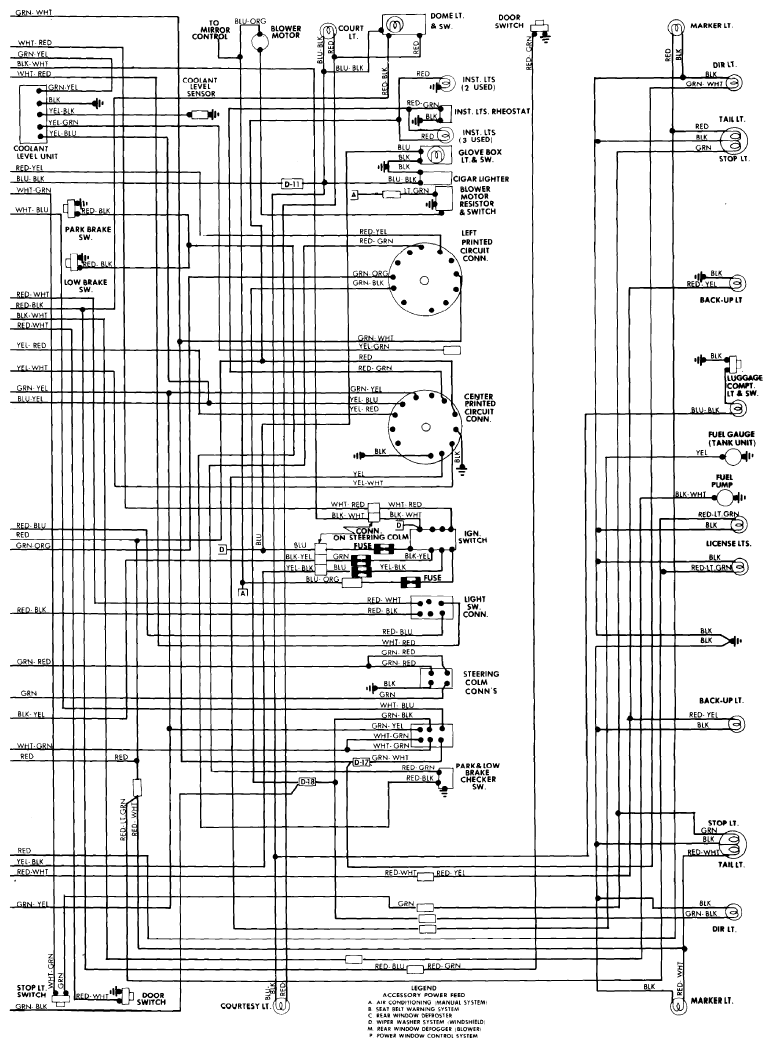

Fig 2: Wiring Diagram - Cosmo (2 of 2)
G09303538Courtesy of MAZDA MOTORS CORP.
