Electronic Engine Controls - 3.5L ECOBOOST (272KW/370PS)
>>
Description And Operation
>>
Electronic Engine Controls - Component Location
>>
Exhaust System Sensor Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

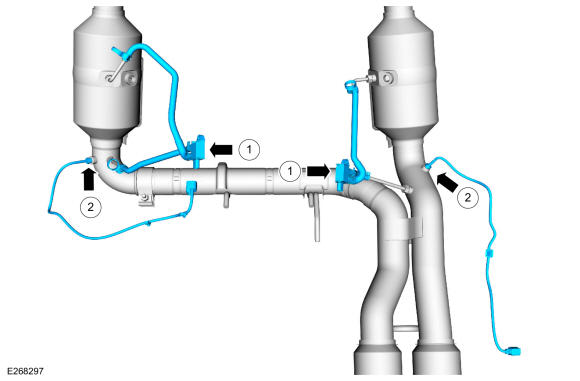

Exhaust System Sensor Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Exhaust pressure sensor
2
Exhaust gas temperature sensor
