Front Brake Disc: Removal

WARNING: This page is about a different car, the 2020 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .
  2. NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.
    NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

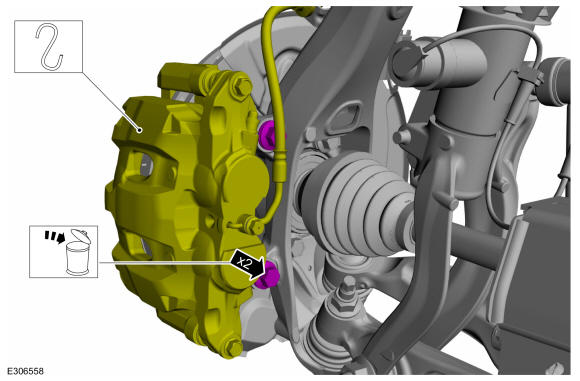

    Remove the anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.

    Torque: 129 lb.ft (175 Nm)

    GFD530597Courtesy of FORD MOTOR COMPANY

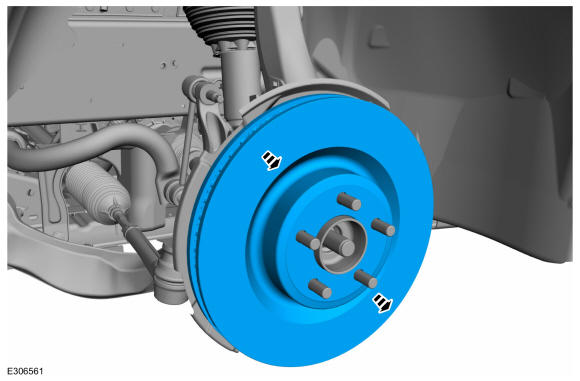

  3. Remove the brake disc.
GFD530598Courtesy of FORD MOTOR COMPANY
