Climate Control Housing: Removal

WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .
  2. Remove the driver knee airbag. Refer to: Driver Knee Airbag .
  3. Remove the steering wheel. Refer to: Steering Wheel .

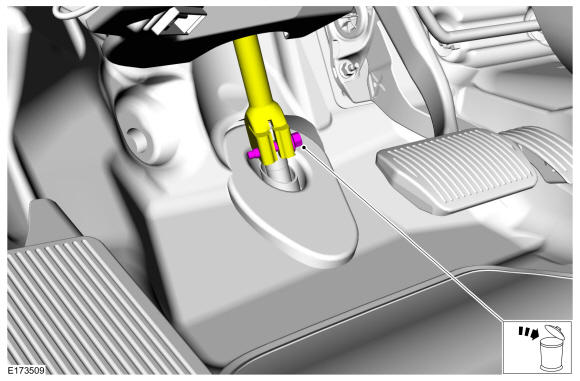

  4. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove the bolt and disconnect the steering column shaft. Discard the bolt.

    Torque: 21 lb.ft (28 Nm)

    GFD395502Courtesy of FORD MOTOR COMPANY
  5. Remove the instrument panel lower trim panel. Refer to: Instrument Panel Lower Trim Panel .

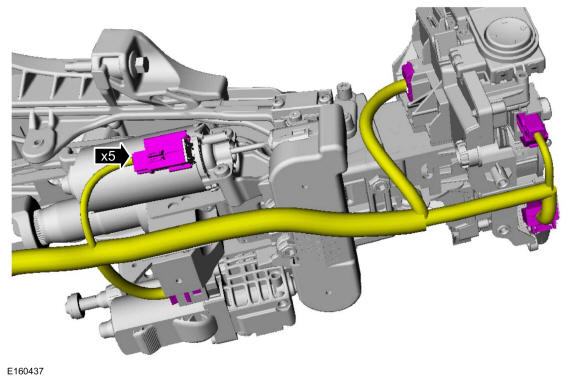

  6. NOTE: Power adjustable steering column shown, manual adjustable steering column similar.

    Disconnect the electrical connectors and position the wiring harness aside.

    GFD395503Courtesy of FORD MOTOR COMPANY

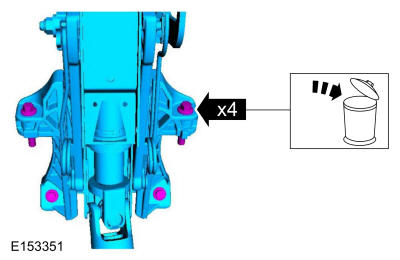

  7. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove the bolts and the steering column. Discard the bolts.

    Torque: 21 lb.ft (28 Nm)

    GFD395504Courtesy of FORD MOTOR COMPANY

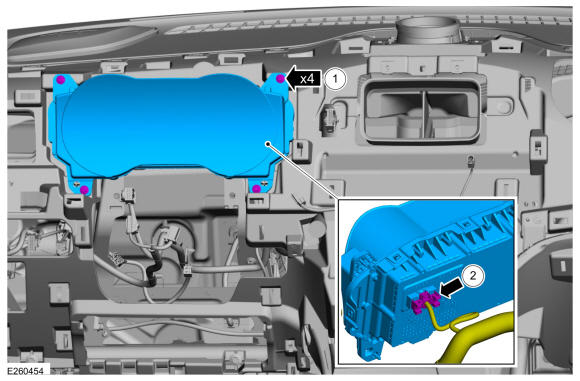

    1. Remove the retainers.

      Torque: 18 lb.in (2 Nm)

    2. Disconnect the electrical connector and remove the IPC.
    GFD395505Courtesy of FORD MOTOR COMPANY
  8. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
    GFD395253Courtesy of FORD MOTOR COMPANY

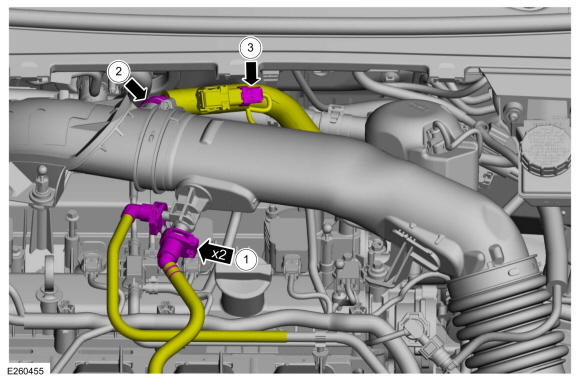

  9. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
    NOTE: 2.3L shown, 2.0L similar.
    1. Disconnect the quick release couplings. Refer to: Quick Release Coupling 2.3L EcoBoost .
    2. Disconnect the quick release coupling.
    3. Disconnect the PCV sensor electrical connector.
    GFD395506Courtesy of FORD MOTOR COMPANY

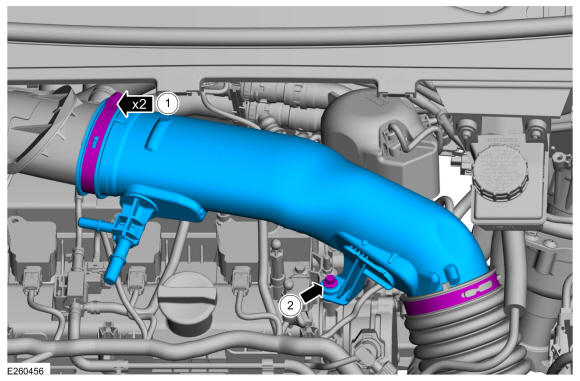

  10. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
    NOTE: 2.3L shown, 2.0L similar.
    1. Loosen the clamps.

      Torque: 44 lb.in (5 Nm)

    2. Remove the bolt and the air cleaner outlet pipe.

      Torque: 97 lb.in (11 Nm)

    GFD395507Courtesy of FORD MOTOR COMPANY
  11. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging  .

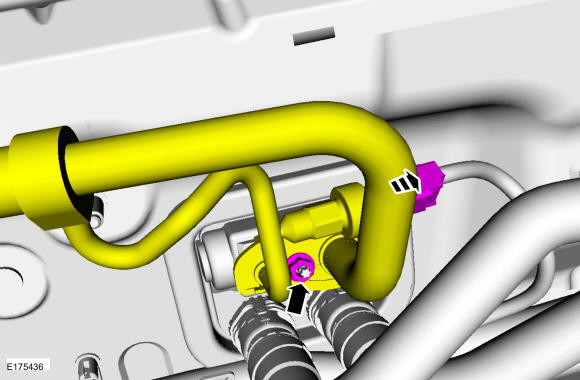

  12. Disconnect the electrical connector, remove the evaporator pipe nut and position the flange and pipe aside.
    • Make sure to cover any open ports to prevent debris from entering the system.

      Torque: 97 lb.in (11 Nm)

    GFD395508Courtesy of FORD MOTOR COMPANY

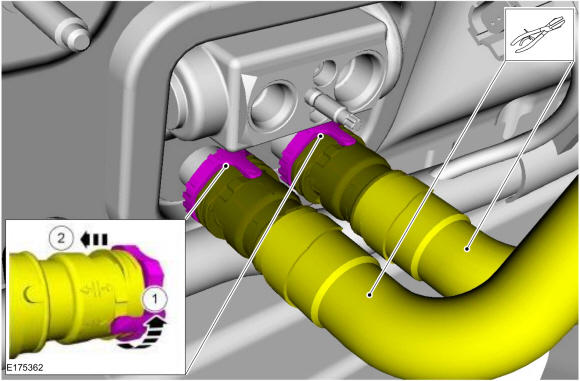

  13. Clamp and disconnect the heater hoses.
    • Make sure to cover any open ports to prevent debris from entering the system.. Use the General Equipment: Hose Clamp(s)
    GFD395509Courtesy of FORD MOTOR COMPANY
  14. Remove both front doors. Refer to: Front Door .

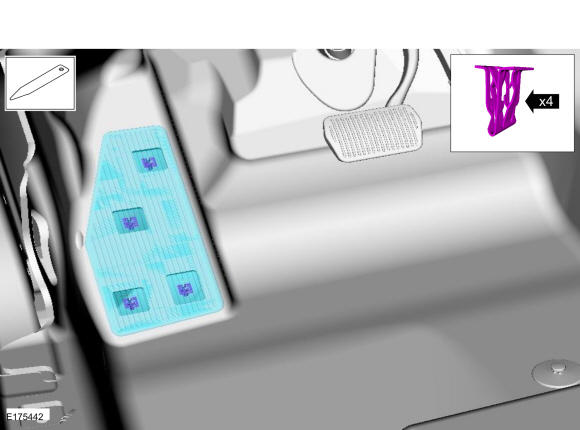

  15. Release the clips and remove the foot rest pad.. Use the General Equipment: Interior Trim Remover
    GFD395510Courtesy of FORD MOTOR COMPANY
  16. Remove both front seats. Refer to: Front Seat .

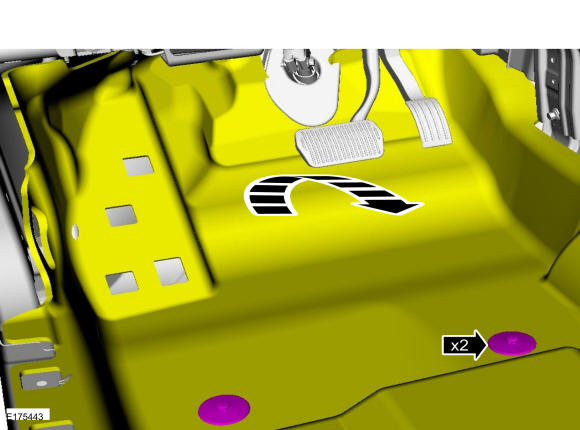

  17. Remove the retainers and position the carpet rearward.
    GFD395511Courtesy of FORD MOTOR COMPANY

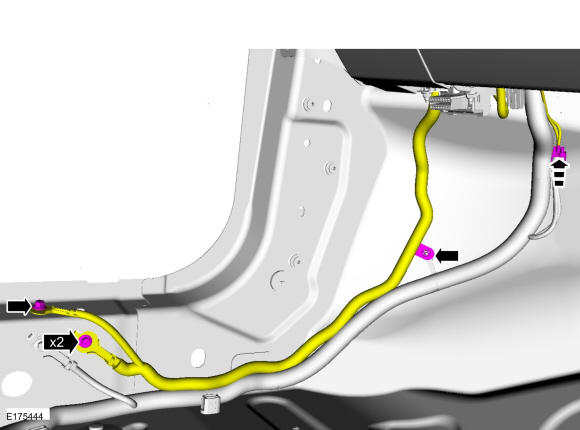

  18. Remove the bolts, release the wiring harness retainer and position the LH harness aside.
    • Disconnect the electrical connector.

      Torque: 106 lb.in (12 Nm)

    GFD395512Courtesy of FORD MOTOR COMPANY

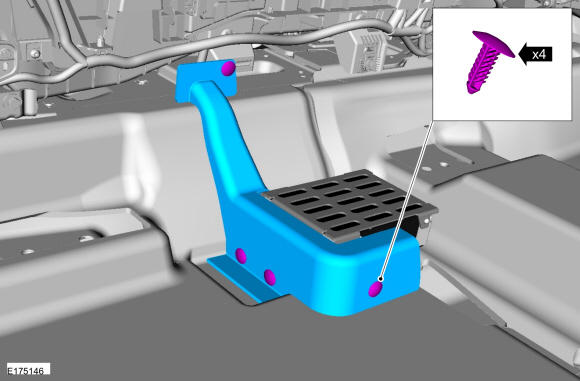

  19. Remove the push pin retainers and the power inverter trim cover.
    GFD395513Courtesy of FORD MOTOR COMPANY

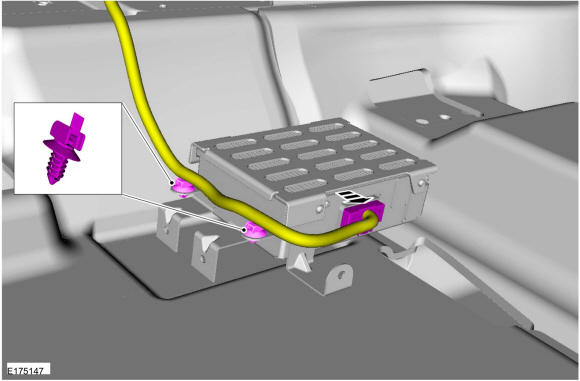

  20. Disconnect the power inverter electrical harness and detach the push pins.
    GFD395514Courtesy of FORD MOTOR COMPANY

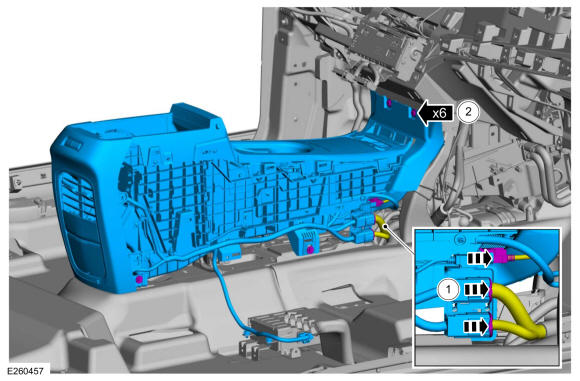

    1. Disconnect the electrical connectors.
    2. Remove the retainers and the floor console.

      Torque: 35 lb.in (4 Nm)

    GFD395515Courtesy of FORD MOTOR COMPANY

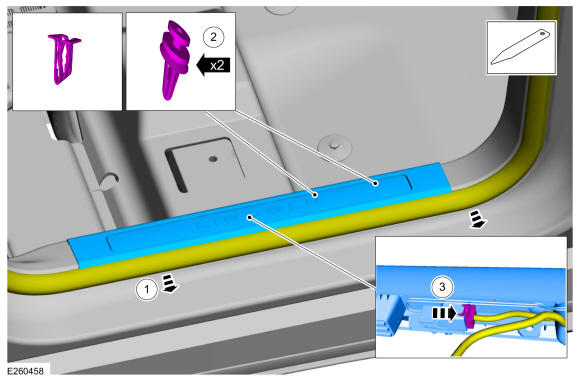

    1. Position the weatherstrip aside.
    2. Release the retainers.
    3. Disconnect the electrical connector and remove the RH sill plate.. Use the General Equipment: Interior Trim Remover
    GFD395516Courtesy of FORD MOTOR COMPANY

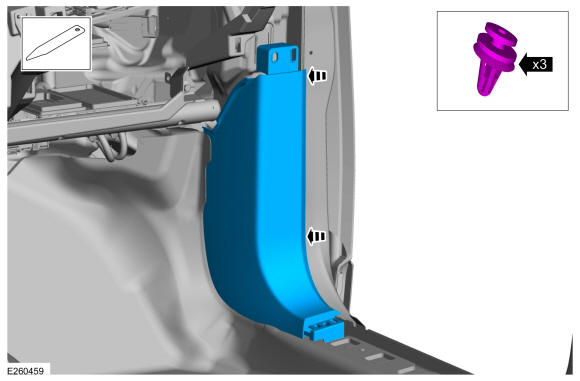

  21. Release the retainers and remove the RH lower cowl trim panel.. Use the General Equipment: Interior Trim Remover
    GFD395517Courtesy of FORD MOTOR COMPANY

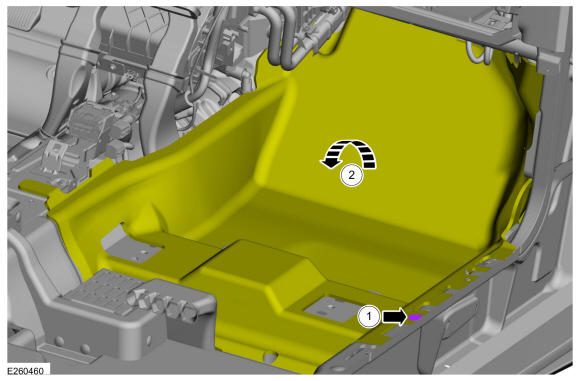

    1. Remove the push pin retainer.
    2. Position the carpet rearward.
    GFD395518Courtesy of FORD MOTOR COMPANY
  22. Remove the push pin retainer and the lower RH side instrument panel insulator.
    • Disconnect the electrical connector.
    GFD395477Courtesy of FORD MOTOR COMPANY

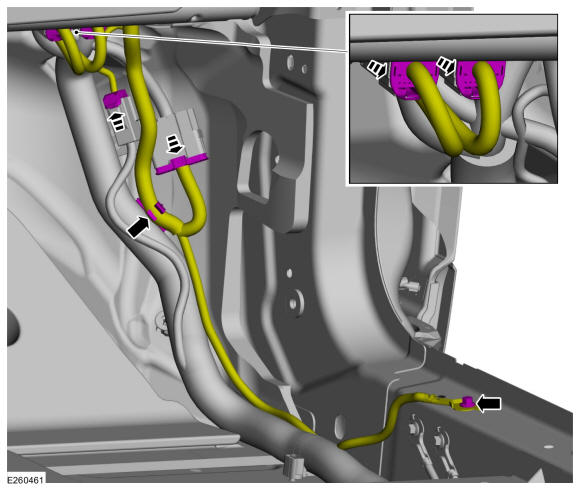

  23. Remove the bolt, disconnect the electrical connectors and position the wiring harness aside.

    Torque: 106 lb.in (12 Nm)

    GFD395519Courtesy of FORD MOTOR COMPANY

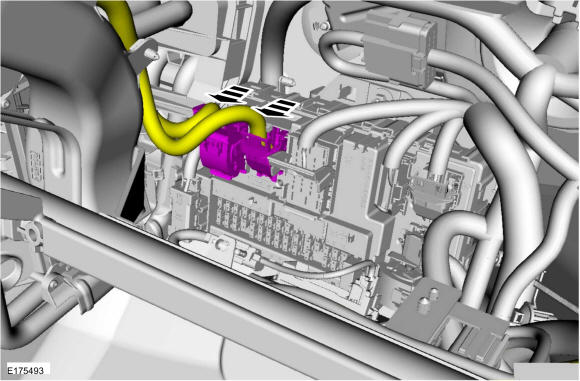

  24. Disconnect the electrical connectors.
    GFD395520Courtesy of FORD MOTOR COMPANY

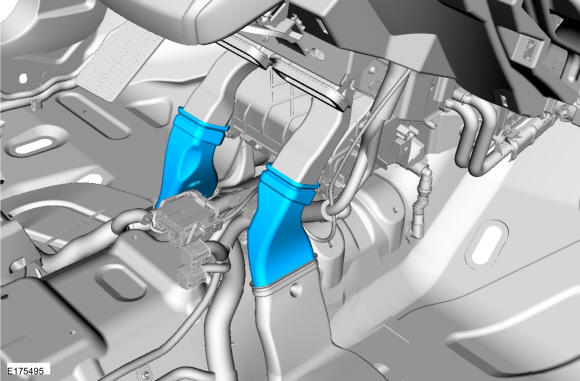

  25. Remove the HVAC ducts.
    GFD395521Courtesy of FORD MOTOR COMPANY

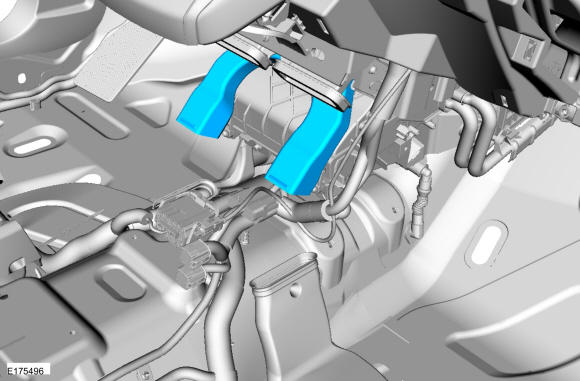

  26. Remove the HVAC ducts.
    GFD395522Courtesy of FORD MOTOR COMPANY

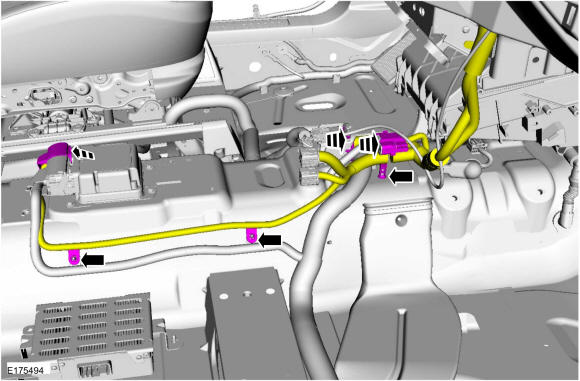

  27. Disconnect the electrical connectors and release the wiring harness.
    GFD395523Courtesy of FORD MOTOR COMPANY

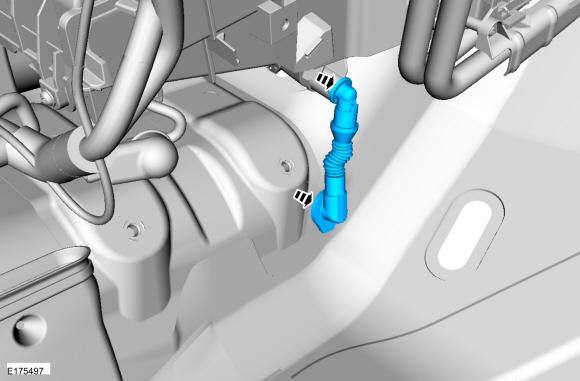

  28. Remove the HVAC drain tube.
    GFD395524Courtesy of FORD MOTOR COMPANY

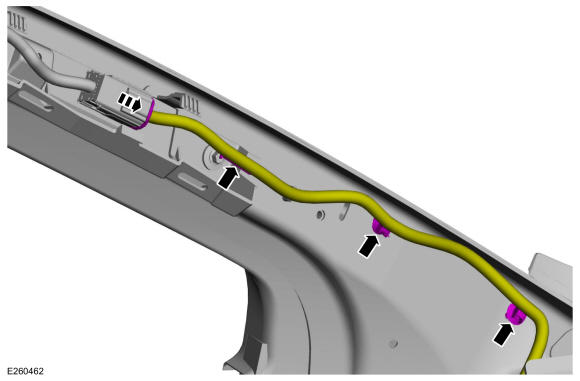

  29. Disconnect the electrical connector and detach the wiring harness.
    GFD395525Courtesy of FORD MOTOR COMPANY

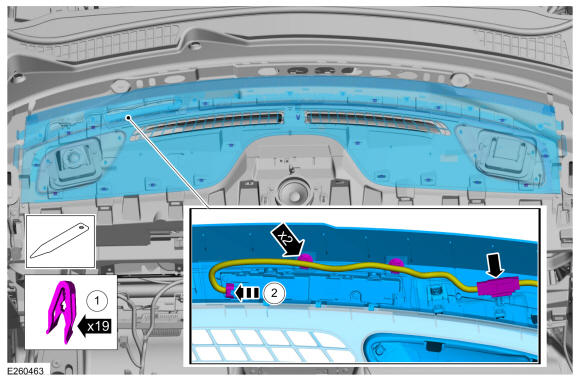

    1. Release the clips and remove the defrost vent trim panel.
    2. If equipped, Disconnect the electrical connectors and detach the HUD wiring harness.
    GFD395526Courtesy of FORD MOTOR COMPANY

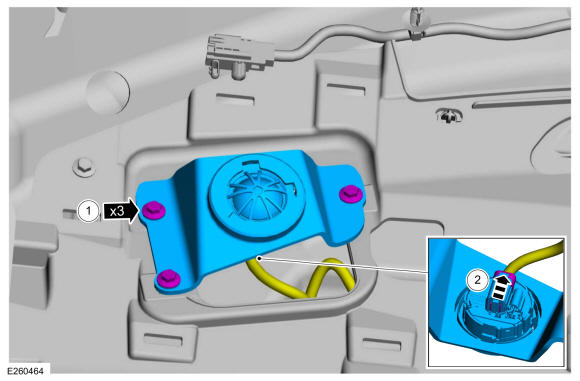

    1. Remove the retainers.

      Torque: 18 lb.in (2 Nm)

    2. Disconnect the electrical connector and remove the driver side instrument panel speaker.
    GFD395527Courtesy of FORD MOTOR COMPANY

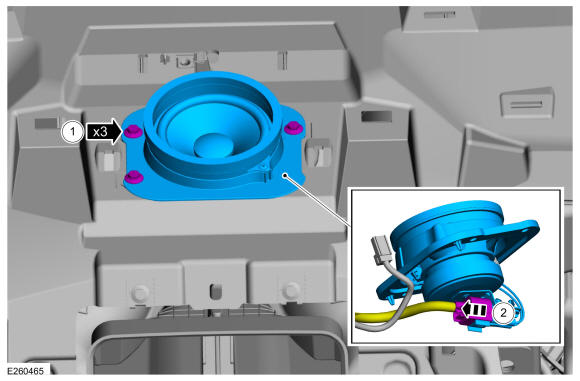

    1. Remove the retainers.

      Torque: 18 lb.in (2 Nm)

    2. Disconnect the electrical connector and remove the instrument panel center speaker.
    GFD395528Courtesy of FORD MOTOR COMPANY

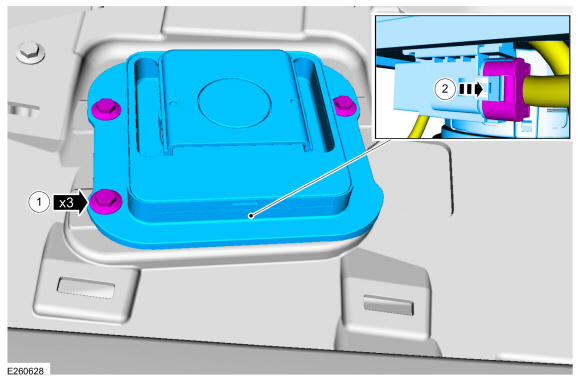

    1. Remove the retainers.

      Torque: 18 lb.in (2 Nm)

    2. Disconnect the electrical connector and remove the passenger side instrument panel speaker.
    GFD395529Courtesy of FORD MOTOR COMPANY

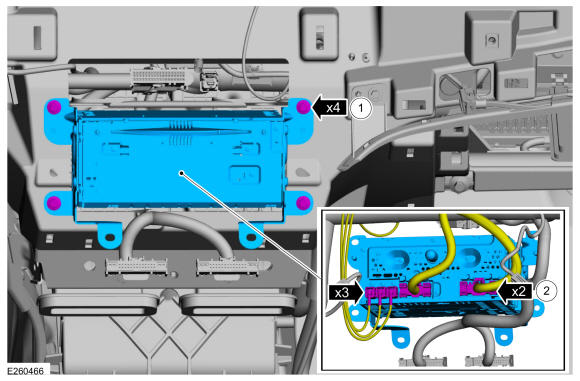

    1. Remove the retainers.

      Torque: 27 lb.in (3 Nm)

    2. Disconnect the electrical connectors and remove the FDIM.
    GFD395530Courtesy of FORD MOTOR COMPANY

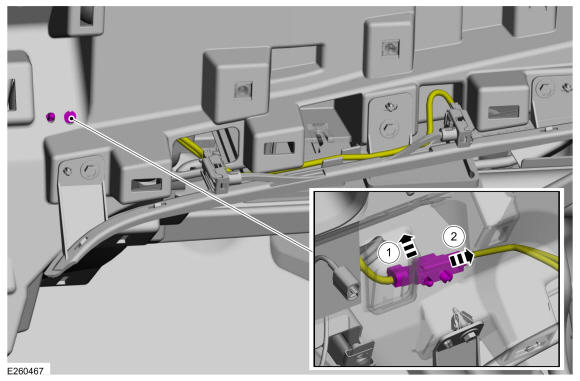

    1. Detach the wiring harness.
    2. Disconnect the electrical connector.
    GFD395531Courtesy of FORD MOTOR COMPANY

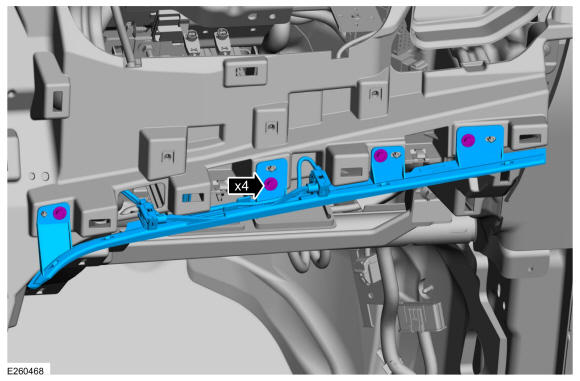

  30. Remove the retainers and the ambient lighting strip.
    GFD395532Courtesy of FORD MOTOR COMPANY

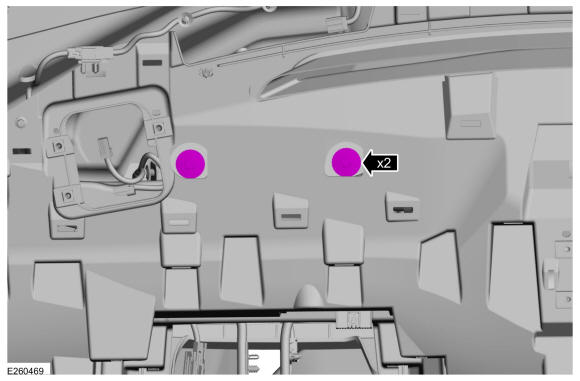

  31. Remove the upper instrument panel bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD395533Courtesy of FORD MOTOR COMPANY

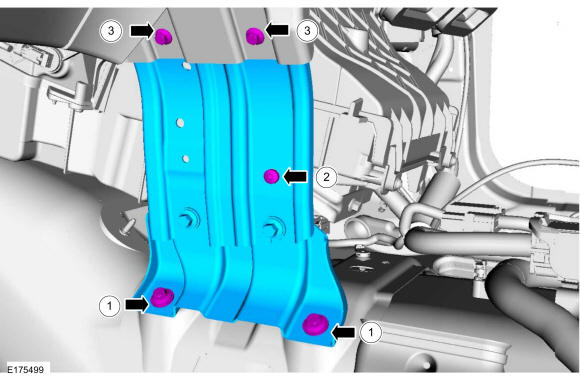

    1. Remove the bolts.

      Torque: 18 lb.ft (25 Nm)

    2. Remove the screw.

      Torque: 27 lb.in (3 Nm)

    3. Remove the bolts and the instrument panel center brace.

      Torque: 89 lb.in (10 Nm)

    GFD395534Courtesy of FORD MOTOR COMPANY

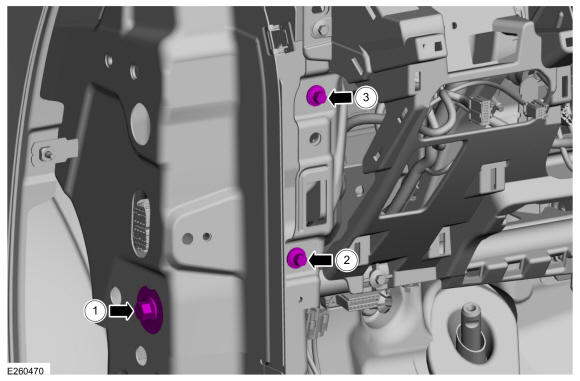

  32. NOTE: Leave the upper instrument panel support bolt finger tight.
    1. Remove the LH A-pillar to in-vehicle cross beam support bolt.

      Torque: 30 lb.ft (40 Nm)

    2. Remove the lower LH instrument panel support bolt.

      Torque: 177 lb.in (20 Nm)

    3. Loosen the upper LH instrument panel support bolt.
    Fig 1: LH Instrument Panel Support Bolts Loosening Sequence
    GFD395535Courtesy of FORD MOTOR COMPANY

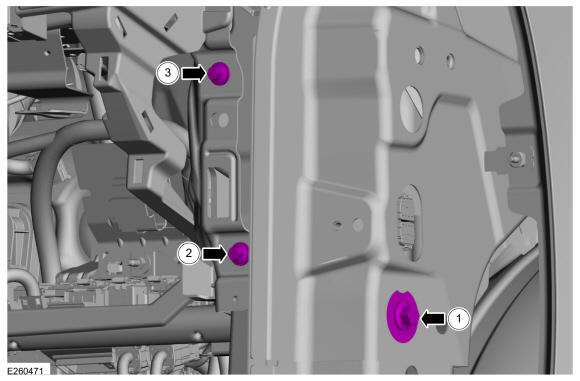

  33. NOTE: Leave the upper instrument panel support bolt finger tight.
    1. Remove the RH A-pillar to in-vehicle cross beam support bolt.

      Torque: 30 lb.ft (40 Nm)

    2. Remove the lower RH instrument panel support bolt.

      Torque: 177 lb.in (20 Nm)

    3. Loosen the upper RH instrument panel support bolt.
    GFD395536Courtesy of FORD MOTOR COMPANY

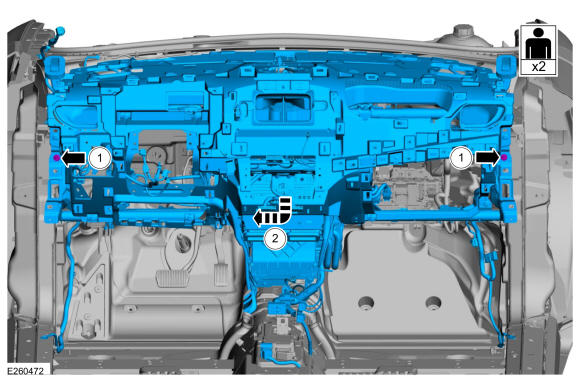

  34. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.
    1. Remove the upper LH and RH instrument panel support bolts.

      Torque: 177 lb.in (20 Nm)

    2. Rotate the instrument panel face down and remove through the LH front door opening.
    GFD395537Courtesy of FORD MOTOR COMPANY

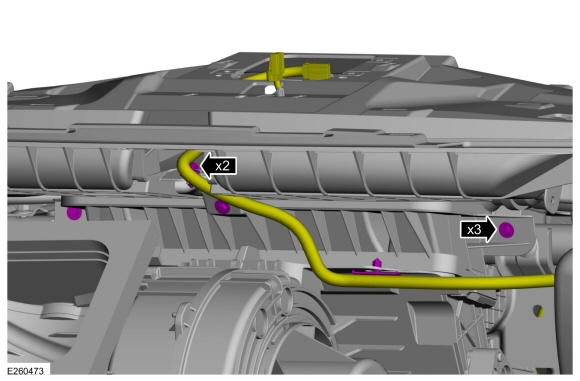

  35. Detach the retainers, position the wiring harness aside and remove the retainers.

    Torque: 27 lb.in (3 Nm)

    GFD395538Courtesy of FORD MOTOR COMPANY

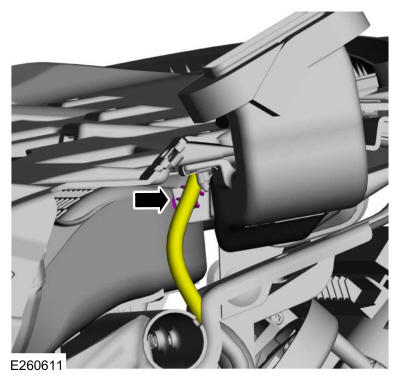

  36. Detach the retainer and position the wiring harness aside.
    GFD395539Courtesy of FORD MOTOR COMPANY

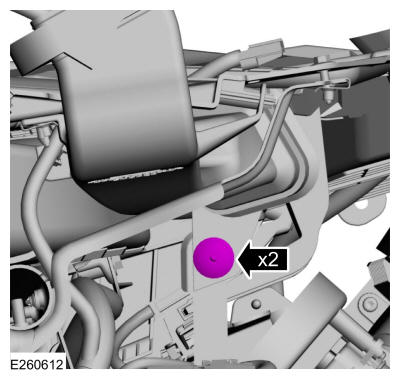

  37. NOTE: RH shown, LH similar.

    Remove both push pin retainers.

    GFD395540Courtesy of FORD MOTOR COMPANY

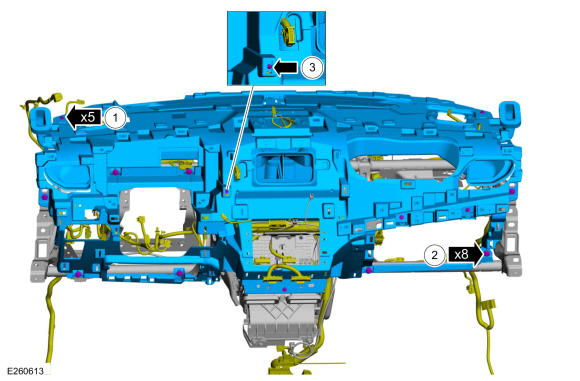

    1. Remove the retainers.

      Torque: 27 lb.in (3 Nm)

    2. Remove the retainers.

      Torque: 27 lb.in (3 Nm)

    3. Detach the wiring harness retainer and remove the instrument panel.
    GFD395541Courtesy of FORD MOTOR COMPANY

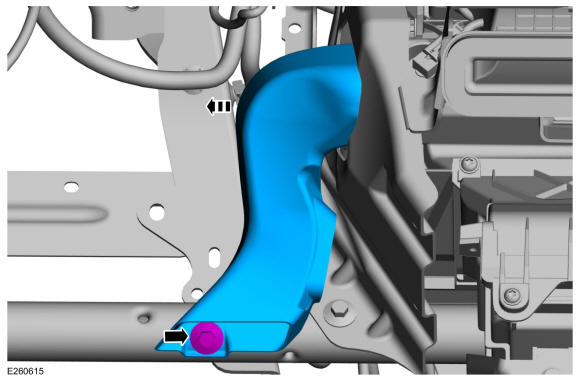

  38. Remove the bolt and the driver side floor duct.

    Torque: 35 lb.in (4 Nm)

    GFD395542Courtesy of FORD MOTOR COMPANY

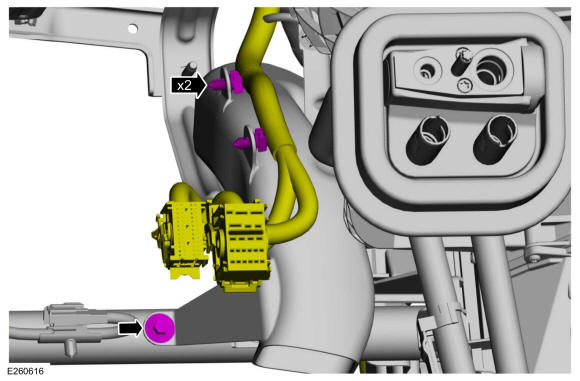

  39. Detach the retainers and remove the bolt.

    Torque: 35 lb.in (4 Nm)

    GFD395543Courtesy of FORD MOTOR COMPANY

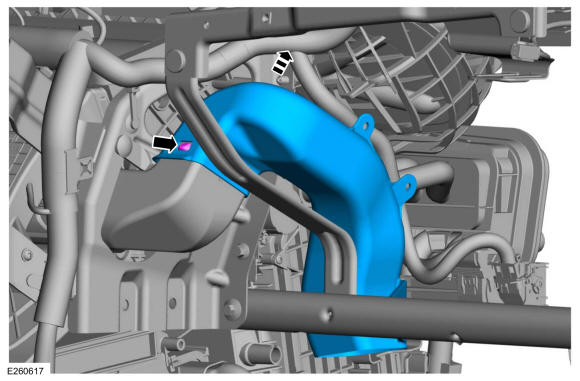

  40. Remove the passenger side floor duct.
    GFD395544Courtesy of FORD MOTOR COMPANY

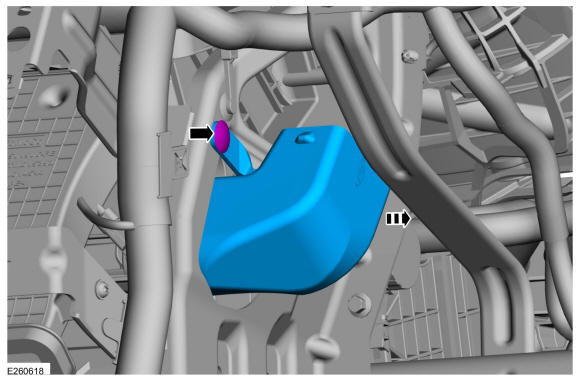

  41. Remove the push pin retainer and the duct.
    GFD395545Courtesy of FORD MOTOR COMPANY

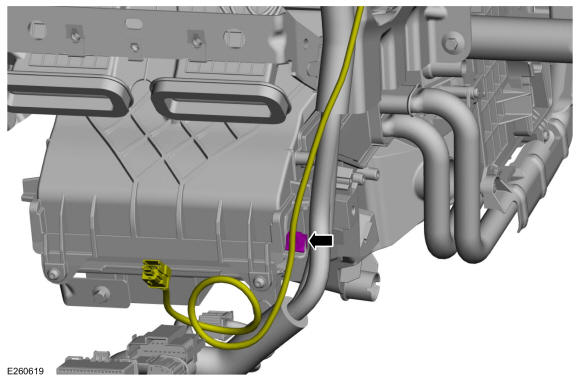

  42. Detach the clip and position the USB wiring harness aside.
    GFD395546Courtesy of FORD MOTOR COMPANY

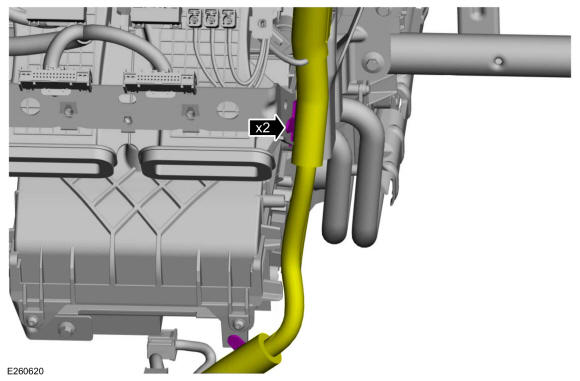

  43. Detach the retainers and position the instrument panel wiring harness aside.
    GFD395547Courtesy of FORD MOTOR COMPANY

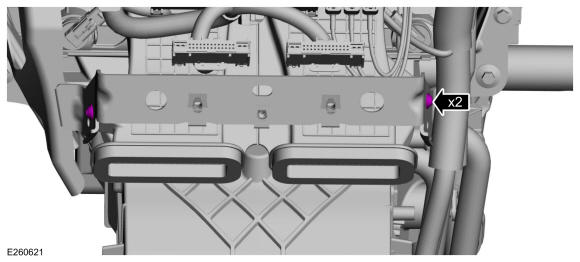

  44. Remove the retainers.
    GFD395548Courtesy of FORD MOTOR COMPANY

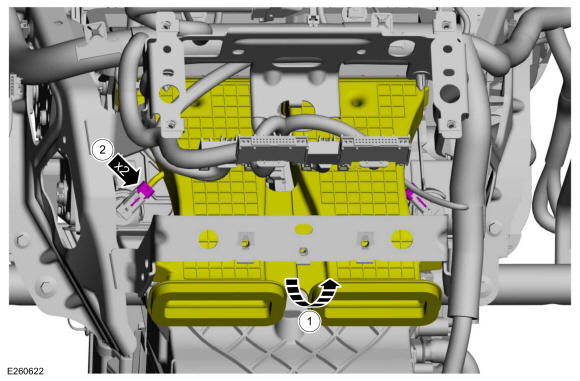

    1. Position the duct aside.
    2. Disconnect the electrical connectors.
    GFD395549Courtesy of FORD MOTOR COMPANY

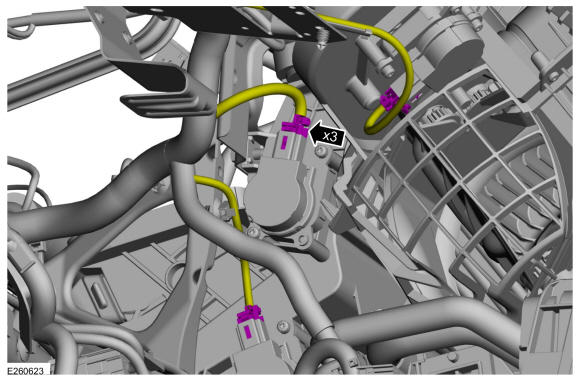

  45. Disconnect the electrical connectors.
    GFD395550Courtesy of FORD MOTOR COMPANY

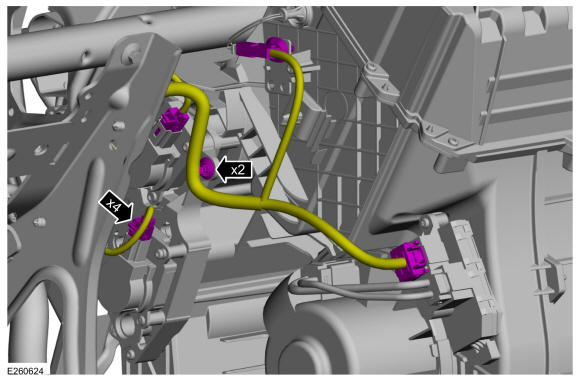

  46. Disconnect the electrical connectors, detach the wiring harness retainer and position the wiring harness aside.
    GFD395551Courtesy of FORD MOTOR COMPANY

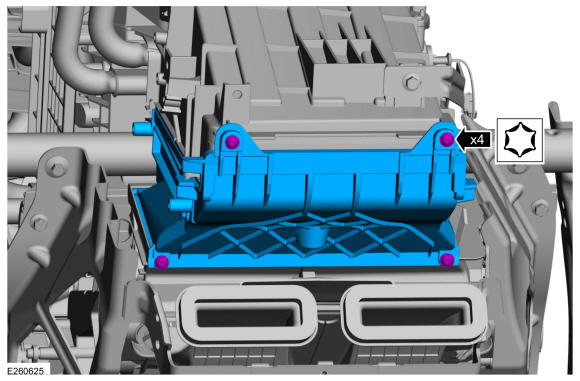

  47. Remove the retainers and the air plenum bezel.
    GFD395552Courtesy of FORD MOTOR COMPANY

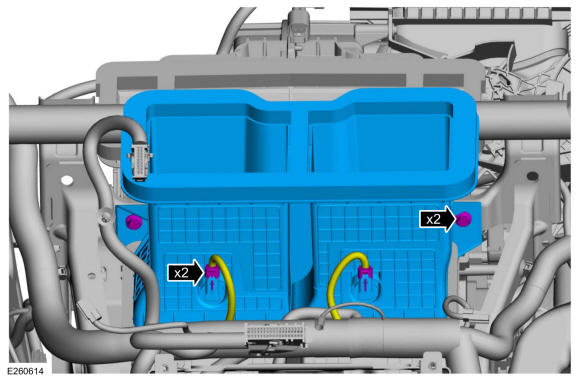

  48. Disconnect the electrical connectors, remove the retainers and the center register duct.

    Torque: 53 lb.in (6 Nm)

    GFD395553Courtesy of FORD MOTOR COMPANY

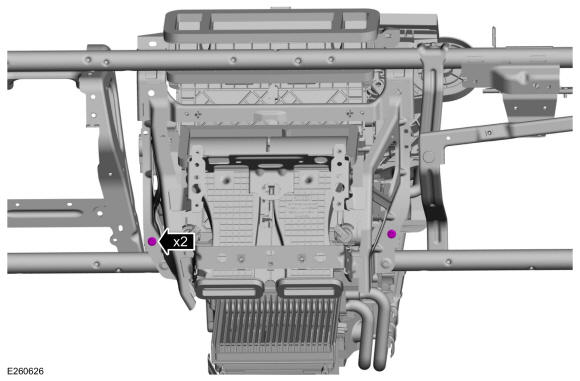

  49. Remove the climate control housing bolts.

    Torque: 53 lb.in (6 Nm)

    GFD395554Courtesy of FORD MOTOR COMPANY

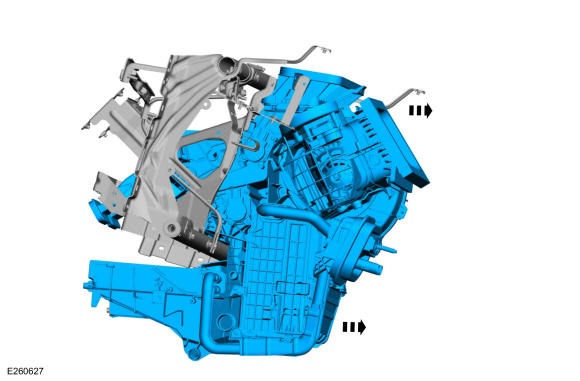

  50. Remove the climate control housing.
GFD395555Courtesy of FORD MOTOR COMPANY
