Headlamp Control Module (HCM): Removal

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility and 2017 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: This step is only necessary if the HCM is being replaced.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

NOTE: If the HCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the HCM following the on-screen instructions.

2.

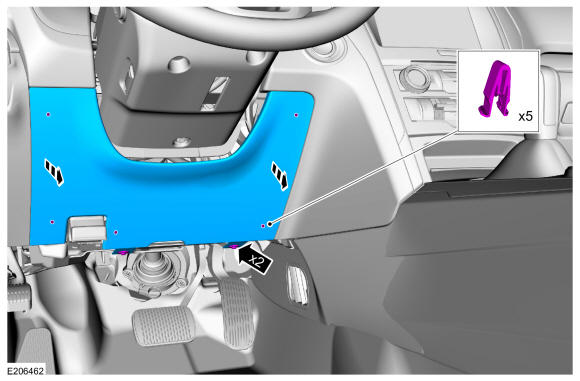

Remove the screws, detach the clips and remove the lower instrument panel lower steering column cover.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

3.

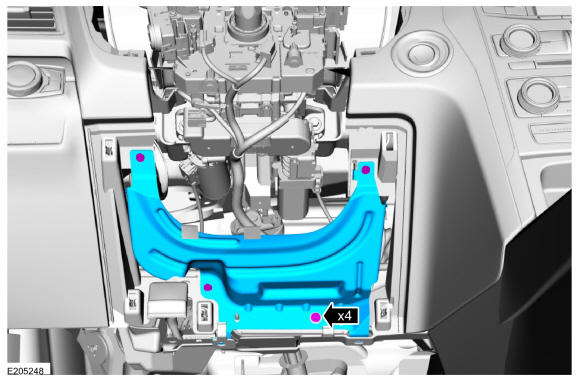

Remove the bolts and the steering column reinforcement panel.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

4.

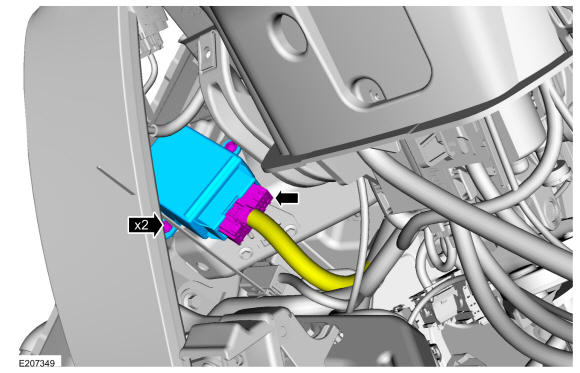

Disconnect the electrical connector, remove the screws and the HCM.

Courtesy of FORD MOTOR COMPANY
