Transfer Case Draining and Filling

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Name	Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A

Draining

Follow the health and safety precautions. Refer to: Health and Safety Precautions .
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the PTU drain plug.

Courtesy of FORD MOTOR COMPANY
Install the PTU drain plug.
Torque: 33 lb.ft (45 Nm)

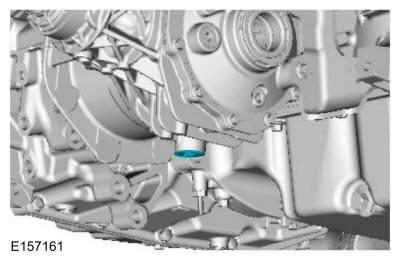

GFD395268

Courtesy of FORD MOTOR COMPANY

Filling

Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY
Fill the PTU with clean fluid, level with the fill plug opening.
Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield.

GFD395267

Courtesy of FORD MOTOR COMPANY
