Component Location Views

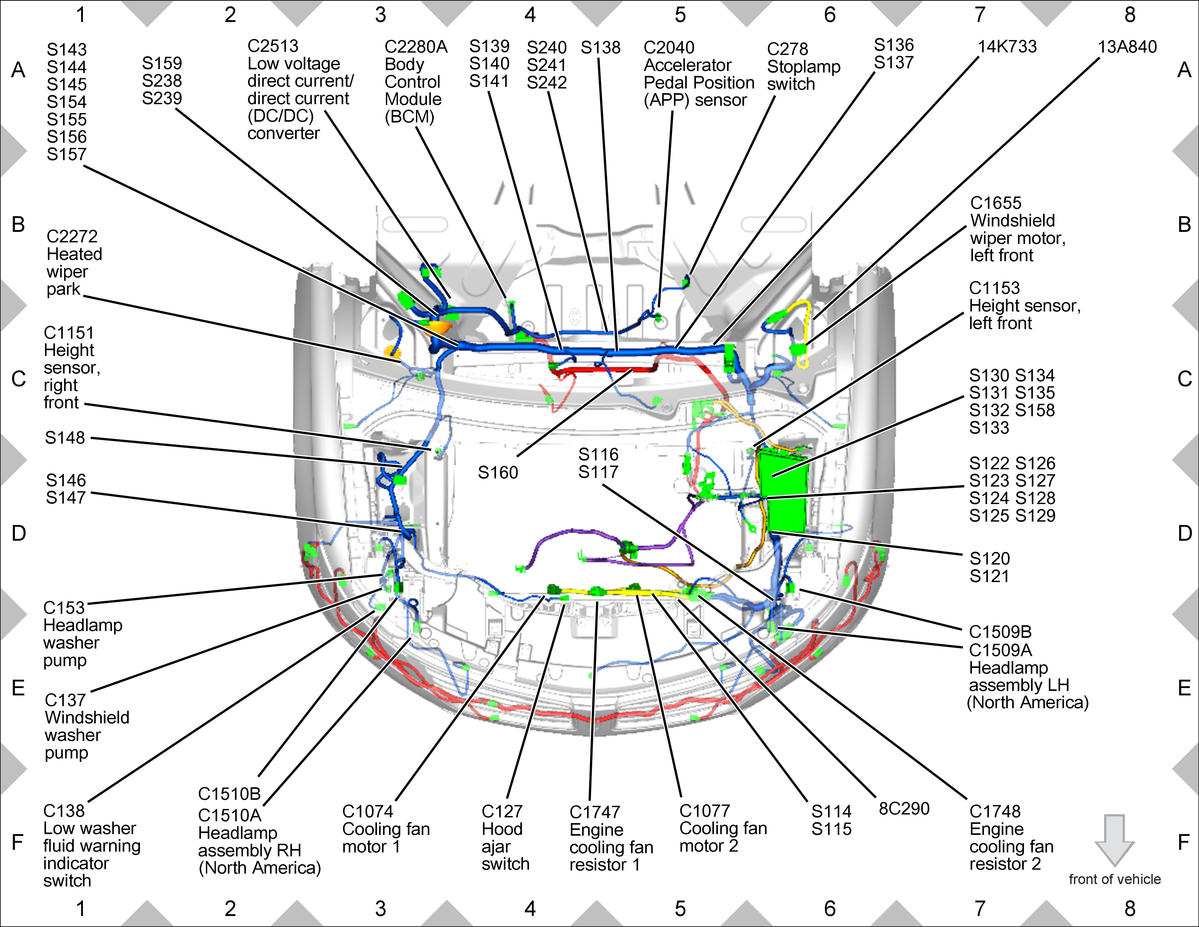

GFDWR58168Courtesy of FORD MOTOR COMPANY

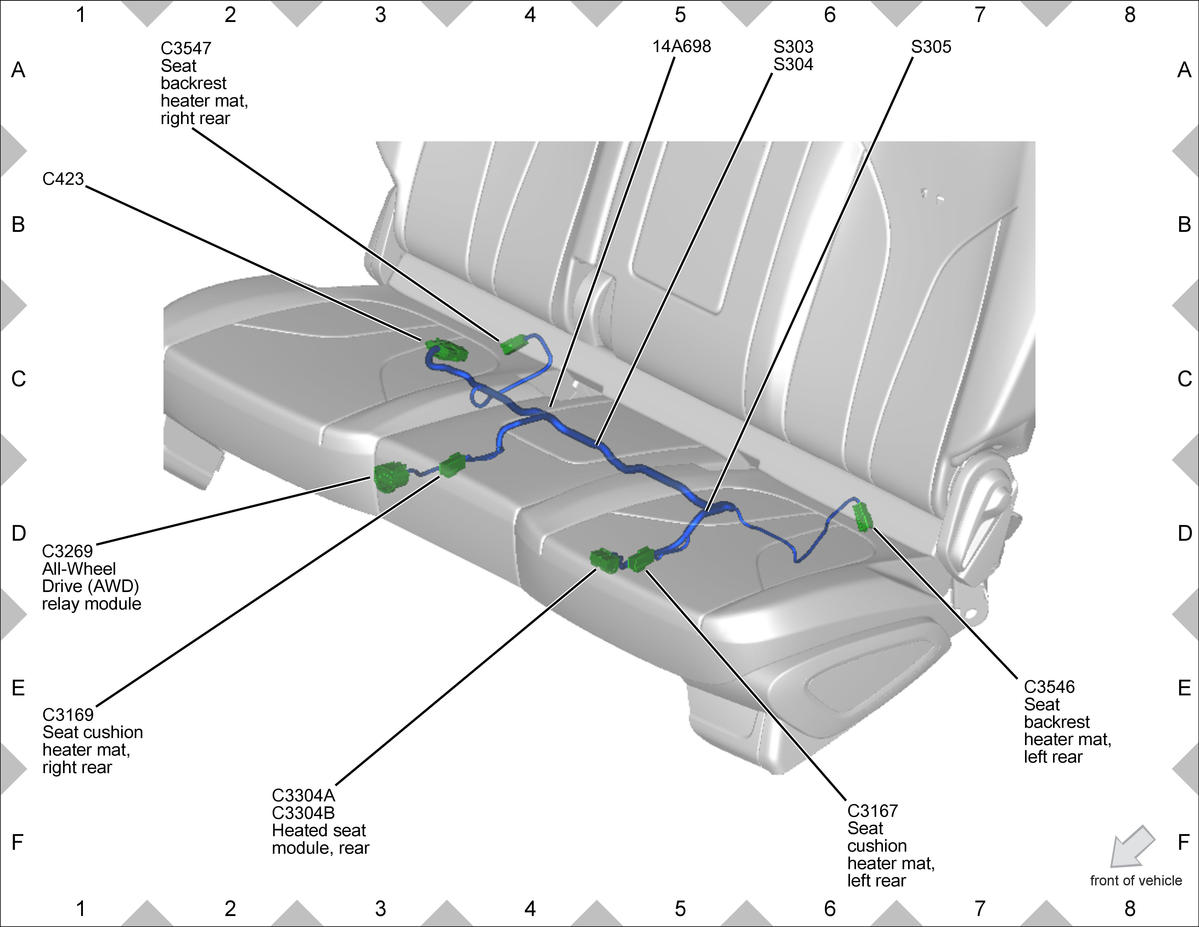

GFDWR58169Courtesy of FORD MOTOR COMPANY

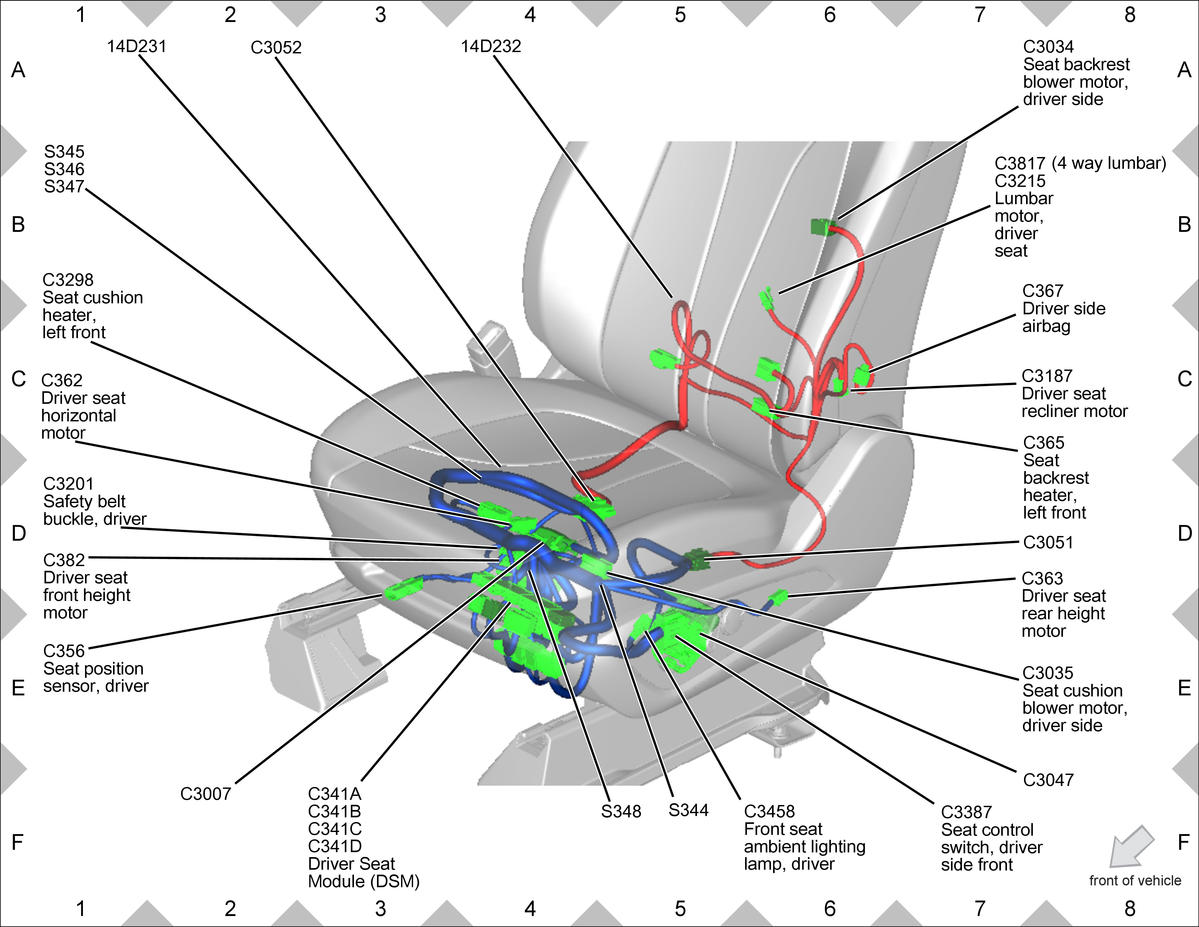

GFDWR58170Courtesy of FORD MOTOR COMPANY

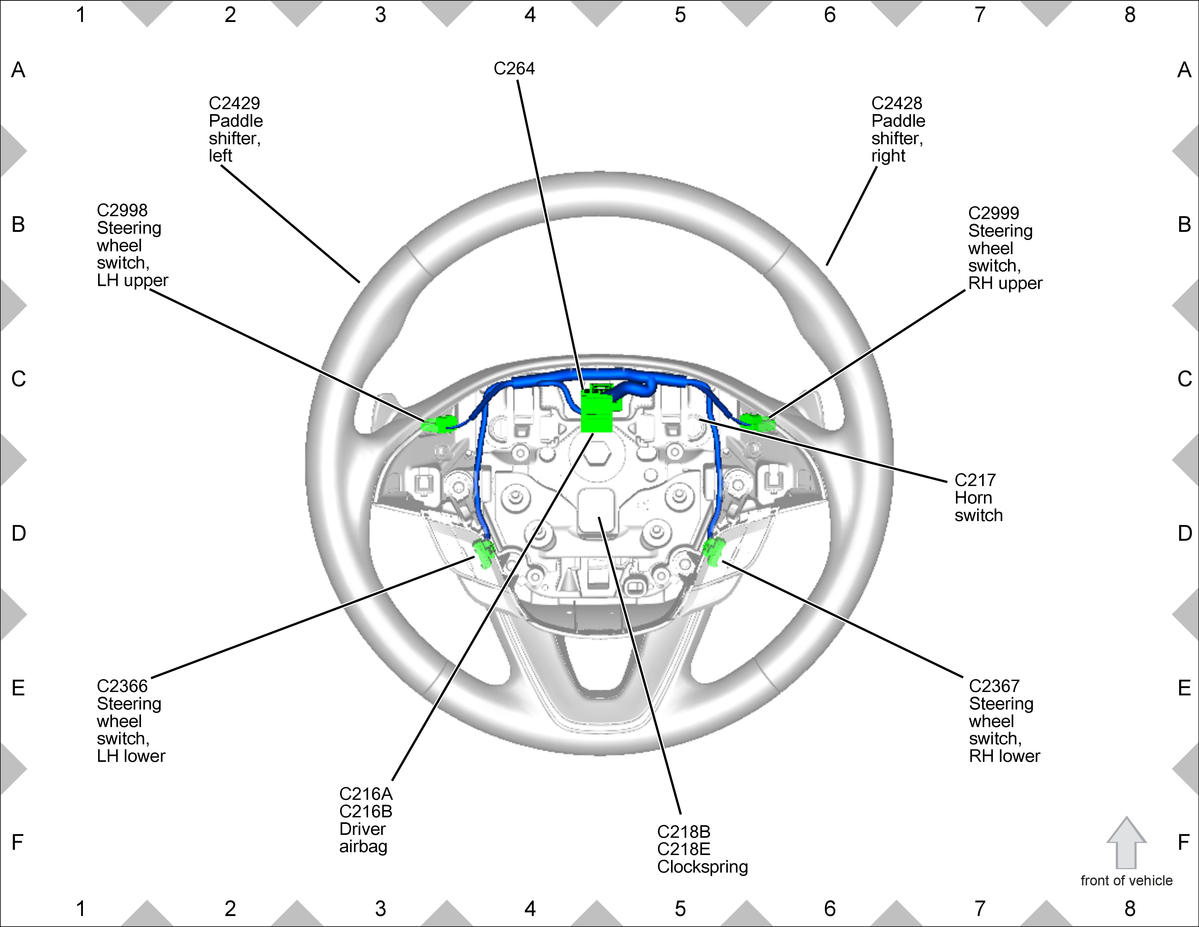

GFDWR58171Courtesy of FORD MOTOR COMPANY

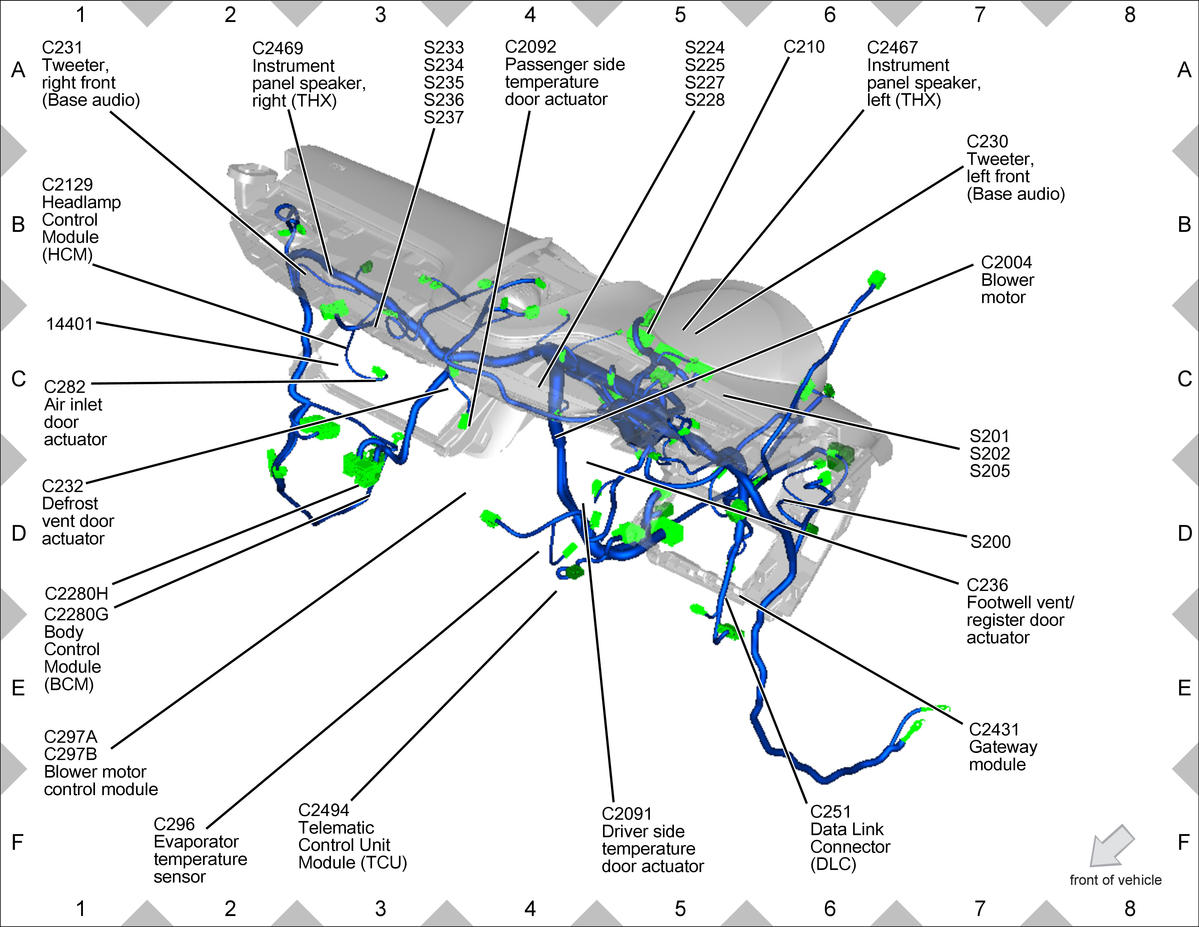

GFDWR58172Courtesy of FORD MOTOR COMPANY

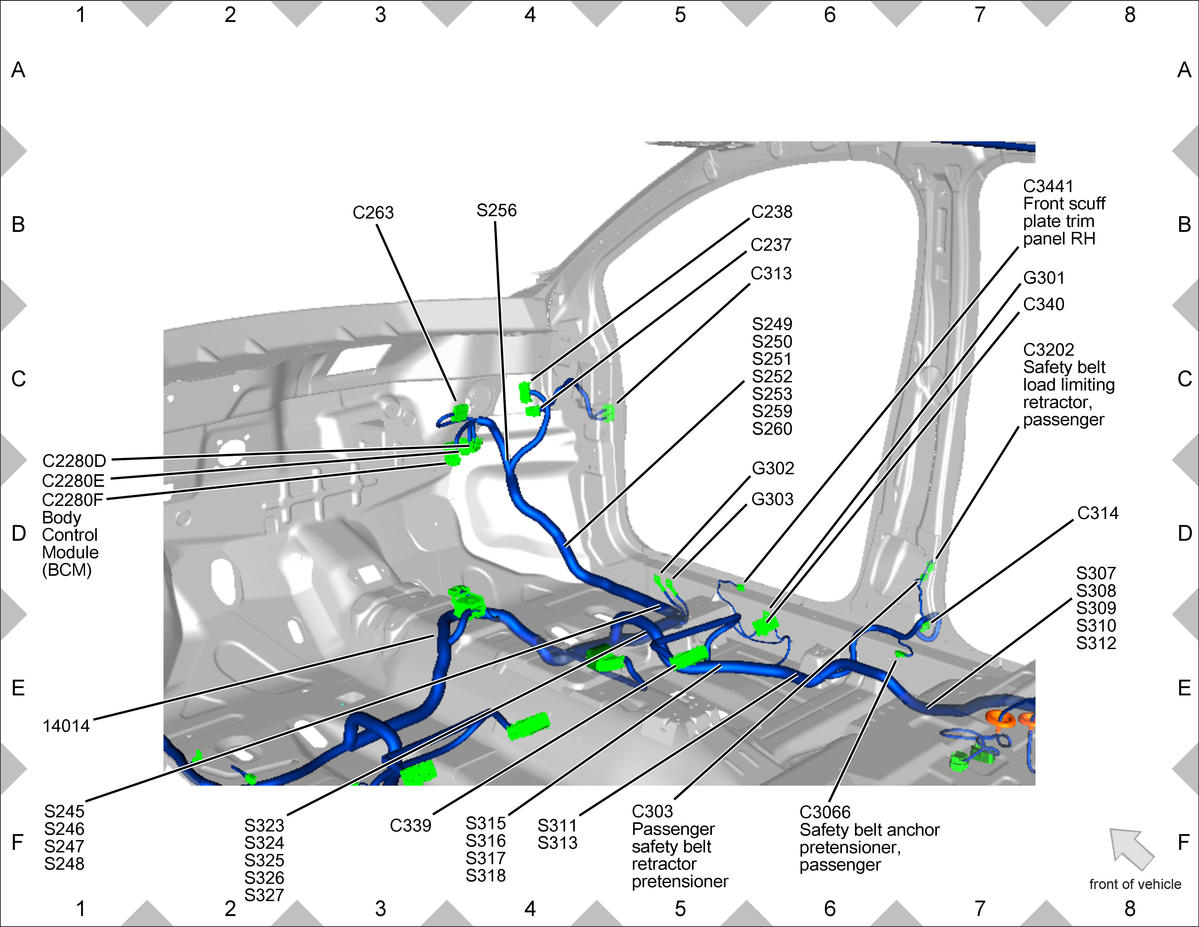

GFDWR58173Courtesy of FORD MOTOR COMPANY

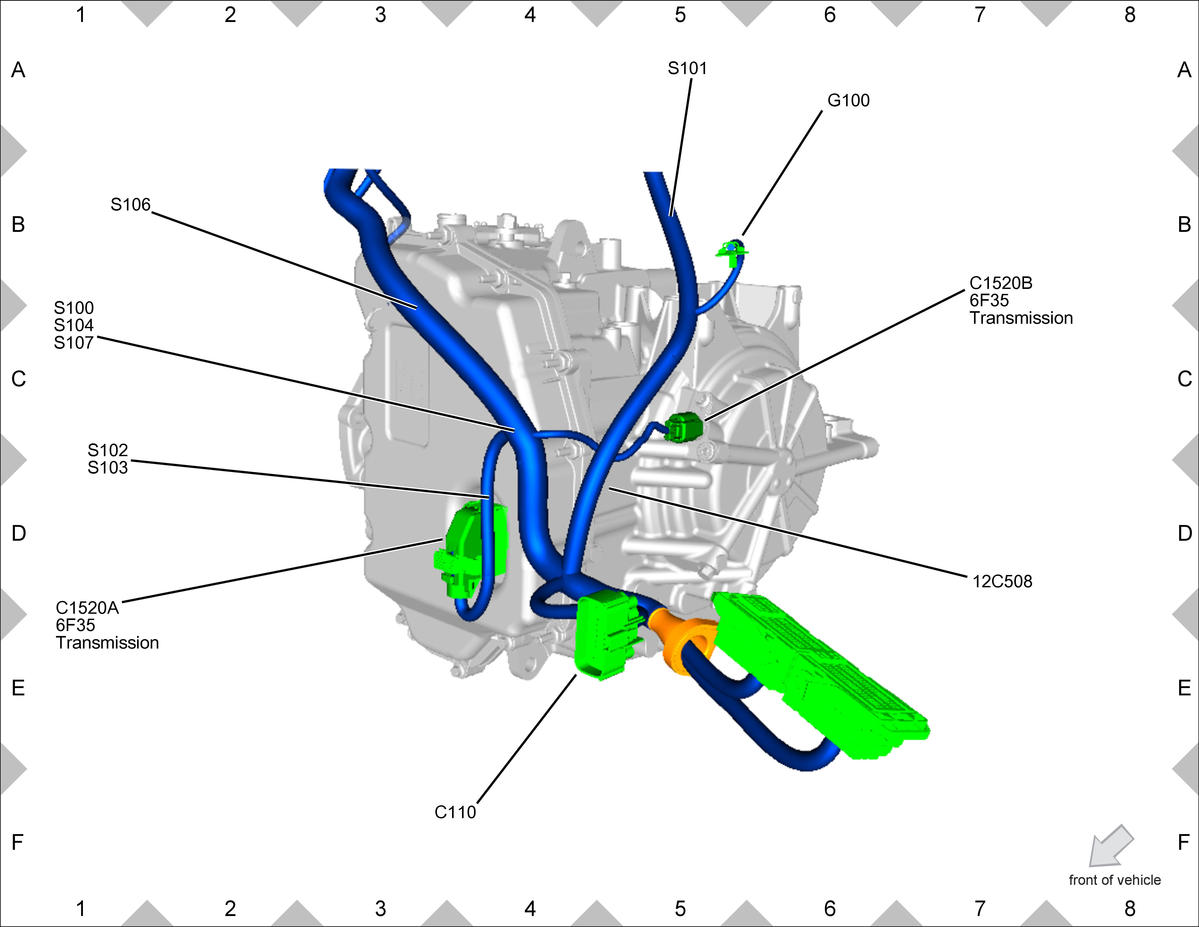

GFDWR58174Courtesy of FORD MOTOR COMPANY

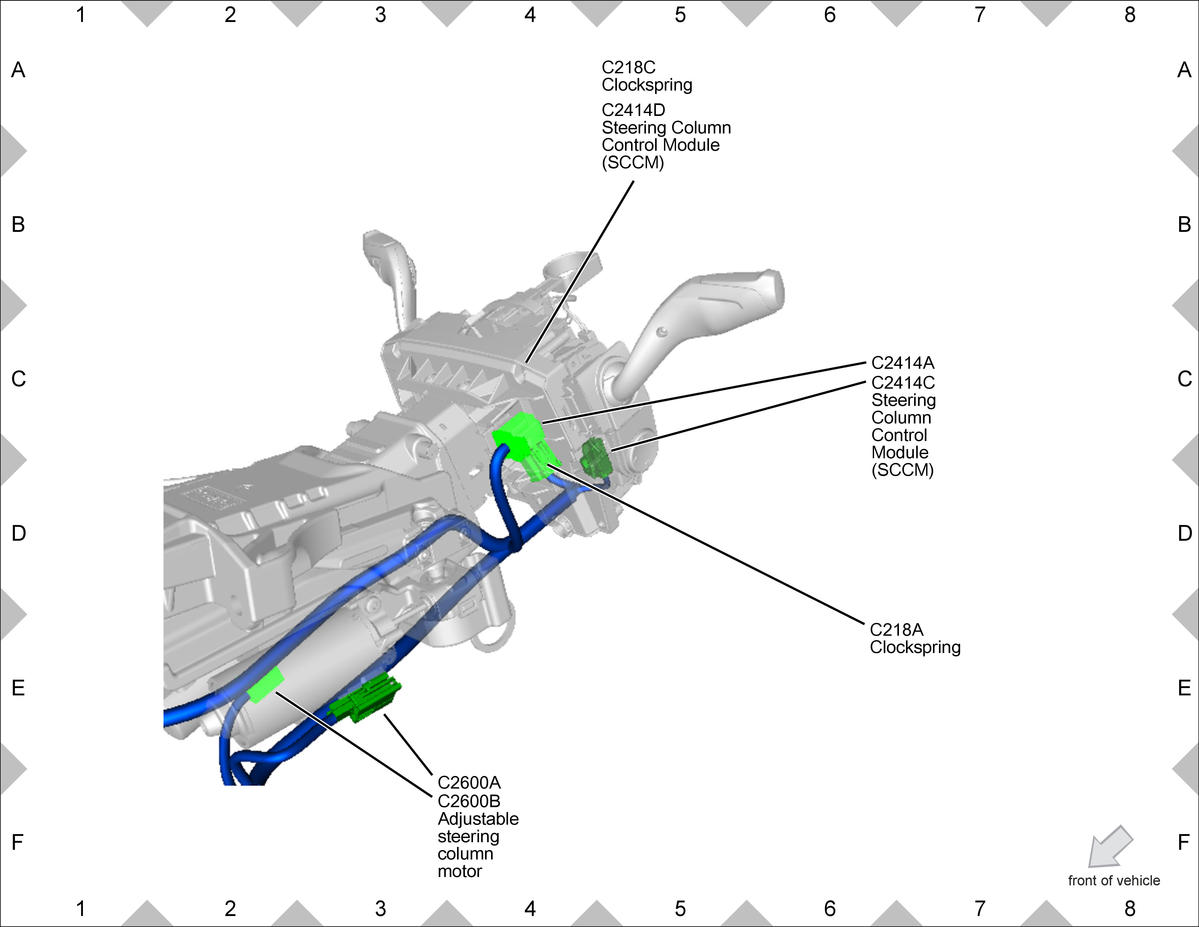

GFDWR58175Courtesy of FORD MOTOR COMPANY

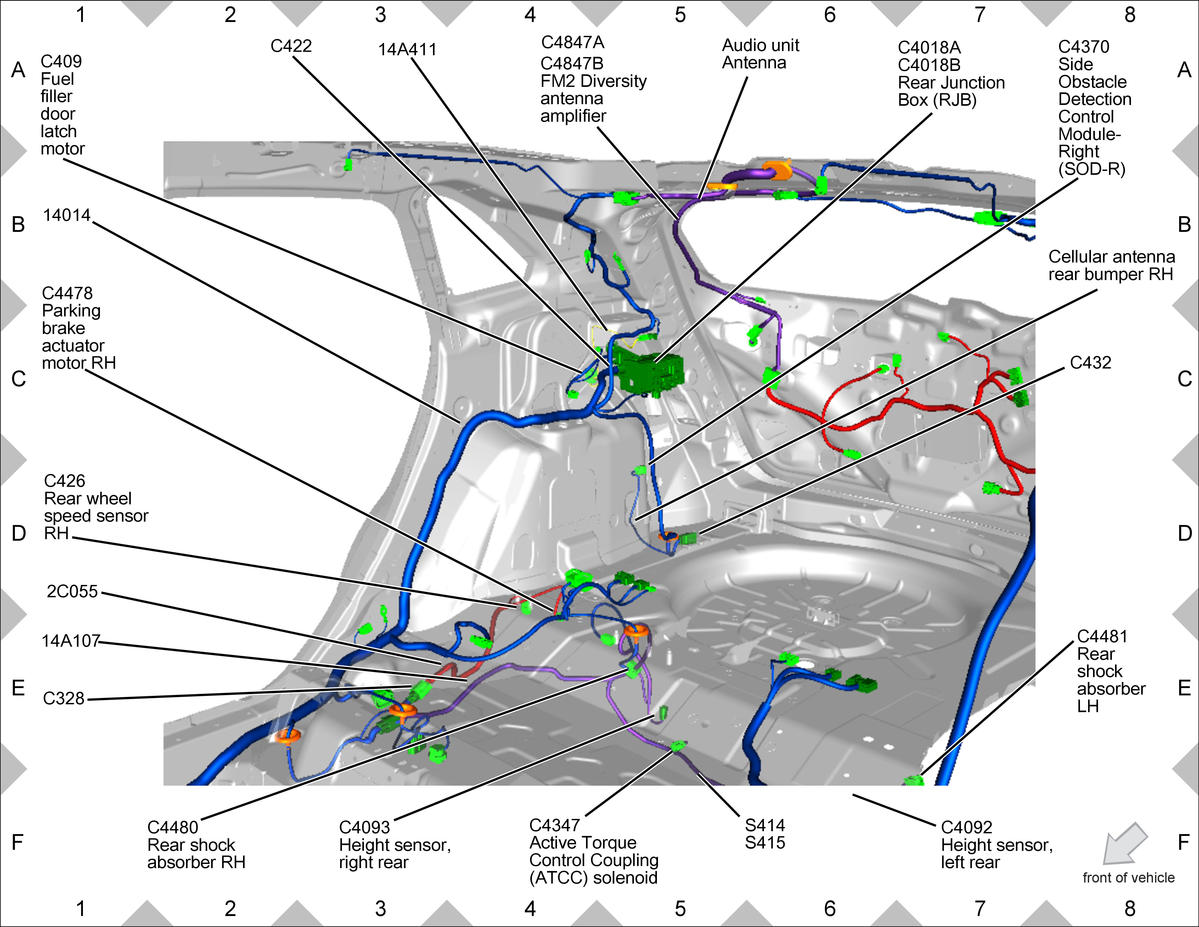

GFDWR58176Courtesy of FORD MOTOR COMPANY

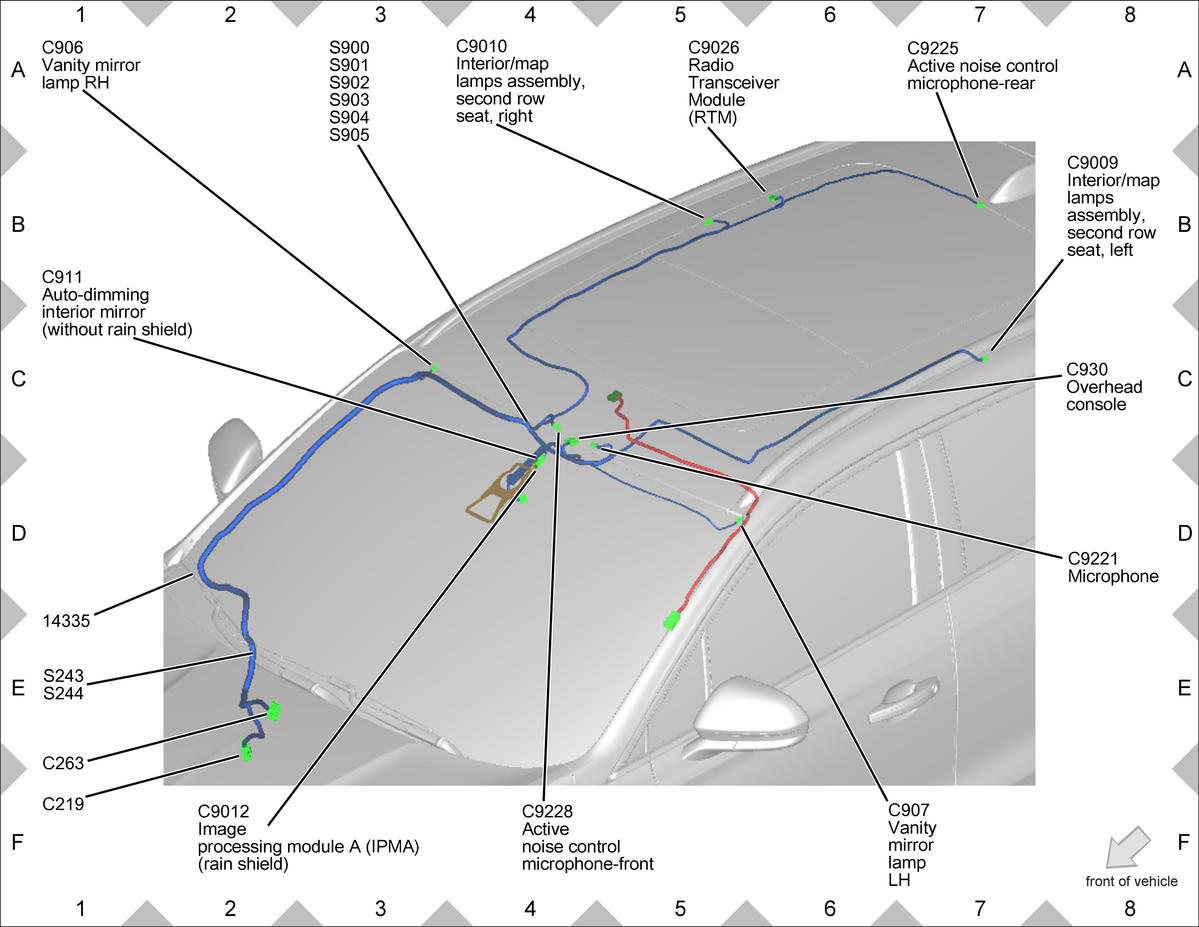

GFDWR58177Courtesy of FORD MOTOR COMPANY

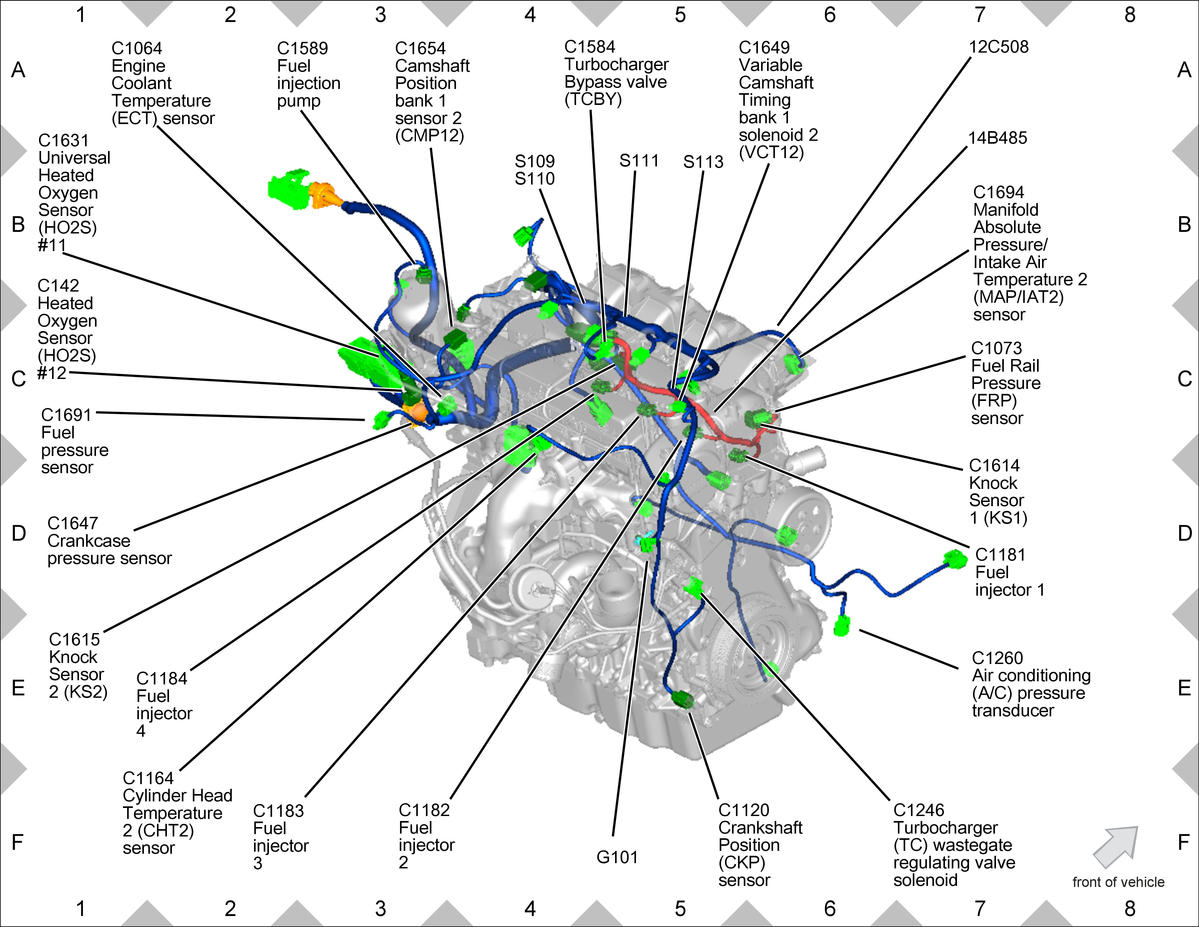

GFDWR58178Courtesy of FORD MOTOR COMPANY

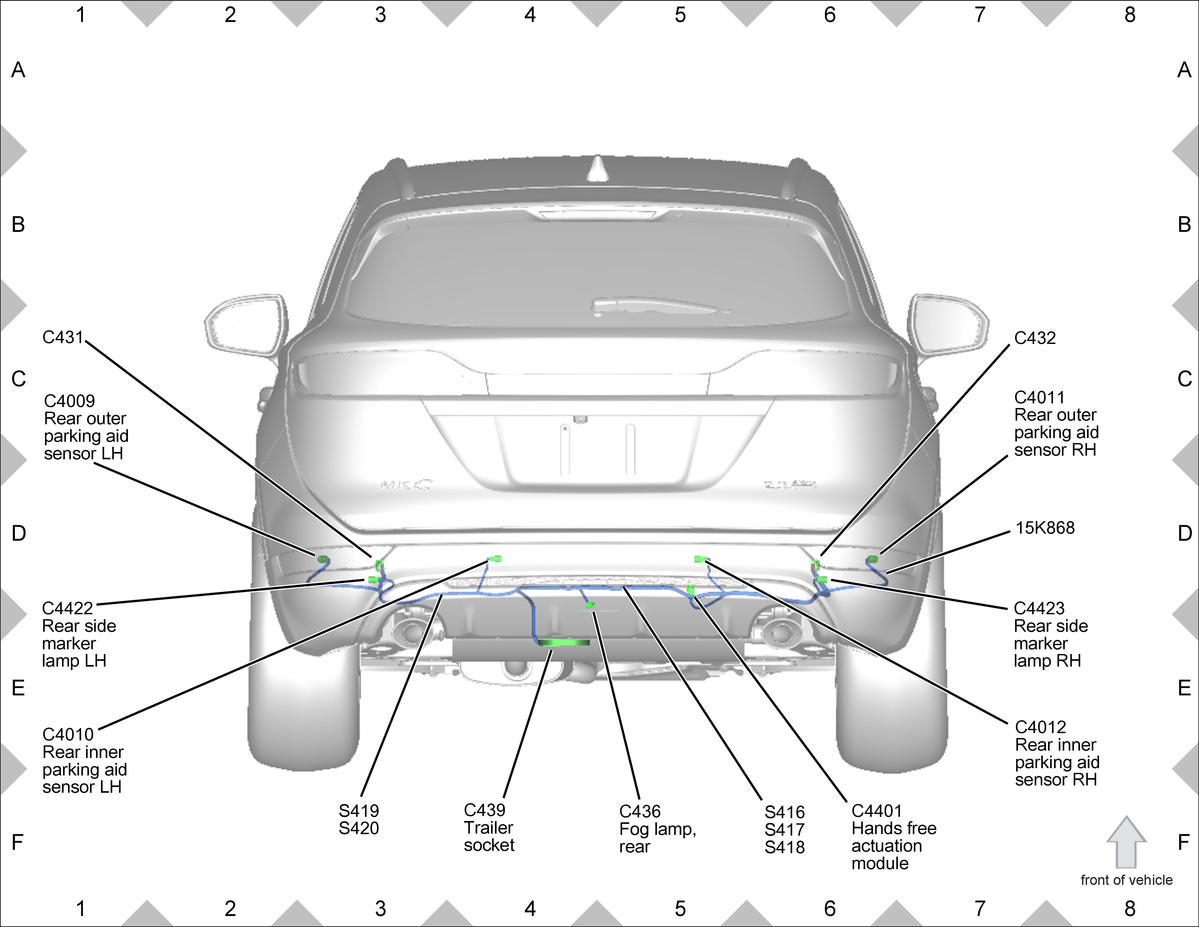

GFDWR58179Courtesy of FORD MOTOR COMPANY

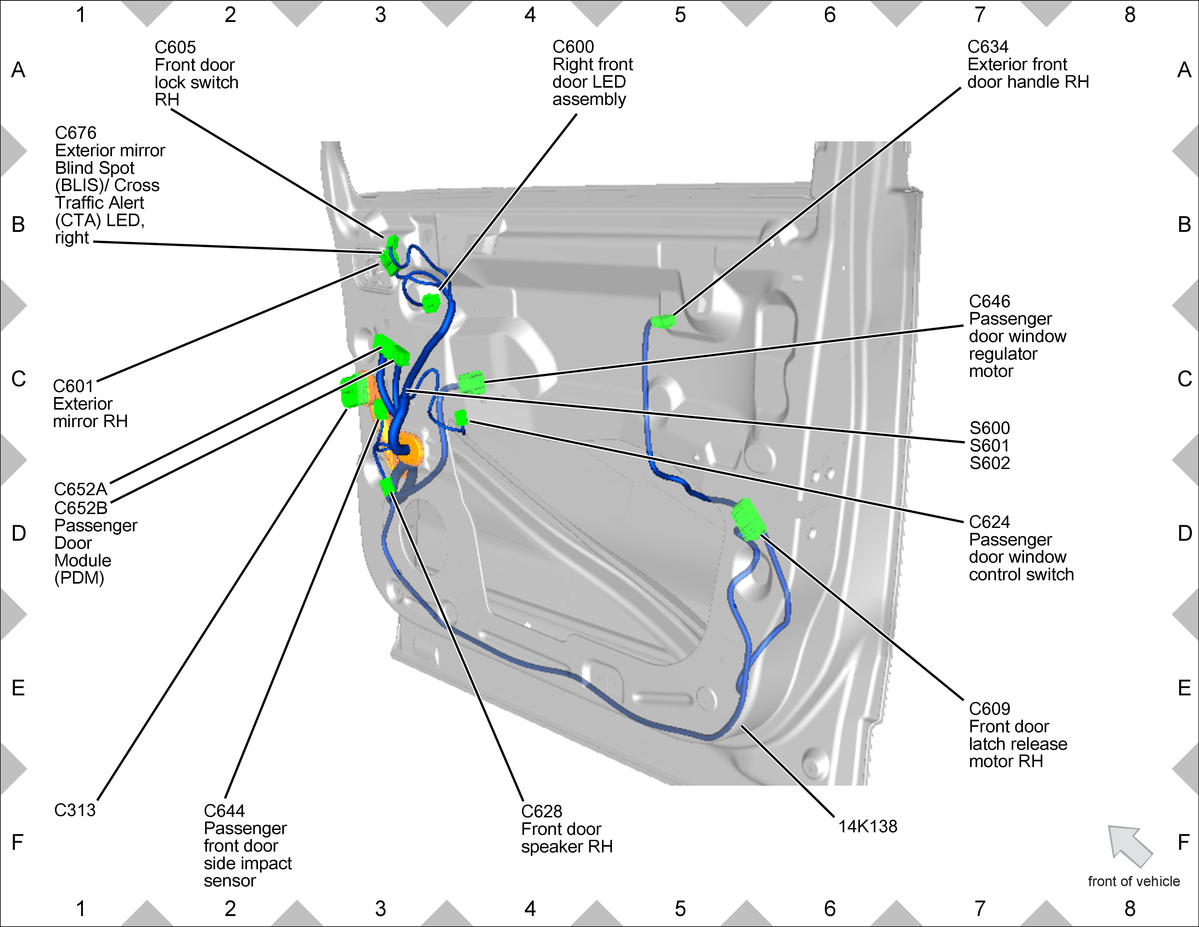

GFDWR58180Courtesy of FORD MOTOR COMPANY

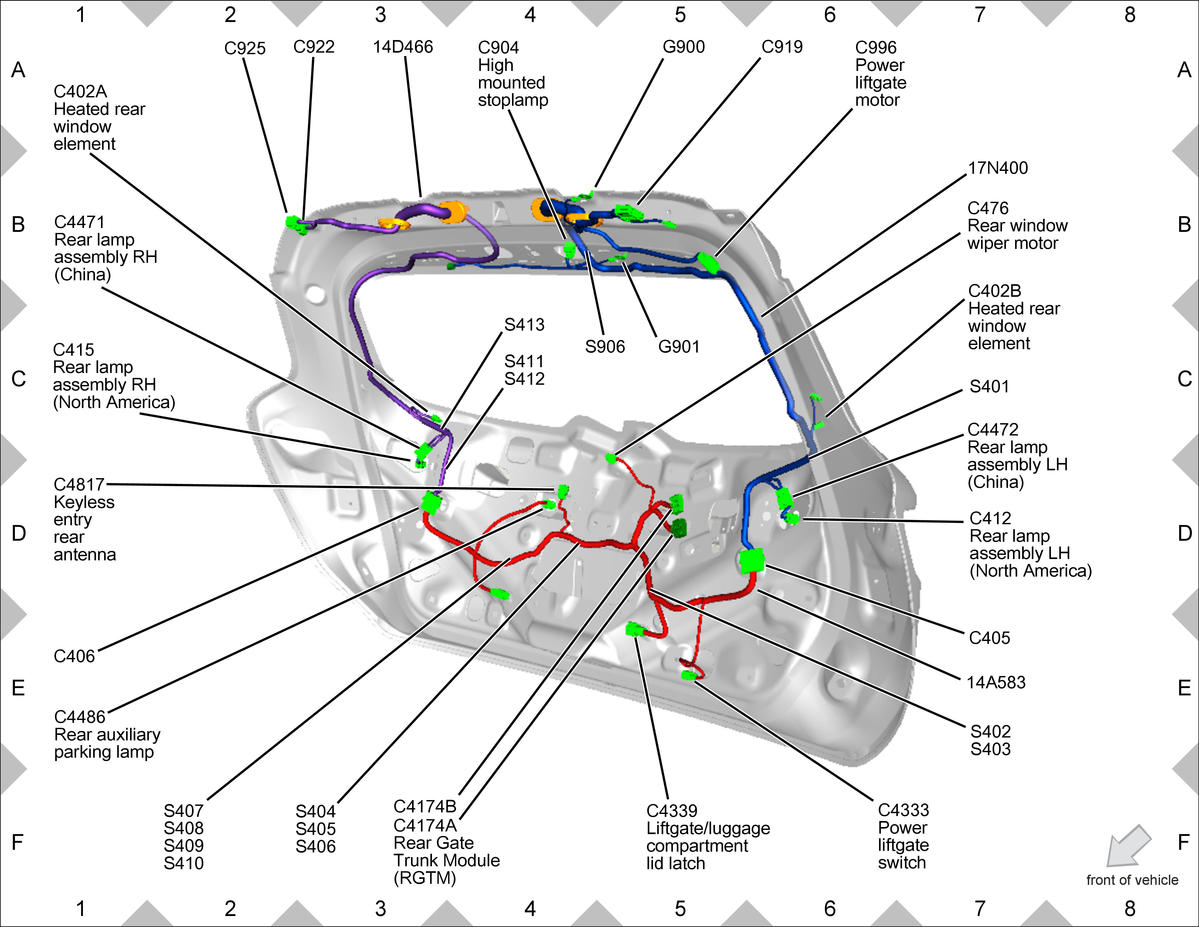

GFDWR58181Courtesy of FORD MOTOR COMPANY

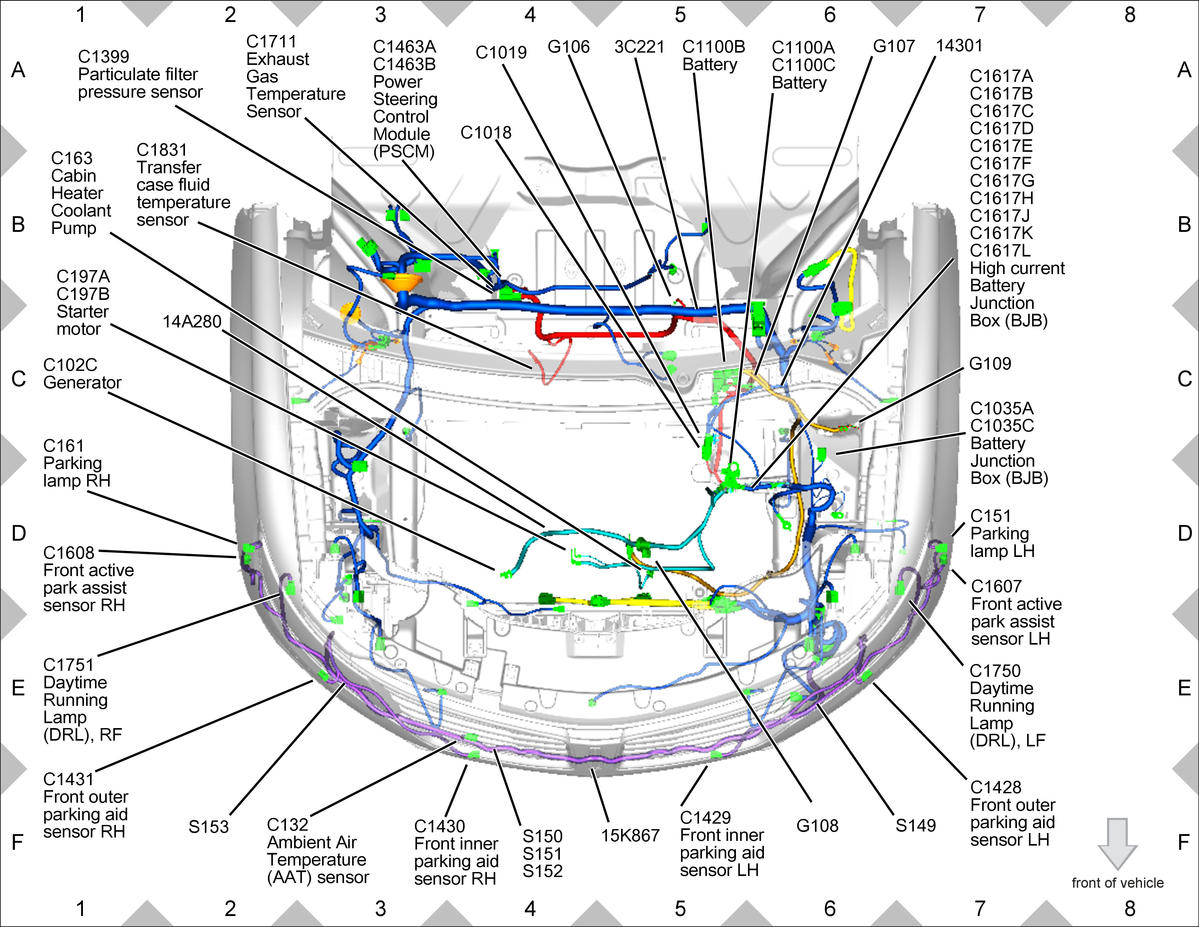

GFDWR58182Courtesy of FORD MOTOR COMPANY

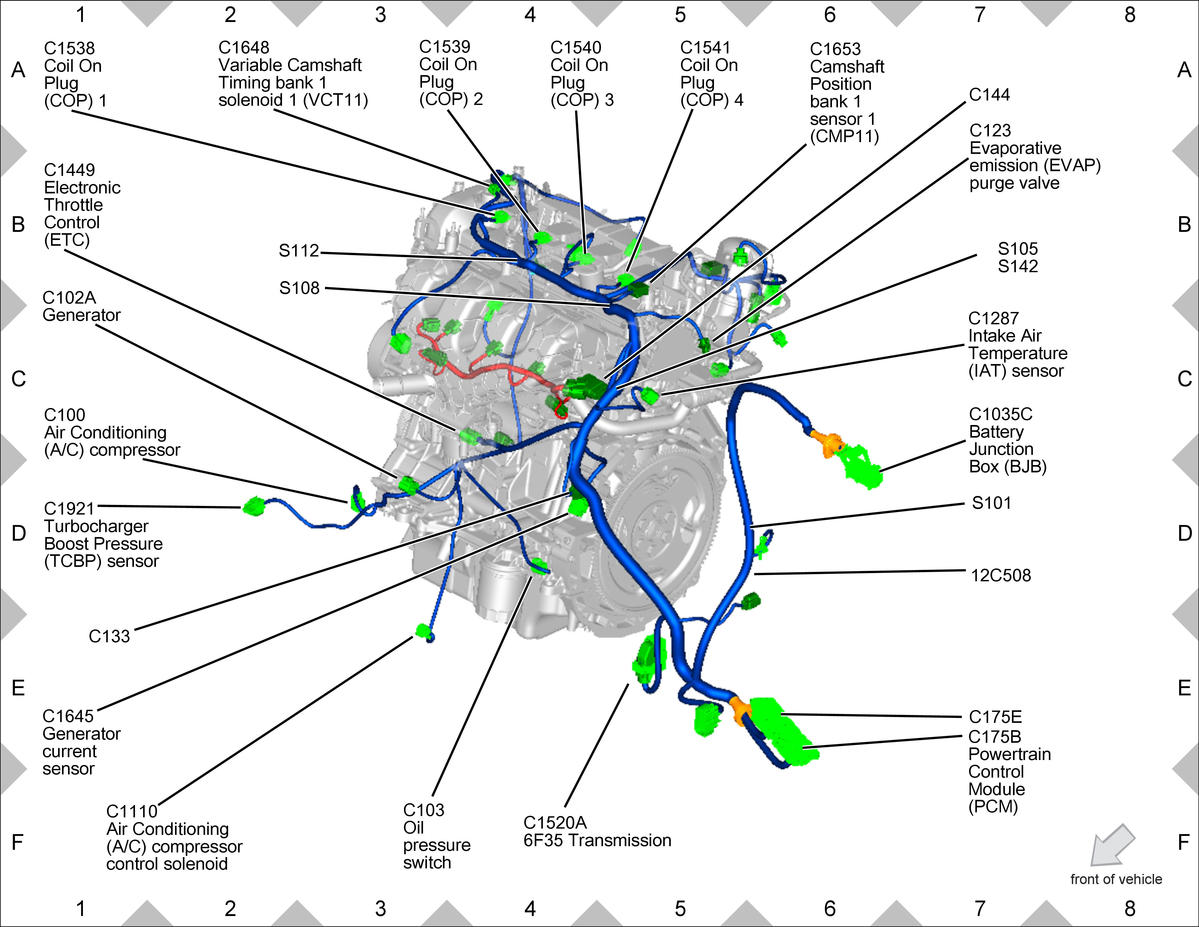

GFDWR58183Courtesy of FORD MOTOR COMPANY

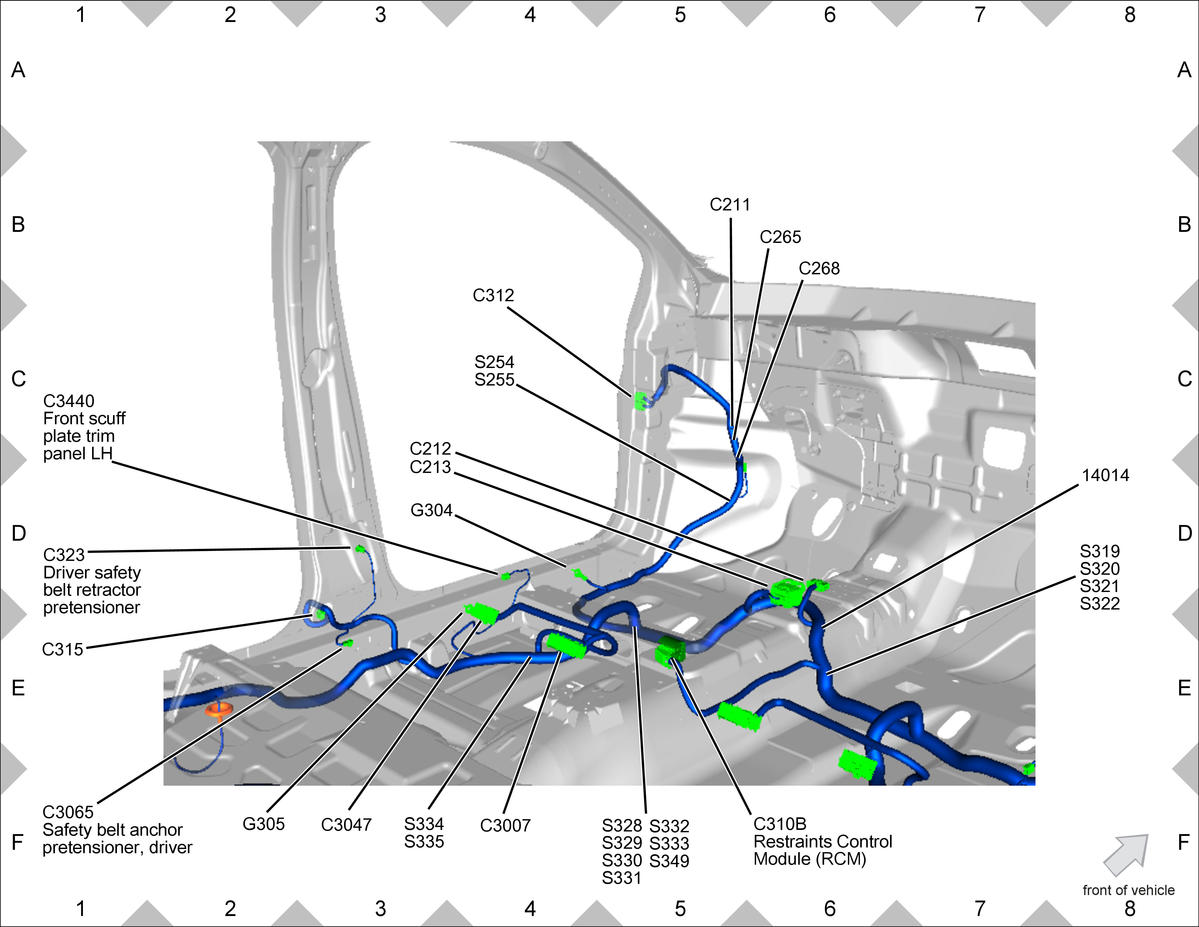

GFDWR58184Courtesy of FORD MOTOR COMPANY

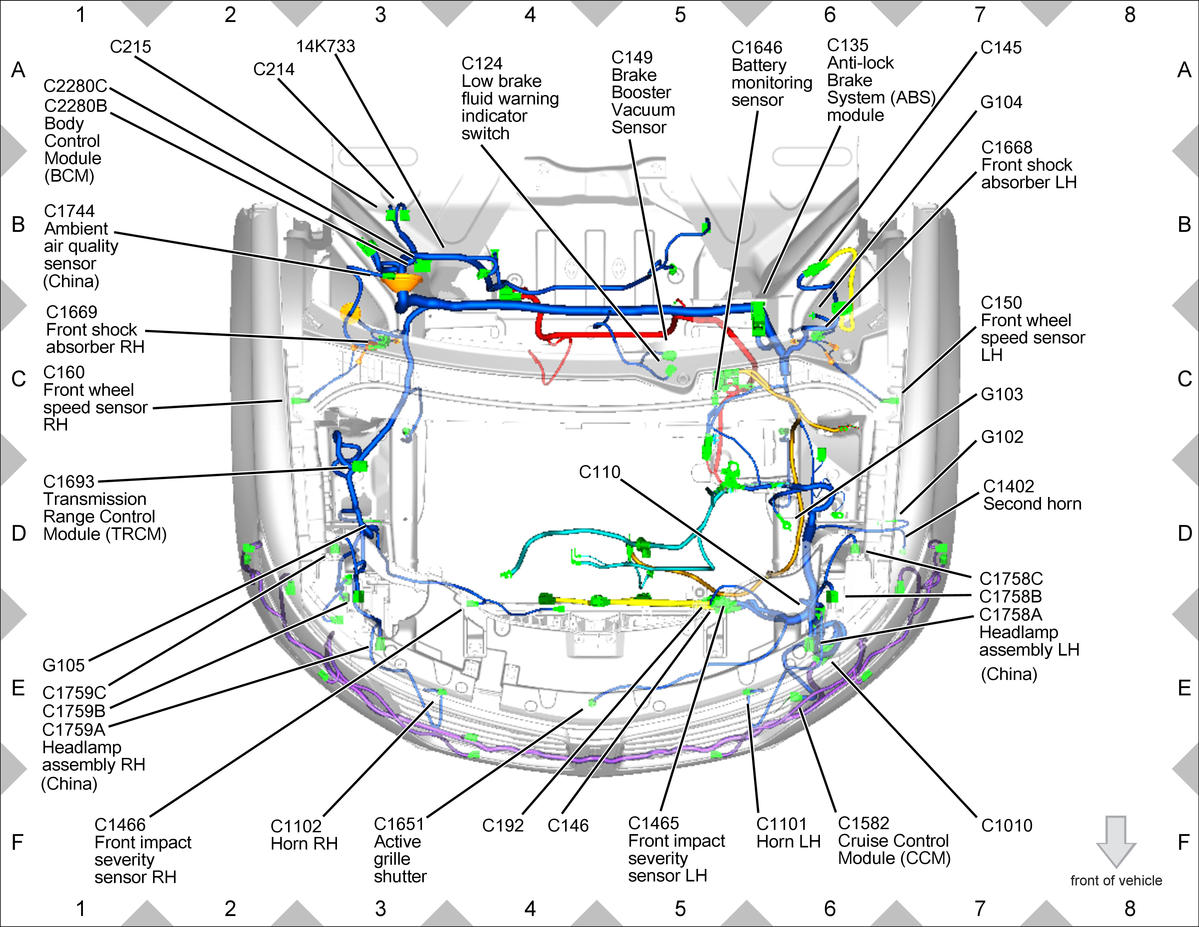

GFDWR58185Courtesy of FORD MOTOR COMPANY

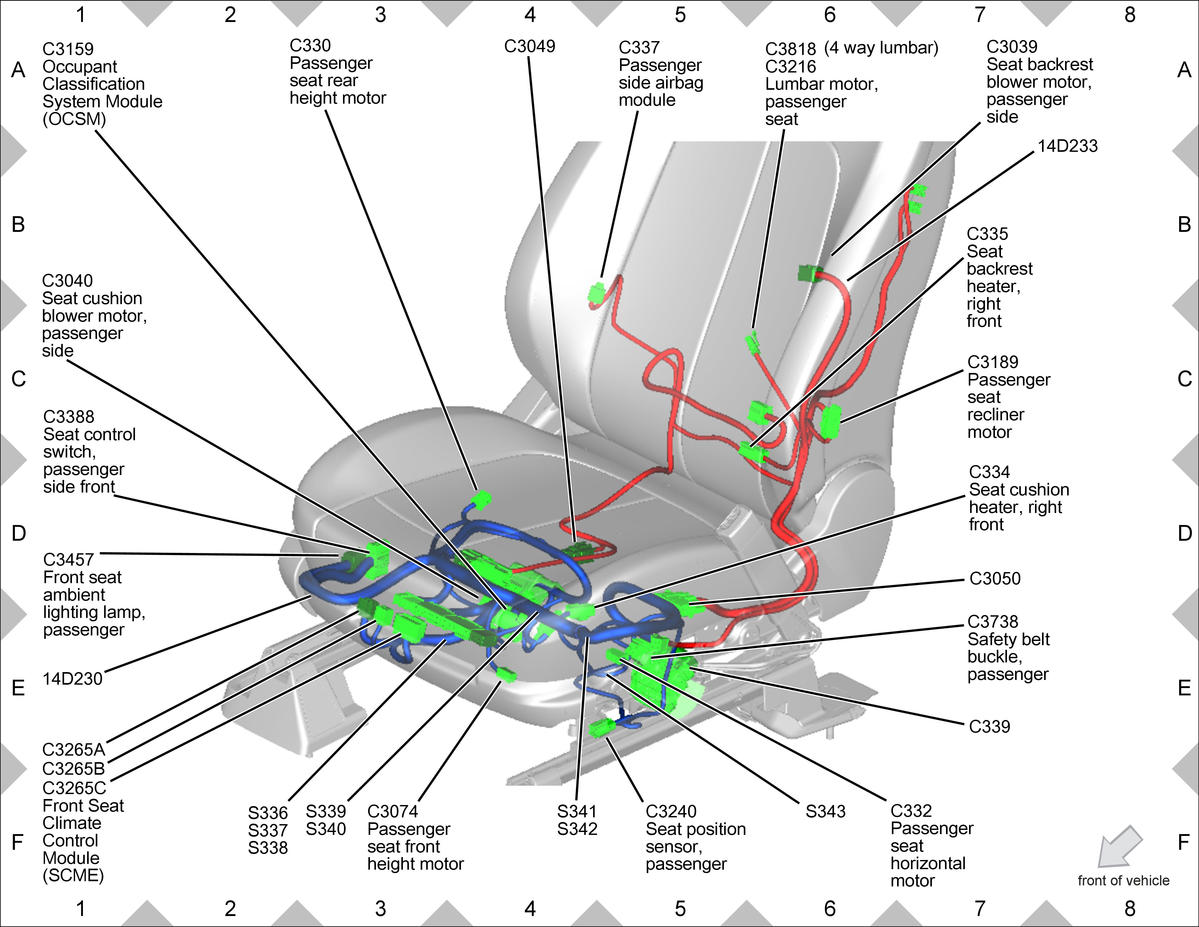

GFDWR58186Courtesy of FORD MOTOR COMPANY

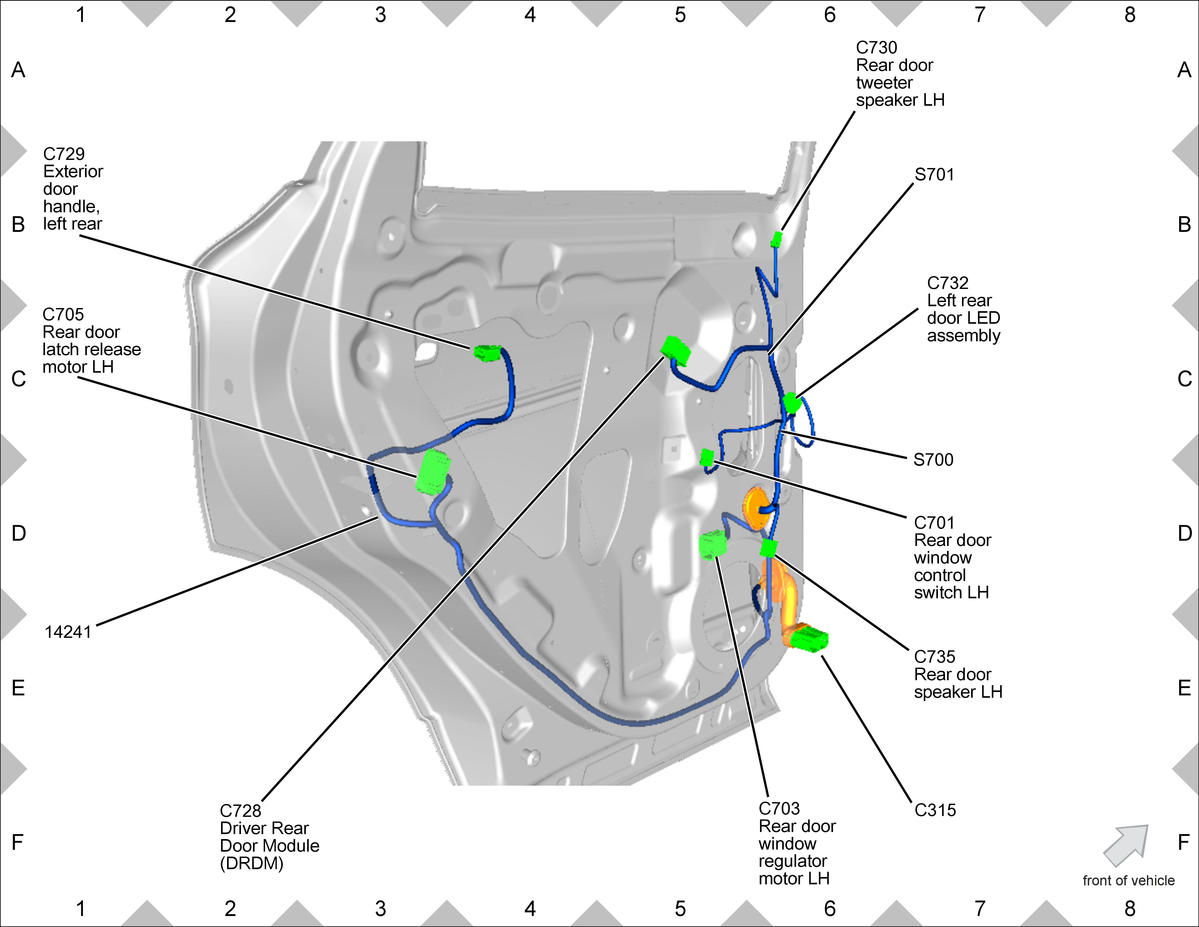

GFDWR58187Courtesy of FORD MOTOR COMPANY

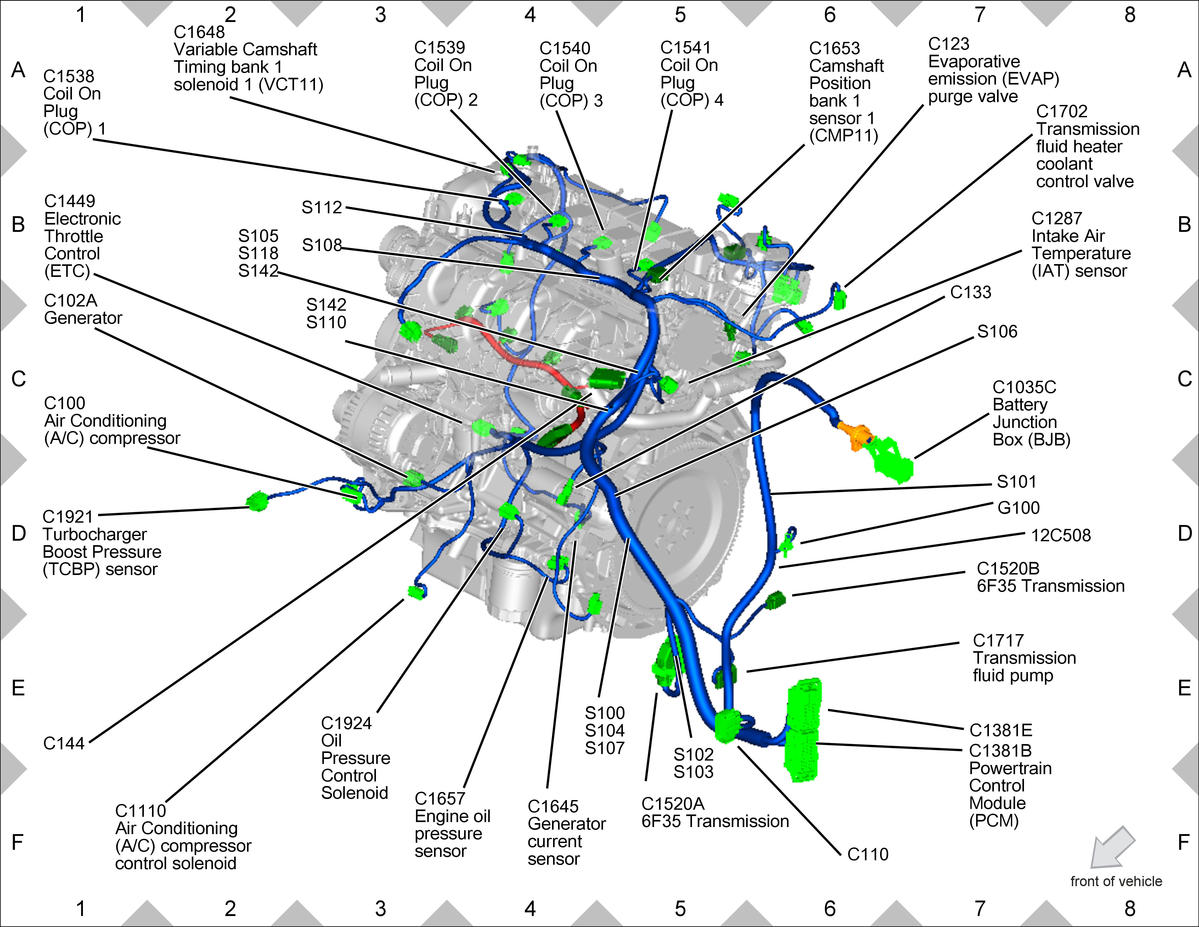

GFDWR58188Courtesy of FORD MOTOR COMPANY

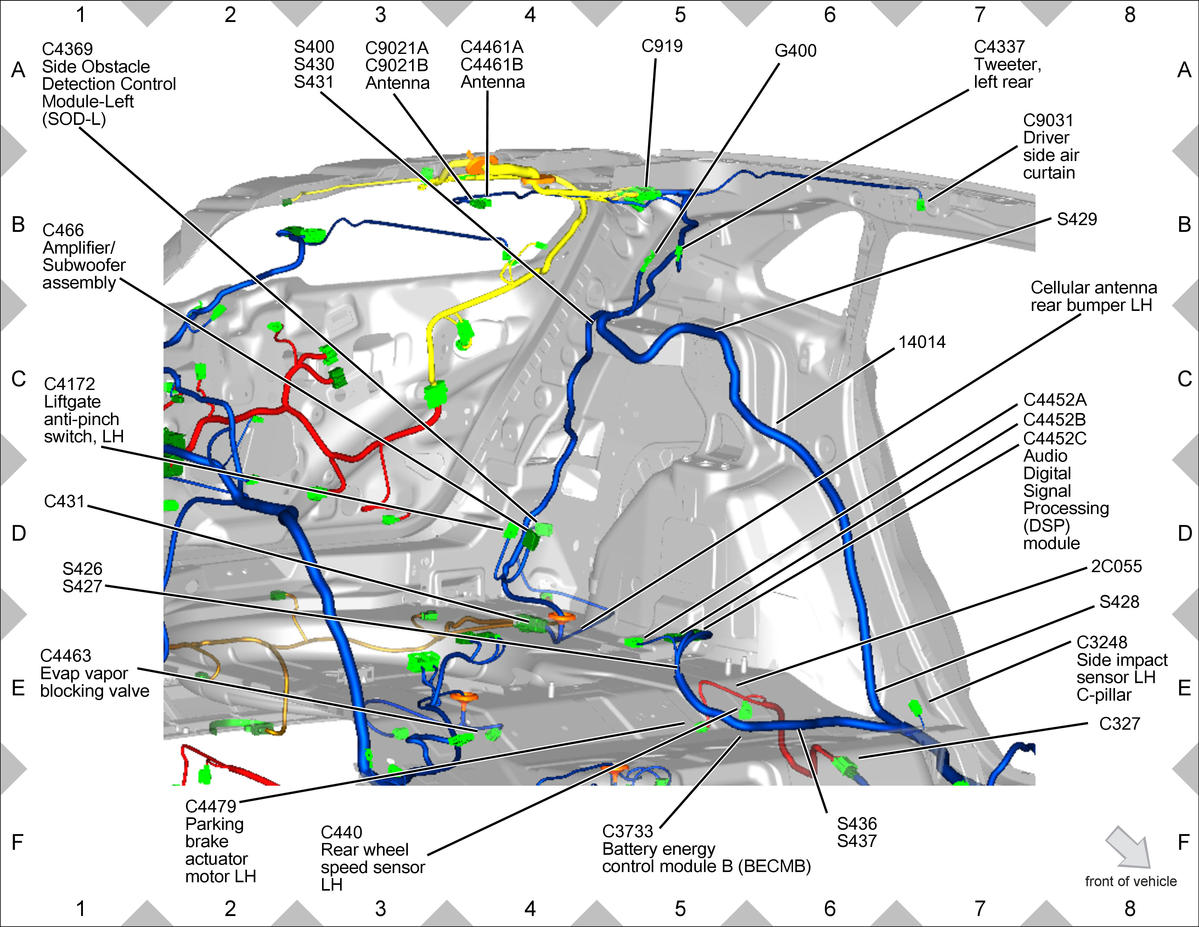

GFDWR58189Courtesy of FORD MOTOR COMPANY

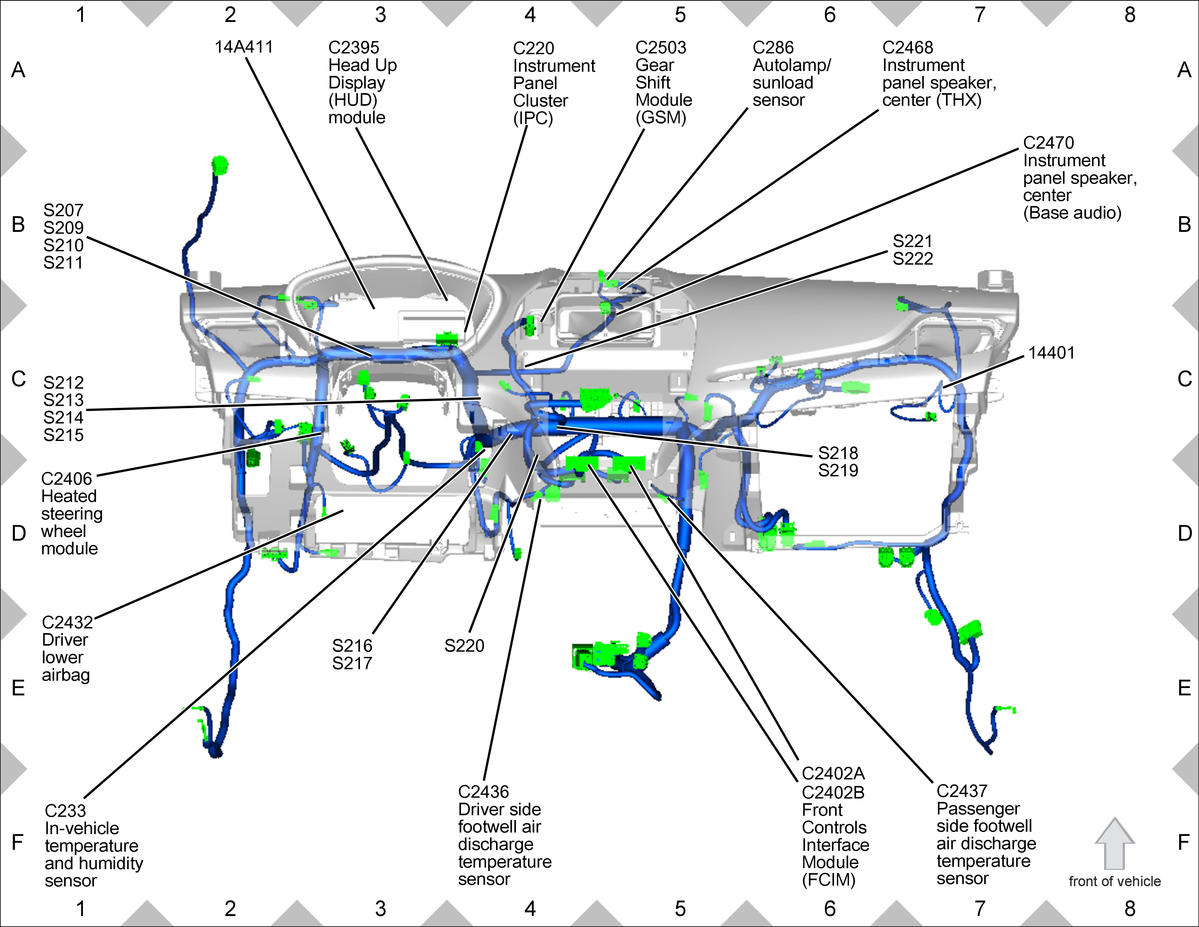

GFDWR58190Courtesy of FORD MOTOR COMPANY

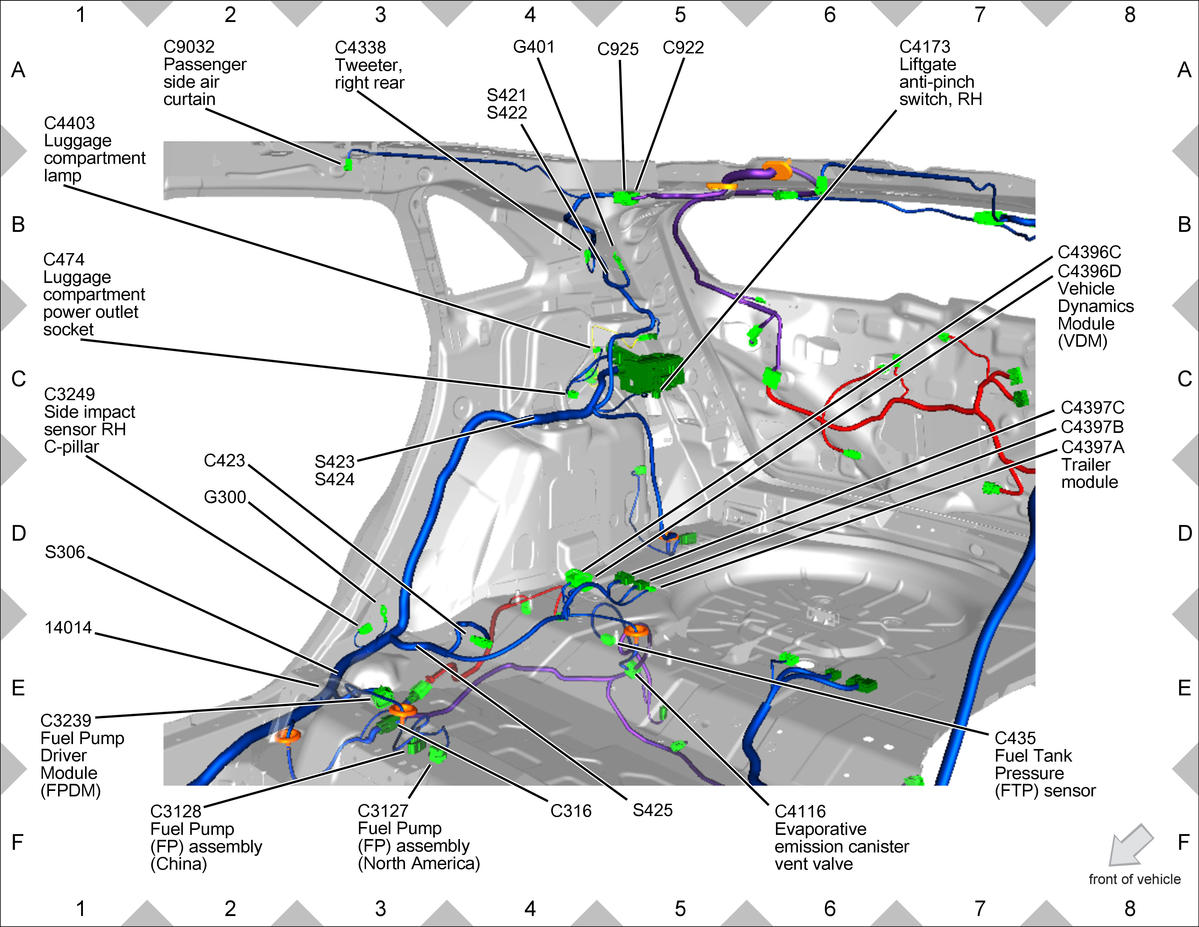

GFDWR58191Courtesy of FORD MOTOR COMPANY

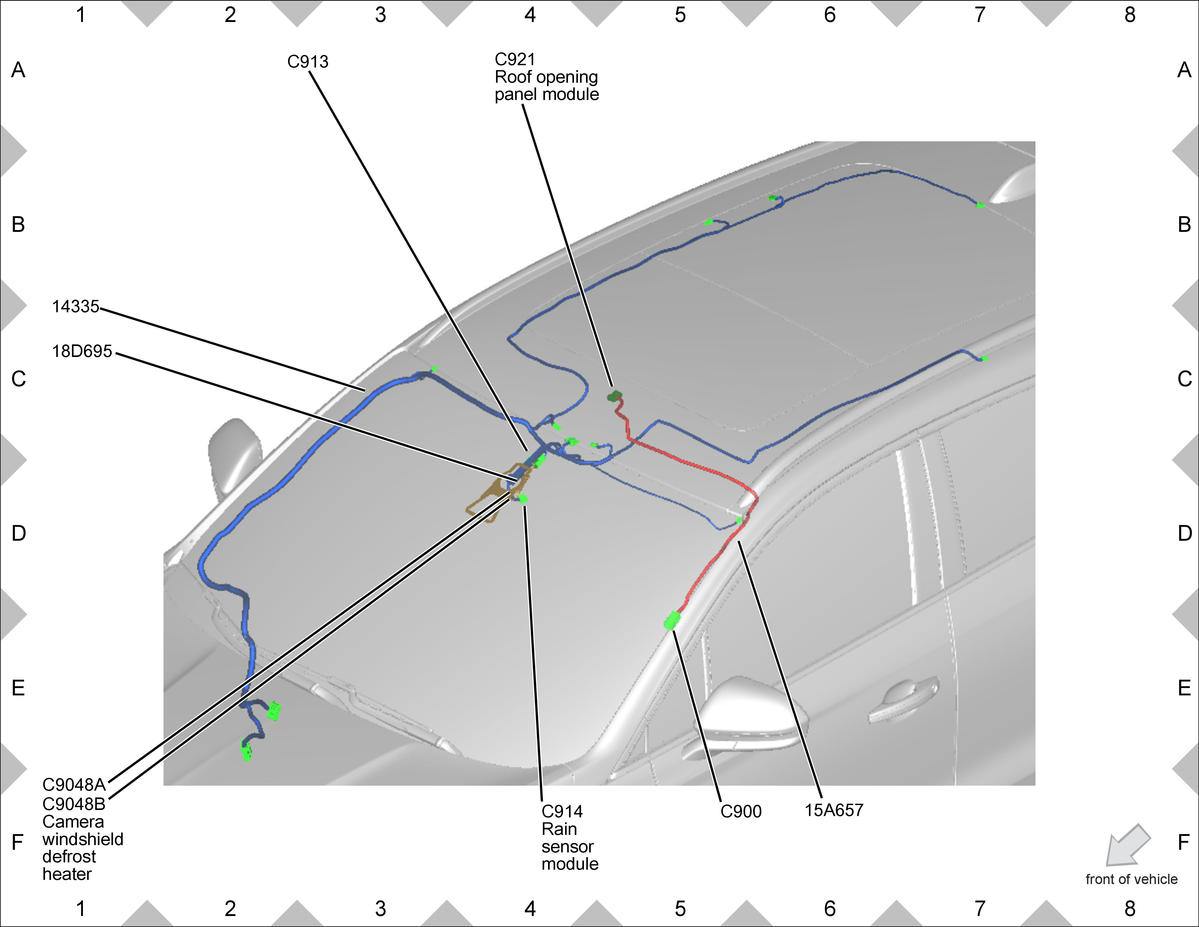

GFDWR58192Courtesy of FORD MOTOR COMPANY

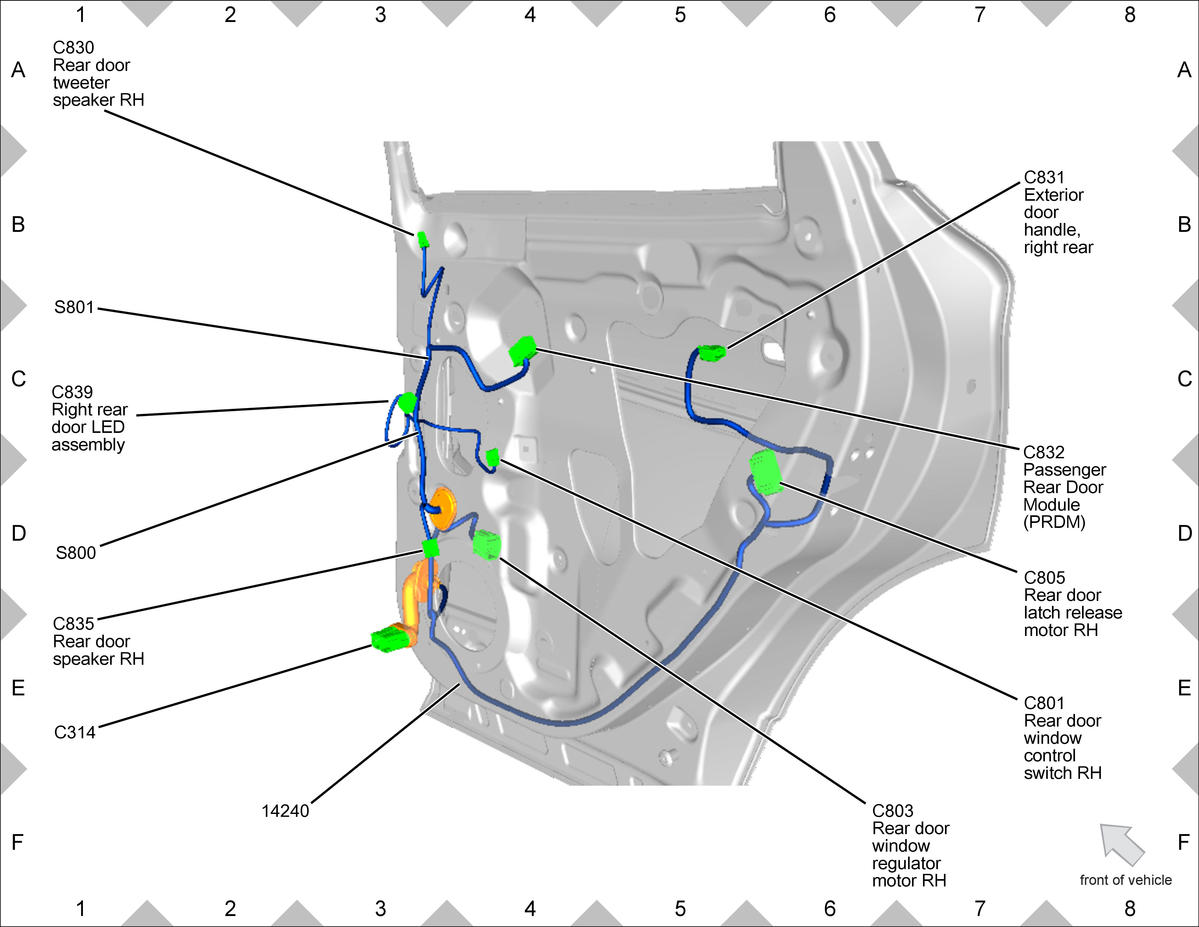

GFDWR58193Courtesy of FORD MOTOR COMPANY

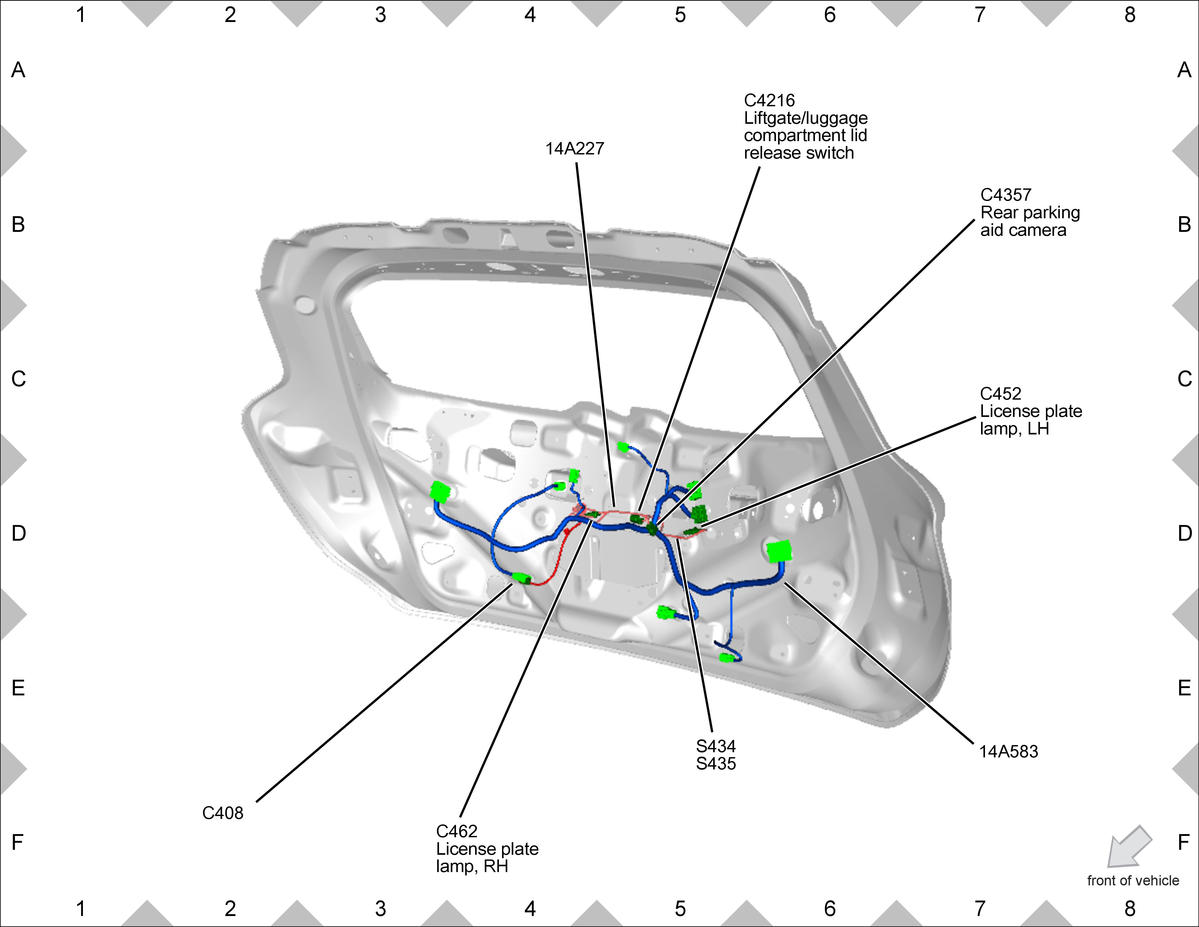

GFDWR58194Courtesy of FORD MOTOR COMPANY

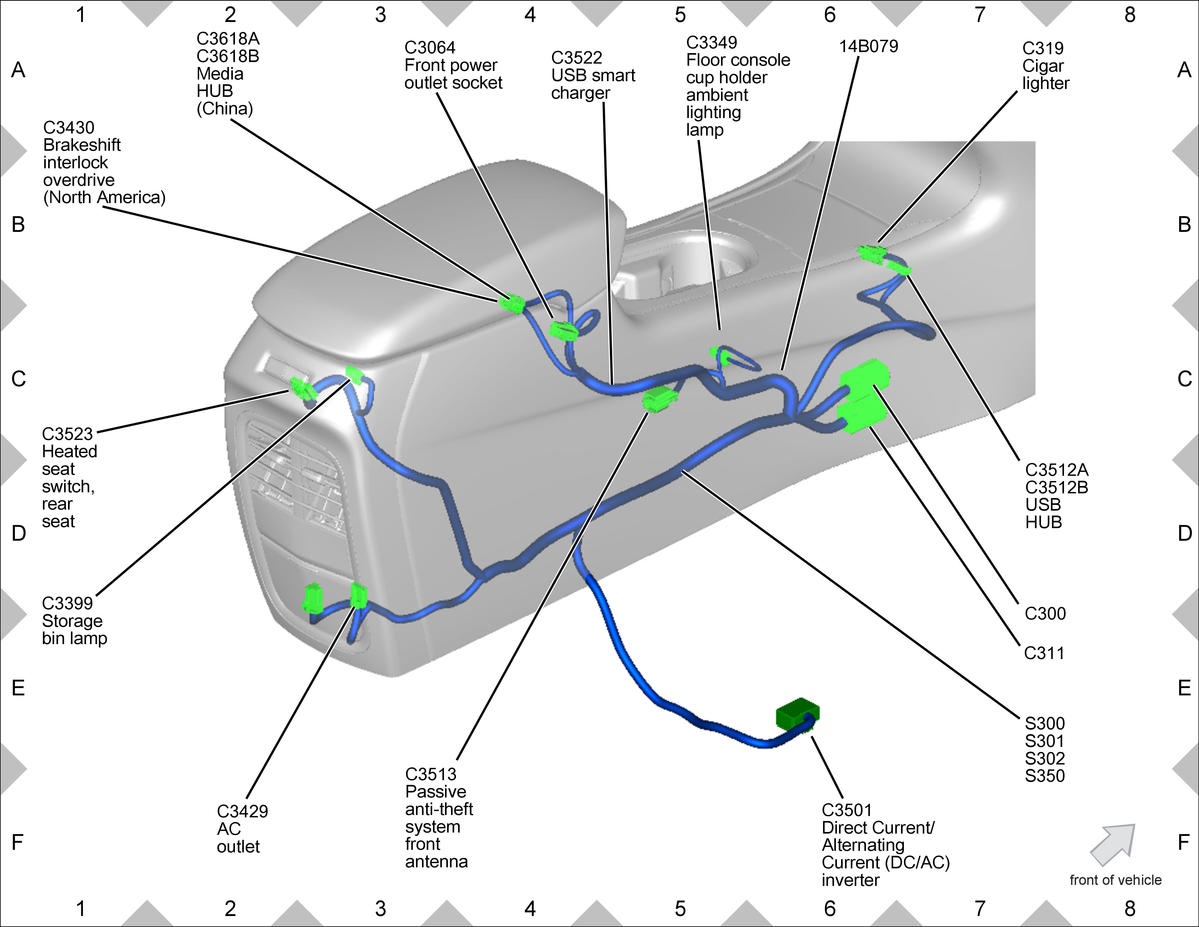

GFDWR58195Courtesy of FORD MOTOR COMPANY

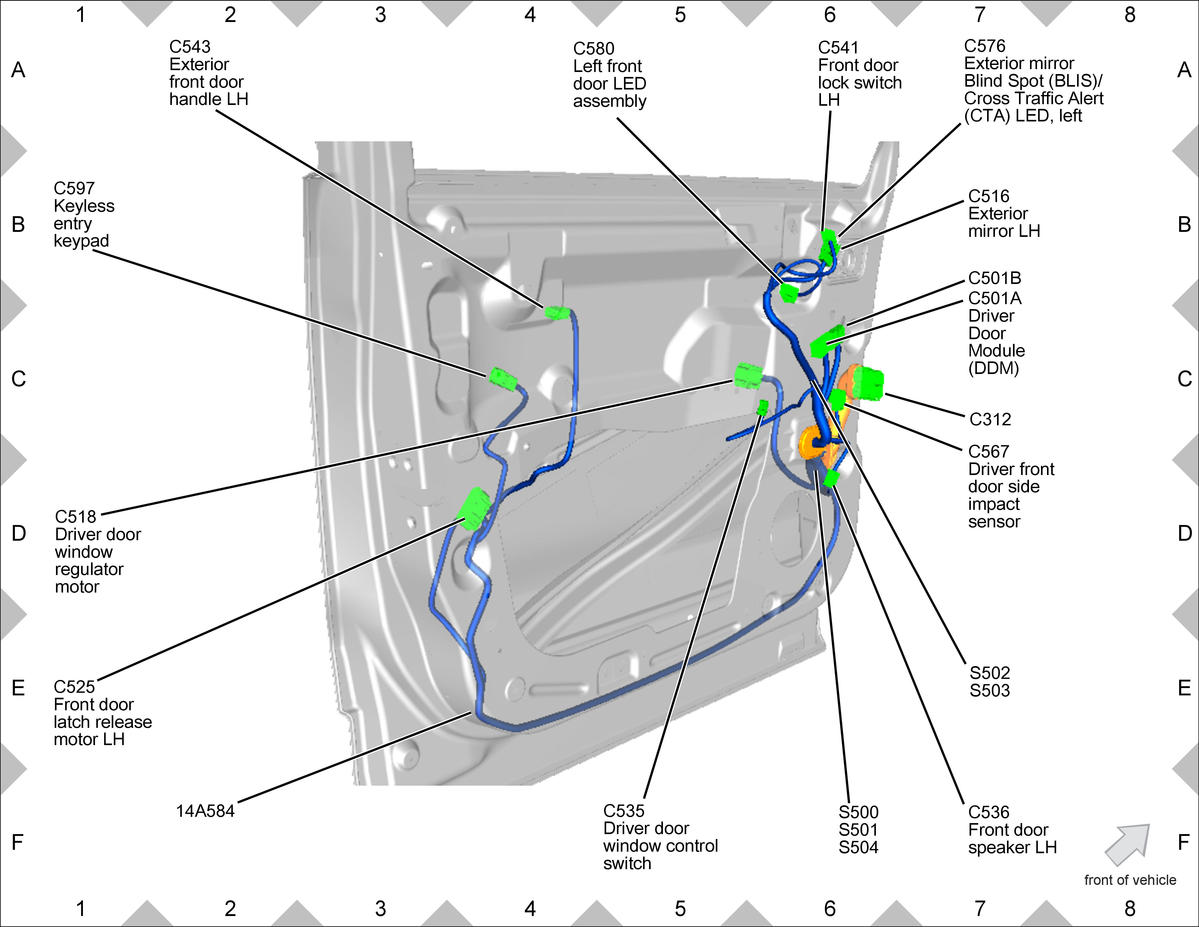

GFDWR58196Courtesy of FORD MOTOR COMPANY

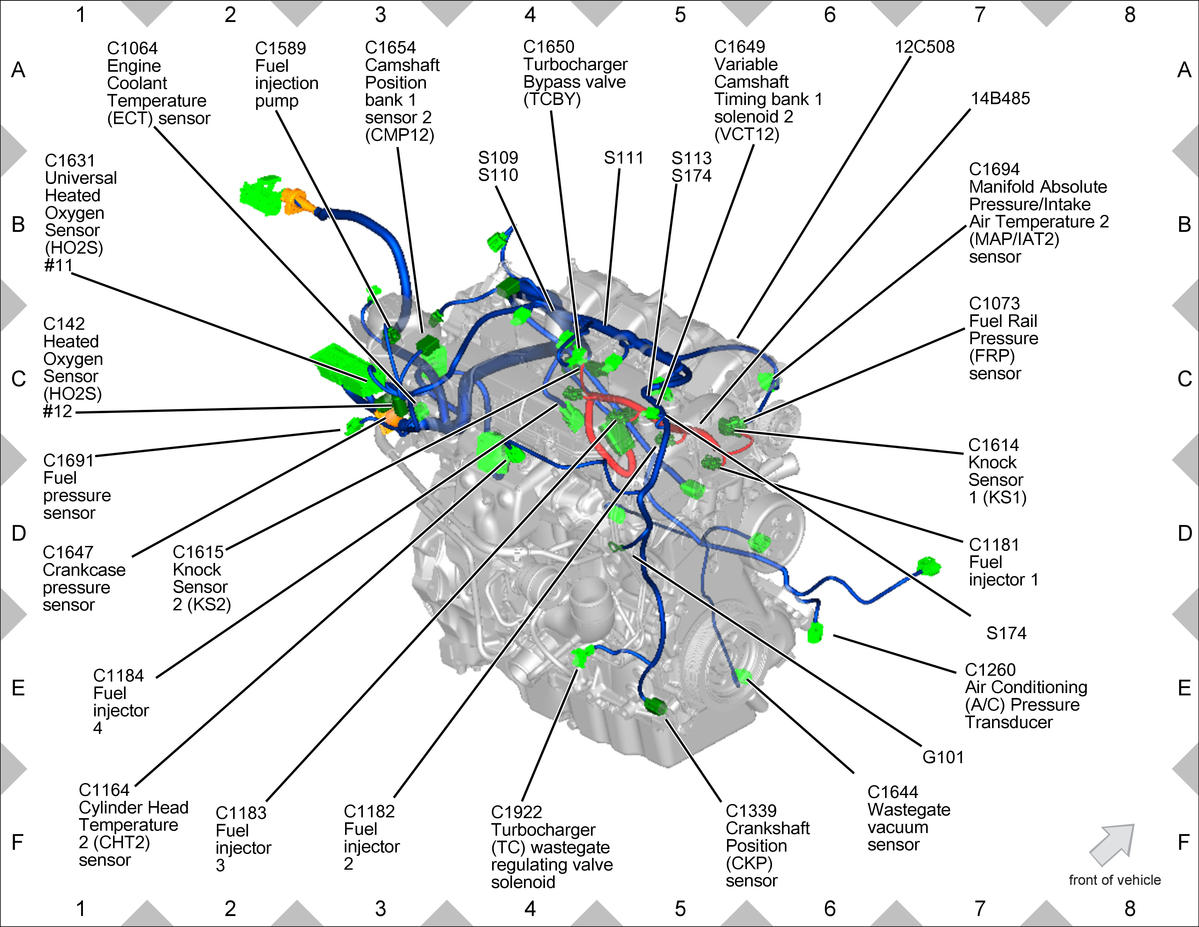

GFDWR58197Courtesy of FORD MOTOR COMPANY

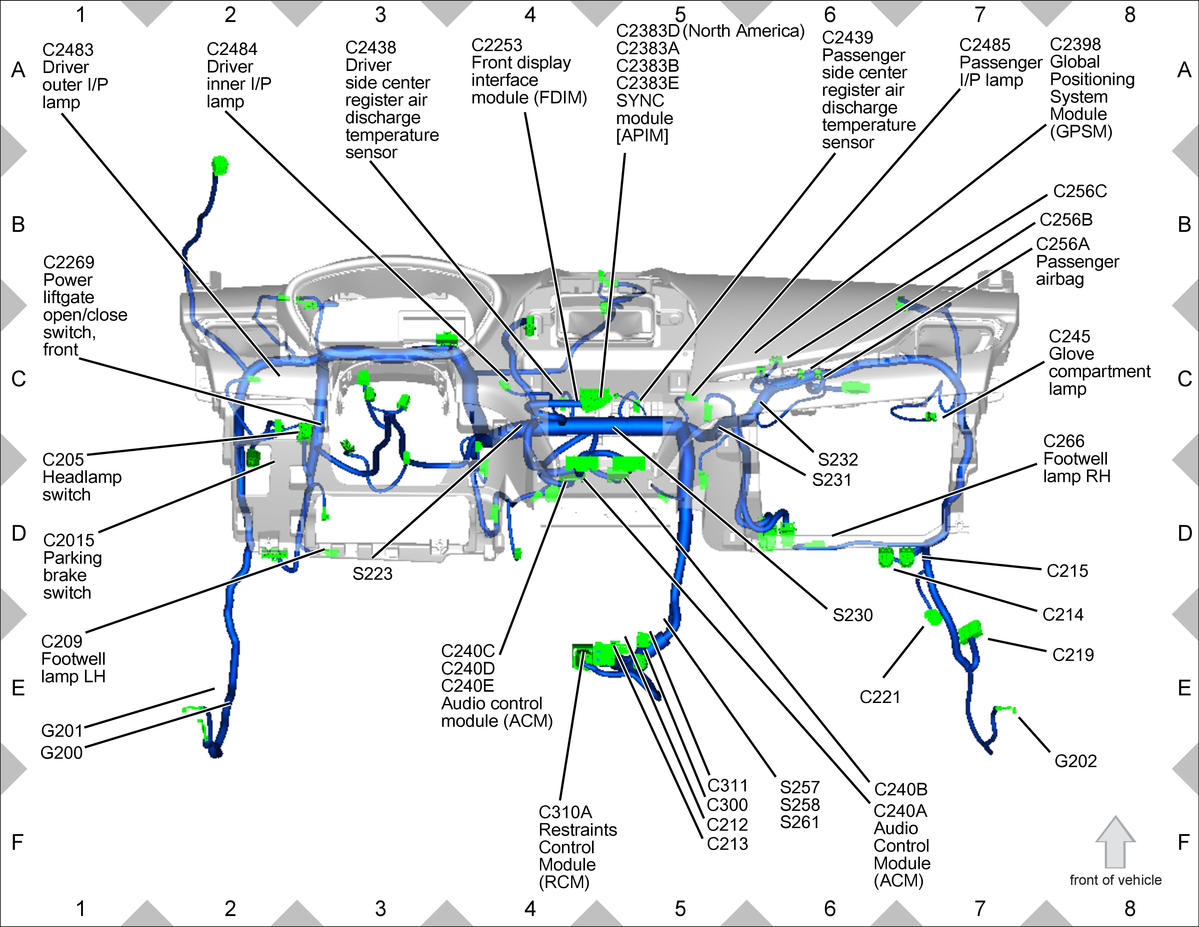

GFDWR58198Courtesy of FORD MOTOR COMPANY
