Roof Opening Panel Exploded View

WARNING: This page is about a different car, the 2018 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

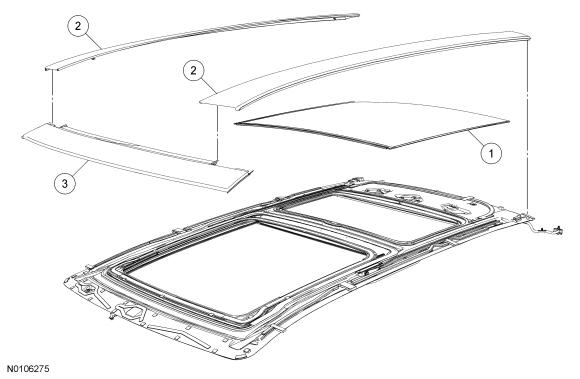

Exterior Trim and Fixed Glass

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	500A18	Fixed glass assembly
2	51746A RH/ 51746B LH RH/ 51746B LH	Side trim panels
3	51746C	Front trim panel

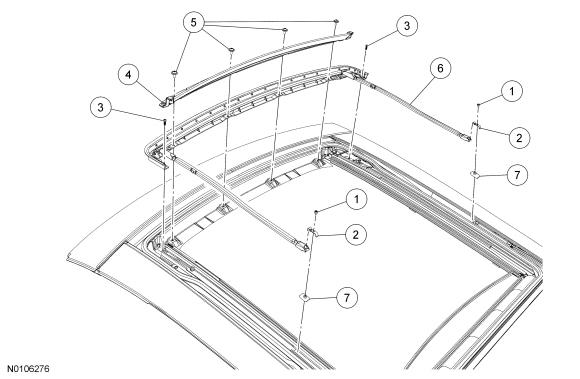

Air Deflector Assembly

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W790076	Air deflector-to-track screws (2 required)
2	W790086	Air deflector arm capture plates (2 required)
3	W79004	Air deflector catcher bracket outer screws (2 required)
3	W790084	Service replacement fasteners for W79004 (use only if threaded hole becomes stripped during assembly)
4	-	Air deflector catcher bracket (part of air deflector assembly)
5	W790073	Air deflector catcher bracket center screws (4 required)
5	W790083	Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly)
6	500A26	Air deflector assembly
7	W790085	Nut plates (2 required)

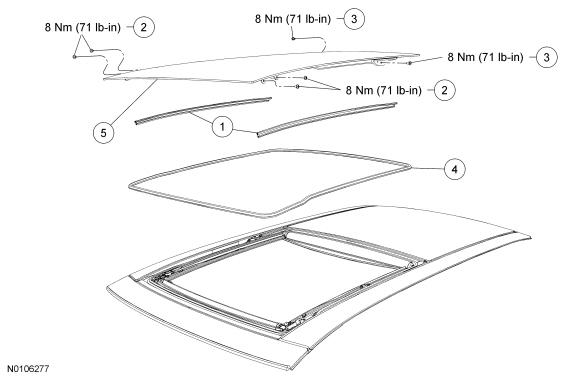

Sliding Glass, Blinds and Primary Seal

Fig 1: Sliding Glass, Blinds and Primary Seal With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	500A66 LH/ 500A67 RH LH/ 500A67 RH	Concertina blinds (2 required)
2	W790079	Roof opening panel front glass screws (4 required)
3	W790078	Roof opening panel rear glass screws (2 required)
4	500A18	Roof opening panel primary glass seal
5	51884	Roof opening sliding glass panel

Idler Track and Mechanism

NOTE: LH shown, RH similar.

Fig 2: Idler Track and Mechanism With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	502M78 RH/ 502M79 LH RH/ 502M79 LH	Idler track mechanism
2	W790074	Front idler track-to-housing fasteners (2 required per side)
2	W790084	Service replacement fasteners for W790074 (use only if threaded hole becomes stripped during assembly)
3	W790073	Rear idler track-to-housing fasteners (6 required per side)
3	W790082	Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly)
4	503A34 RH/ 51071 LH RH/ 51071 LH	Idler track and mechanism

Front and Rear Sunshade Assembly

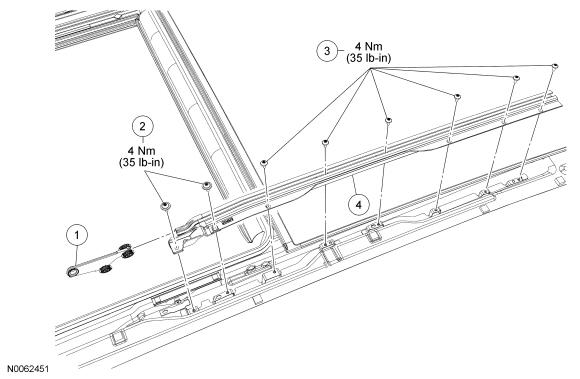

Fig 3: Front And Rear Sunshade Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W790074	Front sunshade carrier outer screws (2 required)
1	W790084	Service replacement fasteners for W790074 (use only if threaded hole becomes stripped during assembly)
2	W790073	Front sunshade carrier center screws (2 required)
2	W790082	Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly)
3	519A02A	Front sunshade assembly
4	W790073	Rear sunshade carrier-to-housing screws (2 required)
4	W790082	Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly)
5	519A02B	Rear sunshade assembly

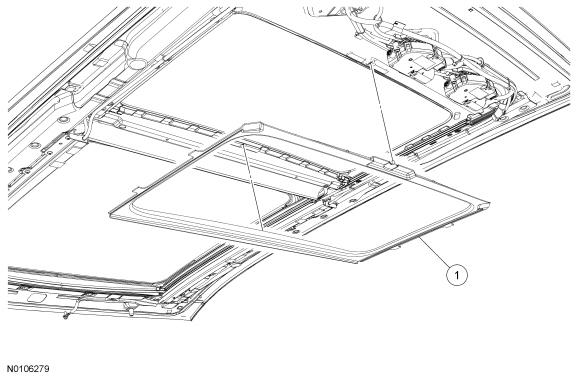

Rear Trim Ring Assembly

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	50036	Rear trim ring assembly

Roof Opening Panel Motor(s) and Electrical

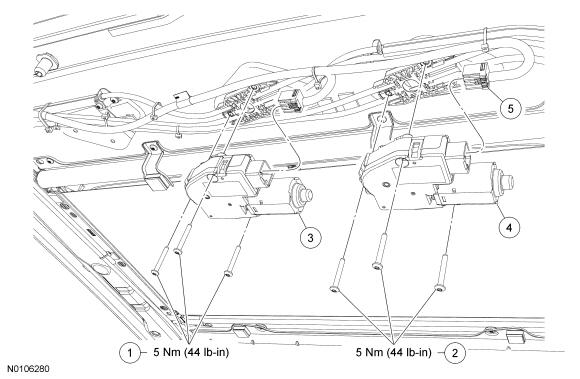

Fig 4: Roof Opening Panel Motor(s) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W790077	Shade motor retaining screws (3 required)
2	W790077	Sliding glass motor retaining screws (3 required)
3	15790	Shade motor assembly (silver label)
4	15790	Sliding glass motor assembly (black label)
5	15A657	Roof opening panel motor harness assembly

Motor Block and Drive Tube Assembly

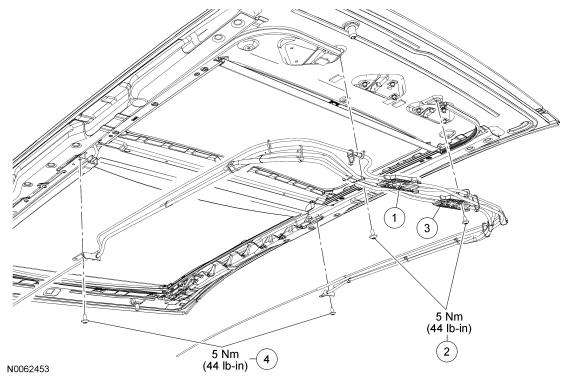

Fig 5: Motor Block And Drive Tube Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	502C22	Shade motor block and drive tube assembly
2	W790073	Rear drive tube bracket-to-housing screws (2 required)
2	W790082	Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly)
3	502C22	Sliding glass motor block and drive tube assembly
4	W790073	Front drive tube bracket-to-guide track screws (2 required)
4	W790082	Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly)

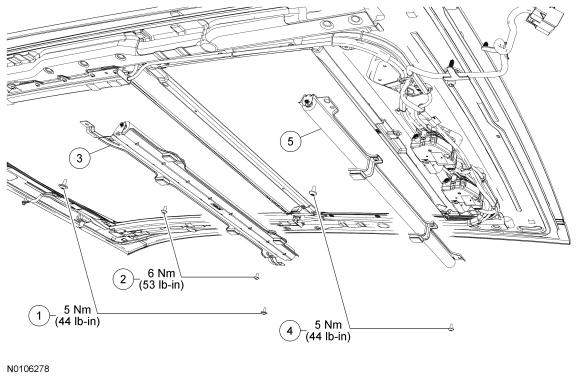

Guide Tracks and Mechanisms

NOTE: LH shown, RH similar.

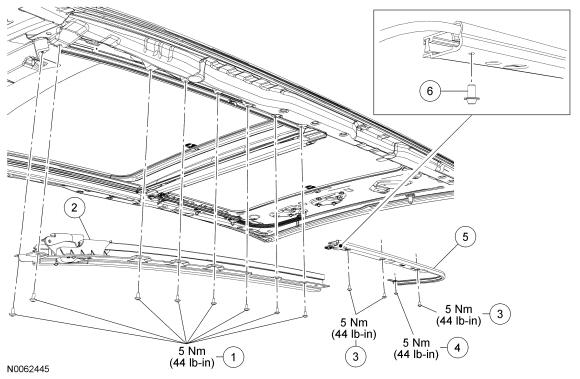

Fig 6: Guide Tracks And Mechanisms With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W790073	Front guide track-to-housing fasteners (8 required per side)
1	W790082	Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly)
2	502C07 RH/ 502C06 LH RH/ 502C06 LH	Front guide track and mechanism assembly
3	W790073	Rear shade track-to-housing fasteners (3 required per side)
3	W790082	Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly)
4	W790073	Rear shade track-to-drive tube bracket screw (1 required per side)
4	W790082	Service replacement fastener for W790073 (use only if threaded hole becomes stripped during assembly)
5	500B01 LH/ 500B02 RH LH/ 500B02 RH	Rear shade track and mechanism assembly
6	W790075	Stop screw (1 required per side)

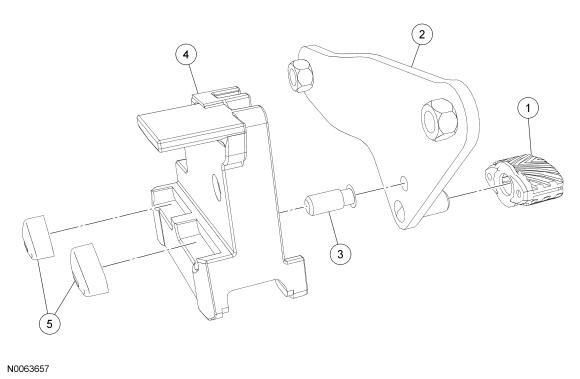

Front Guide Track Mechanism

NOTE: LH shown, RH similar.

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Outer guide foot (part of the guide track mechanism assembly)
2	-	Sliding glass bracket (part of the guide track mechanism assembly)
3	-	Sliding glass bracket pin (part of the guide track mechanism assembly)
4	-	Guide mechanism (part of the guide track mechanism assembly)
5	-	Inner guide feet (part of the guide track mechanism assembly) (2 required per side)

For additional information, refer to the individual procedures in this article.
