Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2018 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the push pins and the LH side lower instrument panel insulation panel.

Courtesy of FORD MOTOR COMPANY

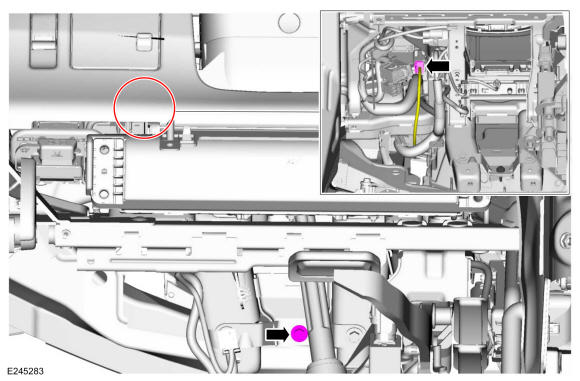

Remove the bolt and disconnect the HUD electrical connector.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the windshield. Refer to: Fixed Glass .
Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .
Remove the light sensor. Refer to: Light Sensor .

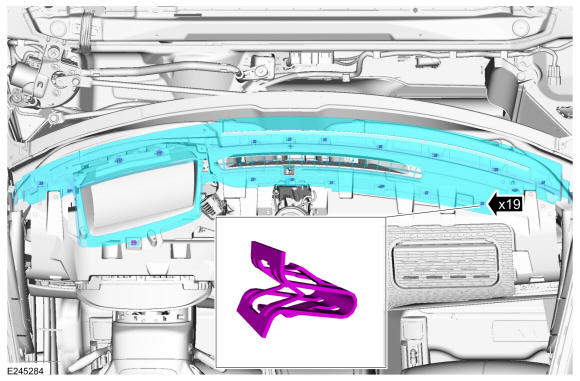

Release the clips and remove the defroster grille.

Courtesy of FORD MOTOR COMPANY

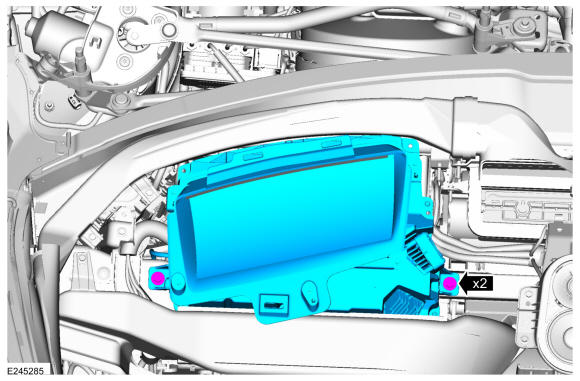

Remove the bolts and the HUD module.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
