Engine Mount: Notes
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

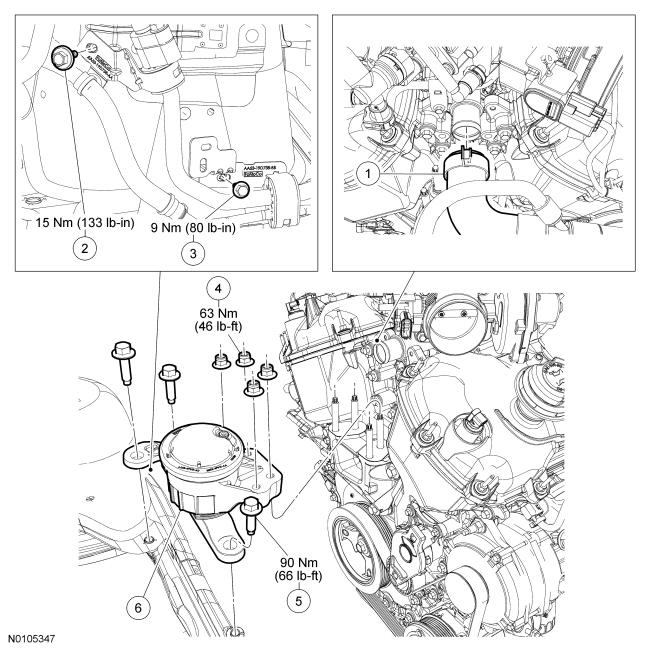

| Item | Part Number | Description |
|---|---|---|
| 1 | 8B274 | Upper radiator hose |
| 2 | W708877 | A/C tube bracket bolt |
| 3 | W705622 | A/C tube retaining clamp bolt |
| 4 | W714682 | Engine mount-to-engine nut (4 required) |
| 5 | W712507 | Engine mount-to-frame bolts (3 required) |
| 6 | 6F012 | Engine mount |
