Auxiliary Blower Motor: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

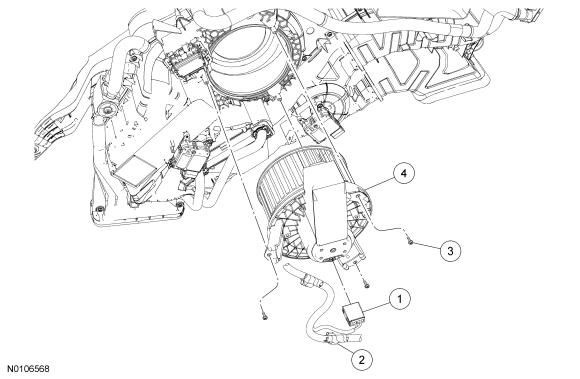

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Auxiliary blower motor electrical connector (part of 19949) |
| 2 | - | Auxiliary wire harness clip (part of 19949) (2 required) |
| 3 | - | Auxiliary blower motor screw (3 required) |
| 4 | 19805 | Auxiliary blower motor |
