Tire Pressure Monitor (TPM) Module: Notes
WARNING: This page is about a different car, the 2016 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

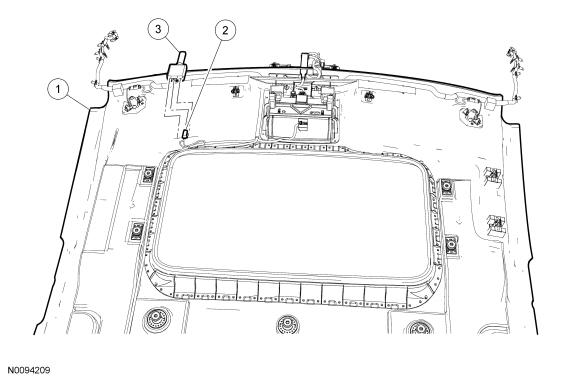

| Item | Part Number | Description |
|---|---|---|
| 1 | 5451916 | Headliner |
| 2 | - | Tire Pressure Monitor (TPM) module electrical connector (part of 14334) |
| 3 | 15K602 | TPM module |
