Headlamp Control Module (HCM): Removal

WARNING: This page is about a different car, the 2016 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

  1. 1.
    Using a diagnostic scan tool, begin the PMI process for the HCM following the on-screen instructions.

  1. 2.

    Remove the audio DSP module. Refer to appropriate article.

  1. 3.

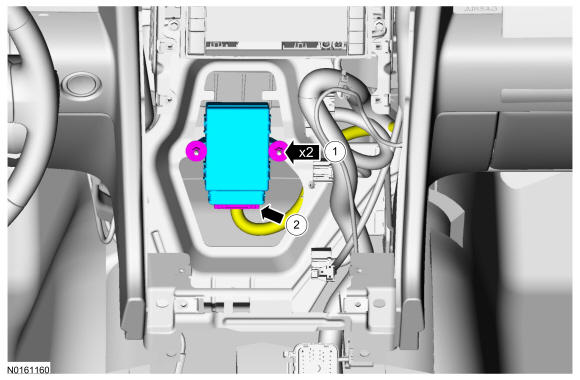

    Remove the HCM.

    1. 1.

      Remove the HCM nuts.

    1. 2.

      Disconnect the HCM electrical connector.
GFD31762Courtesy of FORD MOTOR COMPANY
