Heating Ventilation Air Conditioning (HVAC) Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

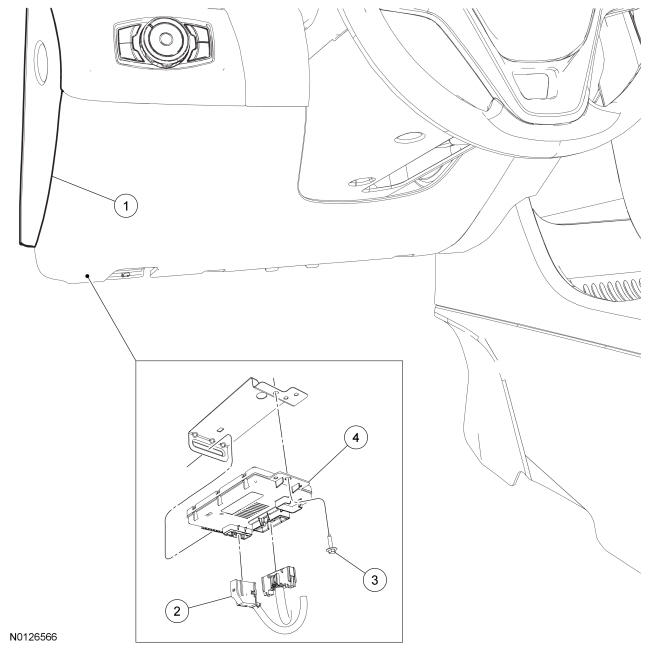

GFD99430Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 7804481 LH instrument panel side trim panel
2 - HVAC module electrical connector (2 required) (part of 14401)
3 W710506 HVAC module screw
4 19980 HVAC module
