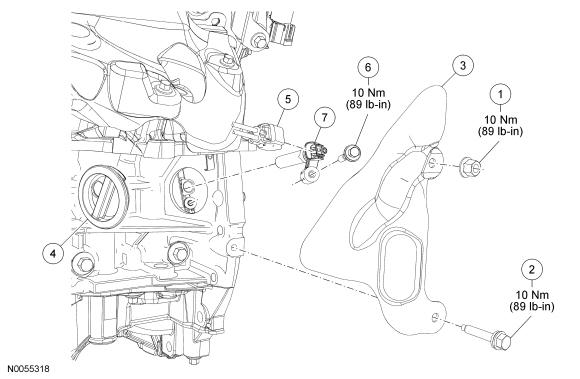

Exploded View Of Crankshaft Position (CKP) Sensor
NOTE:
The LH catalytic converter must be removed to service the Crankshaft Position (CKP) sensor. For additional information, refer to
Exhaust System
.
NOTE:
After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
| Item | Part Number | Description |
|---|---|---|
| 1 | W701542 | Heat shield nut |
| 2 | W701669 | Heat shield bolt |
| 3 | 6K342 | Heat shield |
| 4 | 6C070 | Rubber grommet cover |
| 5 | - | Crankshaft Position (CKP) sensor electrical connector (part of 12A581) |
| 6 | 6D327 | CKP sensor bolt |
| 7 | 6C315 | CKP sensor |
