Wiper/Washer Switch: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

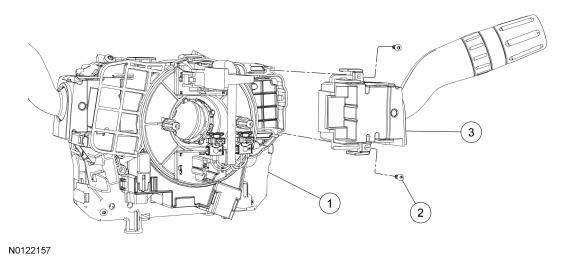

GFD100686Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 3F791 Steering Column Control Module (SCCM)
2 - Wiper/washer switch screw (part of 17A553) (2 required)
3 17A553 Wiper/washer switch
