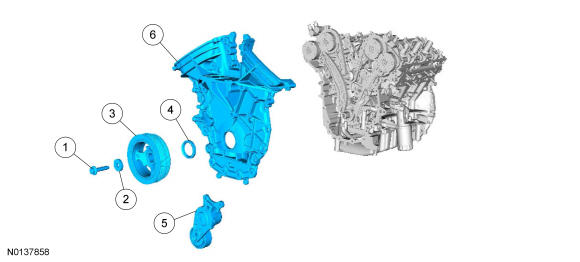

Exploded View Of Engine Front

GFD97251Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 W701512 Crankshaft pulley bolt
2 N806165 Crankshaft pulley washer
3 6316 Crankshaft pulley
4 6700 Crankshaft front seal
5 6B209 Accessory drive belt tensioner
6 6019 Engine front cover
