Removal And Installation

NOTE: Do not allow the clockspring to rotate while the steering wheel is disconnected or damage to the clockspring may result. If there is evidence that the clockspring has rotated, the clockspring must be recentered. Refer to Supplemental Restraint System .

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the driver air bag module. Refer to Supplemental Restraint System .

2.

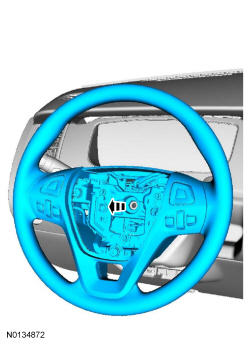

1. 1.

  Discard the specified component. Follow local disposal regulations.
  - To install, tighten the new bolt to 47 Nm (35 lb-ft).
1. 2.

  -

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

4.

Apply tape to specified component or area.

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.
