Section 2 (Engine - 2.0L GTDI): Installation: Engine
WARNING: This page is about a different variant/trim than selected.
Special Tool(s)
| 2, 200# Floor Crane, Fold Away 300-OTC1819E | |
| Adjustable Grip Arm, 1735A 014-00001 | |
| Powertrain Lift 014-00765 or equivalent | |
| Retainer, Torque Converter 307-566 | |
| Spreader Bar 303-D089 (D93P-6001-A3) or equivalent |
Material
| Item | Specification |
| Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) | WSS-M2C946-A |
| Motorcraft ® Multi-Purpose Grease XL-5-A | ESB-M1C93-B |
- 1.
Lubricate the torque converter pilot hub with Multi-Purpose Grease.- Remove the Torque Converter Retainer and bolt.
- 2.NOTE: Align the torque converter stud marked during removal with the flexplate.

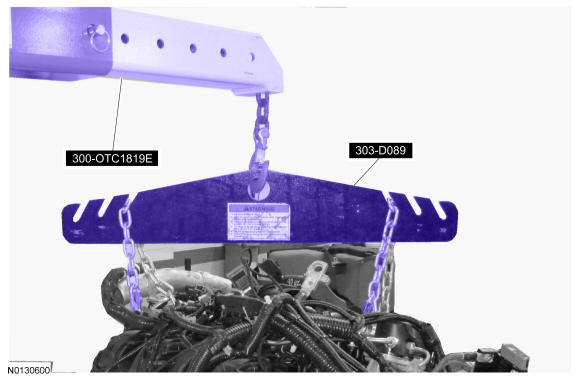

Using the Floor Crane and Spreader Bar, assemble the engine and transaxle.
- 9.NOTE: Position a block of wood under the transaxle.

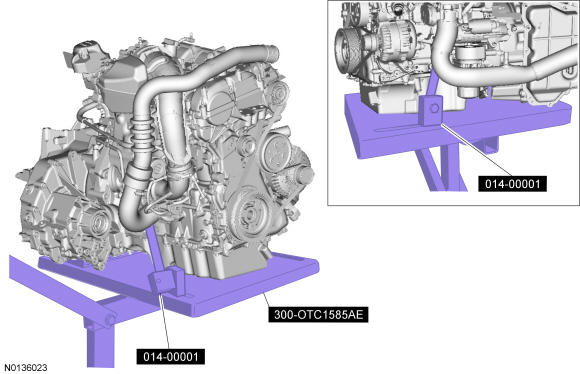

Install the Powertrain Lift and Adjustable Grip Arms.
- 11.

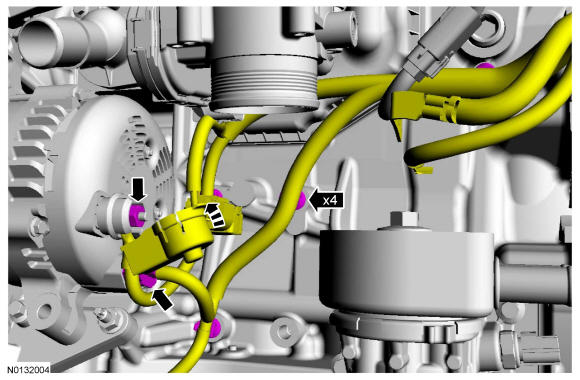

Install the wire terminal and nut on the generator.- Tighten to 17 Nm (150 lb-in) and install the cap.
- Connect the wire harness electrical connector.
- Attach the 4 wiring harness retainers to the engine.
- 12.NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.
Install the 4 torque converter nuts.
- Tighten to 40 Nm (30 lb-ft).
- 15.

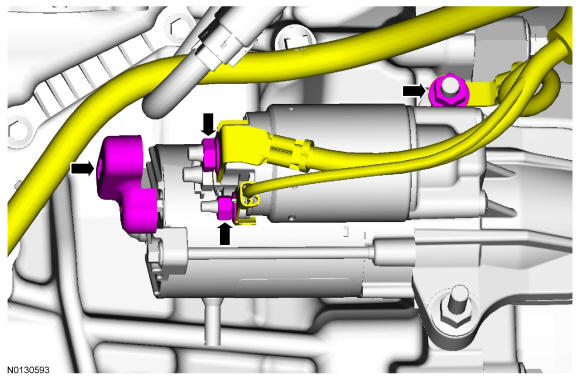

Install the 2 starter wire terminals, the ground wire and the 3 nuts.- Tighten the ground wire nut to 18 Nm (159 lb-in).
- Tighten the large starter wire terminal nut to 12 Nm (106 lb-in).
- Tighten the small starter wire terminal nut to 5 Nm (44 lb-in).
- Install the starter cable cover.
- 16.
Raise the engine and transaxle assembly into the vehicle.- Install the engine mount, the 4 nuts and the 3 bolts.
- Tighten the bolts to 90 Nm (66 lb-ft) and the nuts to 125 Nm (92 lb-ft).
- Install the engine mount, the 4 nuts and the 3 bolts.
- 17.
Install the transaxle support insulator bracket, the 3 nuts and the bolt.- Tighten the 3 nuts to 63 Nm (46 lb-ft).
- Tighten the bolt to 80 Nm (59 lb-ft).
- 19.

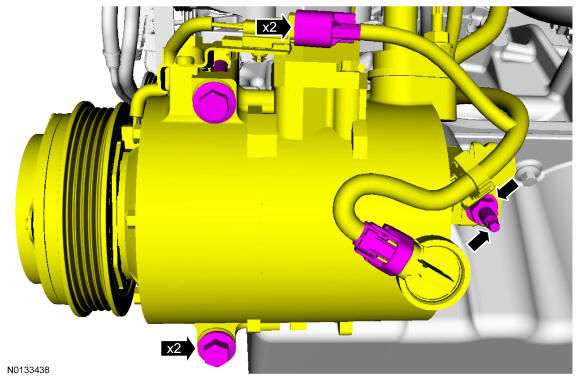

Install the A/C compressor, the 2 bolts and the stud.- Tighten the bolts to 25 Nm (18 lb-ft) and the stud to 9 Nm (80 lb-in).
- Install the nut and tighten to 25 Nm (18 lb-ft).
- Connect the 2 A/C compressor electrical connectors.
- 21.
Install the A/C compressor drive belt. For additional information, refer to Accessory Drive Belt System .
- 22.NOTE: Make sure to install the correct circlip for this application. Failure to use the correct diameter circlip may result in shaft removal concerns or shaft damage during vehicle operation.
Install a new circlip.
- 24.NOTE: The sharp edges on the halfshaft splines can slice or puncture the oil seal. Use care when inserting the halfshaft into the transaxle or damage to the seal may occur.
Push the LH halfshaft into the transaxle so the circlip locks into the differential side gear. Pull the halfshaft inner end to make sure the circlip is locked.
- 25.

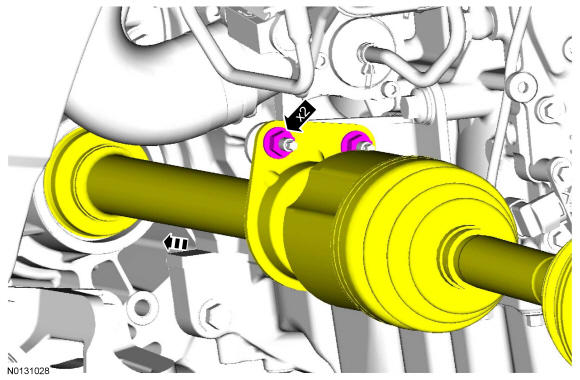

Install the RH halfshaft in the transaxle and engage the halfshaft splines with the transaxle side gears and install the 2 halfshaft nuts.- Tighten to 25 Nm (18 lb-ft).
- 26.NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.
Install a new engine oil filter.
- Tighten to 8 Nm (71 lb-in) plus an additional 180 degrees.
- 30.
Connect the oil cooler hose quick connect coupling. For additional information, refer to Fuel System General Information .
- 31.
Install the front subframe. For additional information, refer to Uni-Body, Subframe and Mounting System .
- 32.
Install the engine roll restrictor. For additional information, refer to Automatic Transmission 6F35 .
- 33.
Install the catalytic converter. For additional information, refer to Exhaust System
- 35.

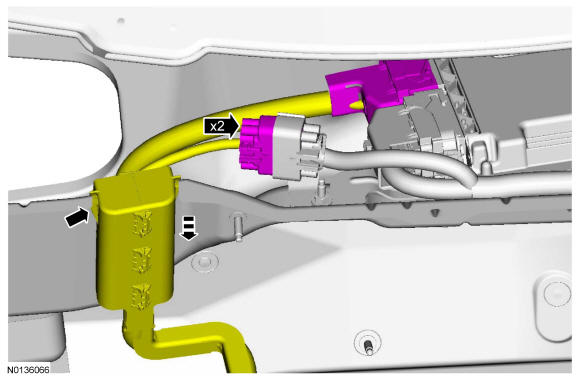

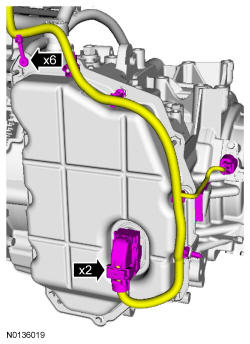

Slide the wiring harness onto the bulkhead and verify the retaining tab is engaged.- Connect the 2 wiring harness electrical connectors.
- 37.
Connect the EVAP tube to the EVAP purge valve. For additional information, refer to Fuel System General Information .
- 38.
Connect the fuel supply tube quick connect coupling. For additional information, refer to Fuel System General Information .
- 40.

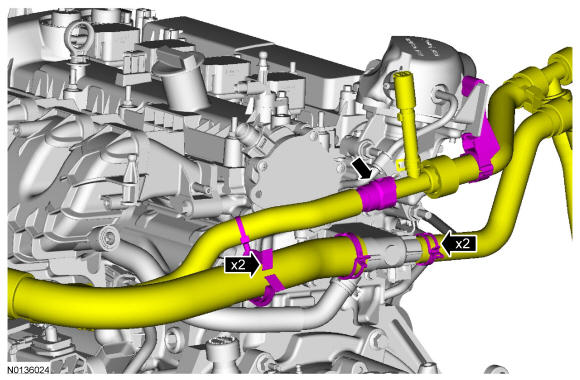

Attach the 2 wiring harness retainers to the valve cover stud bolts.- Connect the A/C tube fitting and install the nut.
- To install, tighten to 15 Nm (133 lb-in).
- Connect the A/C tube fitting and install the nut.
- 42.
Connect the oil cooler hose quick connect coupling. For additional information, refer to Fuel System General Information .
- 44.
Connect the transaxle selector lever cable end to the manual control lever and install the 2 bracket bolts.- Tighten to 25 Nm (18 lb-ft).
- 45.
Connect the vacuum tube quick connect coupling to the power brake booster. For additional information, refer to Fuel System General Information .- Attach the vacuum tube retaining clip.
- 46.

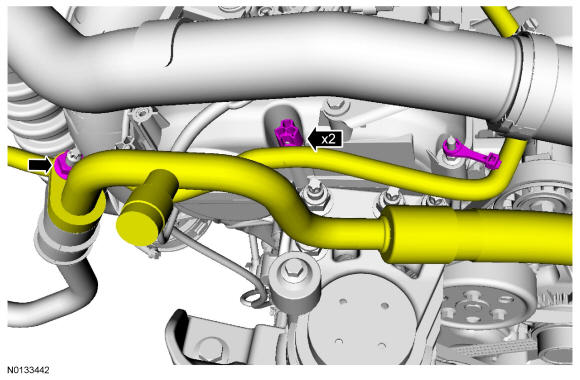

Connect the upper radiator hose and the heater hose.- Connect the heater hose quick connect coupling.
- Attach the hoses to the 2 retaining clips.
- 50.
Install the battery tray. For additional information, refer to Battery, Mounting and Cables .
- 51.
Install the engine ACL and ACL outlet pipe assembly. For additional information, refer to Intake Air Distribution and Filtering .
- 52.
Install the cowl panel grille. For additional information, refer to Front End Body Panels .
- 54.
Fill and bleed the engine cooling system. For additional information, refer to Engine Cooling .
- 55.
Evacuate, leak test and charge the refrigerant system. For additional information, refer to Climate Control System General Information and Diagnostics .
