Cylinder Head: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tool(s)
| Compressor, Valve Spring 303-300 (T87C-6565-A) | |
| Compressor, Valve Spring 303-350 (T89P-6565-A) | |
| Compressor, Valve Spring 303-472 (T94P-6565-AH) | |
| Compressor, Valve Spring 303-1249 | |
| Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH) | |
| Remover, Valve Stem Oil Seal 303-468 (T94P-6510-AH) | |
| Slide Hammer 307-005 (T59L-100-B) |
Material
| Item | Specification |
| Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) | WSS-M2C946-A |
| Motorcraft ® Multi-Purpose Grease XL-5-A | ESB-M1C93-B |

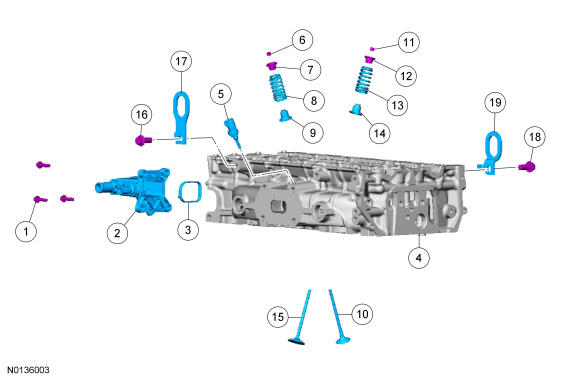

| Item | Part Number | Description |
|---|---|---|
| 1 | W500015 | Coolant outlet bolt (3 required) |
| 2 | 8K556 | Coolant outlet |
| 3 | 8255 | Coolant outlet gasket |
| 4 | 6049 | Cylinder head |
| 5 | 6G004 | CHT sensor |
| 6 | 6518 | Exhaust valve collet (16 required) |
| 7 | 6514 | Exhaust valve spring retainer (8 required) |
| 8 | 6513 | Exhaust valve spring (8 required) |
| 9 | 6A517 | Exhaust valve seal (8 required) |
| 10 | 6505 | Exhaust valve (8 required) |
| 11 | 6518 | Intake valve collet (16 required) |
| 12 | 6514 | Intake valve spring retainer (8 required) |
| 13 | 6513 | Intake valve spring (8 required) |
| 14 | 6A517 | Intake valve seal (8 required) |
| 15 | 6507 | Intake valve (8 required) |
| 16 | W500033 | Engine lift eye bolt |
| 17 | 17A084 | LH engine lift eye |
| 18 | W500033 | Engine lift eye bolt |
| 19 | 17K004 | RH engine lift eye |
