Removal And Installation

1.

If a new HSWM is being installed, connect the scan tool and upload the module configuration information from the HSWM. For additional information on configuration, refer to PMI in Module Configuration .

2.

Remove the RH instrument panel finish panel. Refer to Instrument Panel and Console .

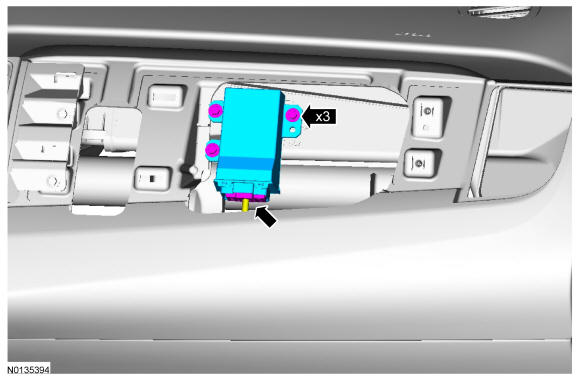

3.
- To install, tighten to 3 Nm (27 lb-in).

GFD87087

Courtesy of FORD MOTOR COMPANY

4.

To install, reverse the removal procedure.
- If a new HSWM was installed, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). For additional information on configuration, refer to PMI in Module Configuration .
