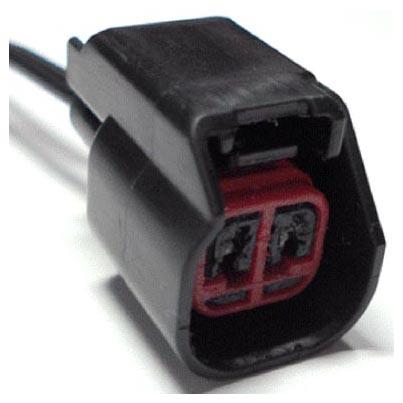

| Pigtail Kit Part Number WPT-1243
|
Service Part Number: 3U2Z-14S411-RPC
Gauge: 16
Pin material: Tin (greased)
Cavities: 2
Vehicle Uses
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Rear
- Handle - Decklid
- Lamp - Headlamp - High/Low Beam
- Lamp - Headlamp - Low Beam
- Lamp - License
- Lamp - Rear Turn
- Lamp - Side Marker
- Sensor - Knock
- Sensor - Seat Track Position
- Sensor - Throttle Position
- Sensor - Turbine Shaft Speed
- Sensor - Water in Fuel
- Switch - Deck Lid/Lift Gate Ajar
- Switch - Door Ajar/Interior Lamp
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Stop Lamp
- Valve - Vapor Management
|

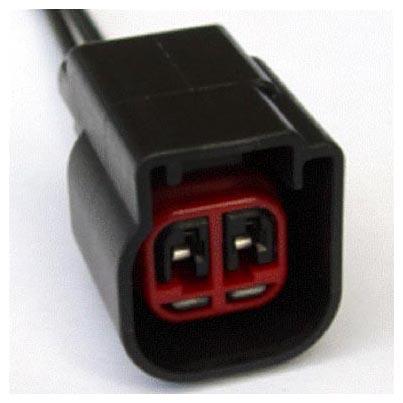

| Pigtail Kit Part Number WPT-489
|
Service Part Number: 3U2Z-14S411-RPA
Gauge: 16
Pin material: Tin
Cavities: 2
Vehicle Uses
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Rear
- Lamp - Headlamp - Low Beam
- Lamp - Rear Turn
- Lamp - Side Marker
- Sensor - Input Shaft Speed
- Switch - Deck Lid/Lift Gate Ajar
- Switch - Door Ajar/Interior Lamp
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Valve - Vapor Management
|

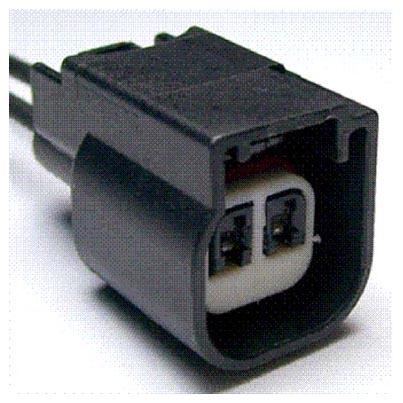

| Pigtail Kit Part Number WPT-490
|
Service Part Number: 3U2Z-14S411-RVA
Gauge: 18
Pin material: Gold
Cavities: 2
Vehicle Uses
- Sensor - Crash (Engine Compartment)
- Sensor - Knock
- Sensor - Memory Seat Track Position
- Sensor - Throttle Position
|

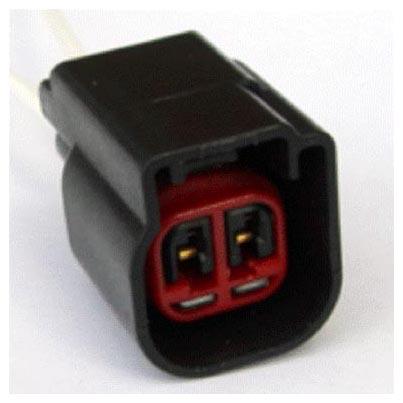

| Pigtail Kit Part Number WPT-972
|
Service Part Number: 3U2Z-14S411-RPB
Gauge: 14
Pin material: Tin (greased)
Cavities: 2
Vehicle Uses
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Rear
- Lamp - Headlamp - High/Low Beam
- Lamp - Headlamp - Low Beam
- Lamp - Rear Turn
- Lamp - Side Marker
- Sensor - Knock
- Sensor - Seat Track Position
- Sensor - Throttle Position
- Switch - Deck Lid/Lift Gate Ajar
- Switch - Door Ajar/Interior Lamp
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Stop Lamp
- Valve - Vapor Management
|
