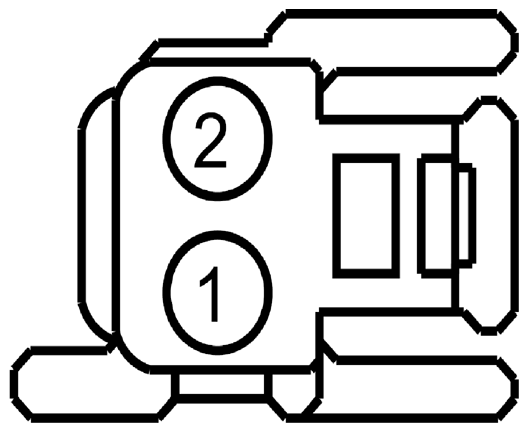

Key Release Interlock Actuator Connector End View (C2139)

Fig 1: Identifying Key Release Interlock Actuator Connector (C2139)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP27 (BU-RD)	14	FUSE - 27 OR CIRCUIT BREAKER
2	CDC41 (WH-BN)	20	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)

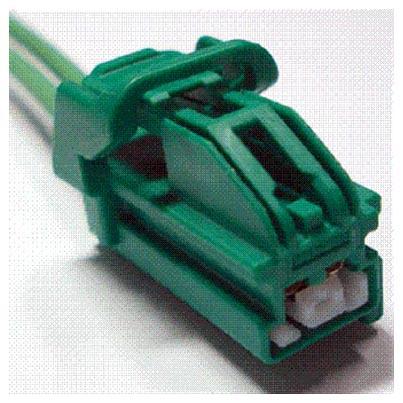

Available Pigtail Kits
Pigtail Kit Part Number WPT-1163	Service Part Number: 3U2Z-14S411-JYB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Headlamp Switch Sensor - EATC In Car Temperature Solenoid - Brake Shift Park Interlock Switch - Brake Pressure Switch - Headlamp Switch - Neutral Tow Switch - Stop Lamp
