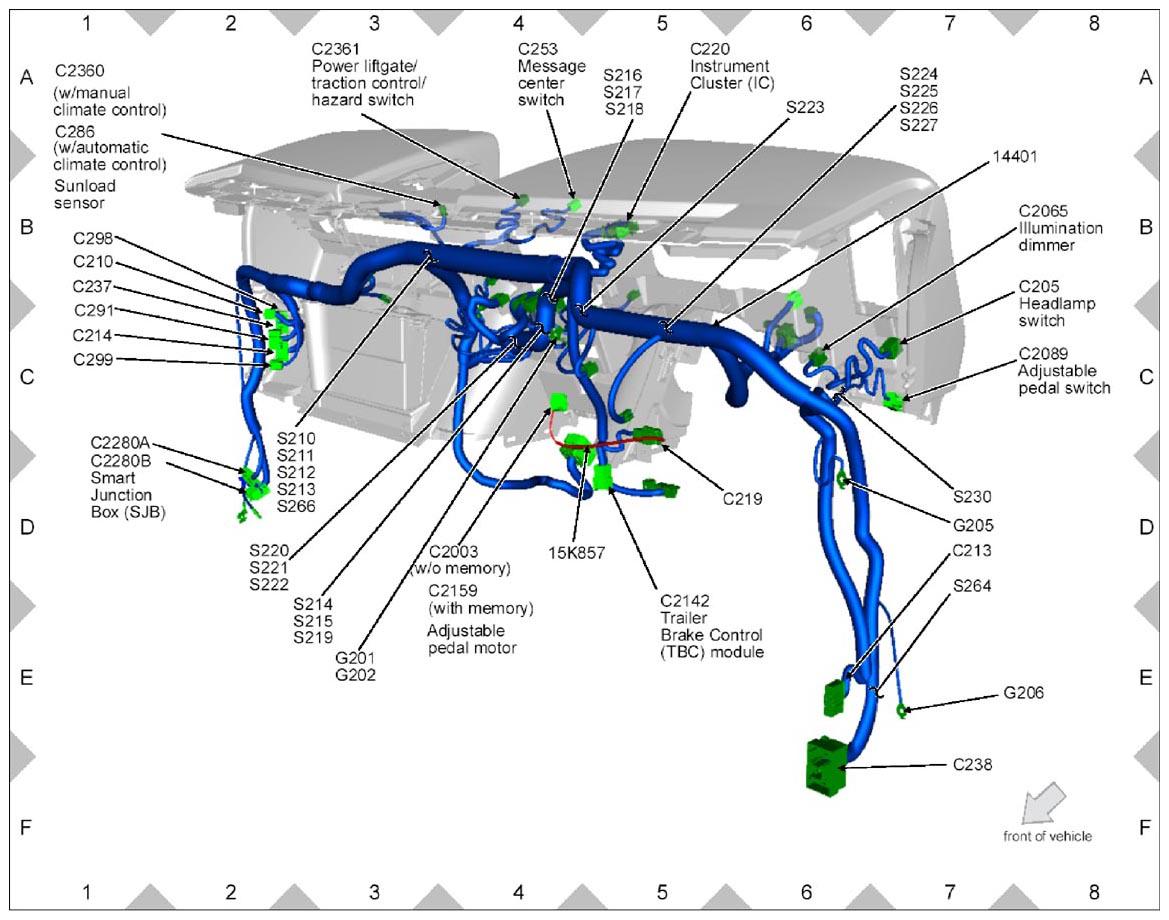

Wiring Diagrams
>>
OEM Component Harness Location Views
>>
Component Location Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Location Views

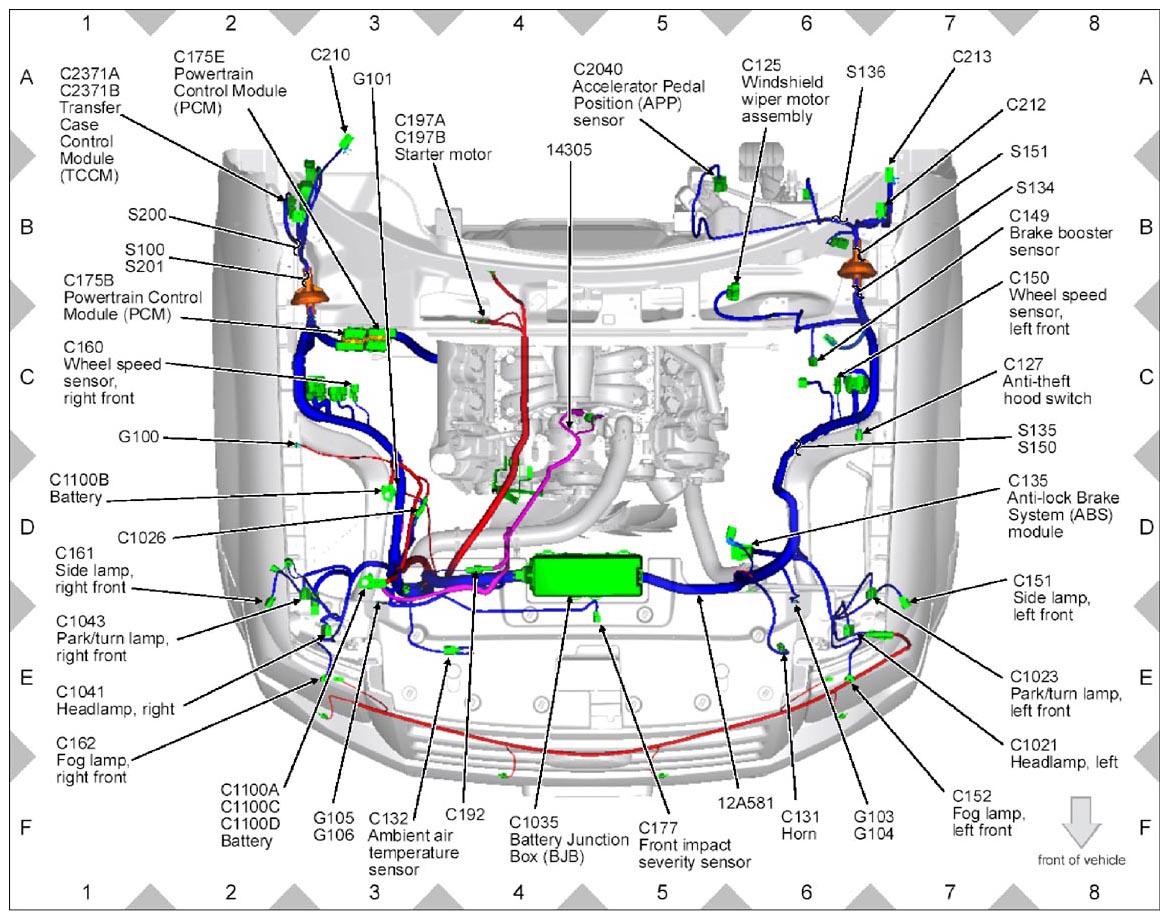

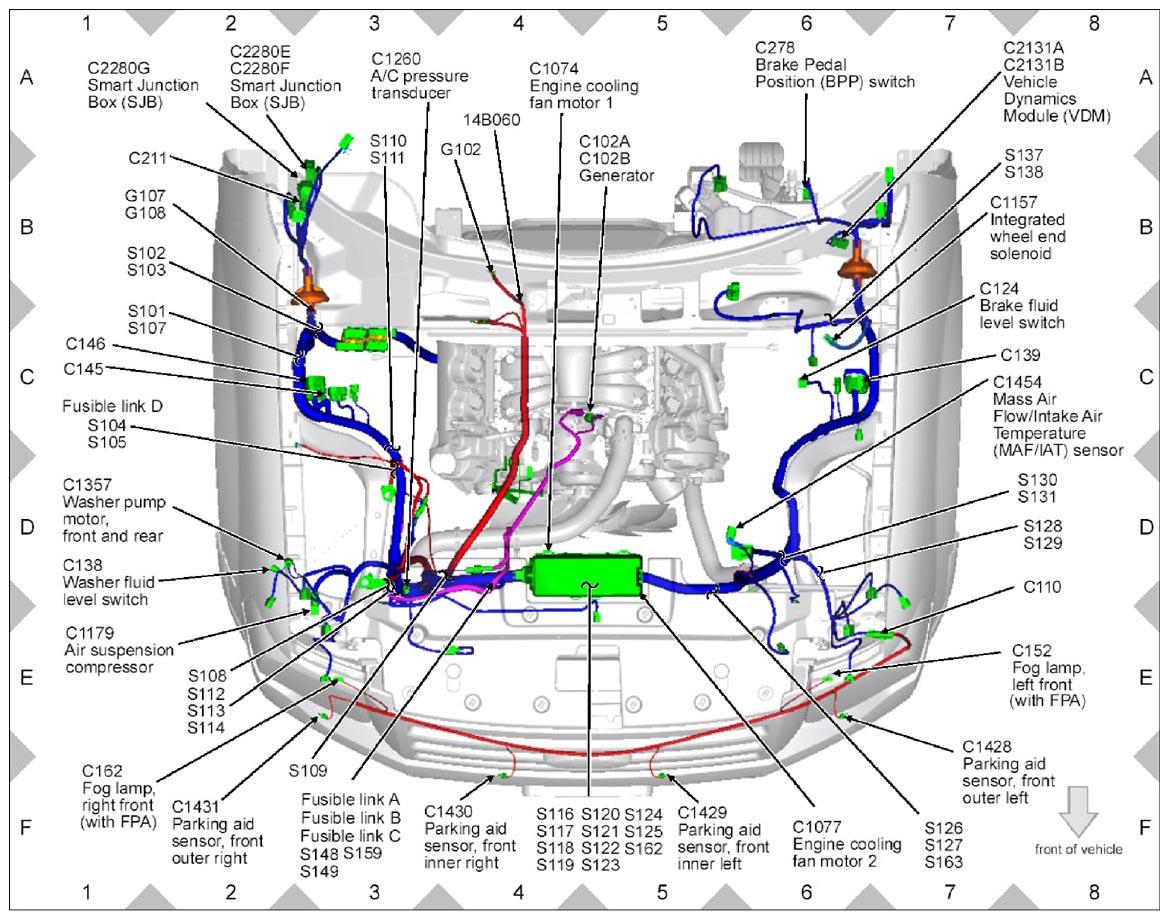

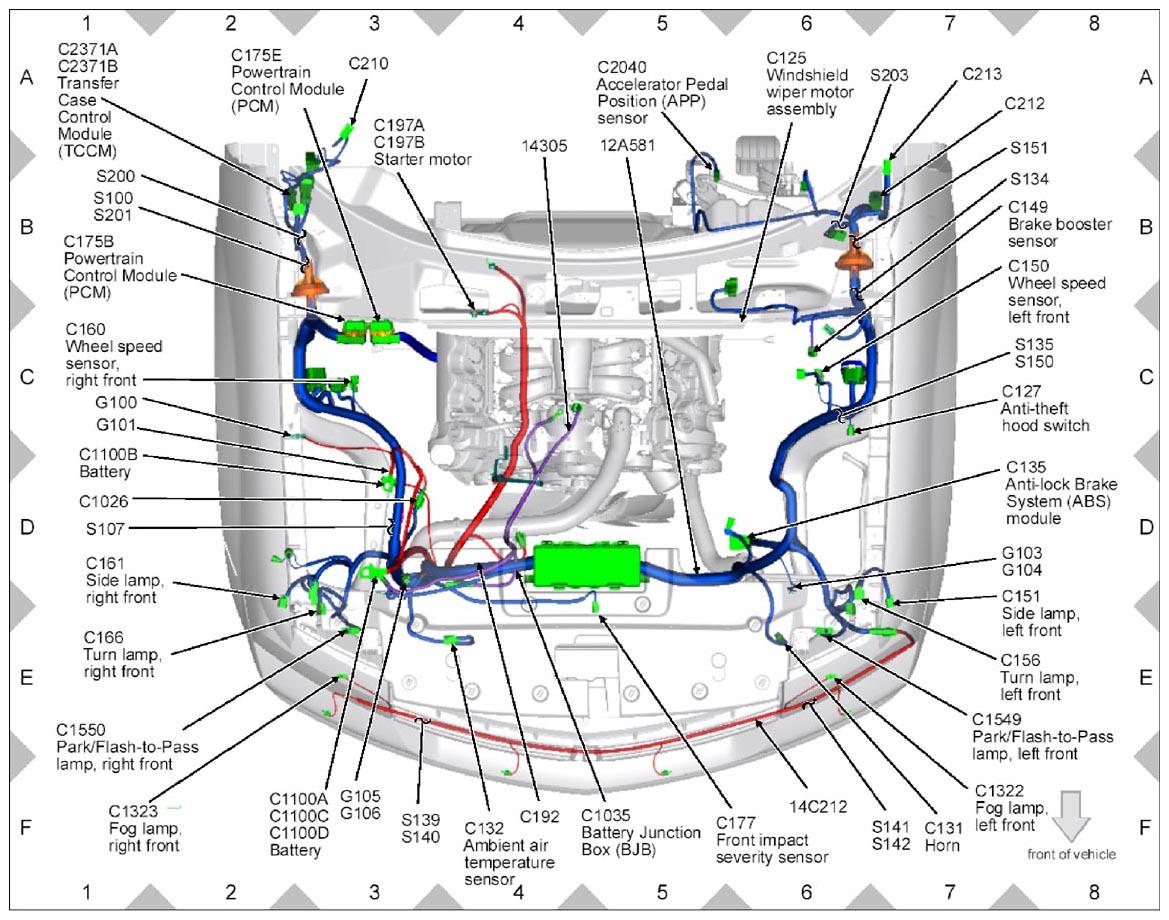

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.

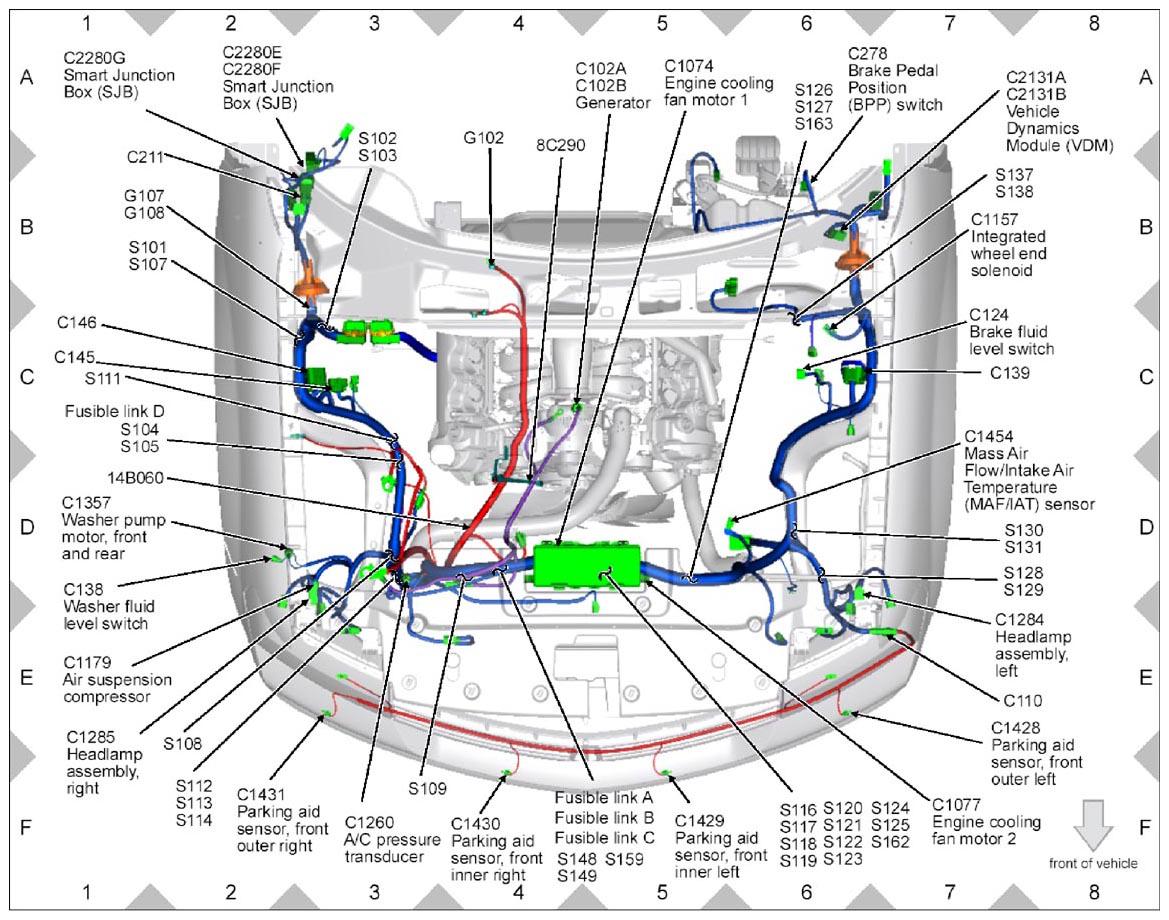

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

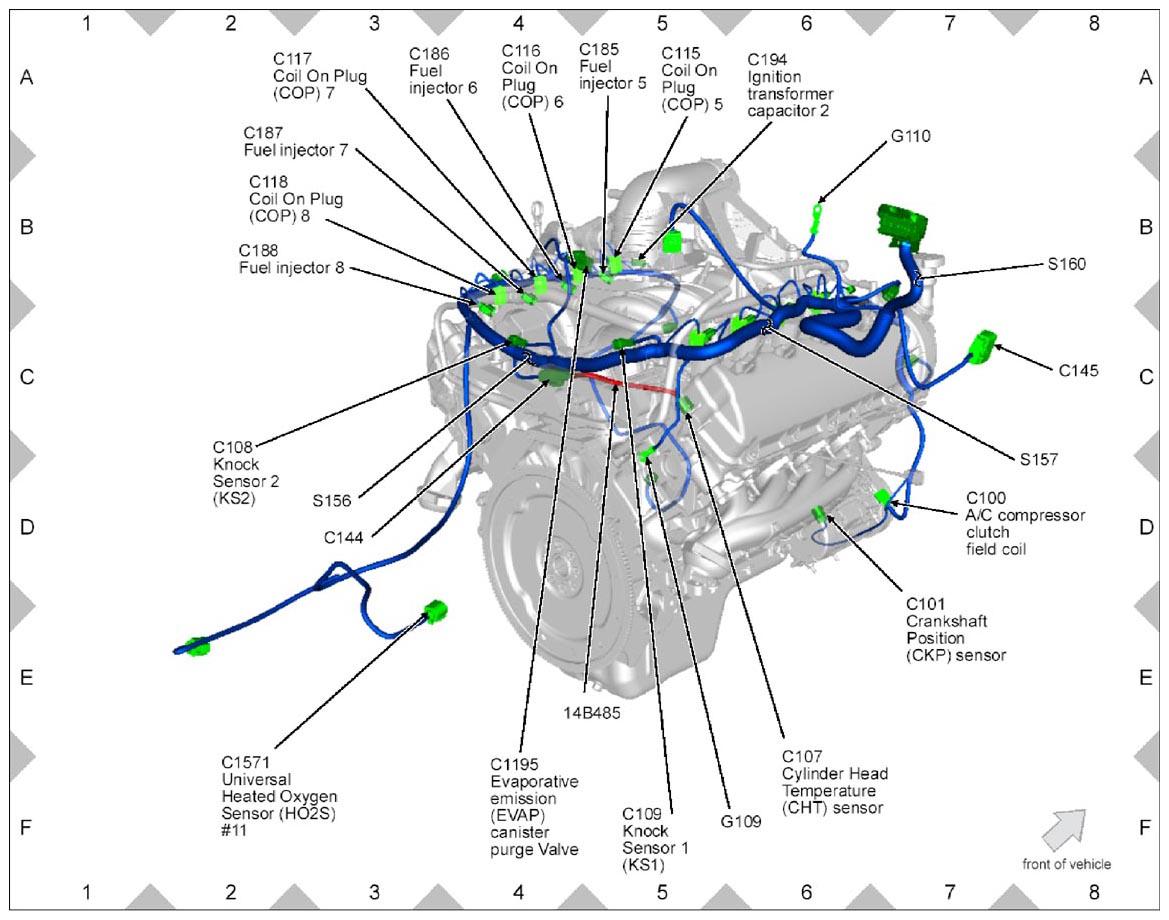

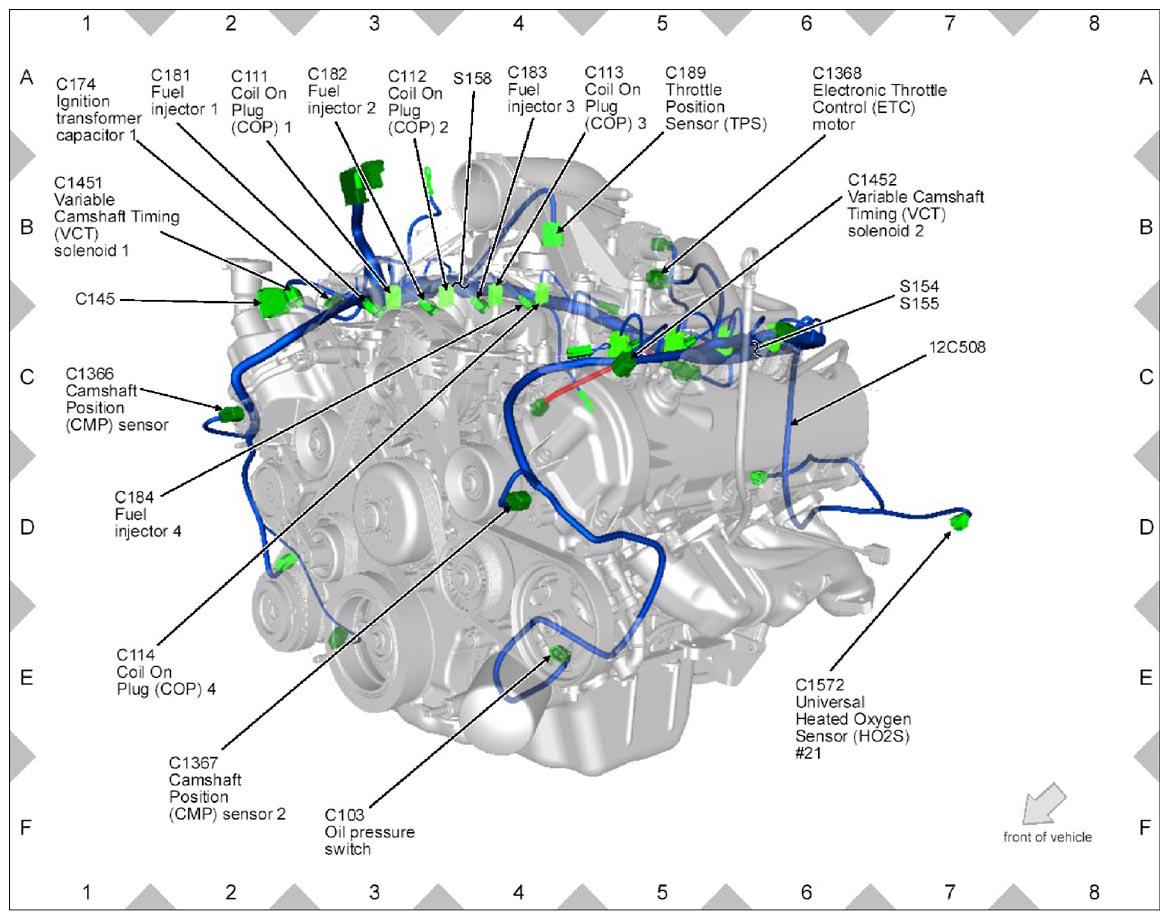

Fig 5: Engine Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 6: Engine Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

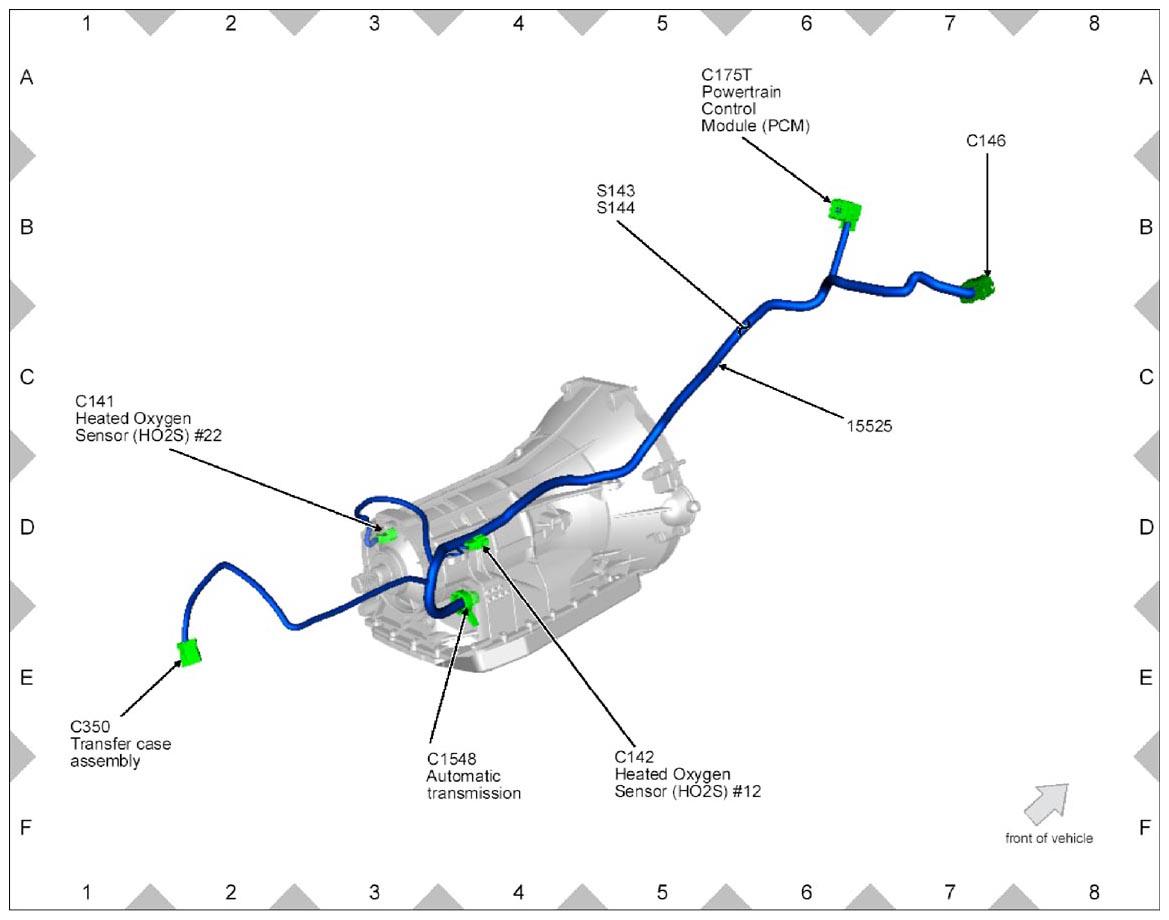

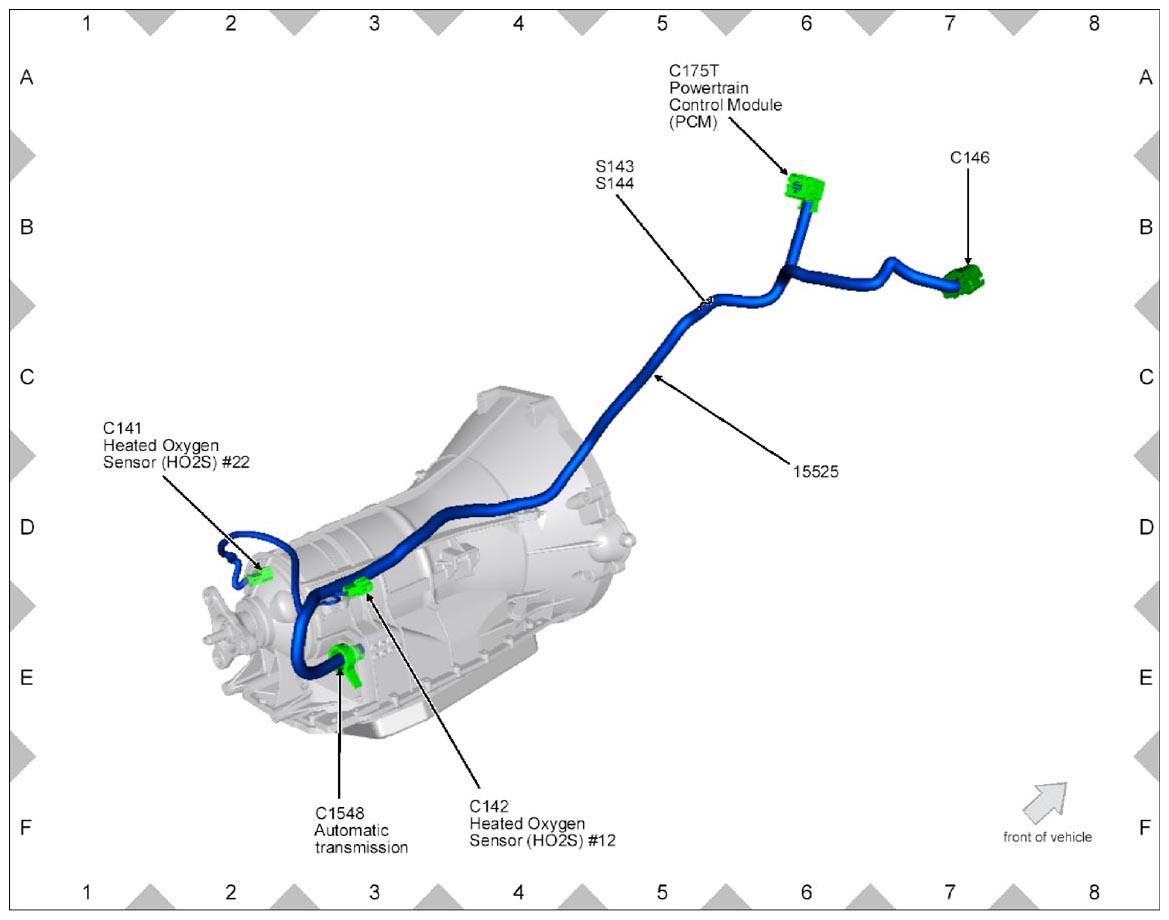

Fig 7: Automatic Transmission Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 8: Automatic Transmission Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

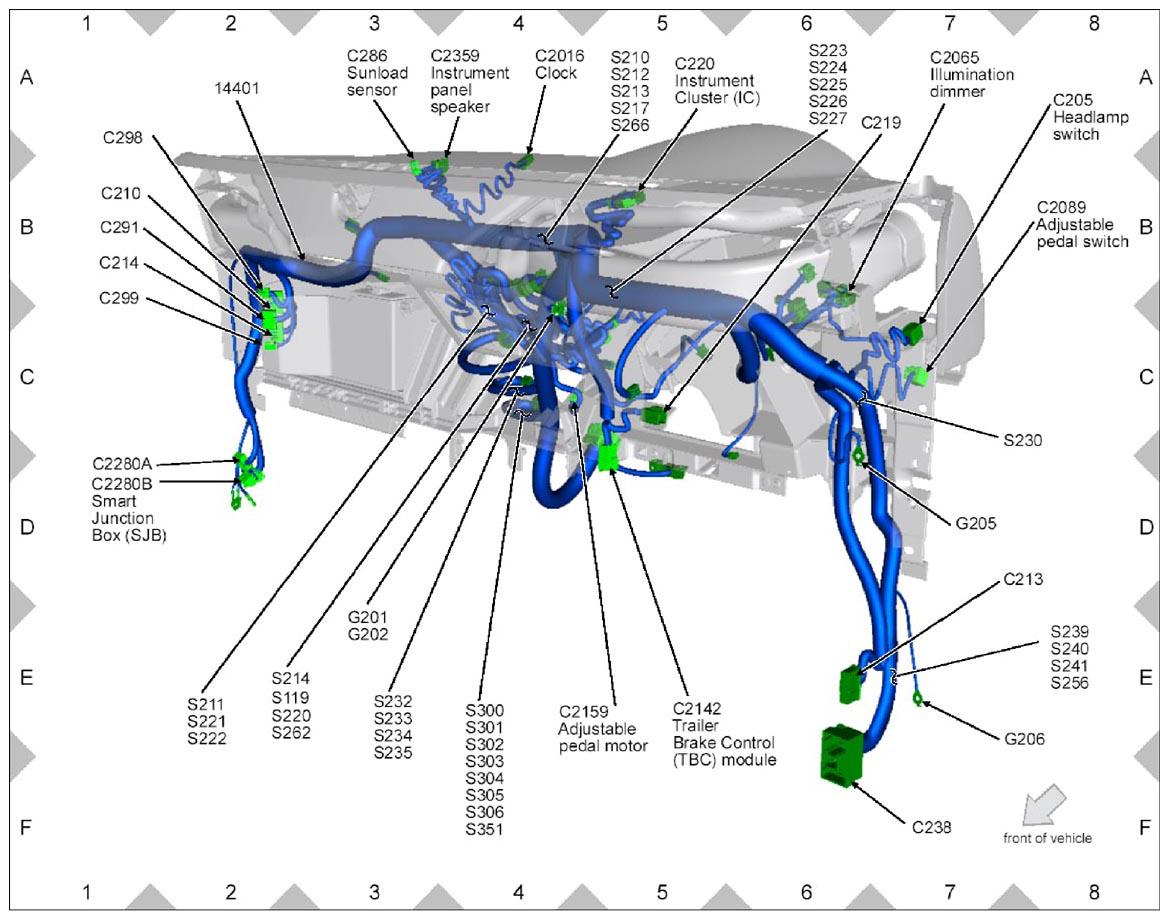

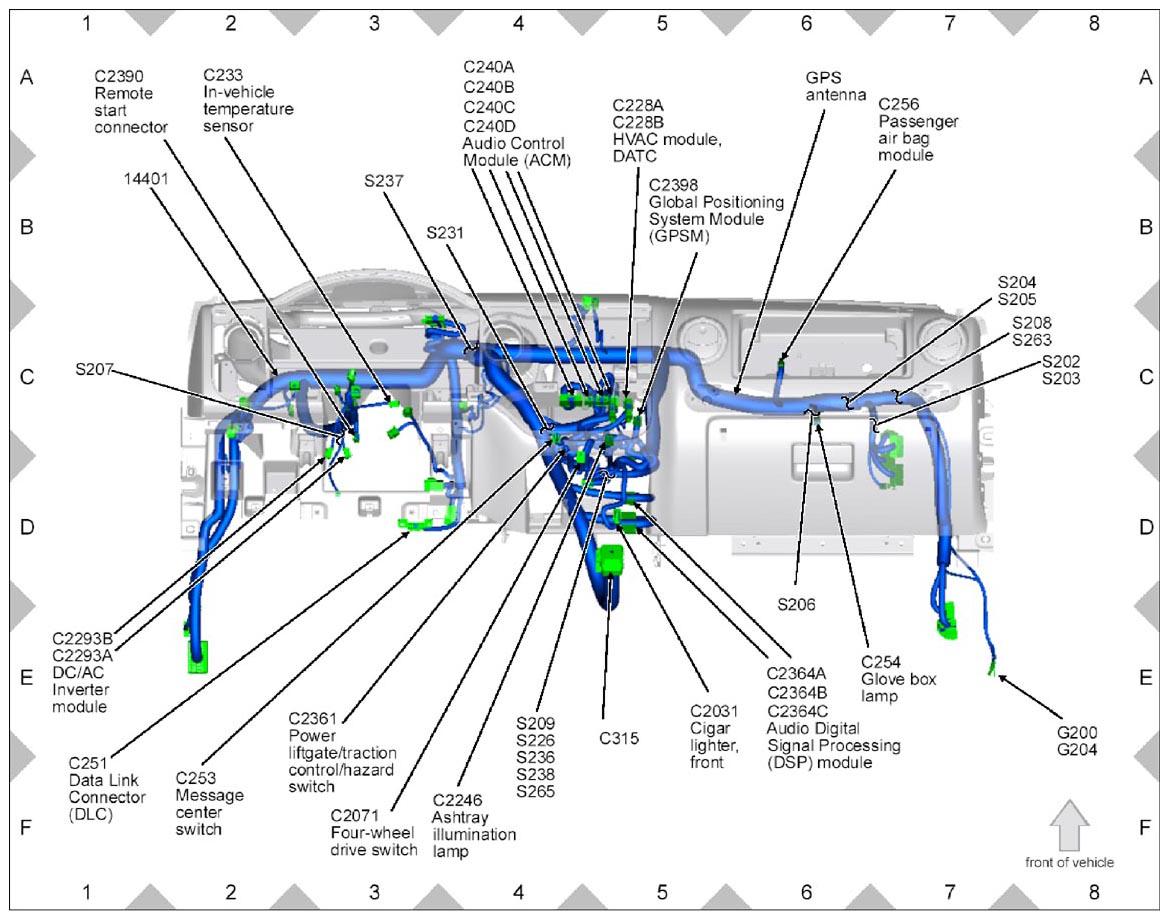

Fig 9: Dashboard Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.

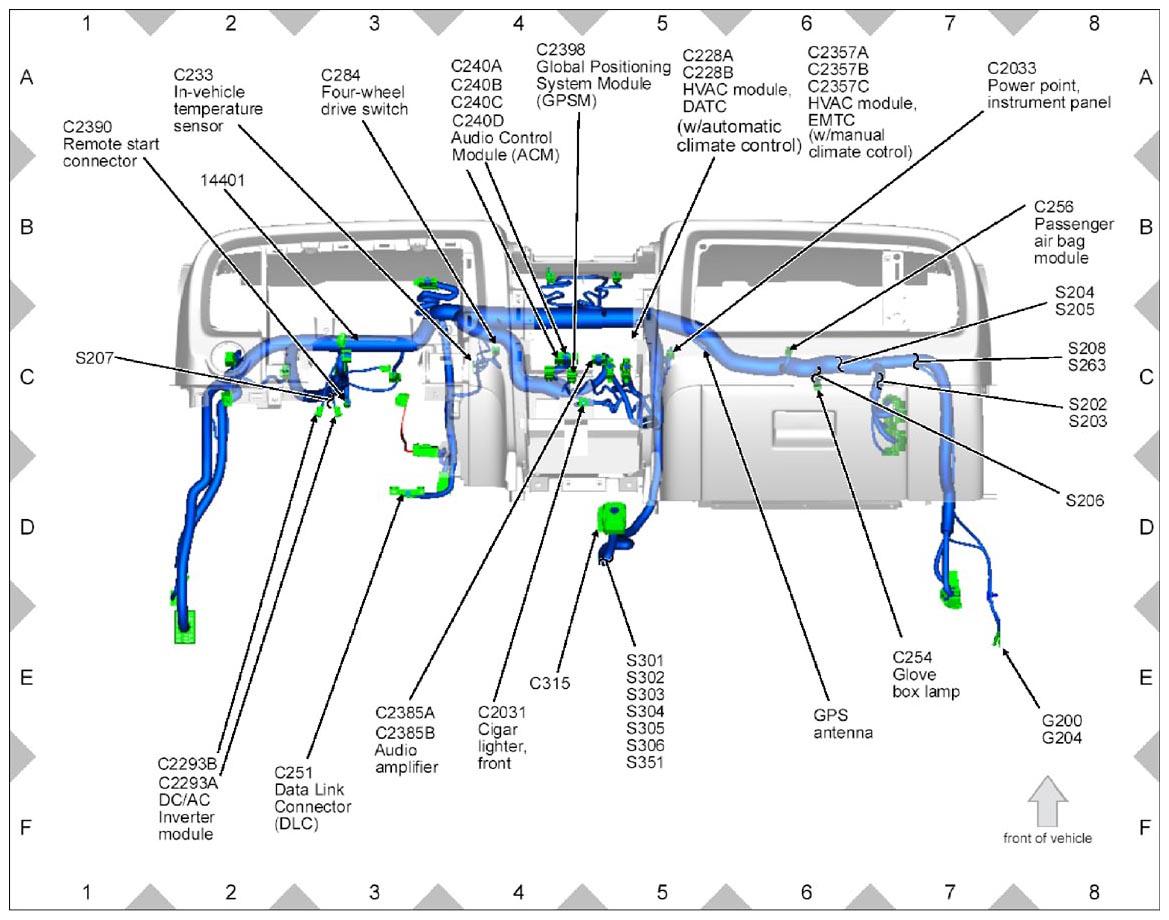

Fig 10: Dashboard Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 11: Dashboard Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 12: Dashboard Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

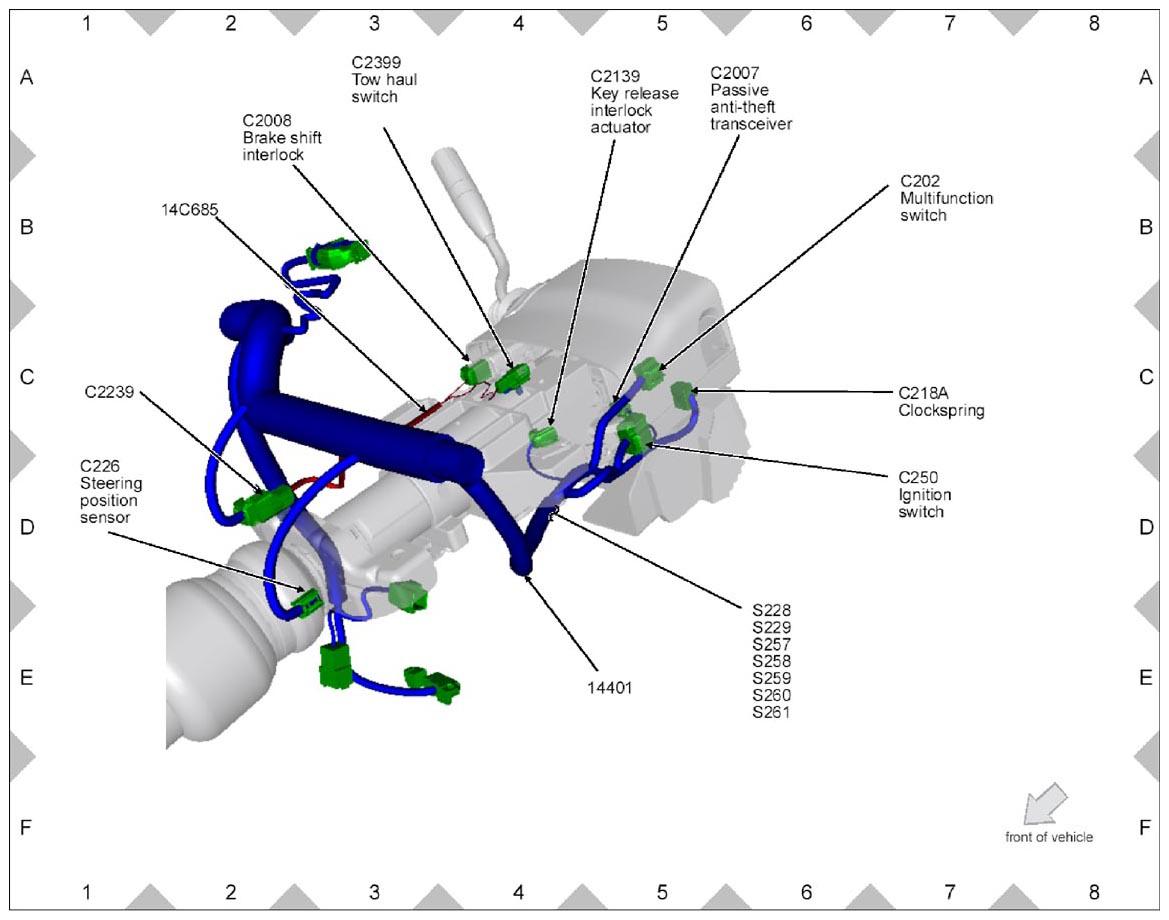

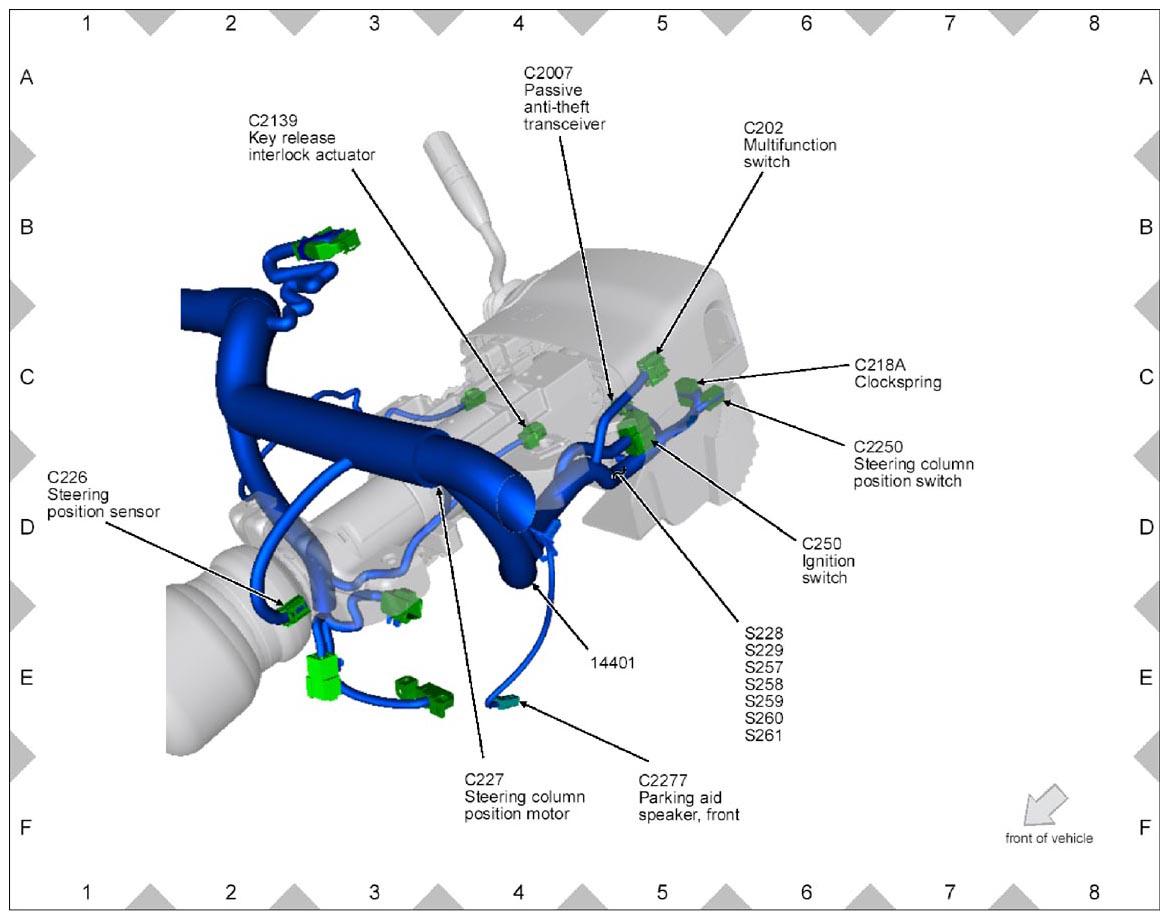

Fig 13: Steering Column Wiring Harness Connectors Locations (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 14: Steering Column Wiring Harness Connectors Locations (2 Of 2)
Courtesy of FORD MOTOR CO.

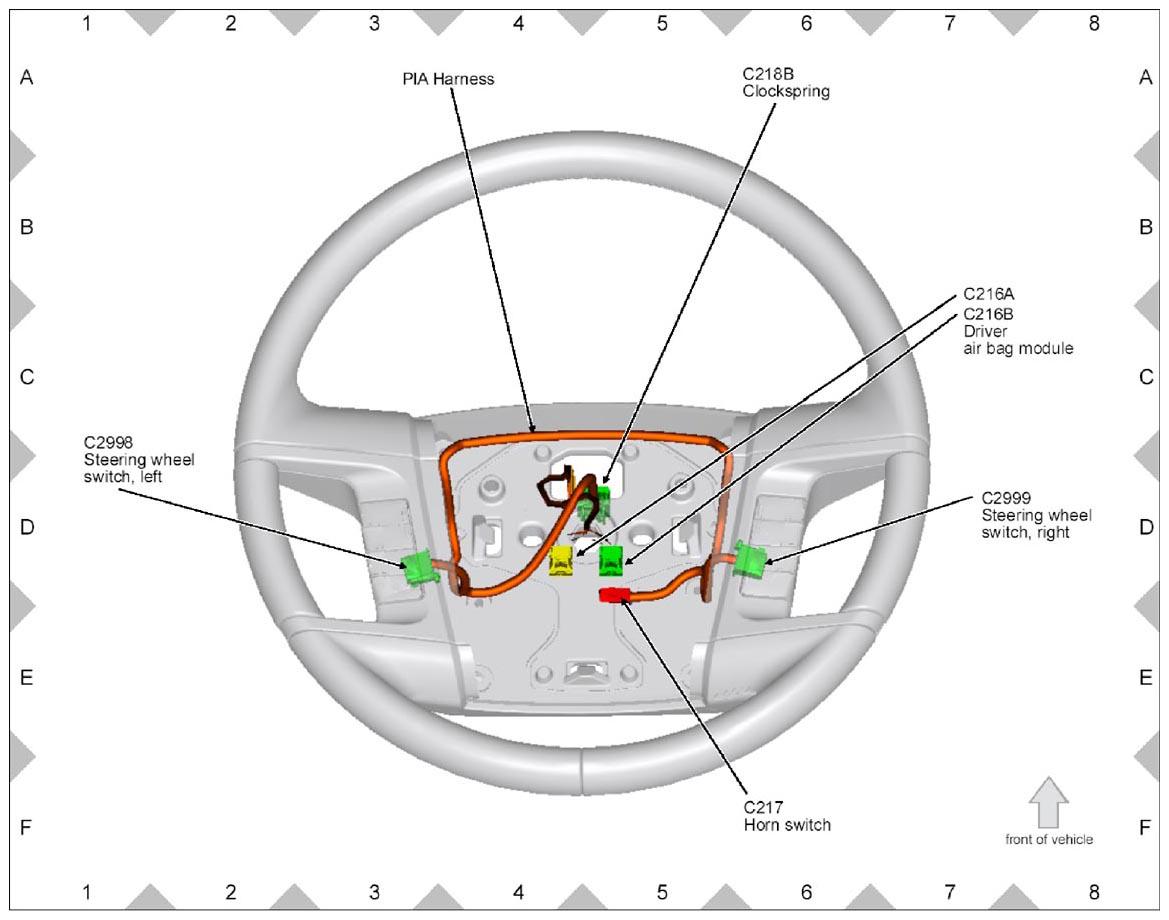

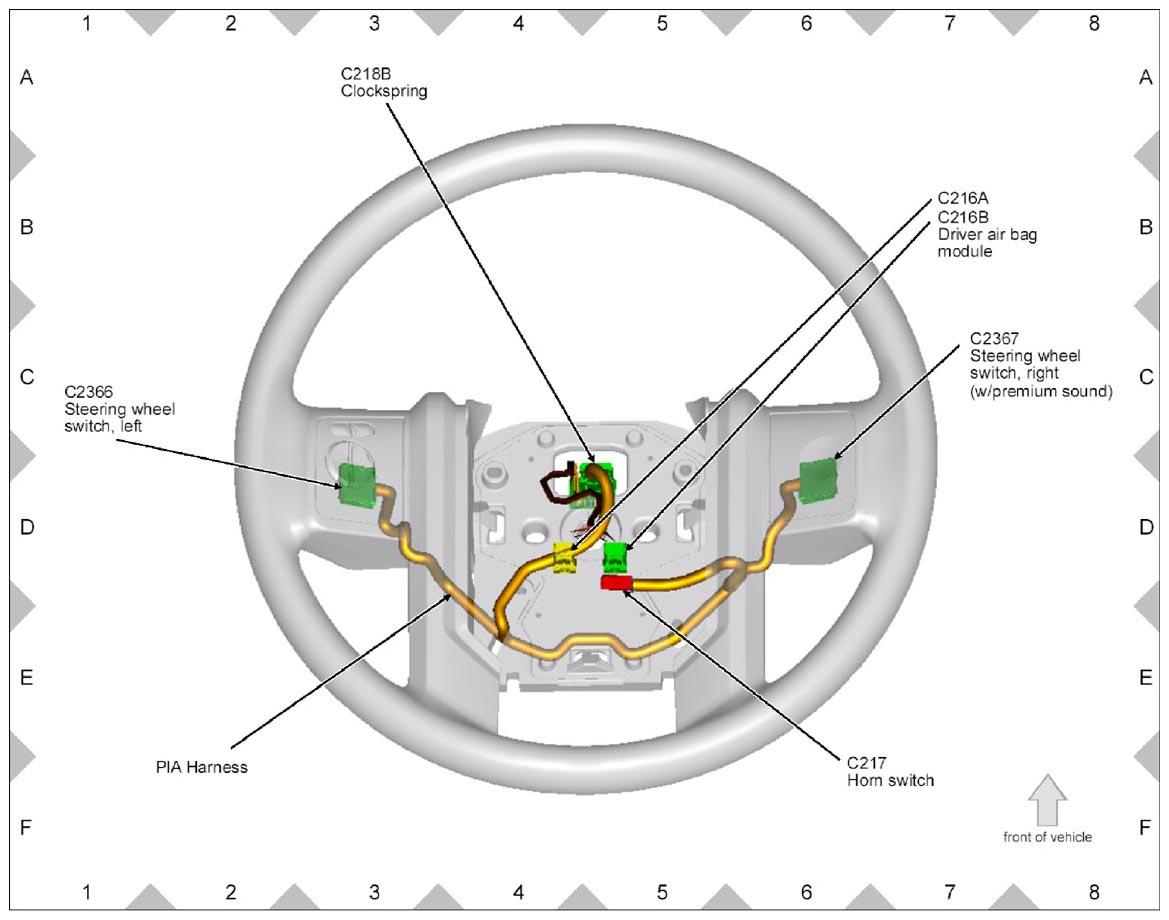

Fig 15: Steering Wheel Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 16: Steering Wheel Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

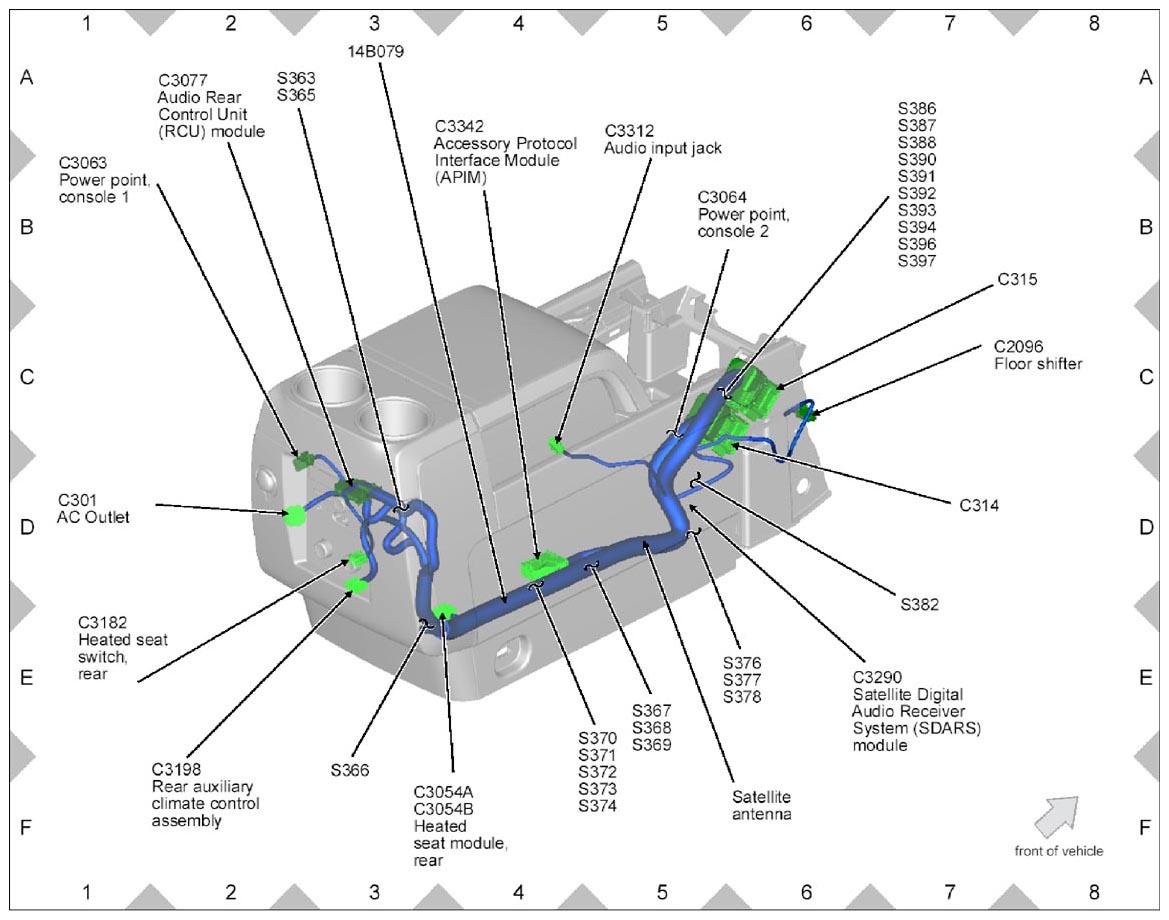

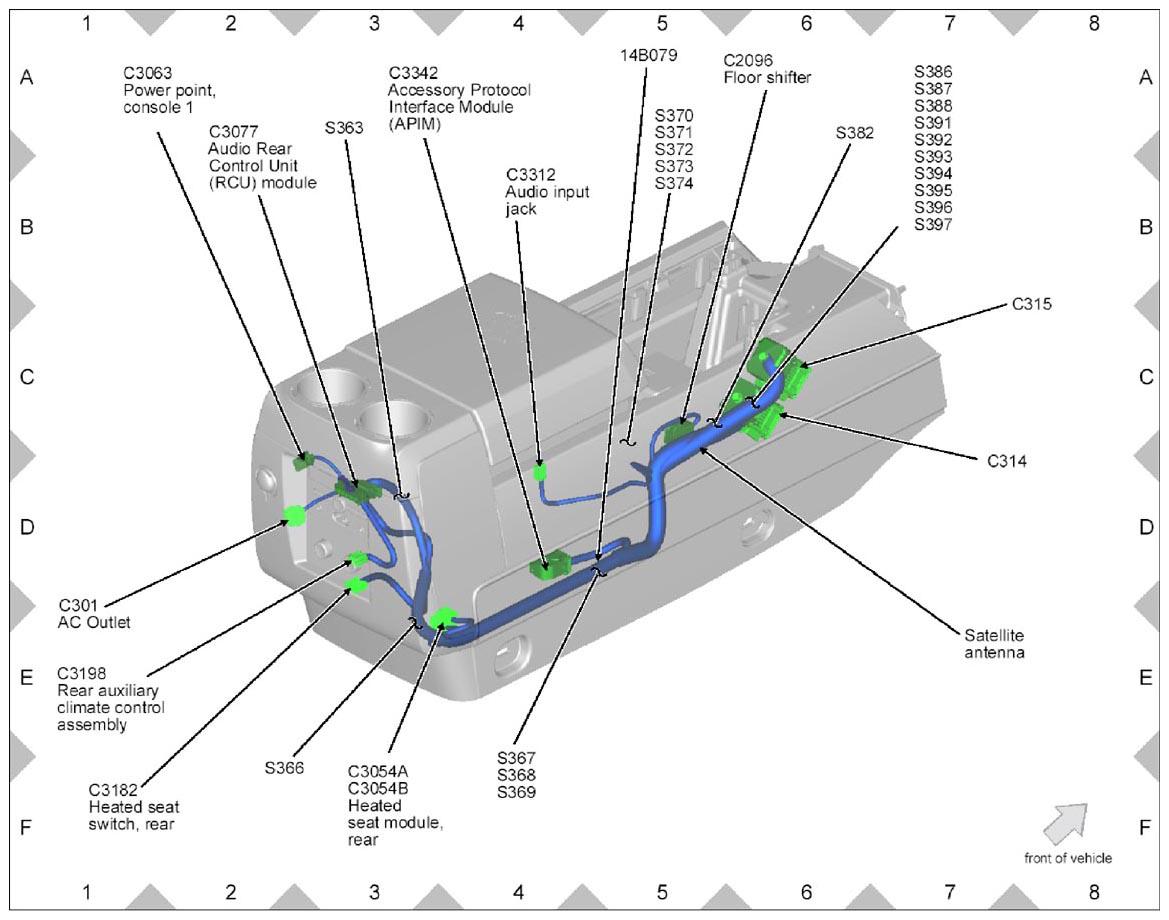

Fig 17: Center Console Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 18: Center Console Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

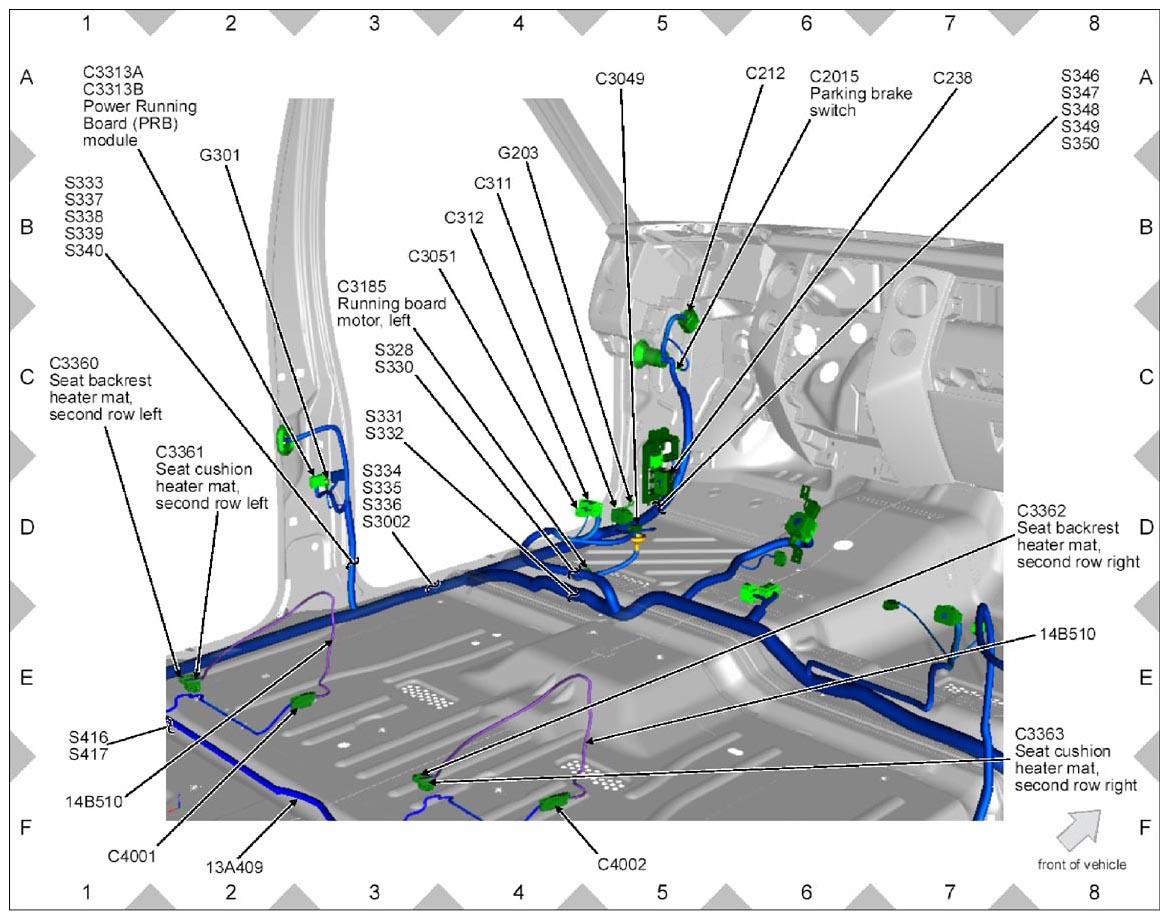

Fig 19: LH Front Compartment Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 20: LH Front Compartment Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

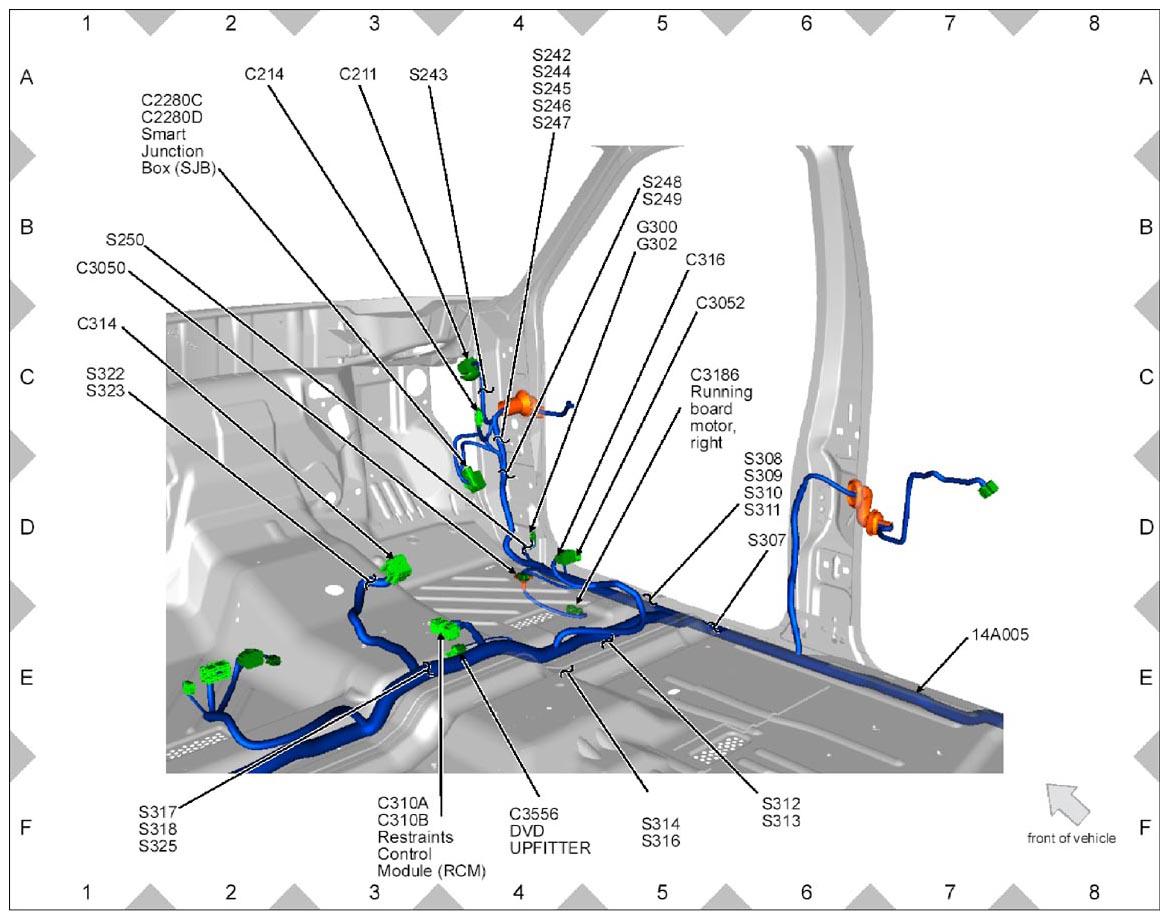

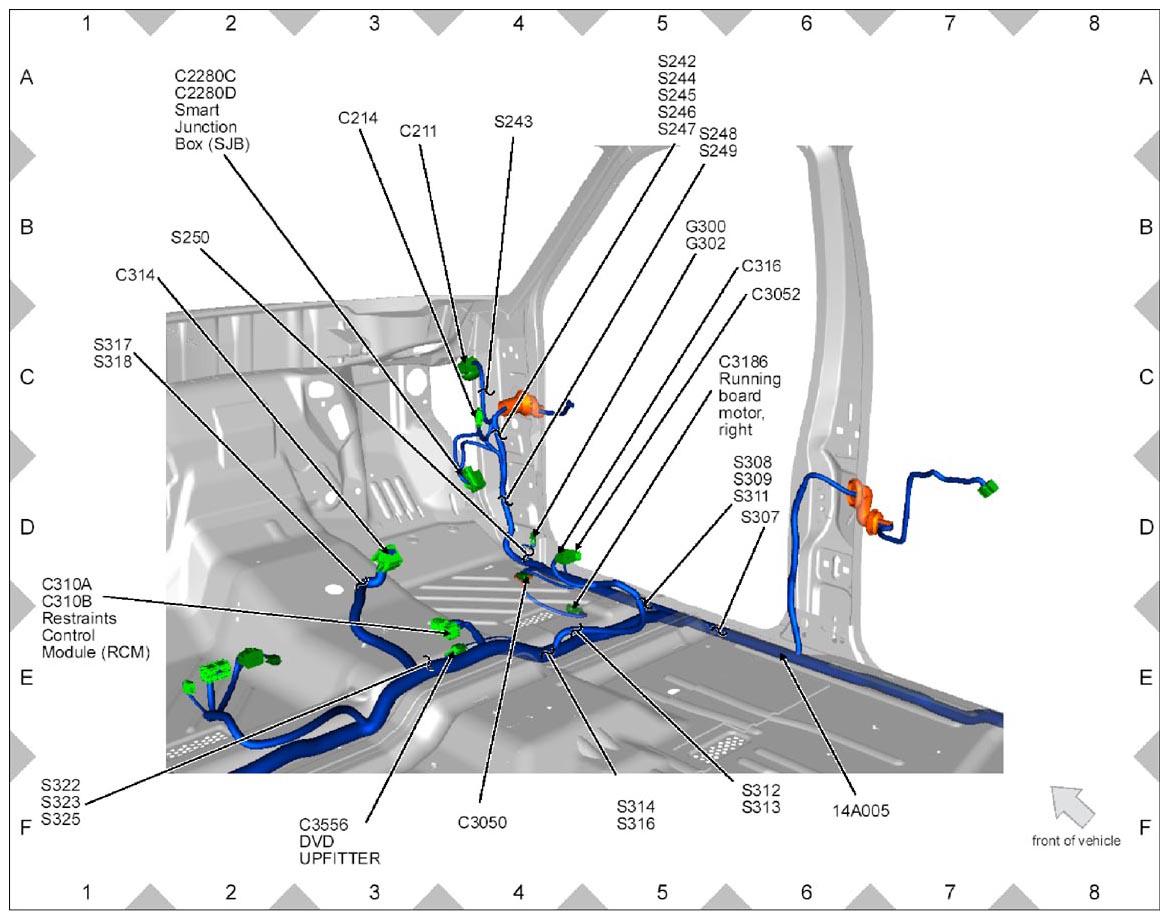

Fig 21: RH Front Compartment Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 22: RH Front Compartment Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

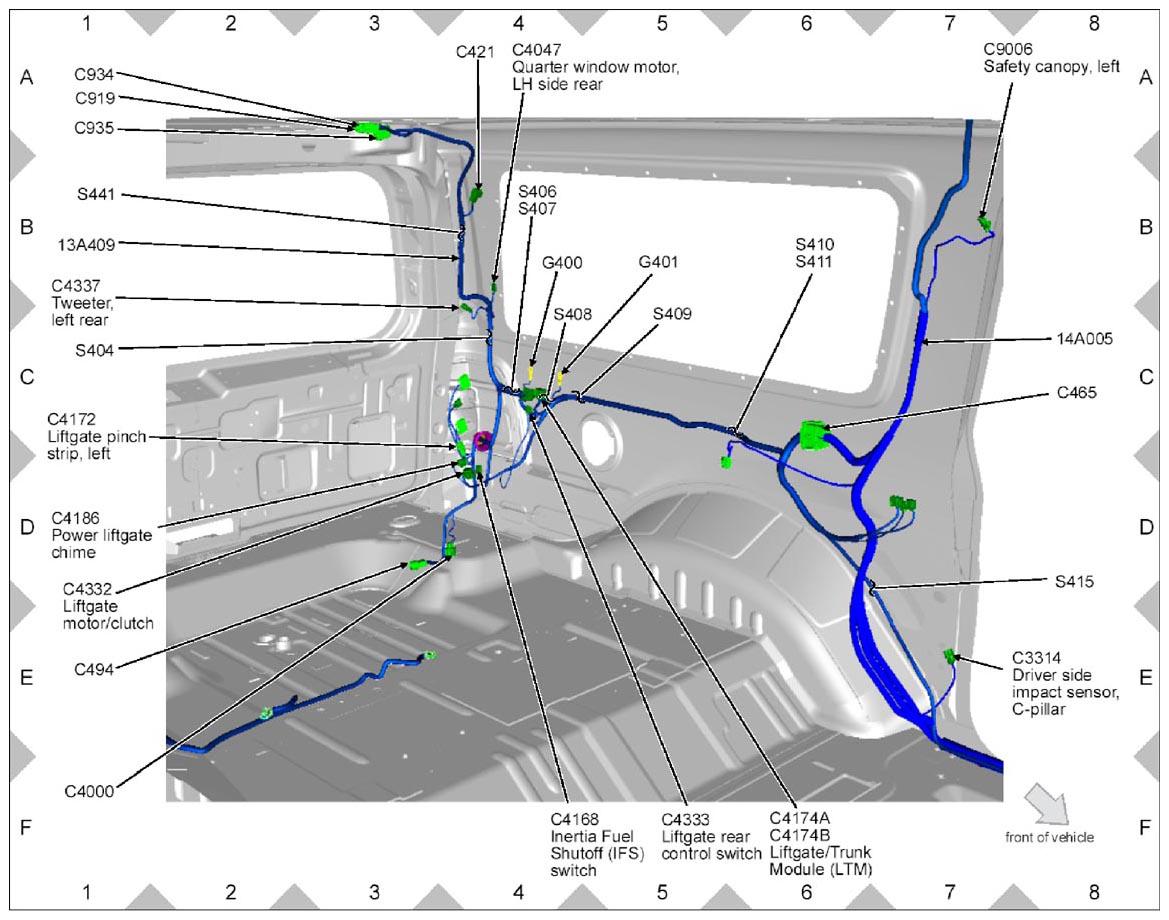

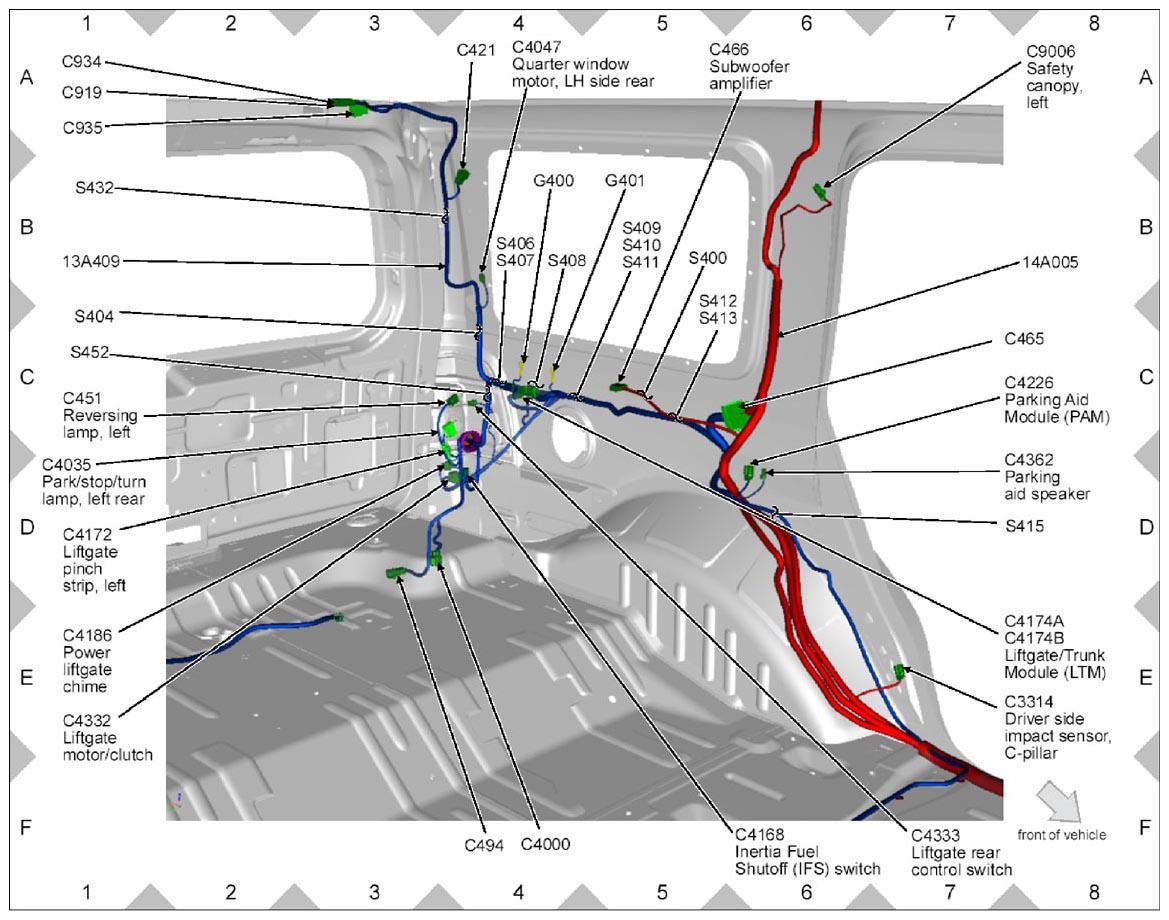

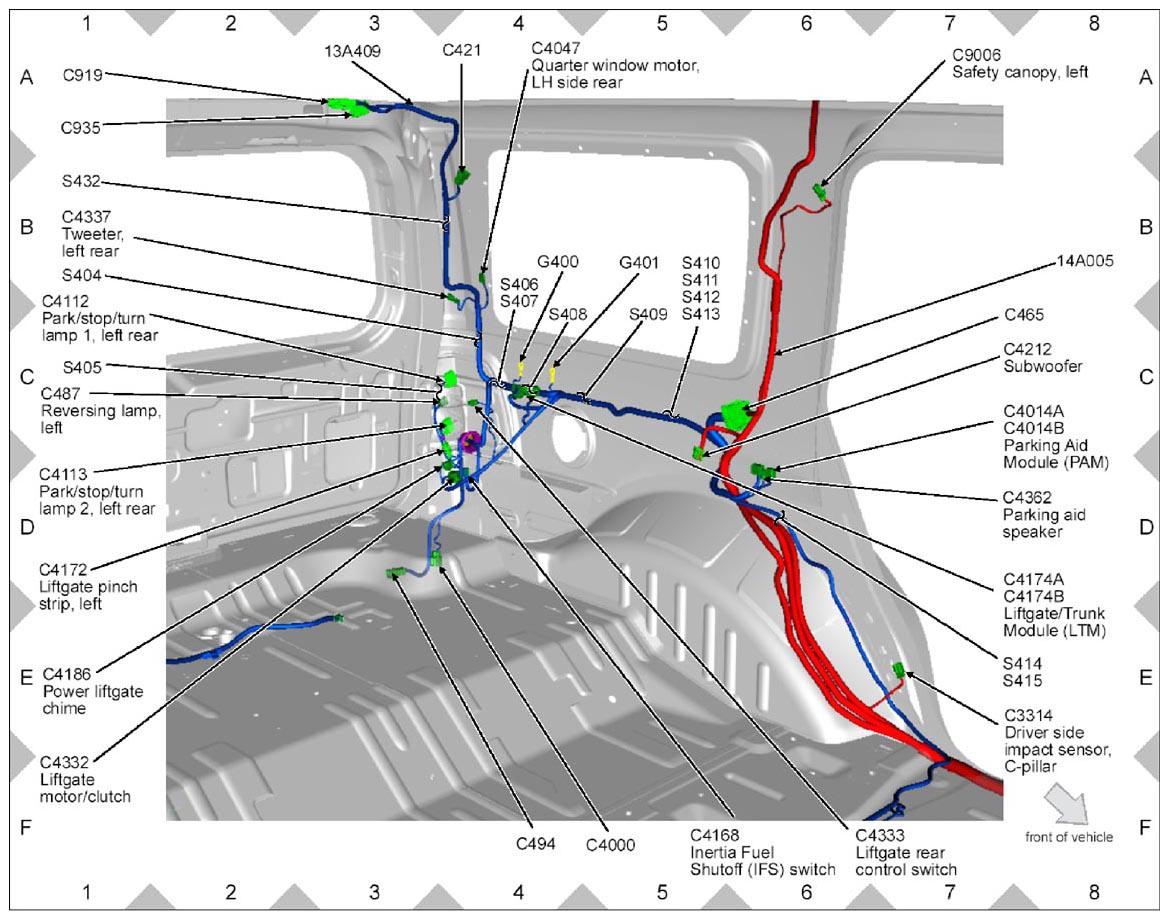

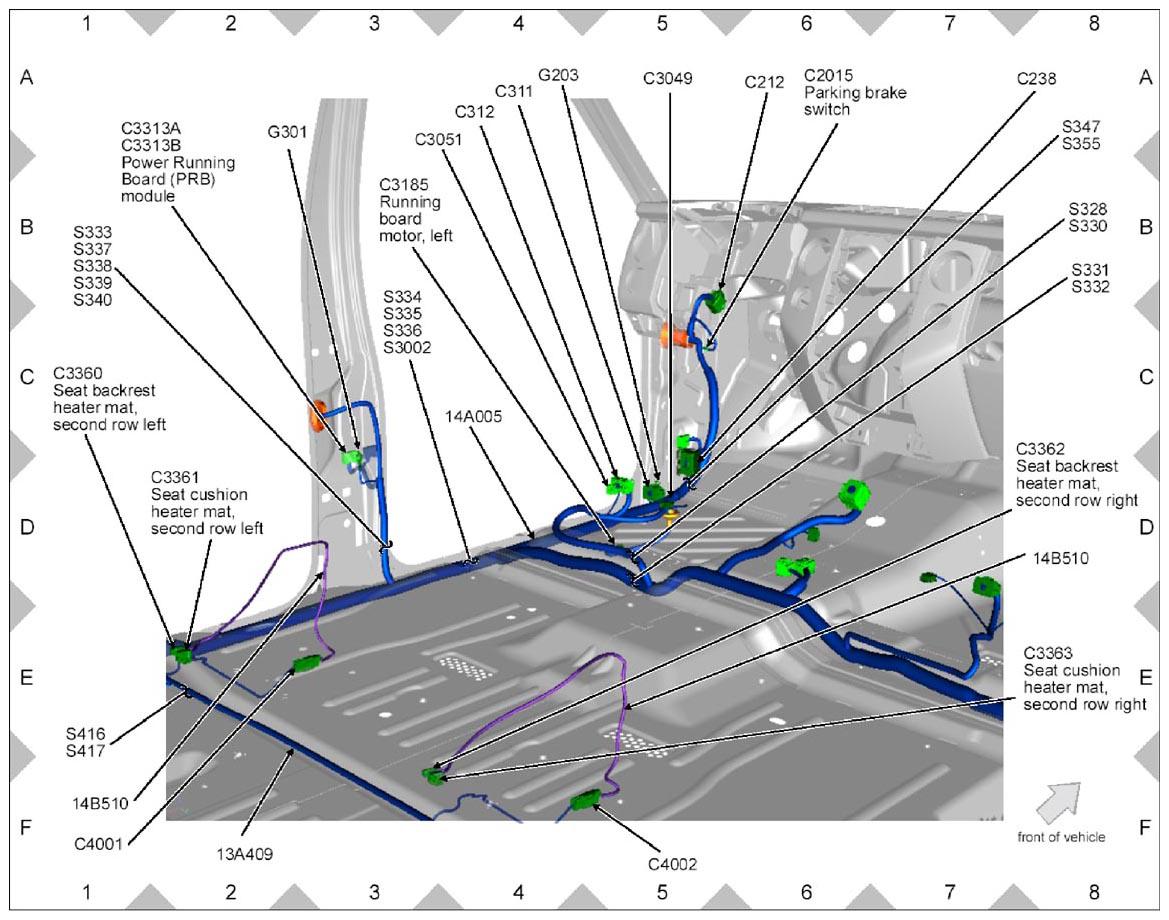

Fig 23: LH Rear Compartment Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 24: LH Rear Compartment Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 25: LH Rear Compartment Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

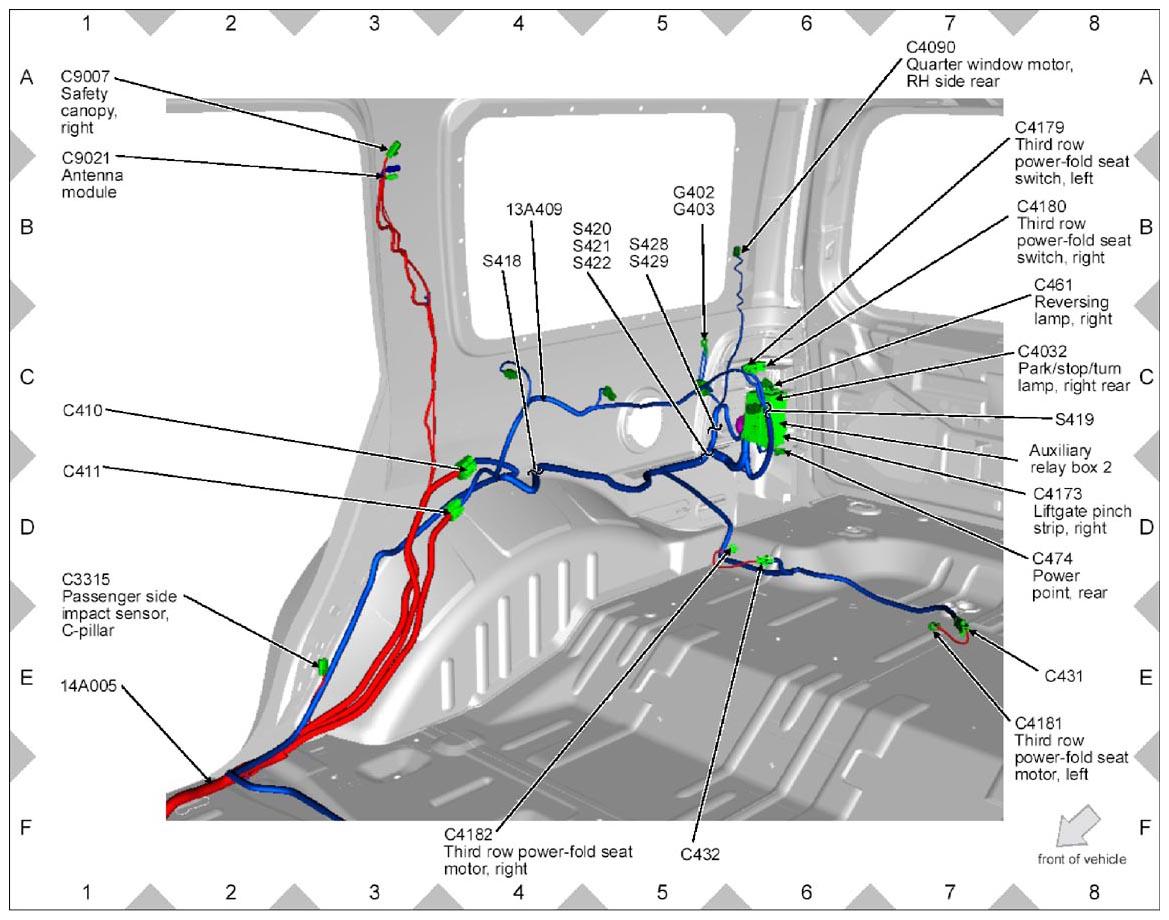

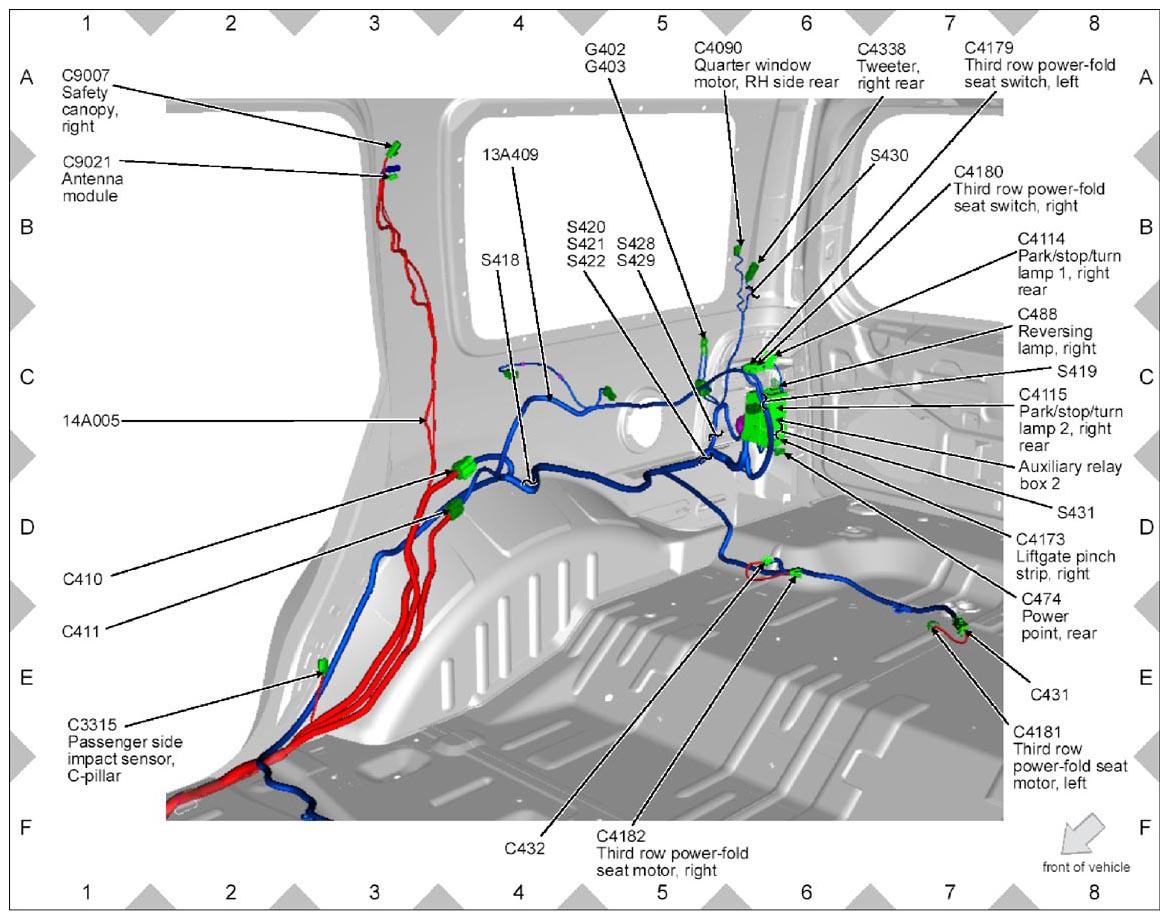

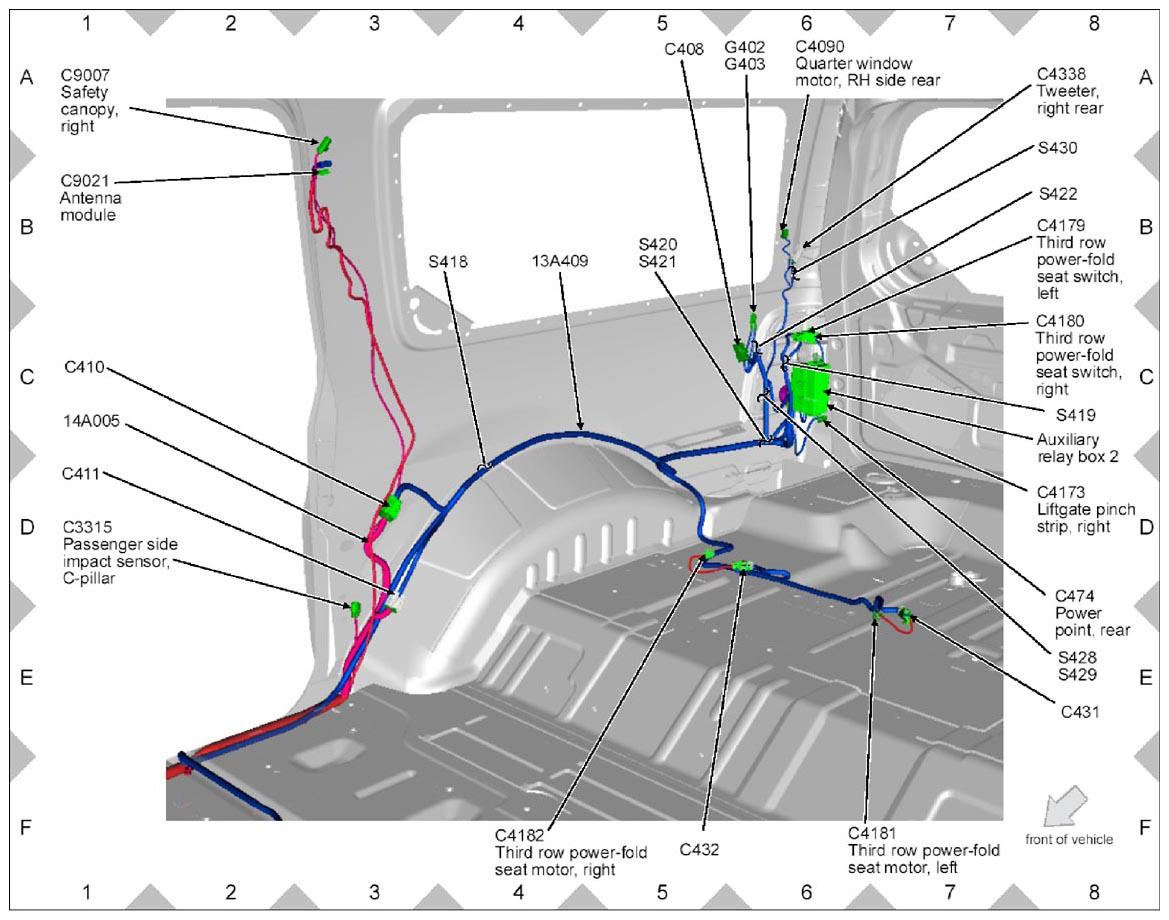

Fig 26: RH Rear Compartment Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 27: RH Rear Compartment Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 28: RH Rear Compartment Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

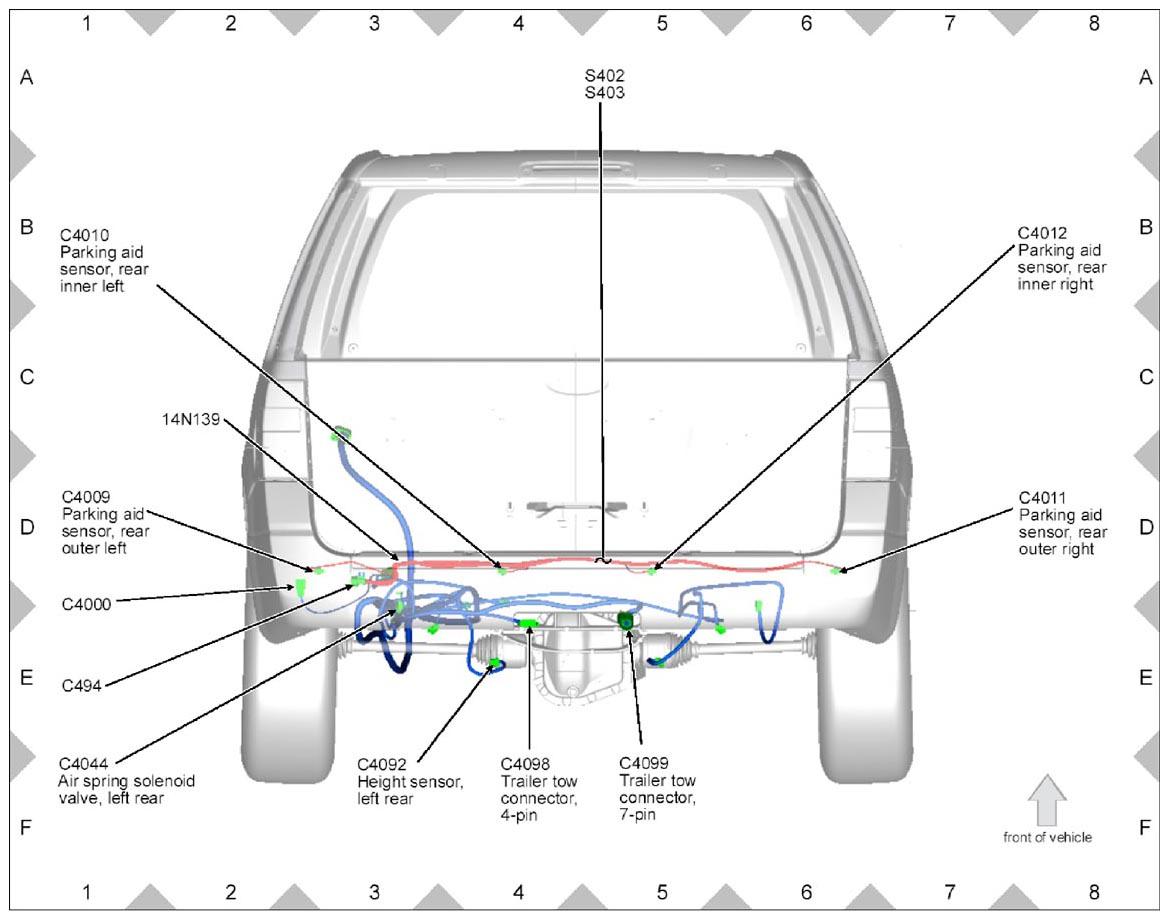

Fig 29: Rear Bumper Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

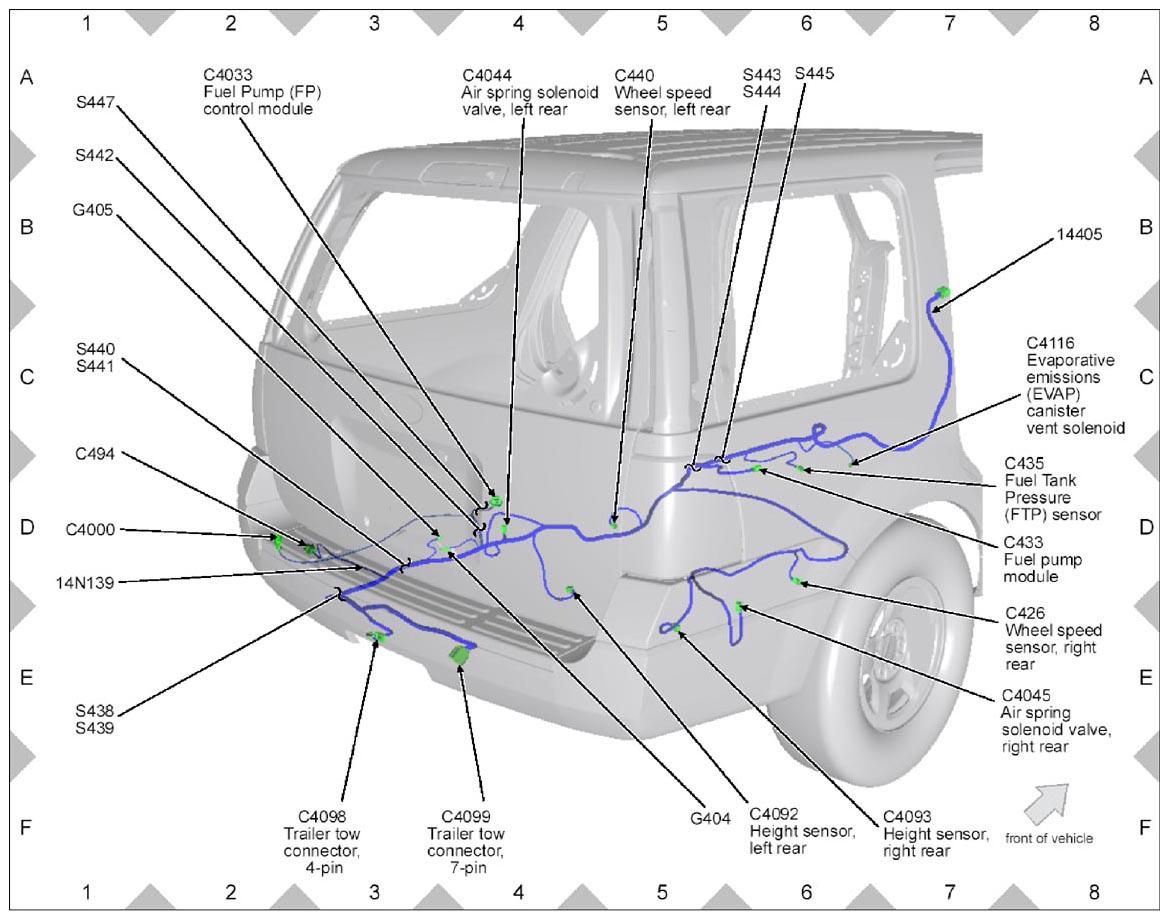

Fig 30: Rear Body Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

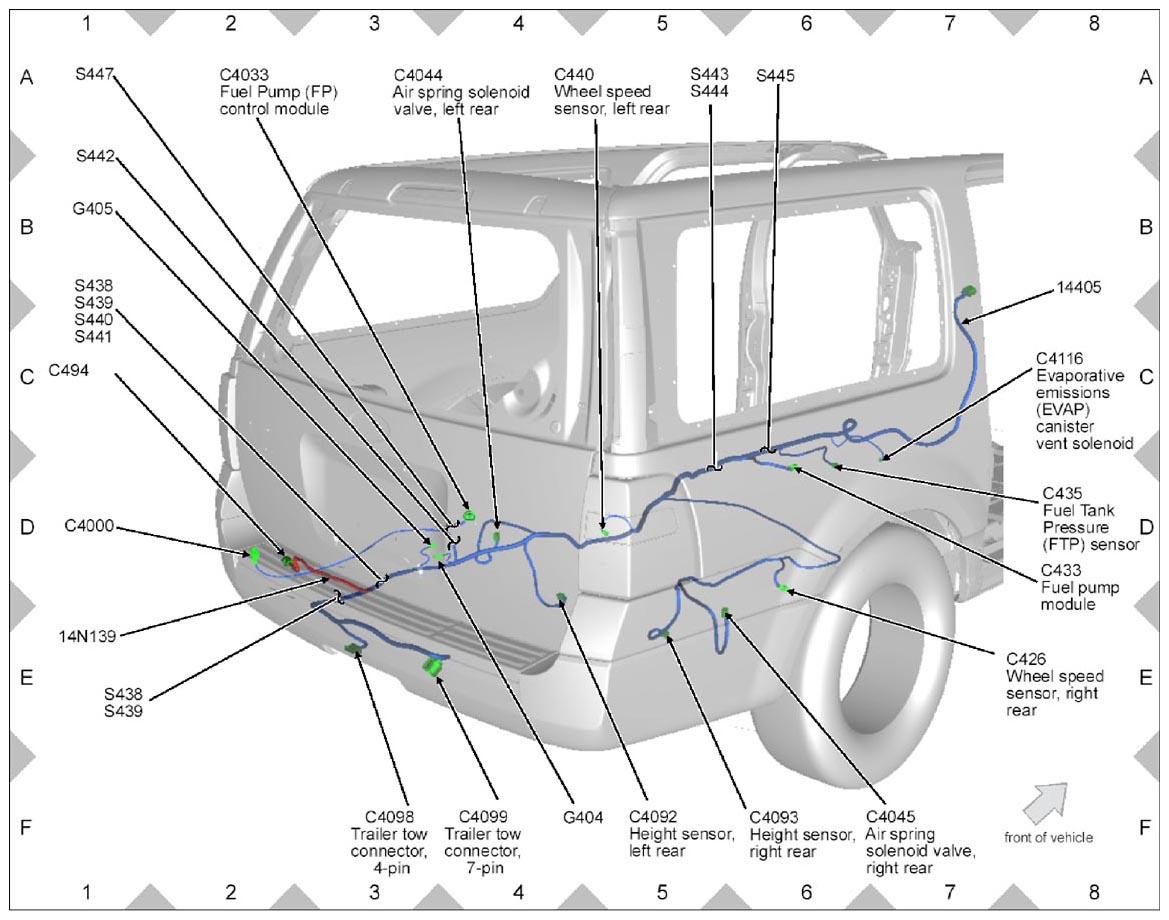

Fig 31: Rear Body Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

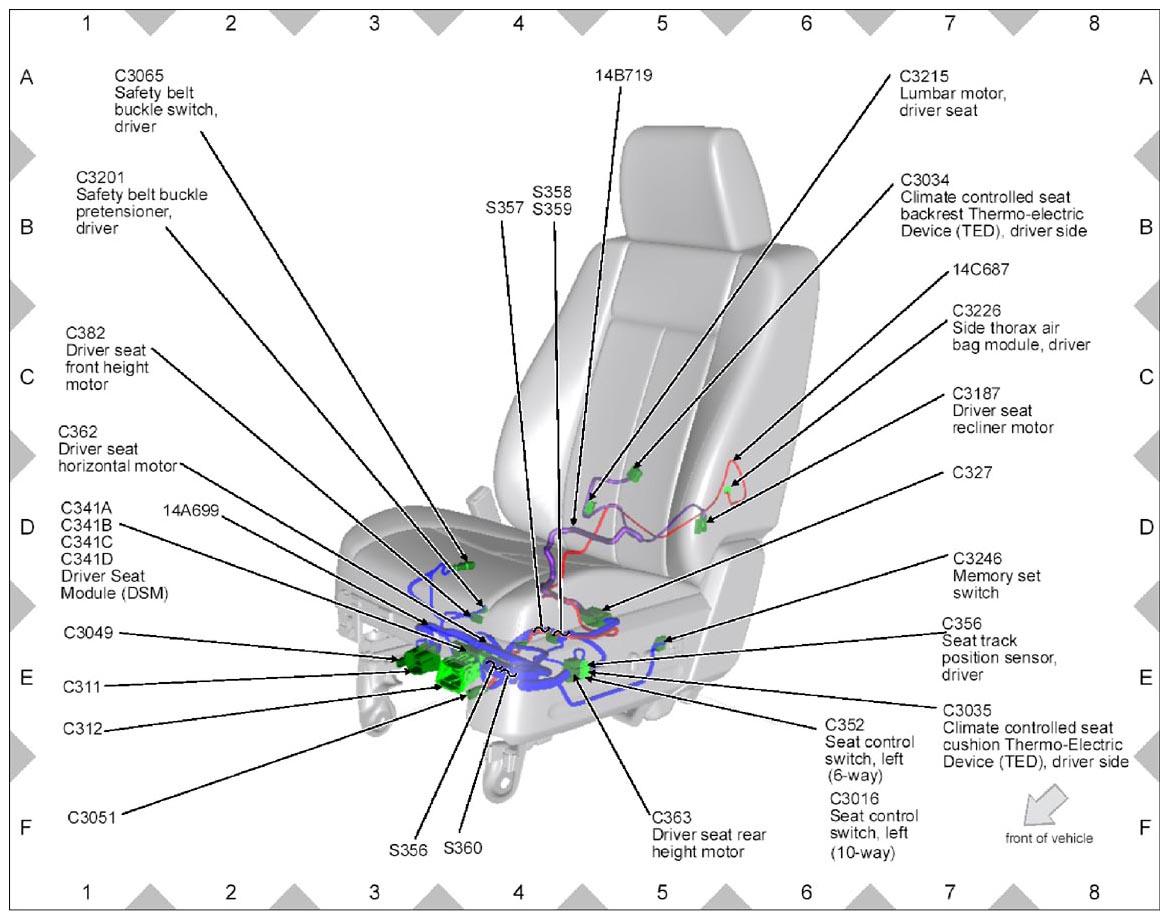

Fig 32: Driver Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

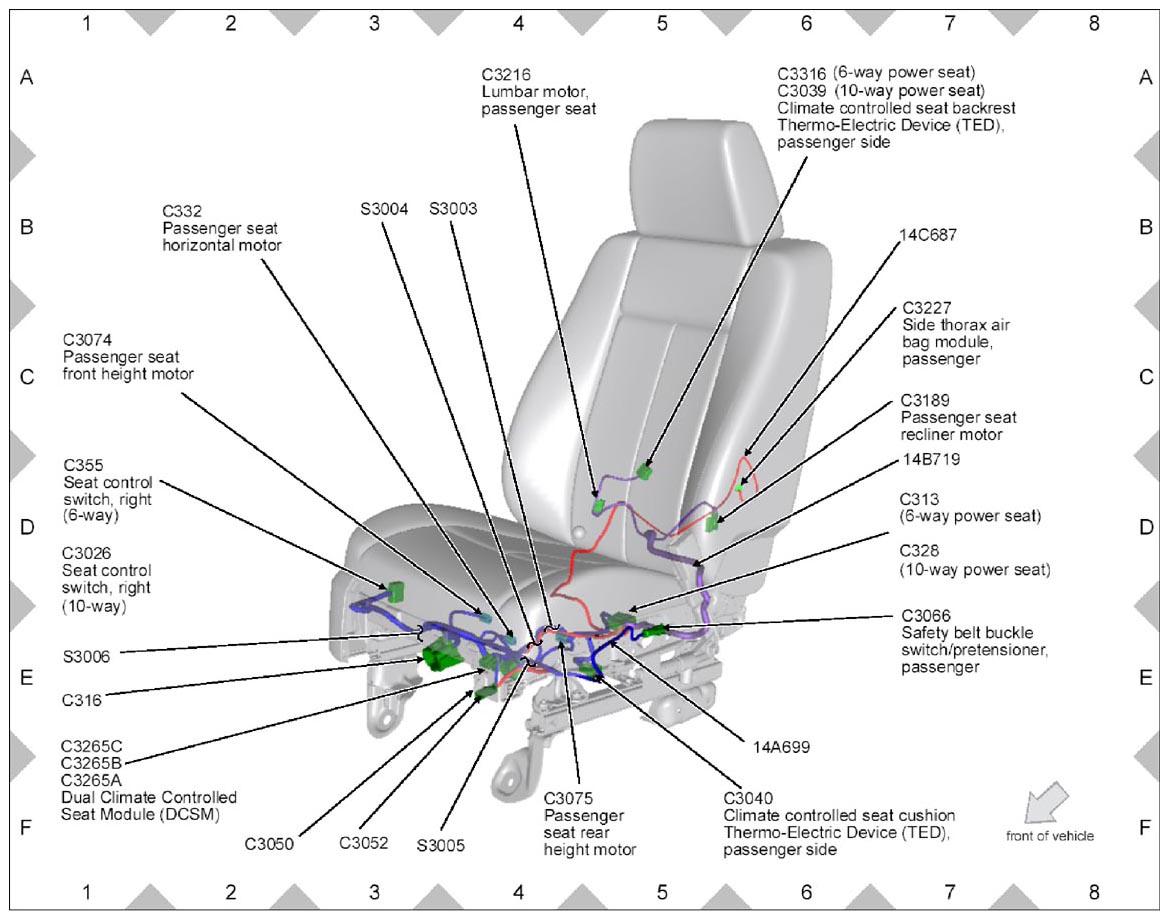

Fig 33: Passenger Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

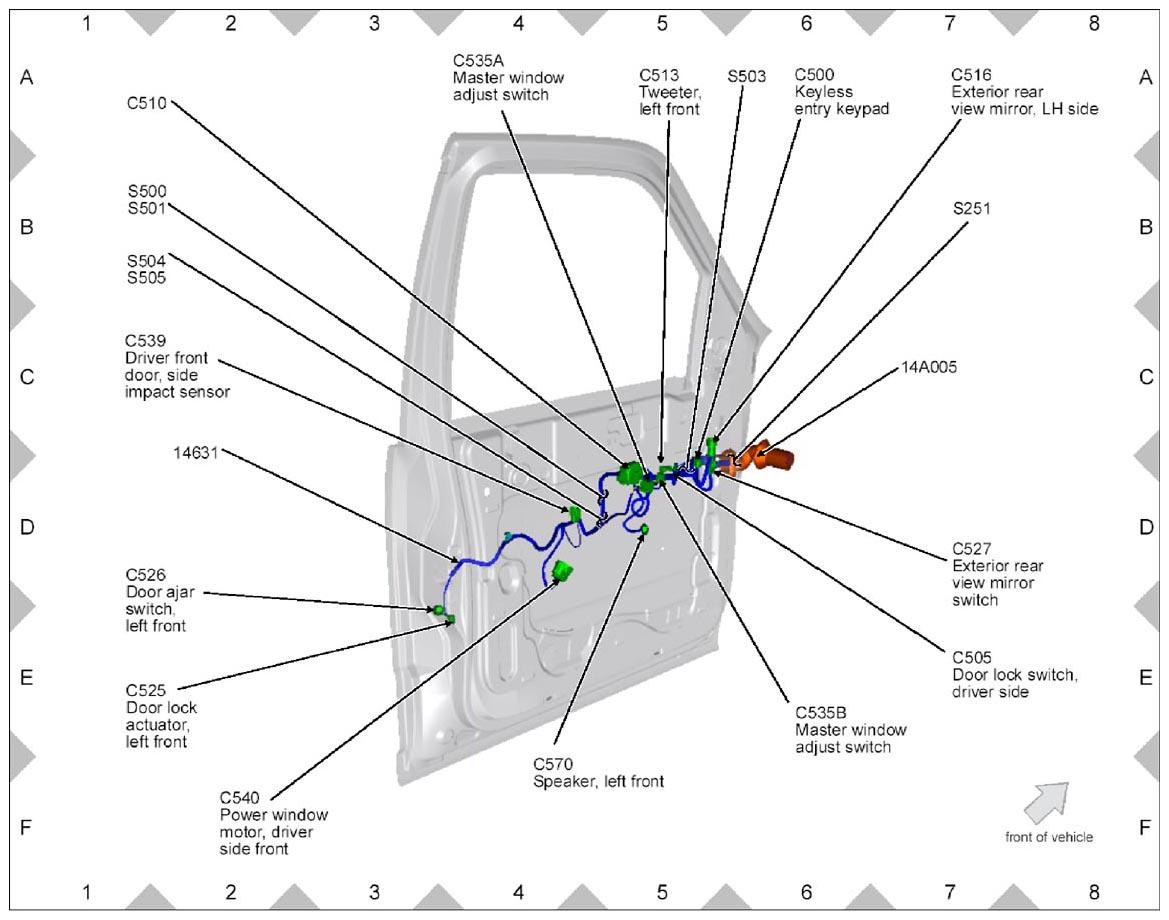

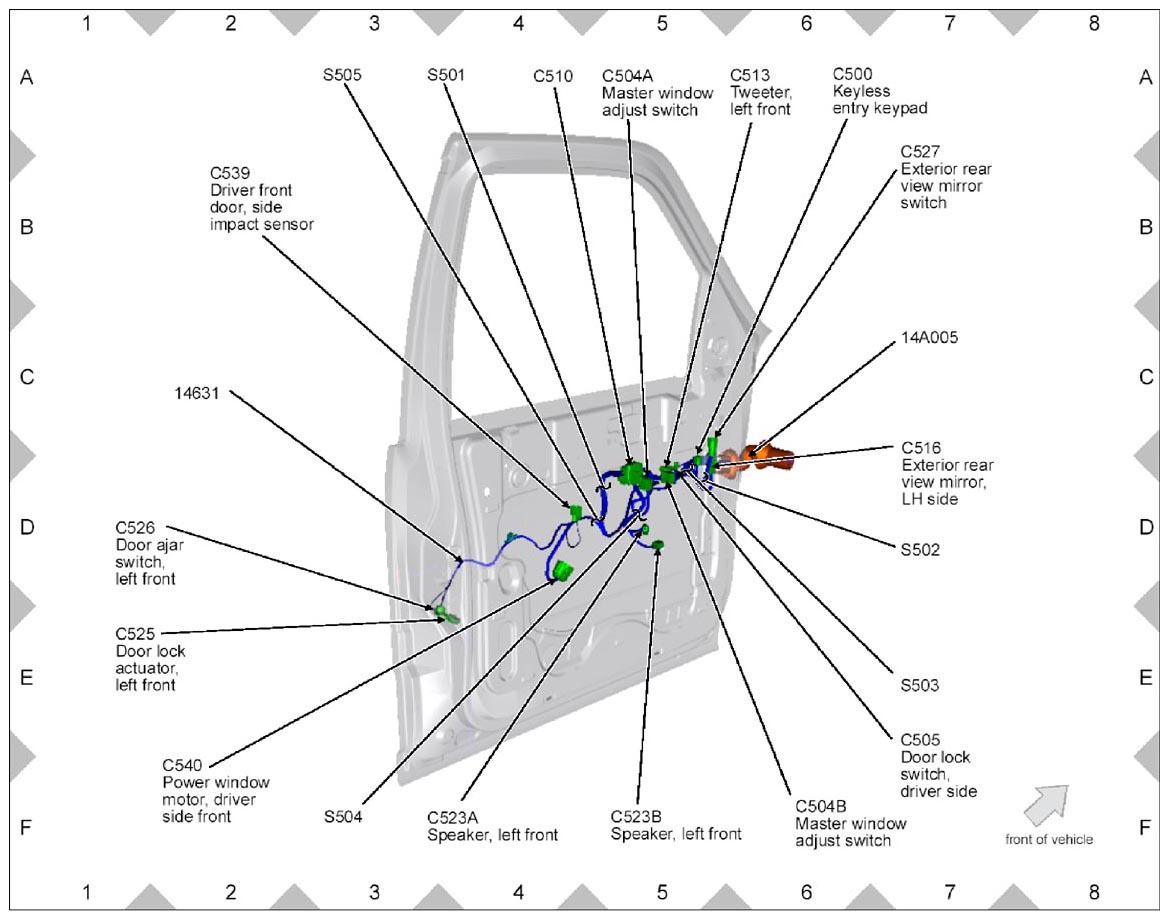

Fig 34: LH Front Door Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 35: LH Front Door Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

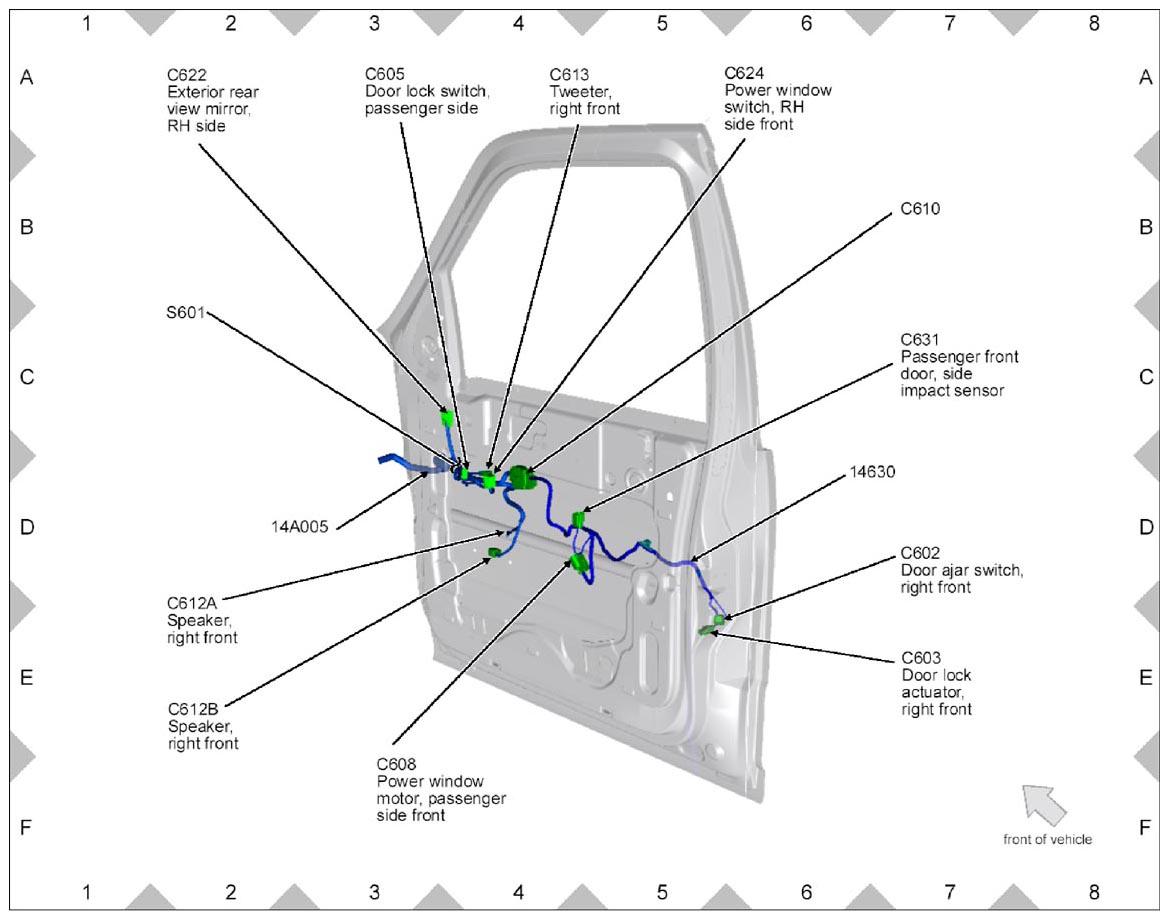

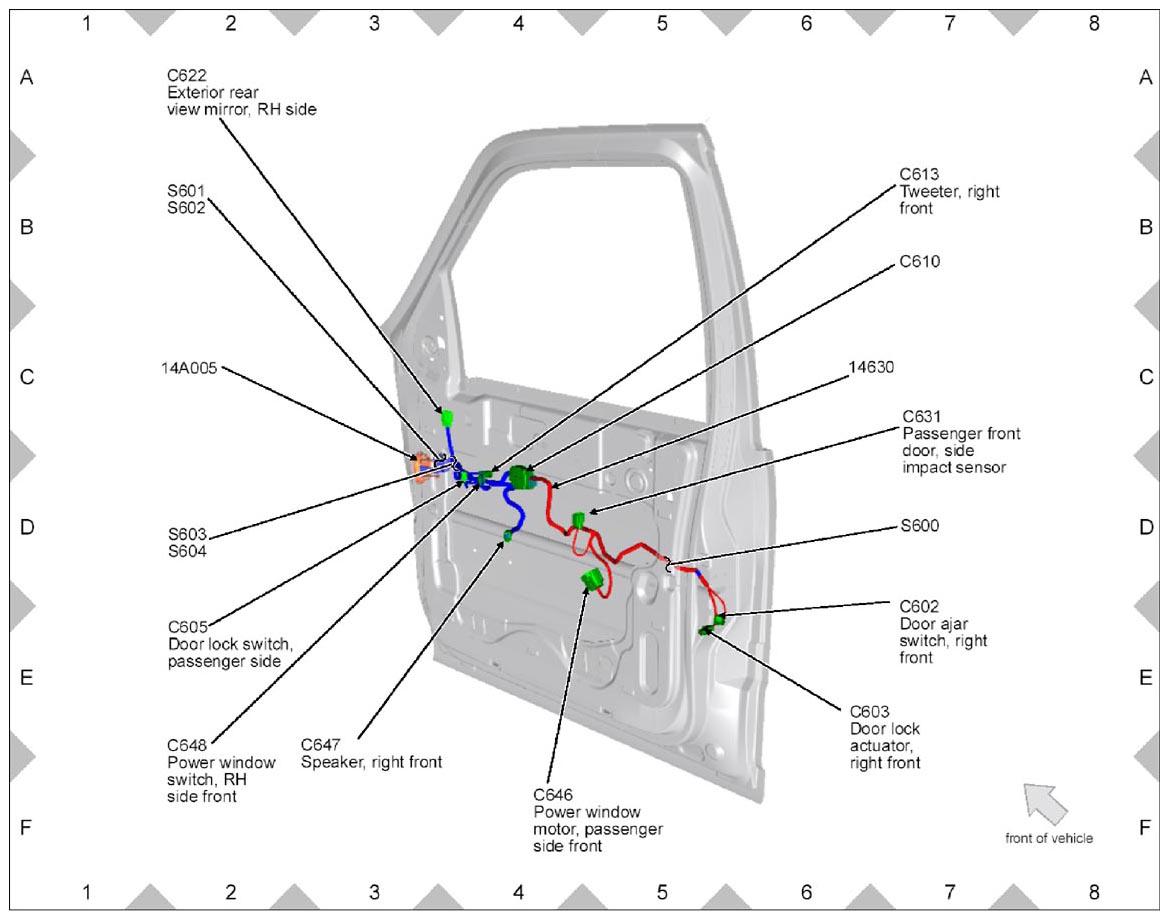

Fig 36: RH Front Door Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 37: RH Front Door Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

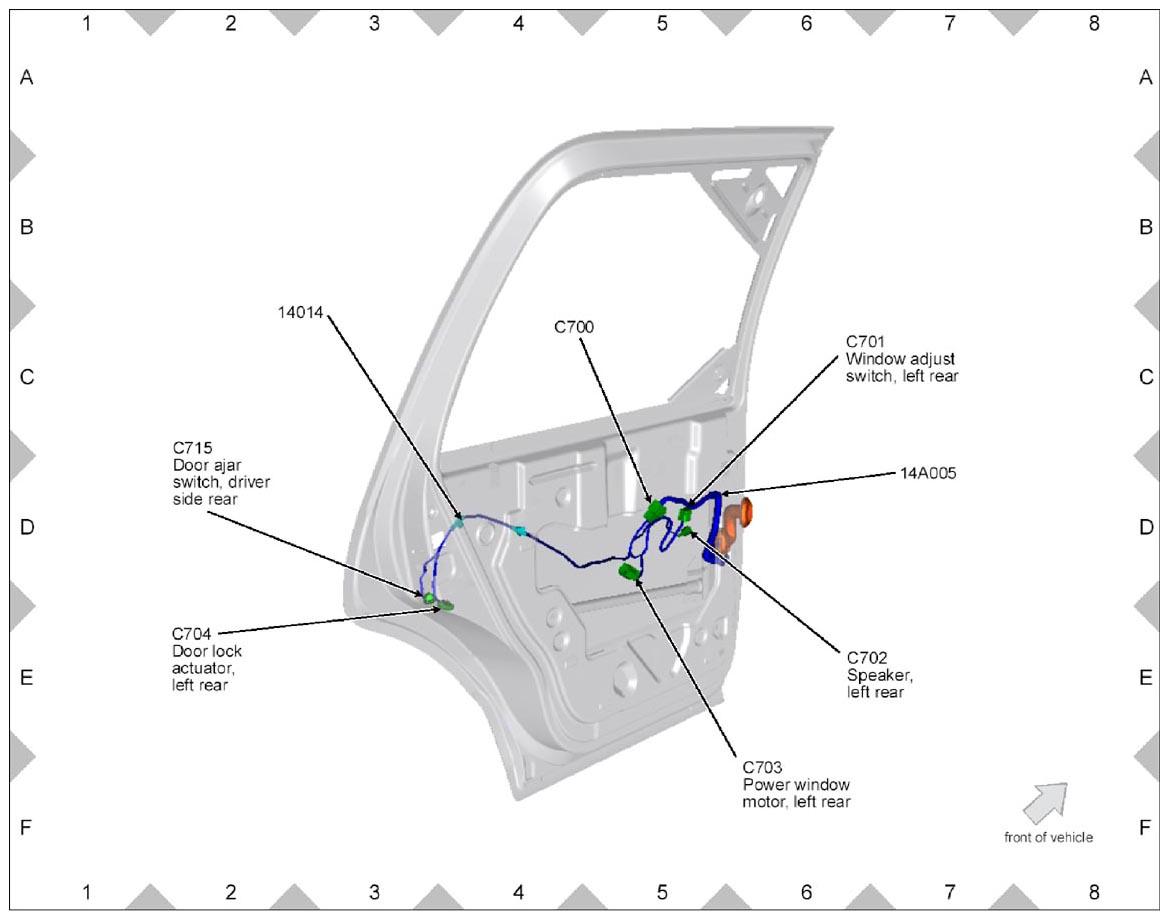

Fig 38: LH Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

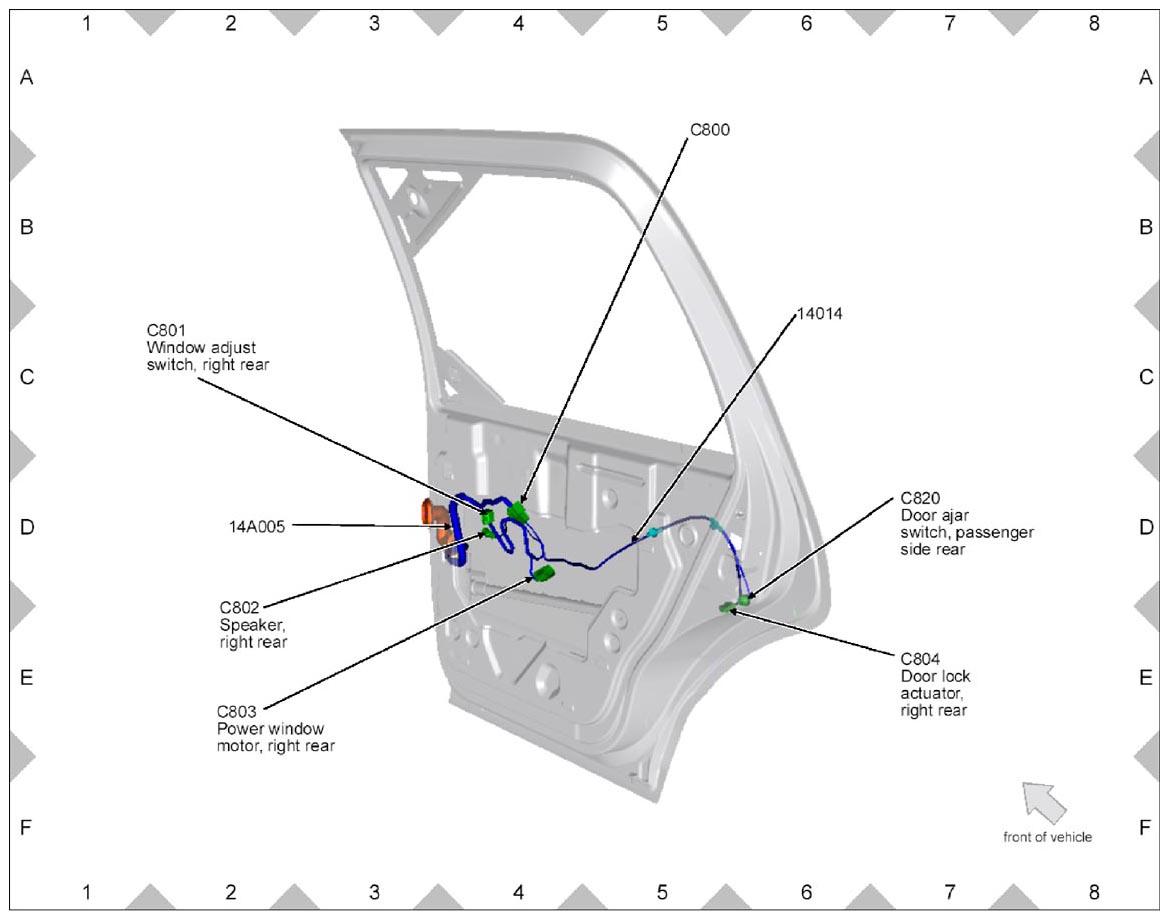

Fig 39: RH Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

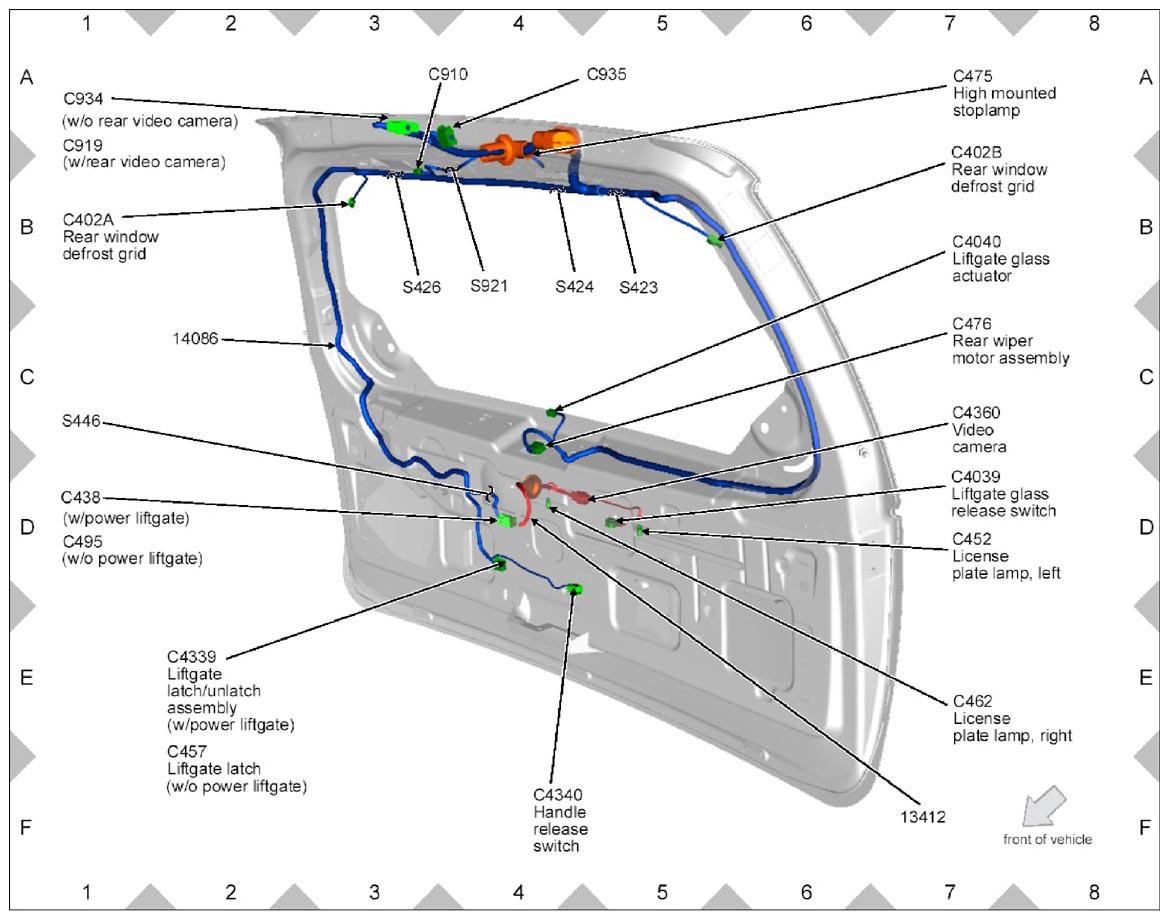

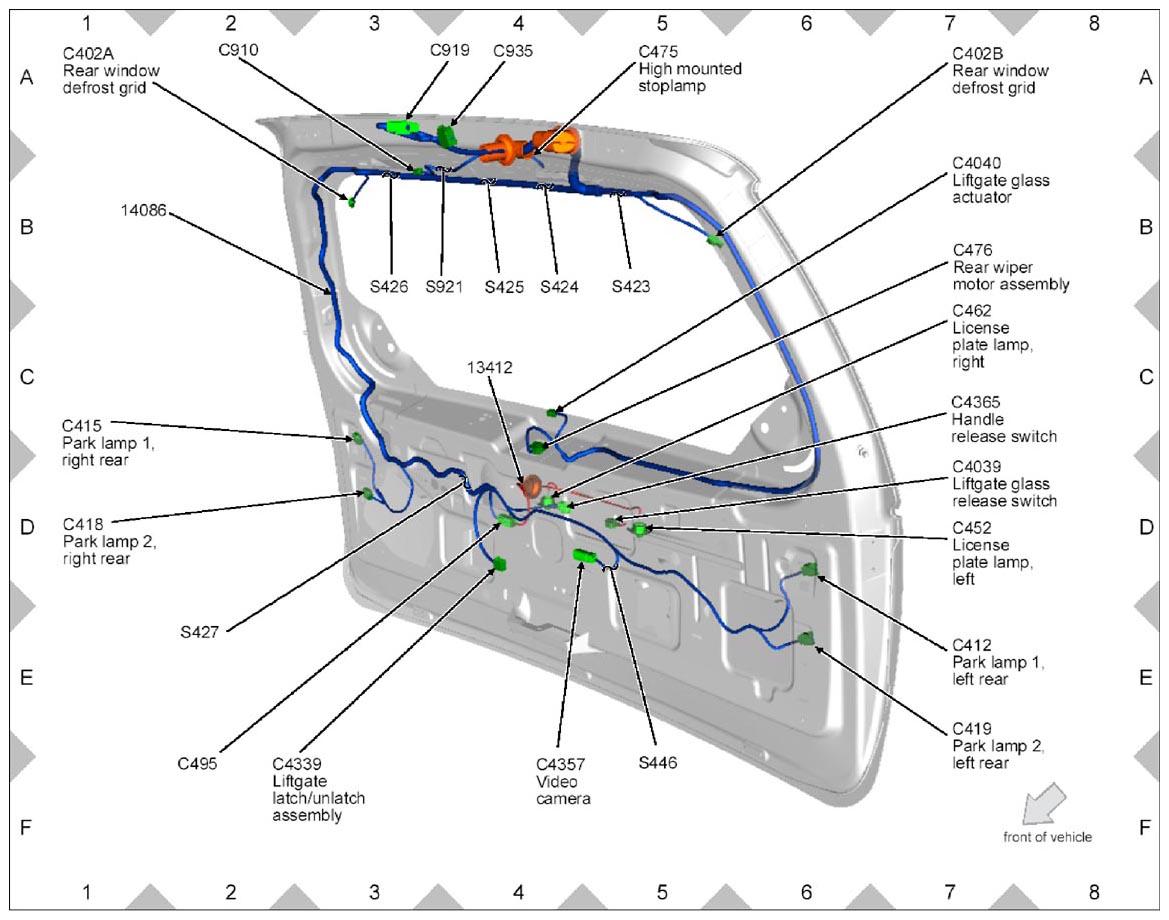

Fig 40: Liftgate Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 41: Liftgate Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

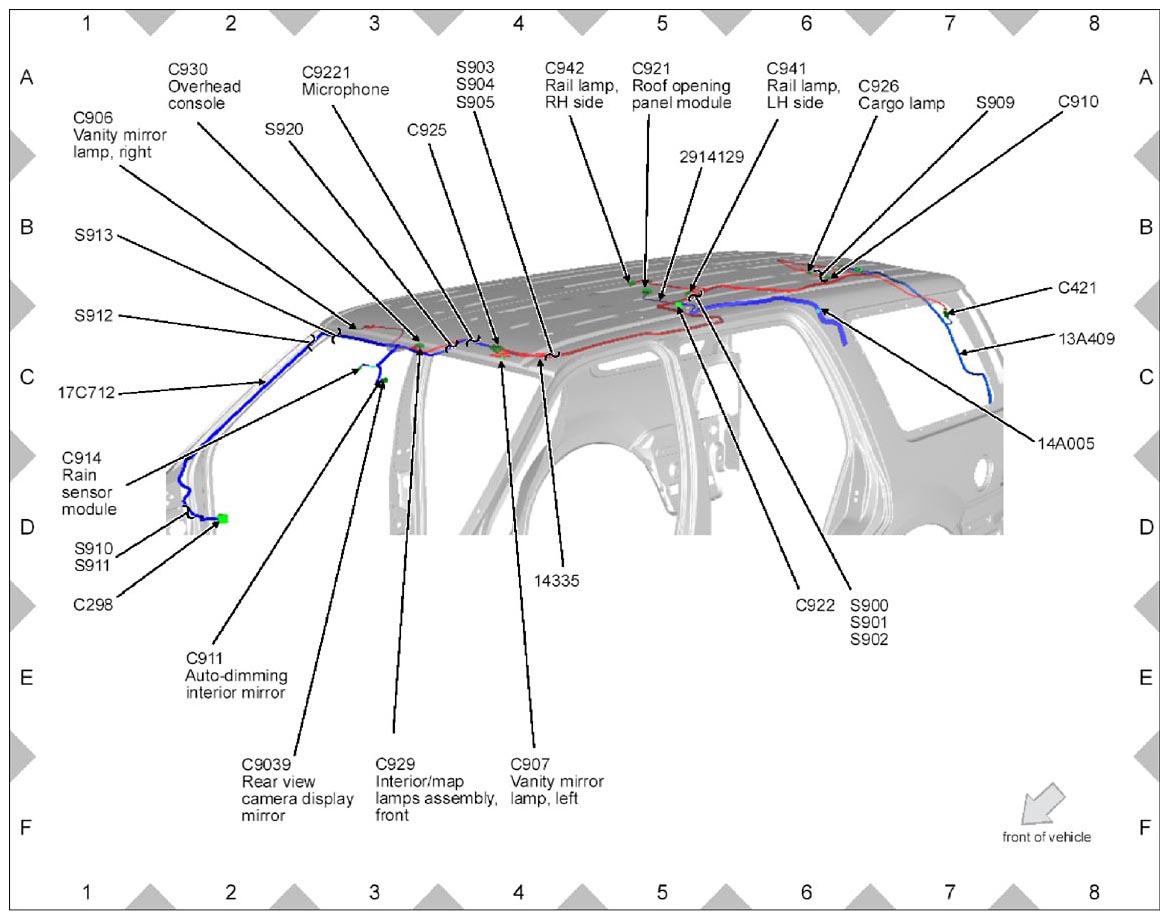

Fig 42: Roof Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

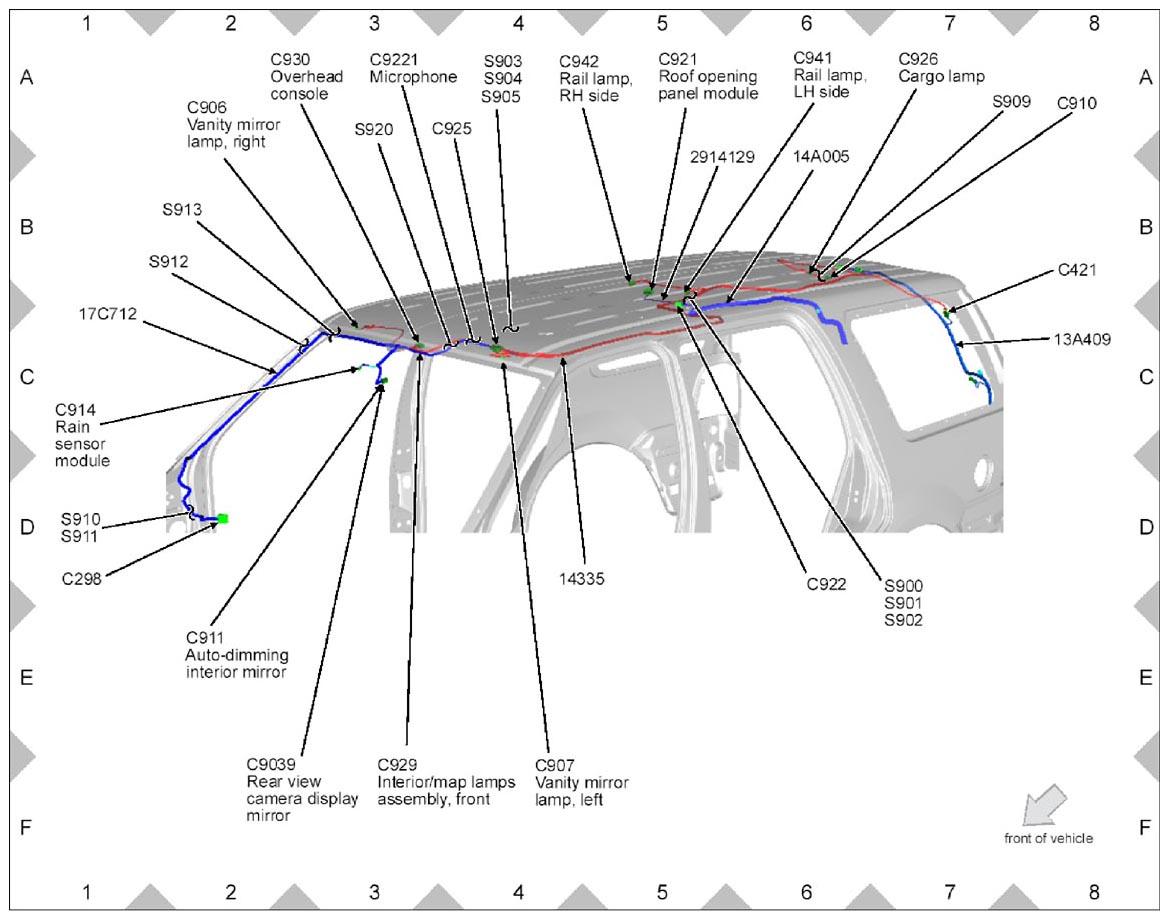

Fig 43: Roof Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

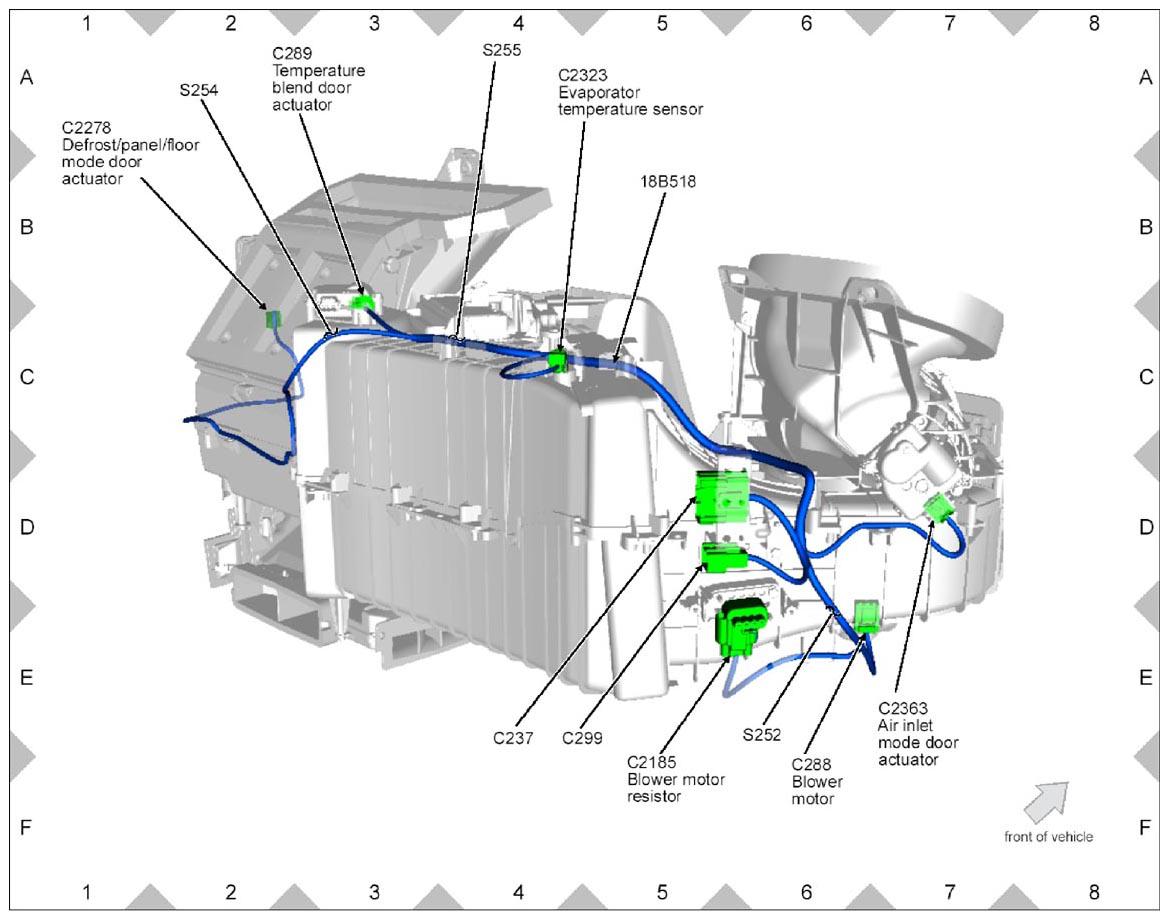

Fig 44: HVAC Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

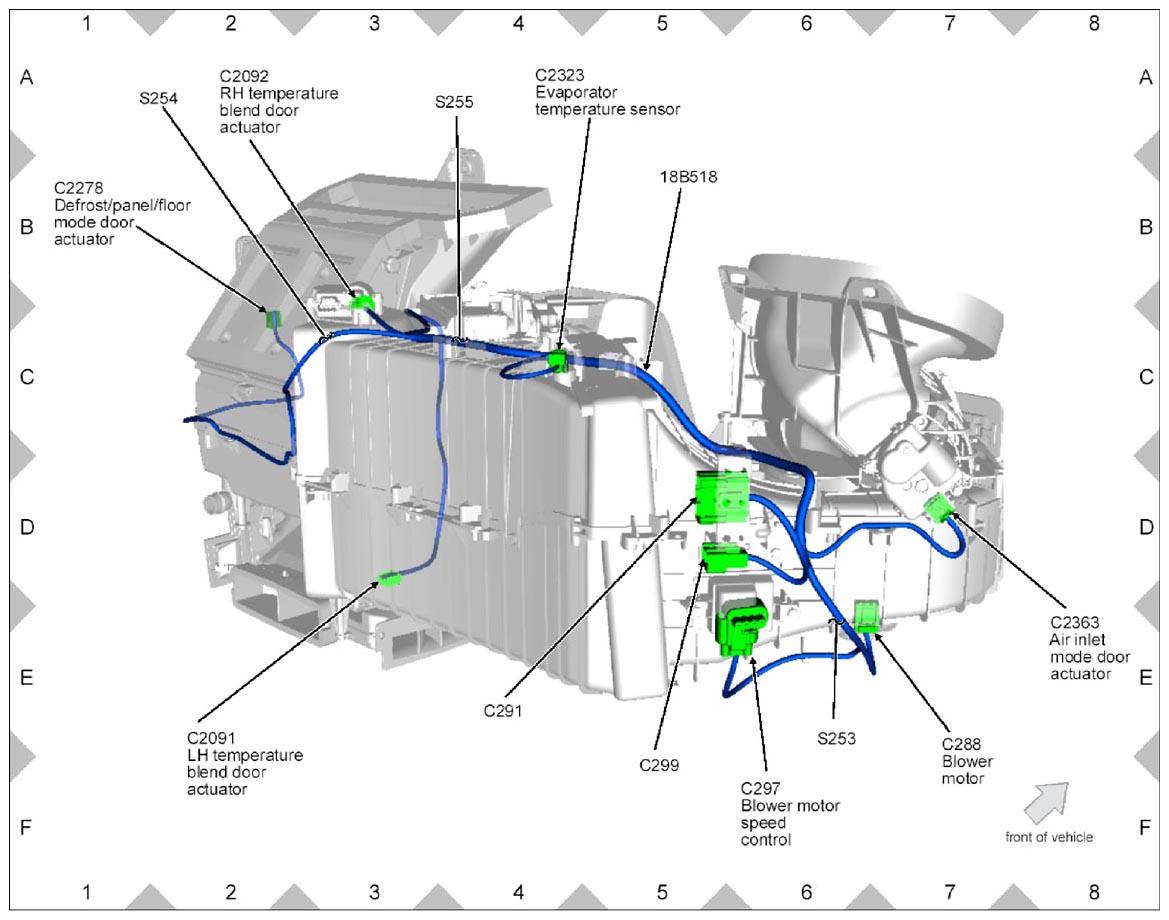

Fig 45: HVAC Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

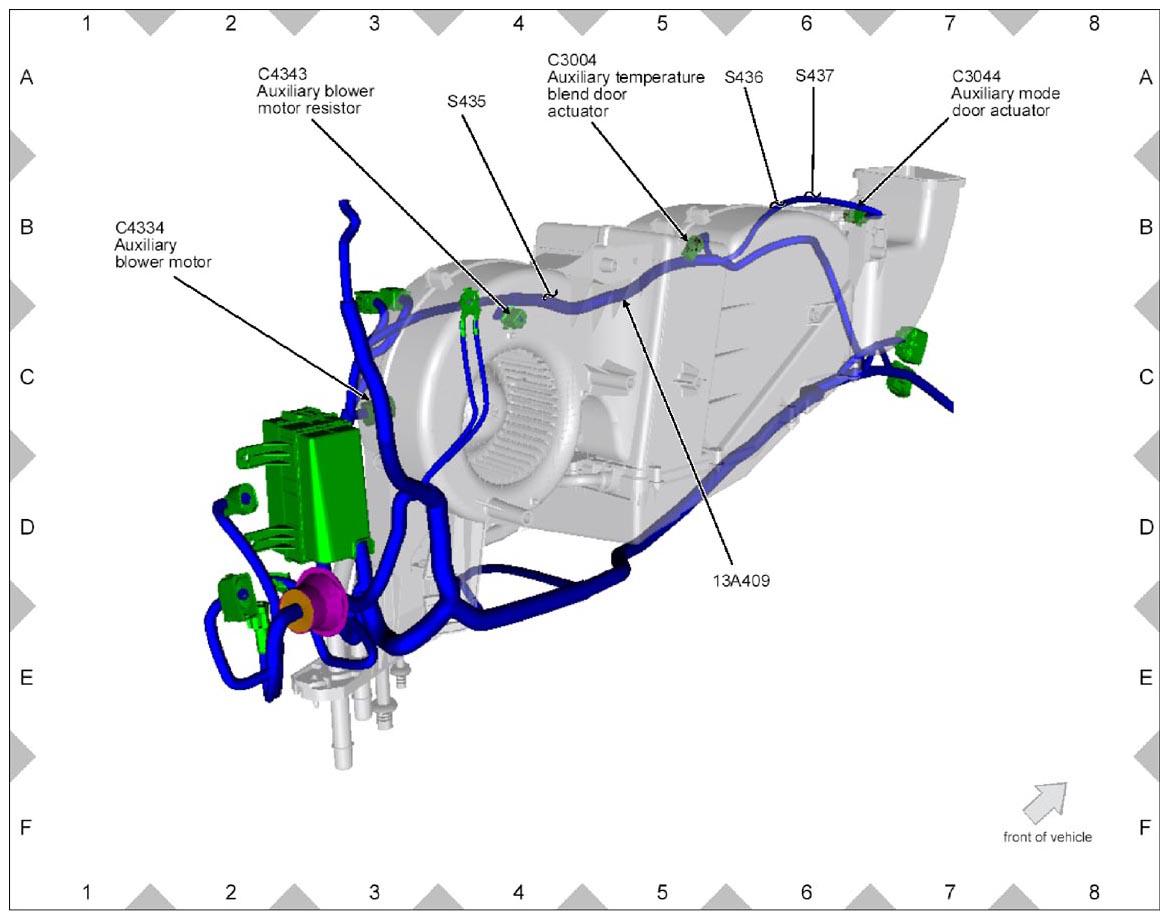

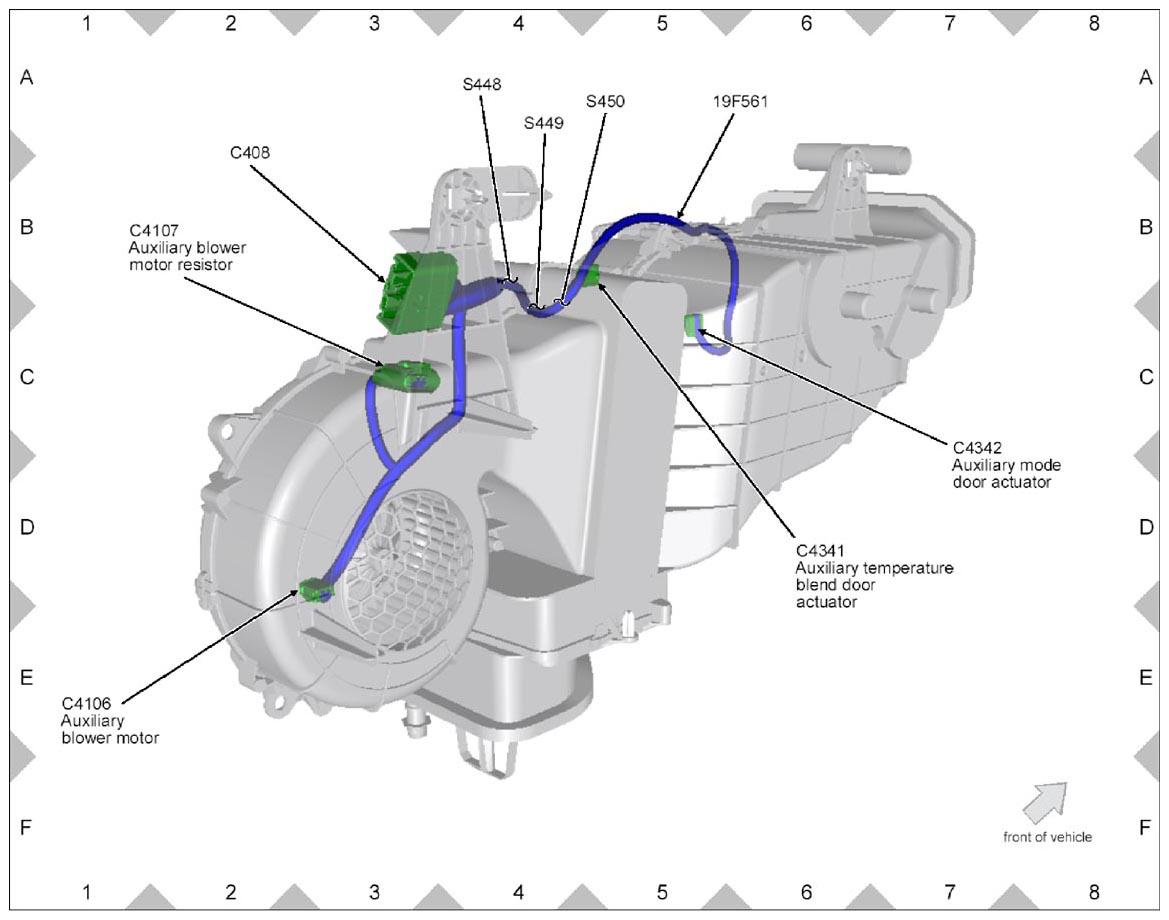

Fig 46: Auxiliary HVAC Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 47: Auxiliary HVAC Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.
