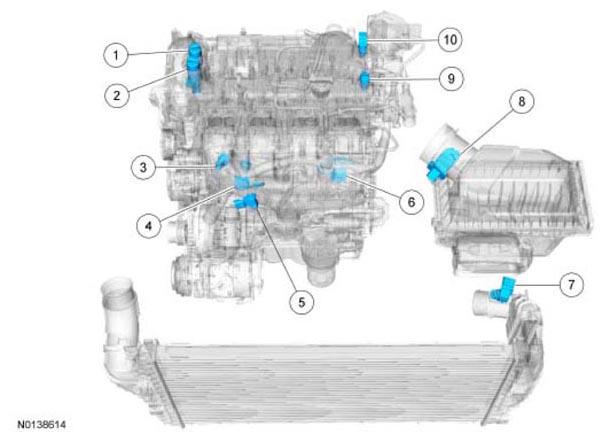

Front Engine Sensor Locations - 2.0L GTDI

G09688170
Item Description Comments
1 Exhaust VCT  oil control solenoid -
2 Intake VCT  oil control solenoid -
3 FRP  sensor -
4 Front KS  -
5 MAP  sensor -
6 Rear KS  -
7 TCBP  /CACT sensor -
8 MAP  sensor -
9 Intake CMP  sensor -
10 Exhaust CMP  sensor -
