Partially Mated Connectors

  1. Seal
  2. Displaced tab
  3. Female half
  4. Seal
  5. Intermittent contact
  6. Male half
  7. Intermittent contact

Lock may be displaced into an unlocked position; pull on the connector to verify the lock.

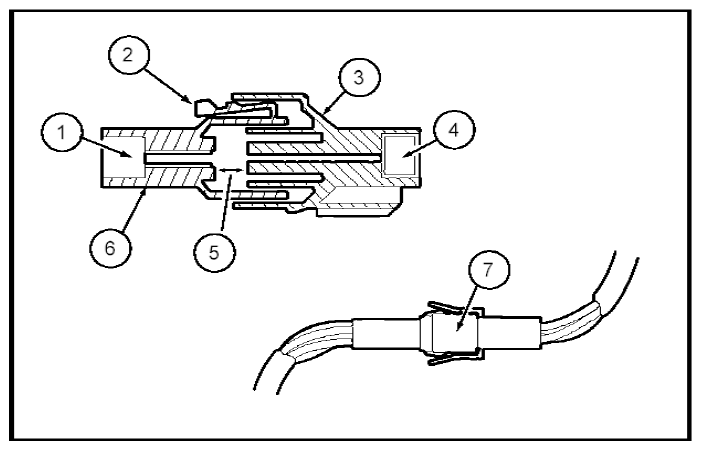

Fig 1: Identifying Partially Mated Connectors
G09281098Courtesy of FORD MOTOR CO.
