Audio System/Navigation: Notes

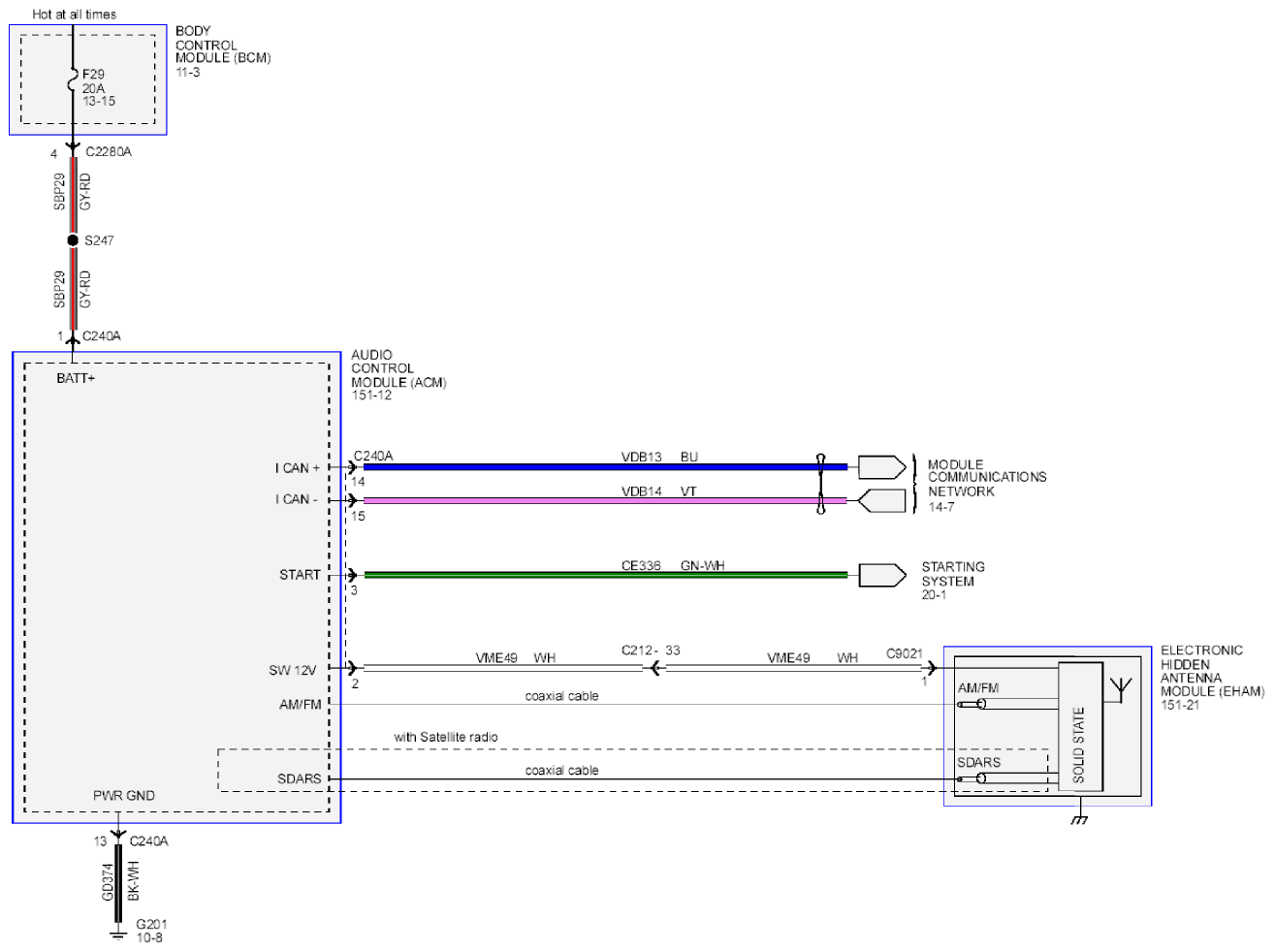

Fig 1: Audio System/Navigation - Wiring Diagram (1 Of 4)
G09279307Courtesy of FORD MOTOR CO.

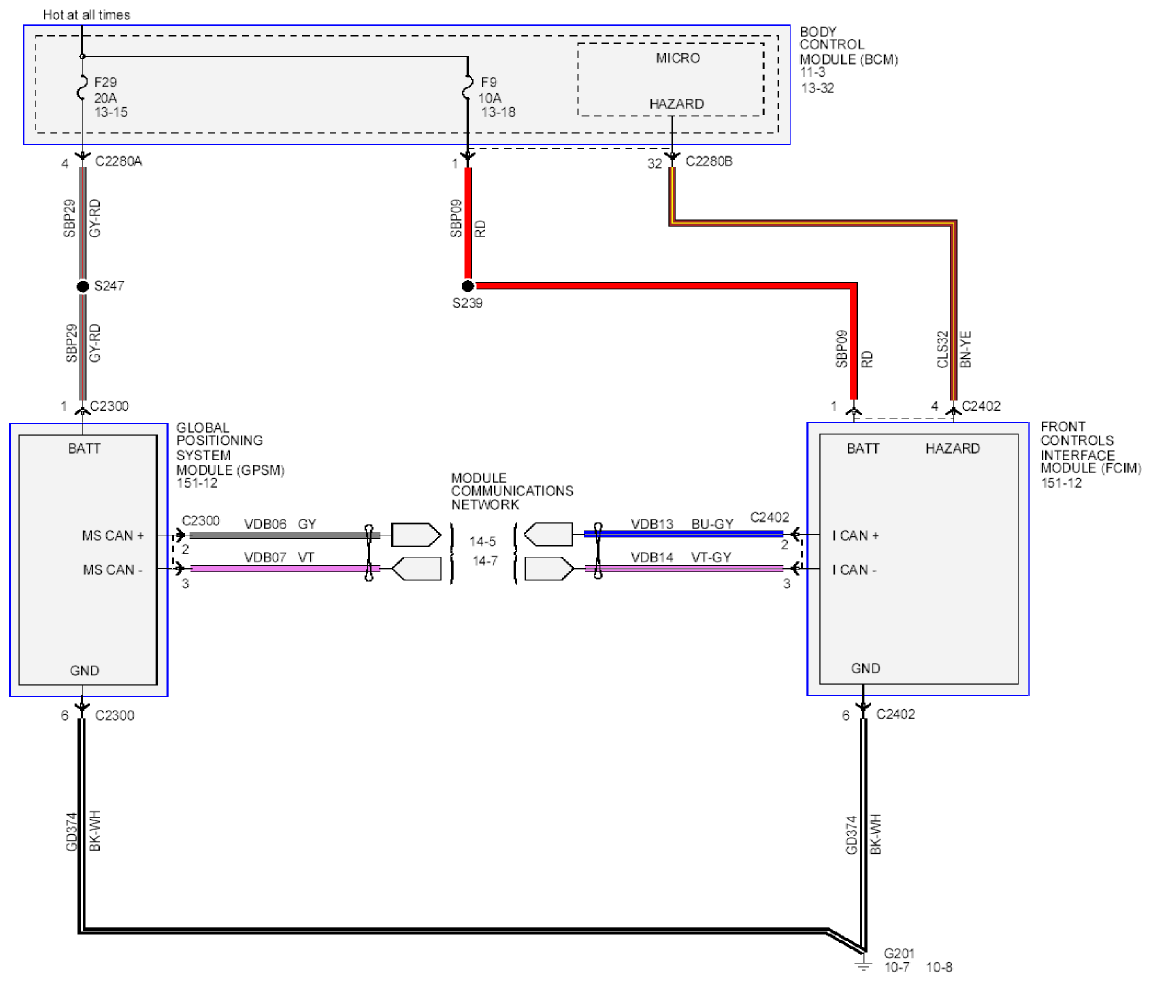

Fig 2: Audio System/Navigation - Wiring Diagram (2 Of 4)
G09279308Courtesy of FORD MOTOR CO.

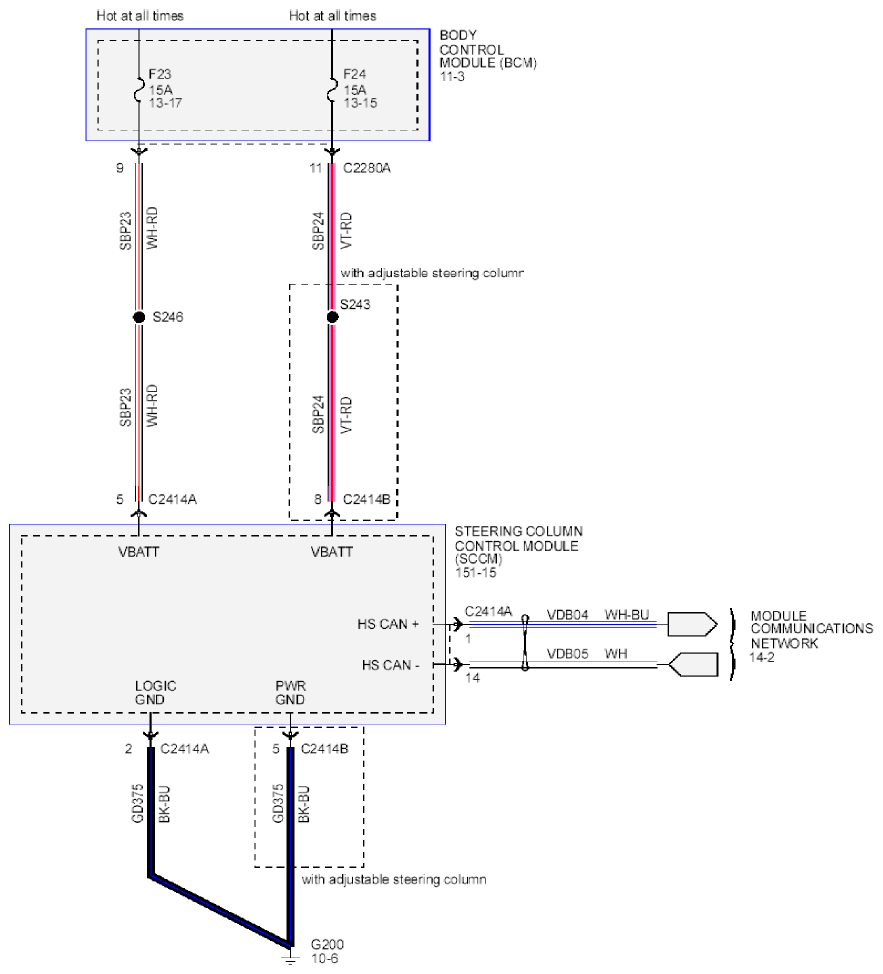

Fig 3: Audio System/Navigation - Wiring Diagram (3 Of 4)
G09279321Courtesy of FORD MOTOR CO.

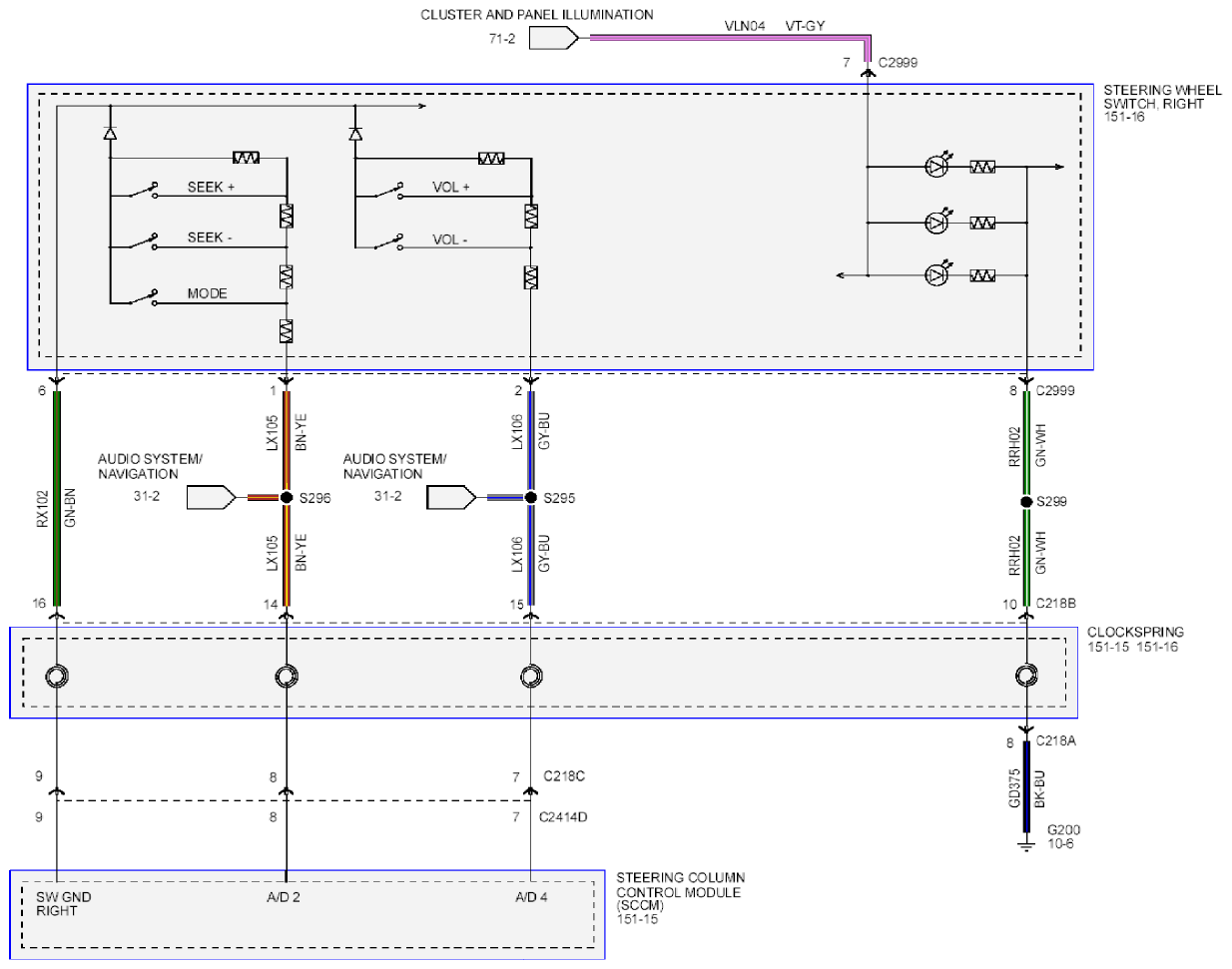

Fig 4: Audio System/Navigation - Wiring Diagram (4 Of 4)
G09279322Courtesy of FORD MOTOR CO.
