Component Location Views

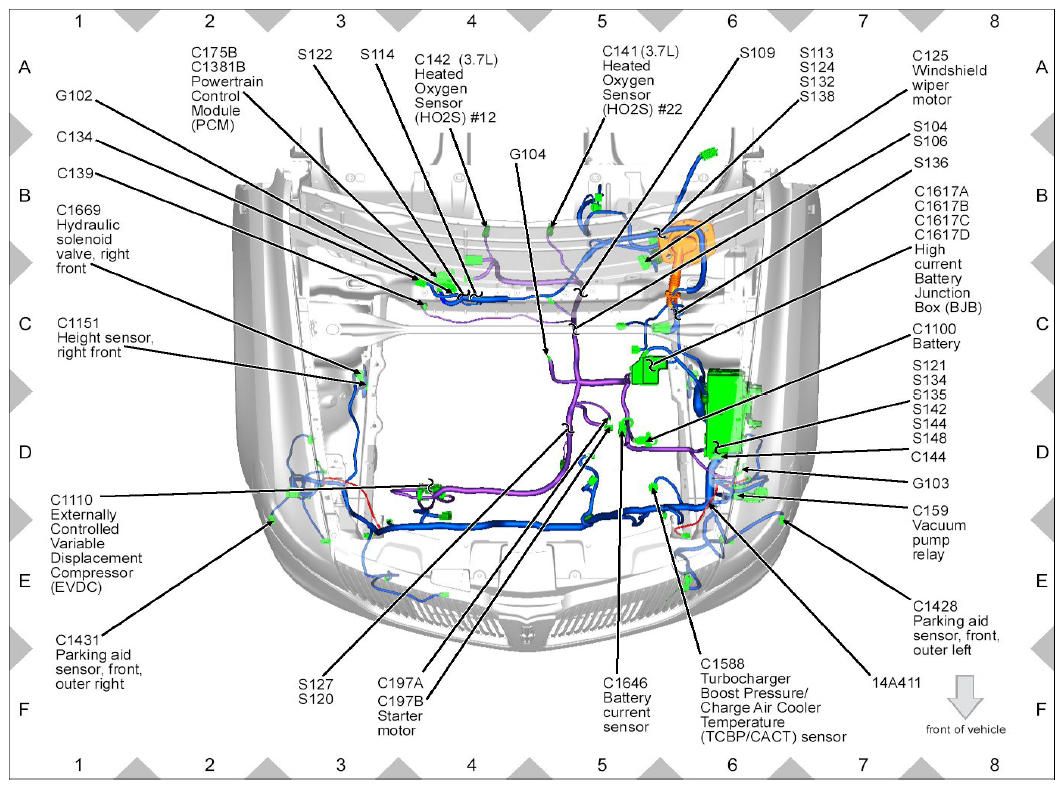

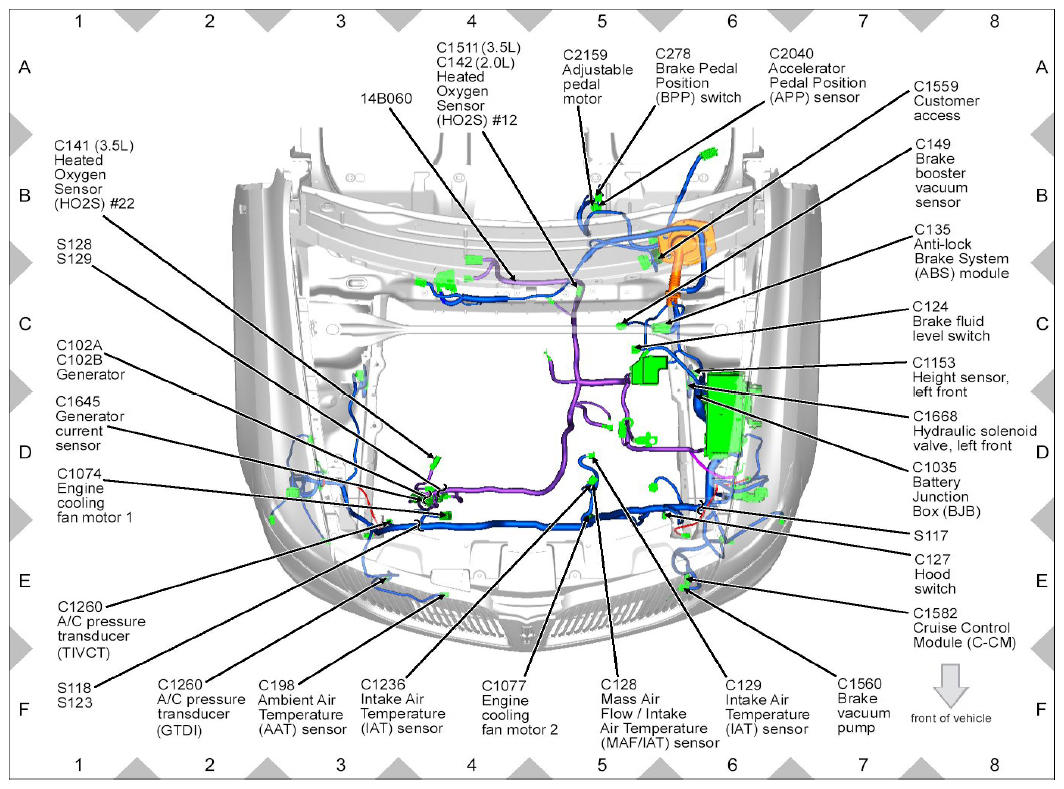

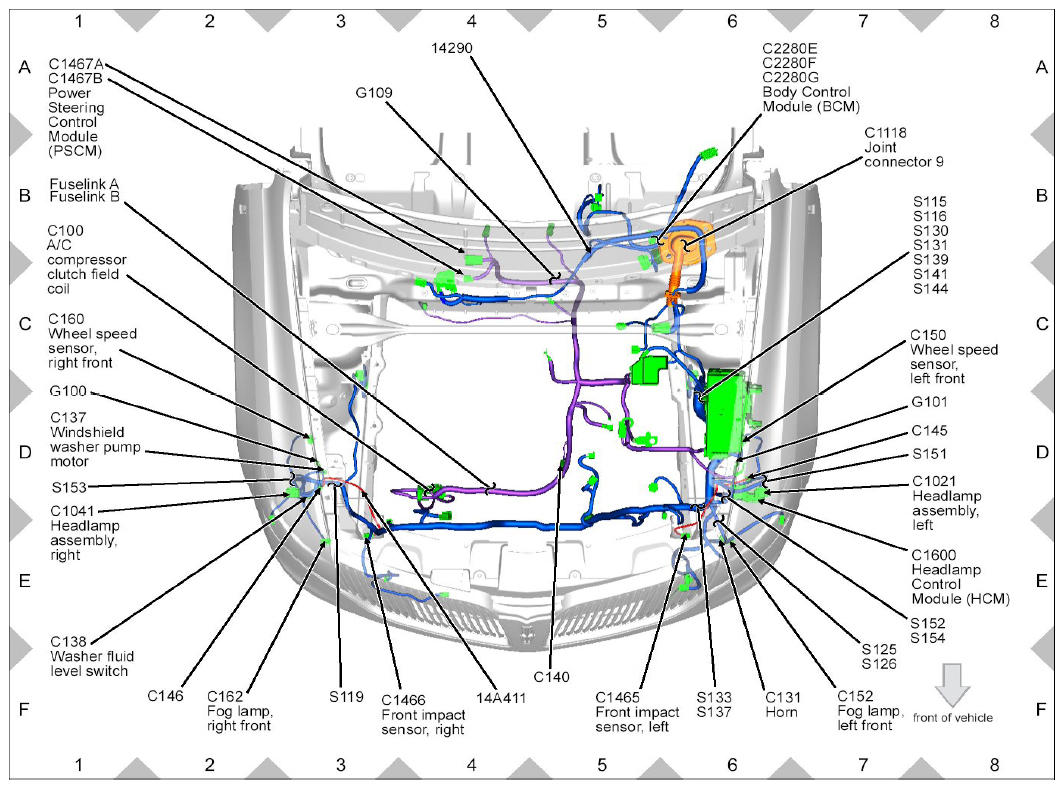

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

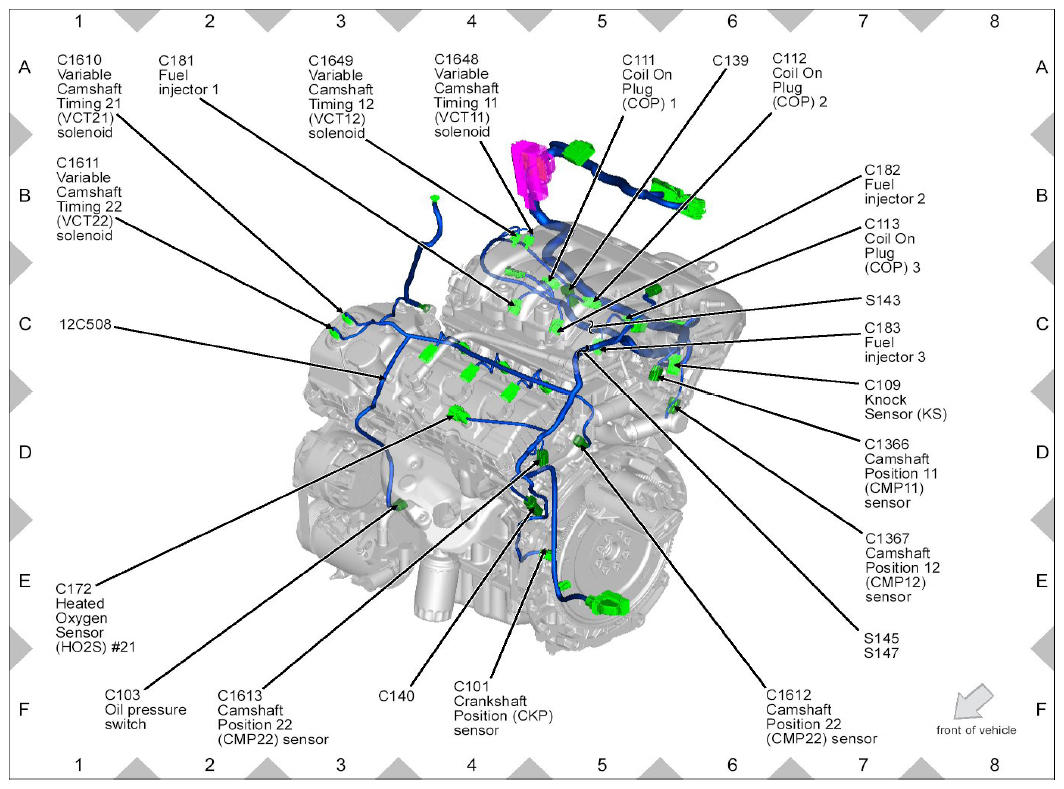

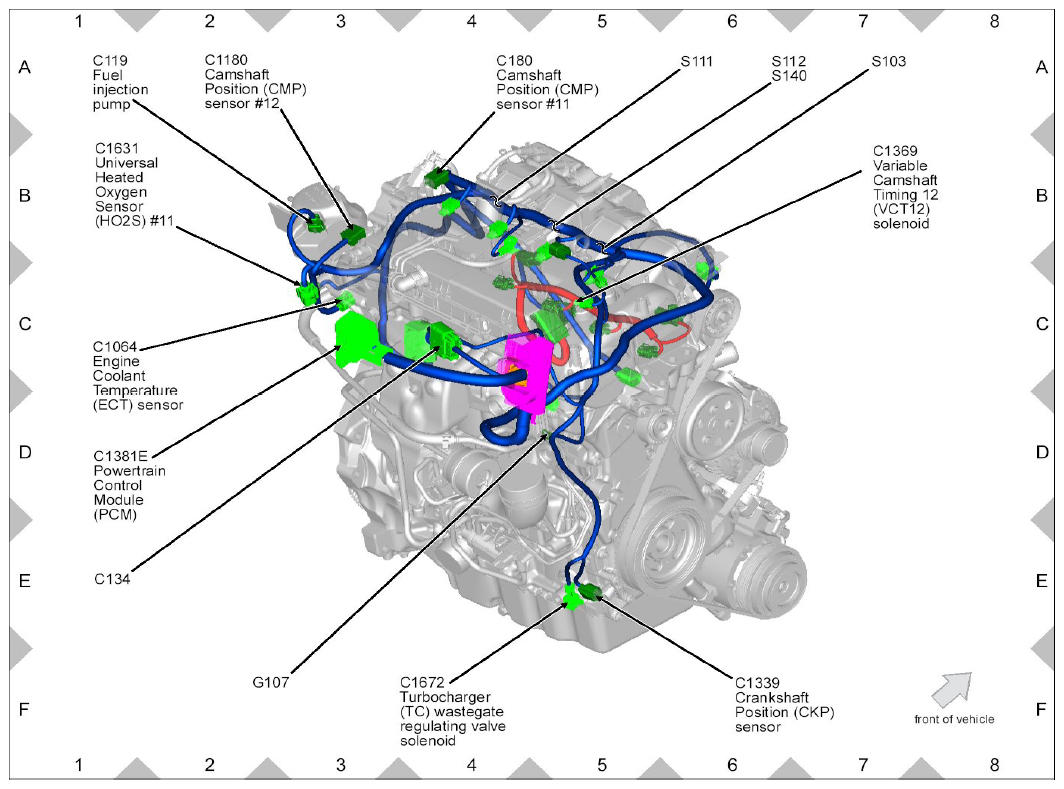

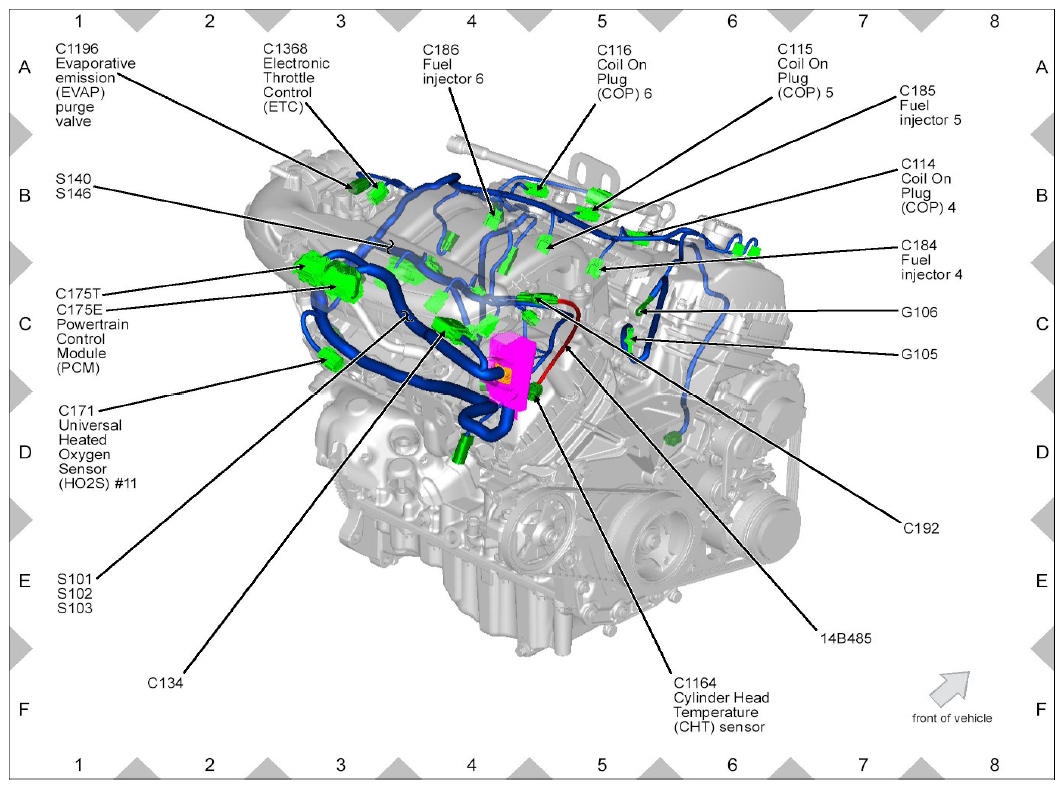

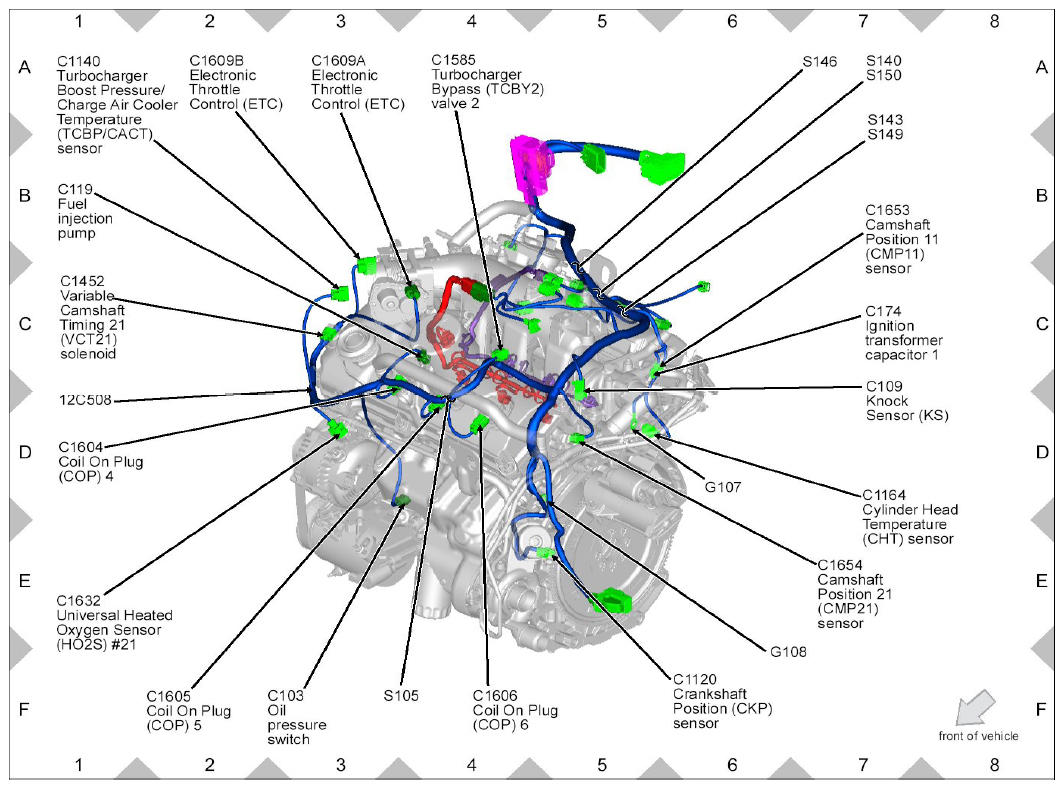

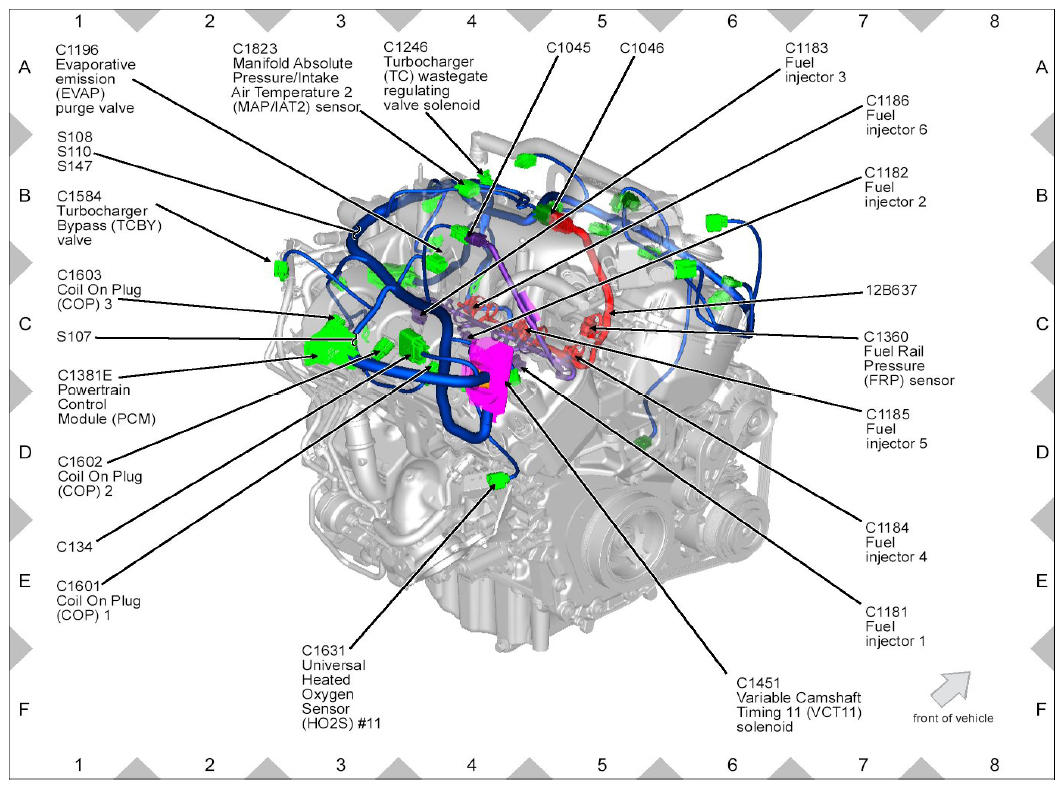

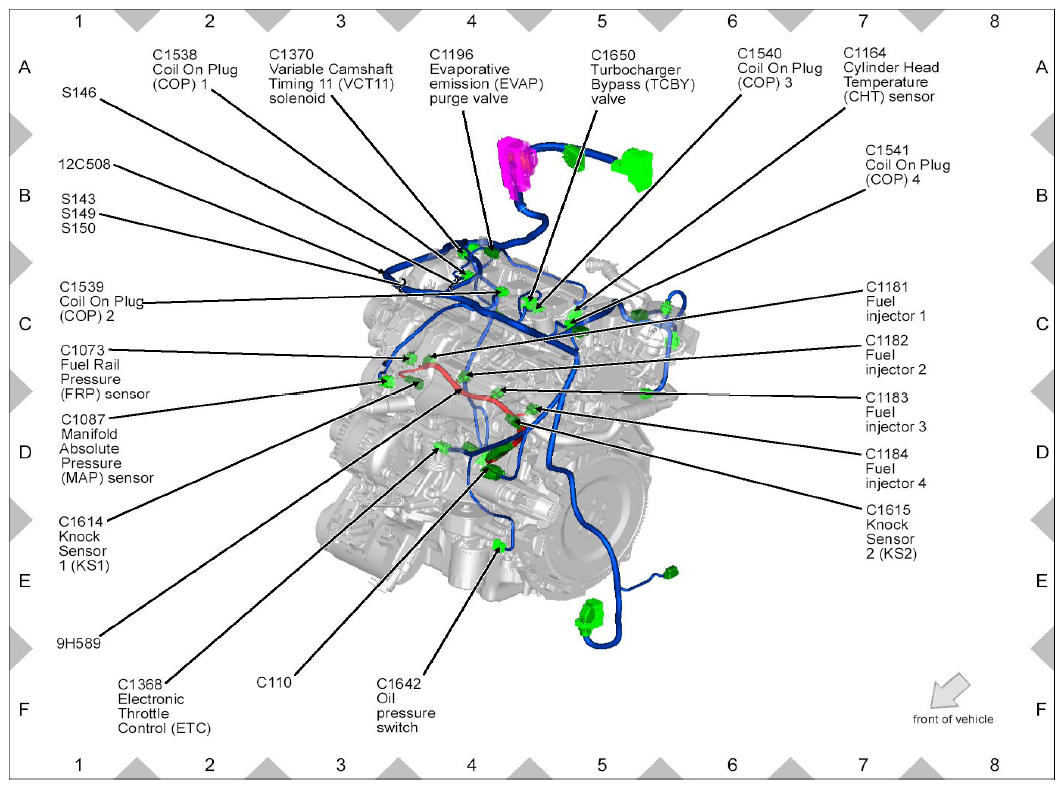

Fig 4: Engine Wiring Harness Connectors Location (1 Of 6)
Courtesy of FORD MOTOR CO.
Fig 5: Engine Wiring Harness Connectors Location (2 Of 6)
Courtesy of FORD MOTOR CO.
Fig 6: Engine Wiring Harness Connectors Location (3 Of 6)
Courtesy of FORD MOTOR CO.
Fig 7: Engine Wiring Harness Connectors Location (4 Of 6)
Courtesy of FORD MOTOR CO.
Fig 8: Engine Wiring Harness Connectors Location (5 Of 6)
Courtesy of FORD MOTOR CO.
Fig 9: Engine Wiring Harness Connectors Location (6 Of 6)
Courtesy of FORD MOTOR CO.

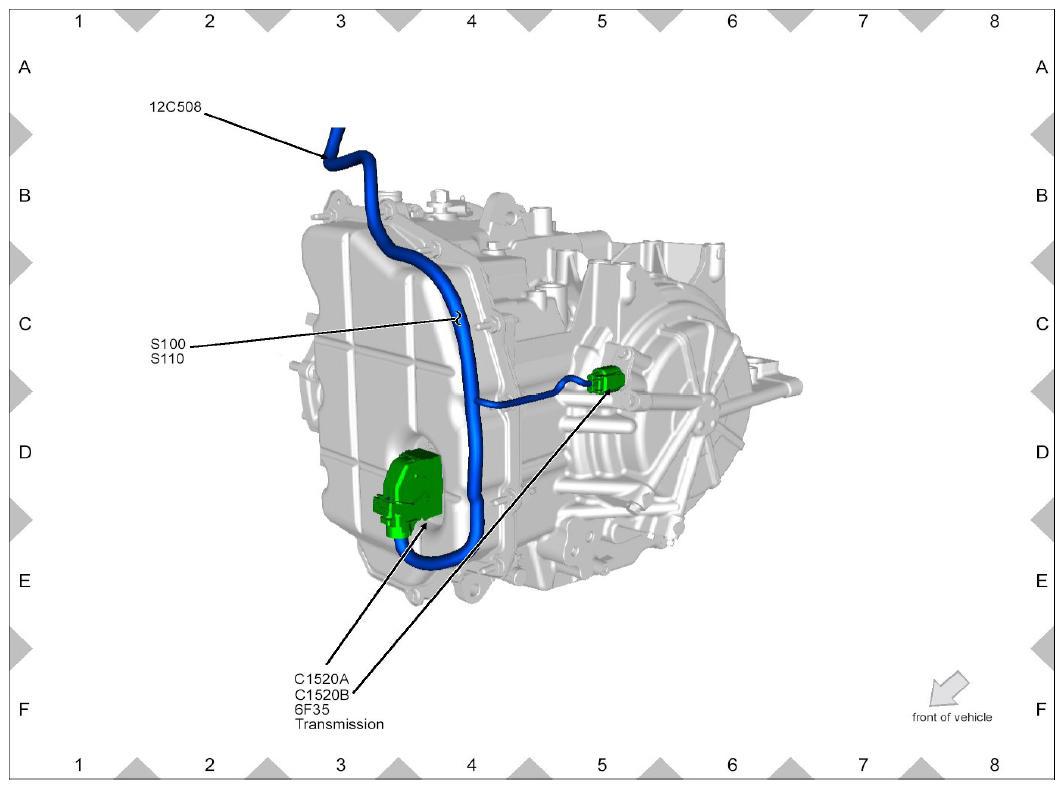

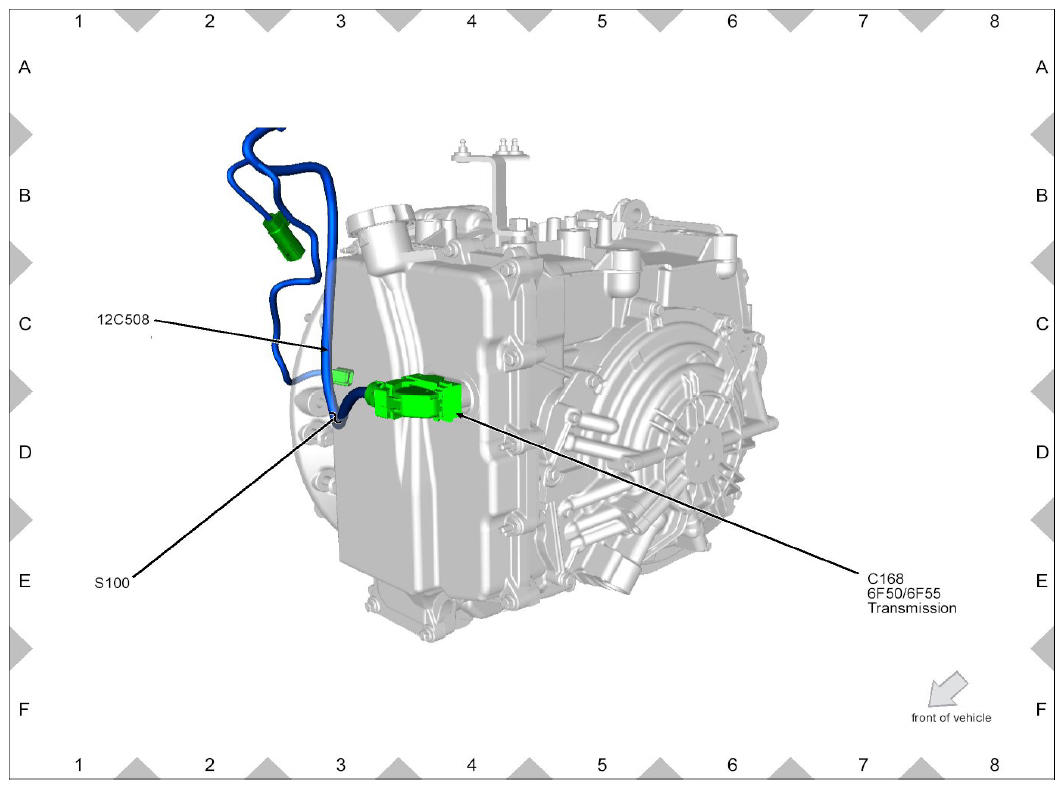

Fig 10: Transmission Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 11: Transmission Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

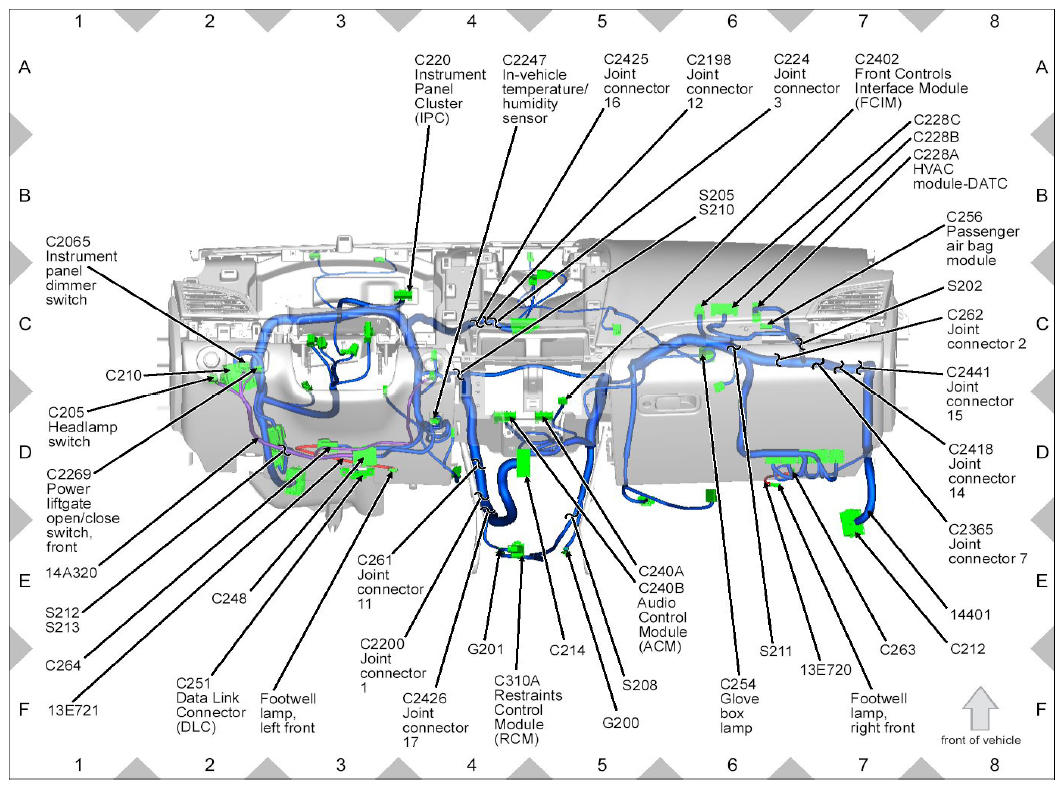

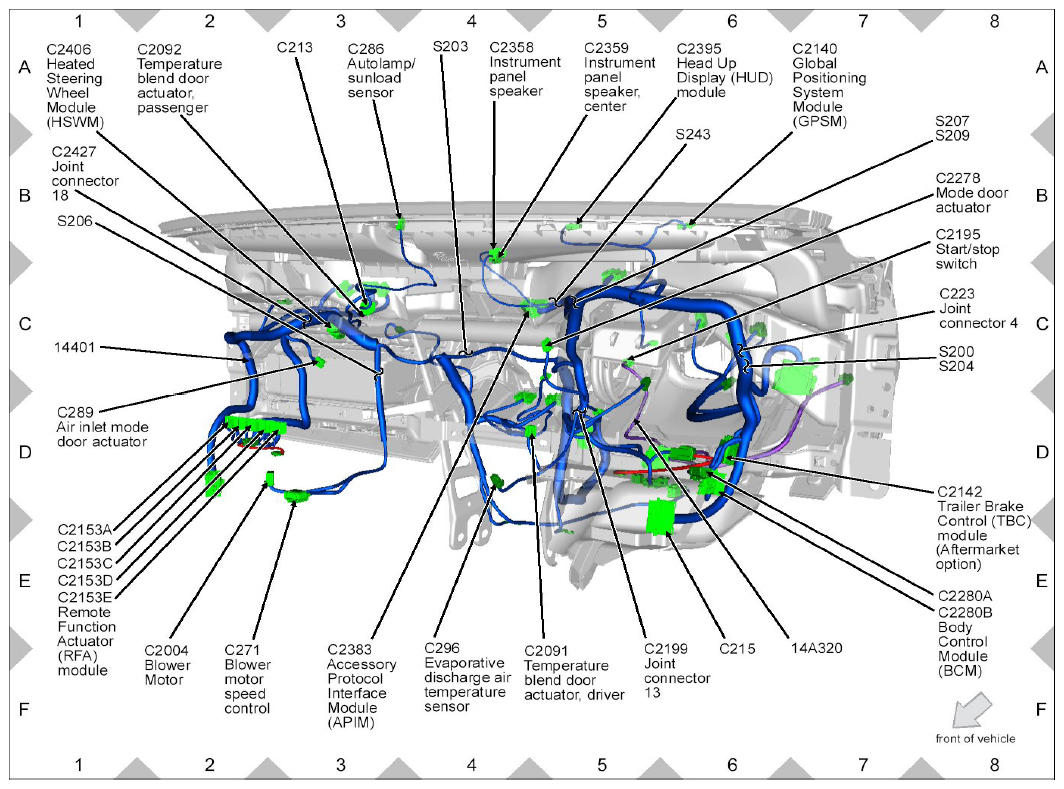

Fig 12: Dash Board Wiring Harness Connectors Location - Front Side (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 13: Dash Board Wiring Harness Connectors Location - Front Side (2 Of 2)
Courtesy of FORD MOTOR CO.

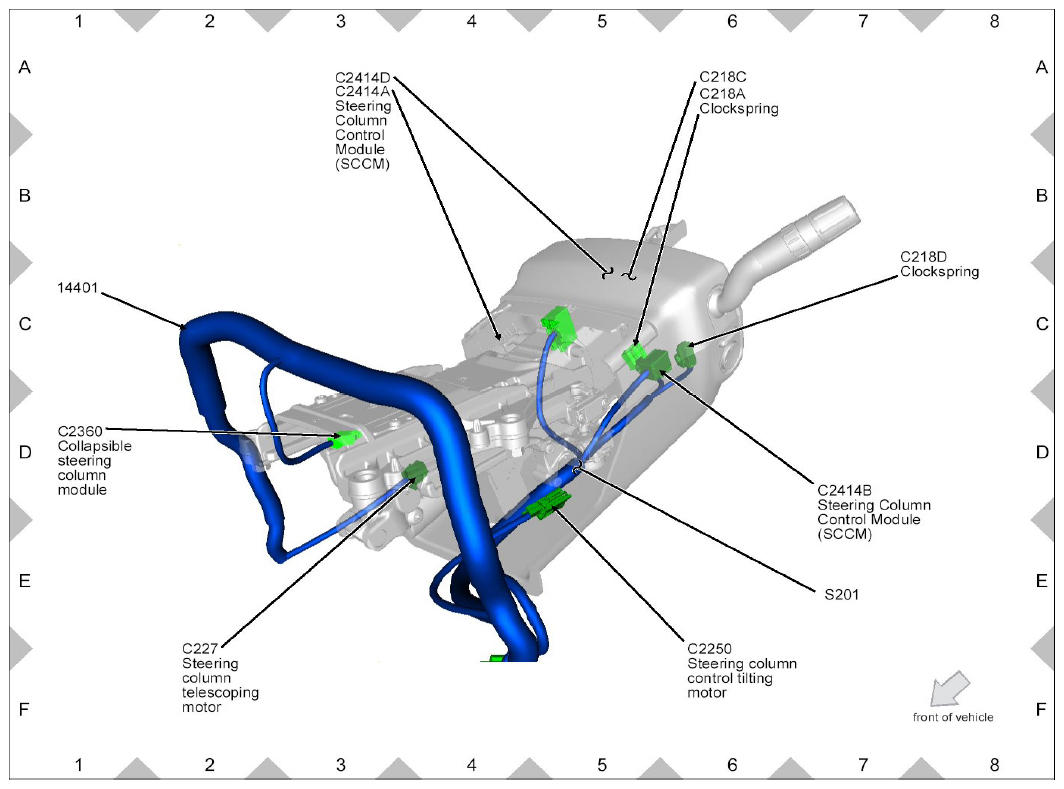

Fig 14: Steering Column Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

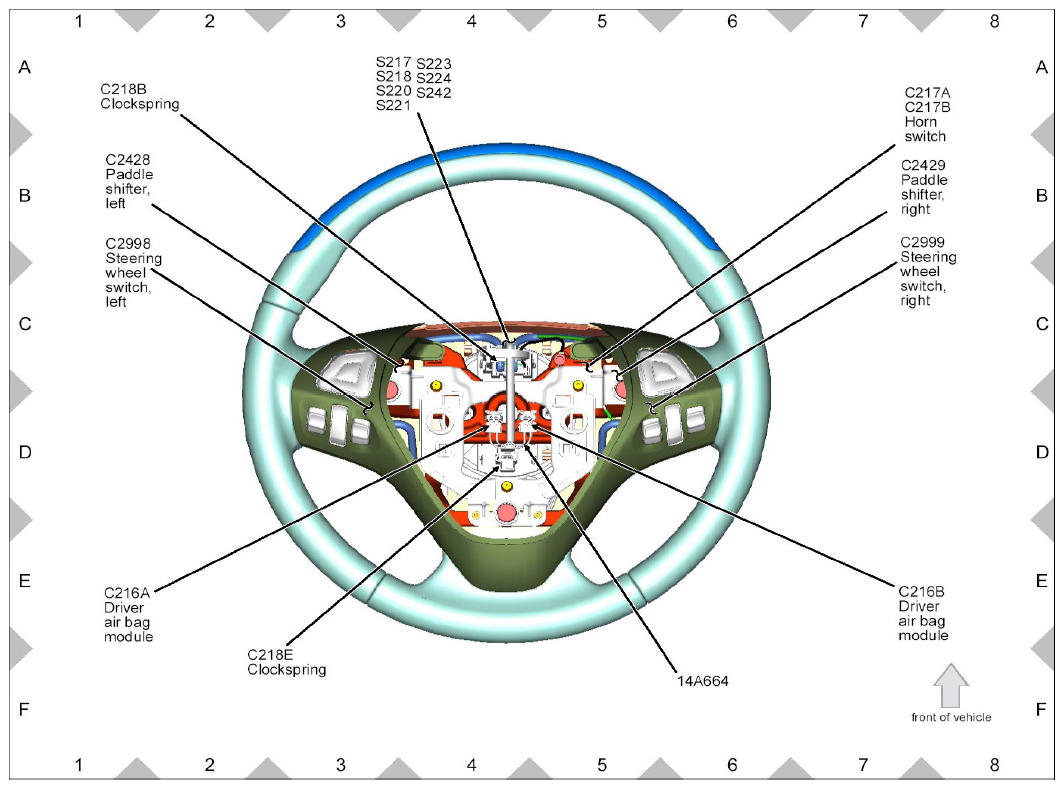

Fig 15: Steering Wheel Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

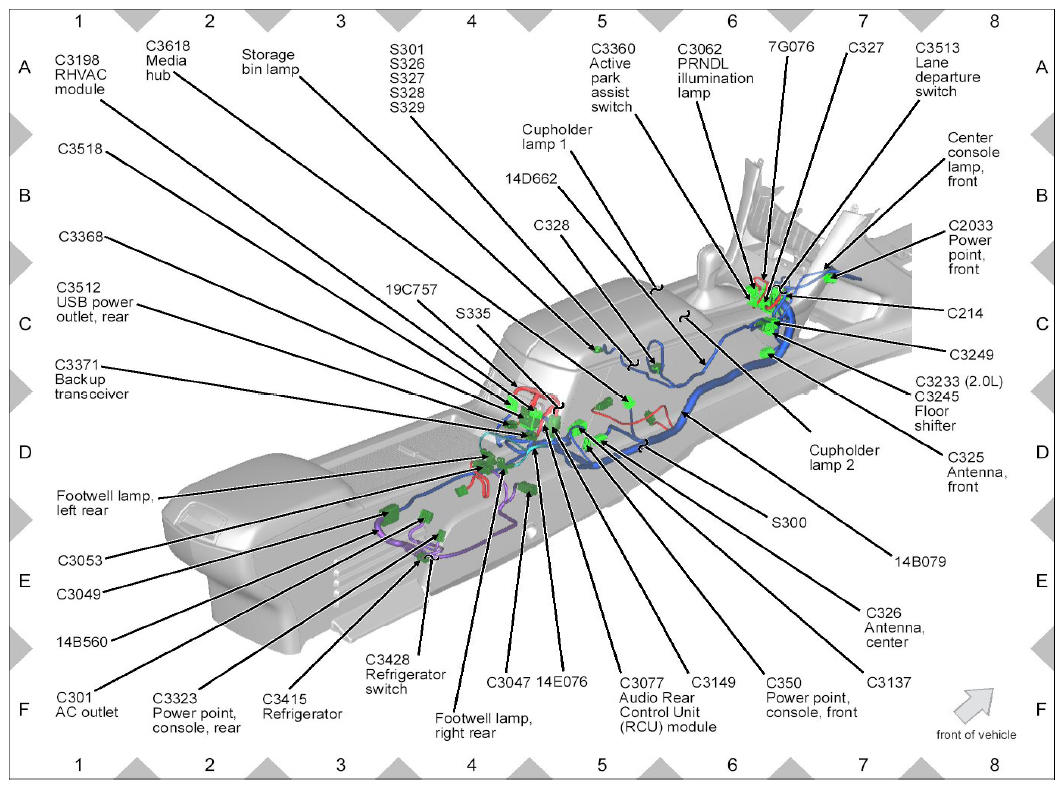

Fig 16: Center Console Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

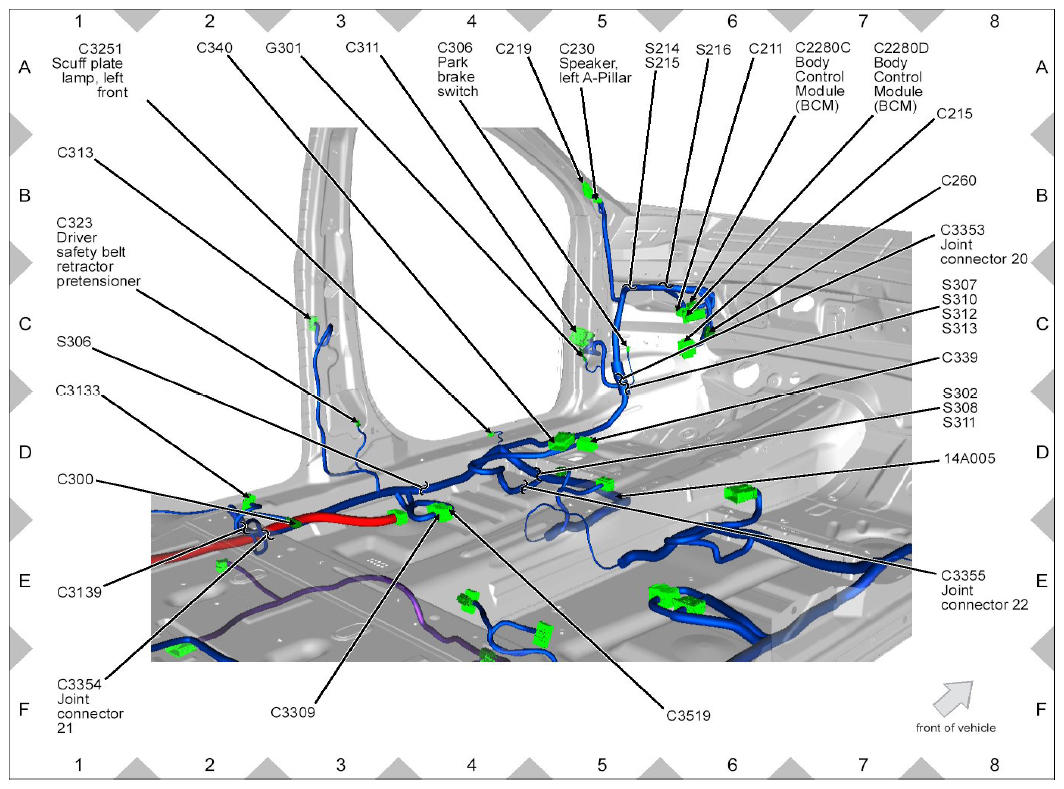

Fig 17: LH Front Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

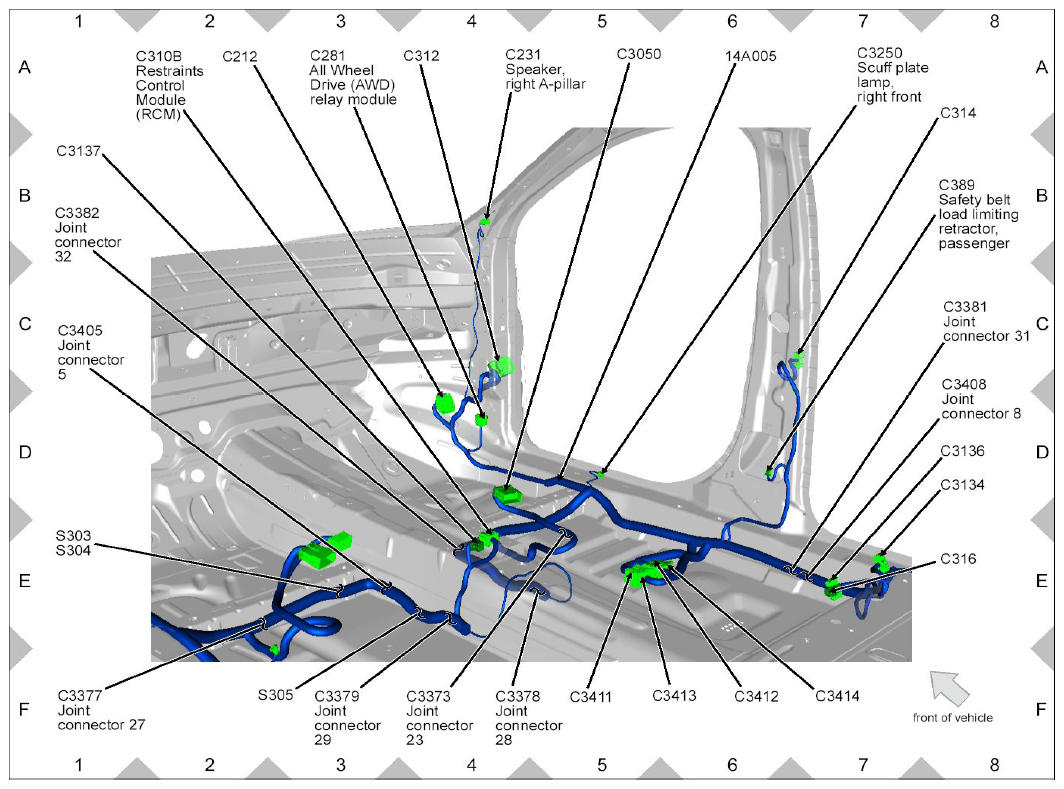

Fig 18: RH Front Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

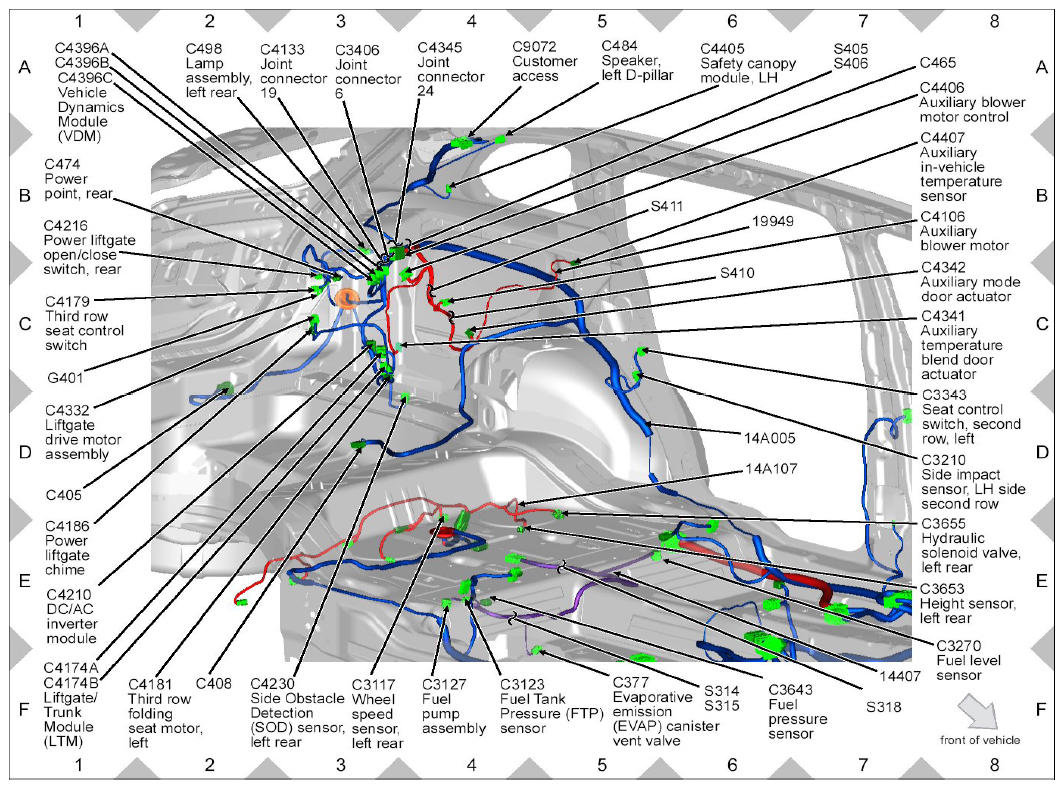

Fig 19: LH Rear Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

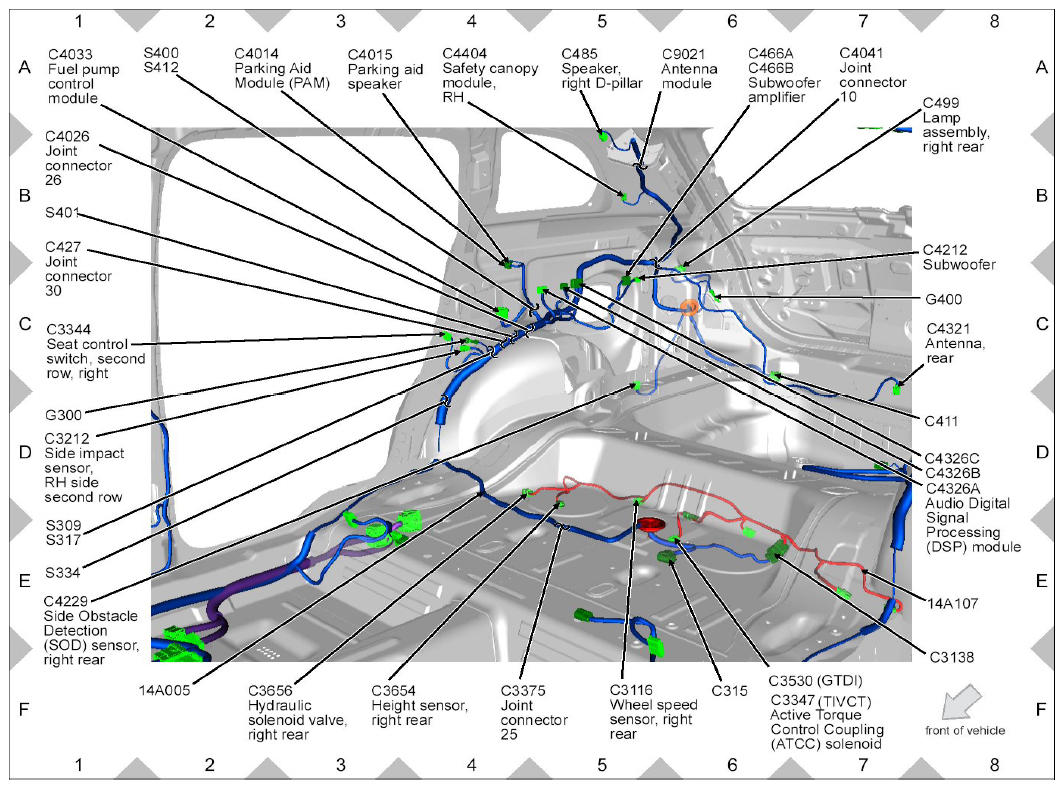

Fig 20: RH Rear Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

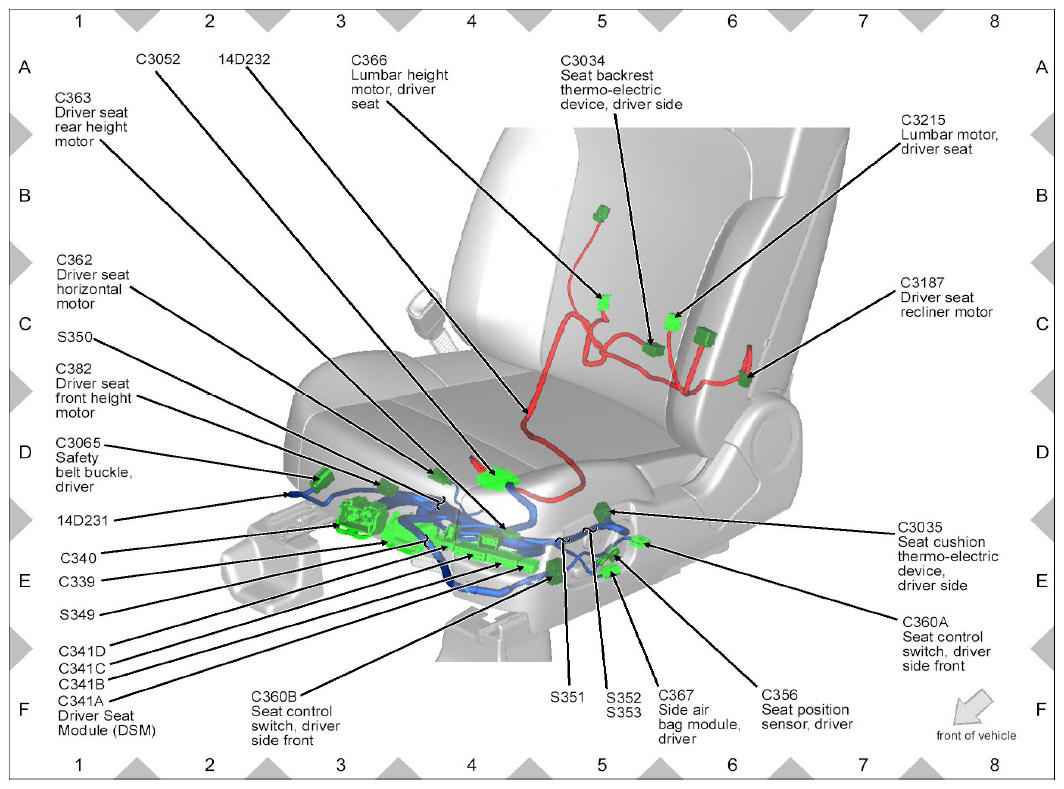

Fig 21: Driver Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

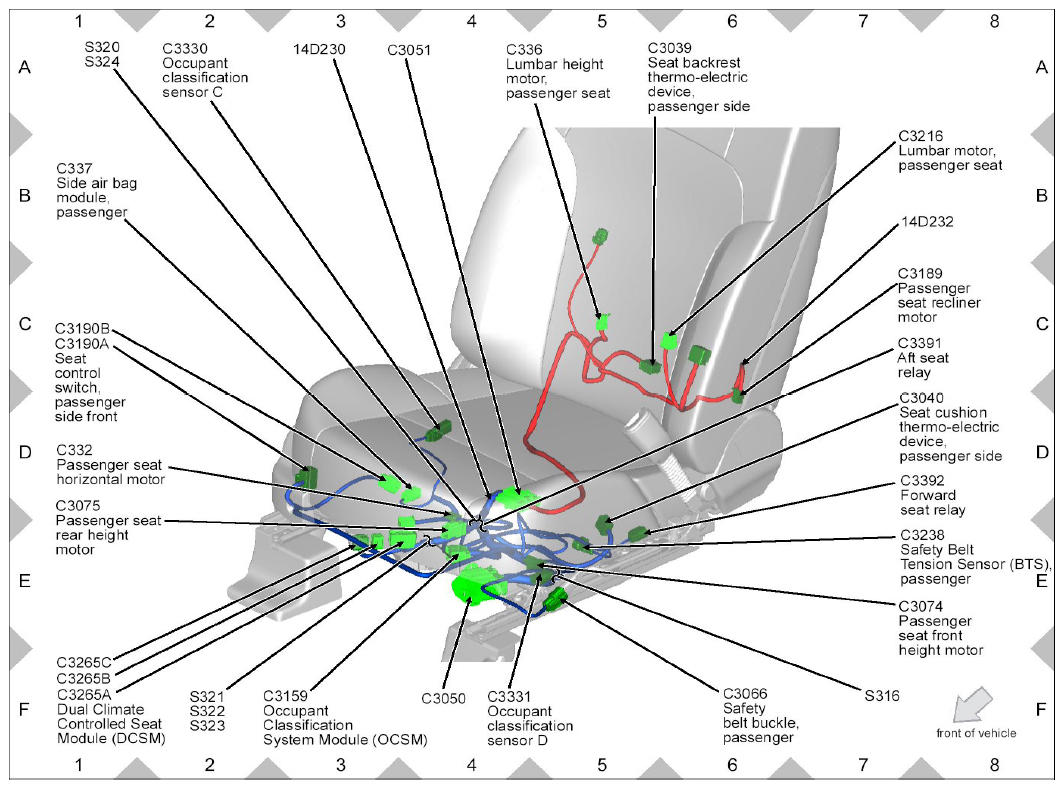

Fig 22: Front Passenger Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

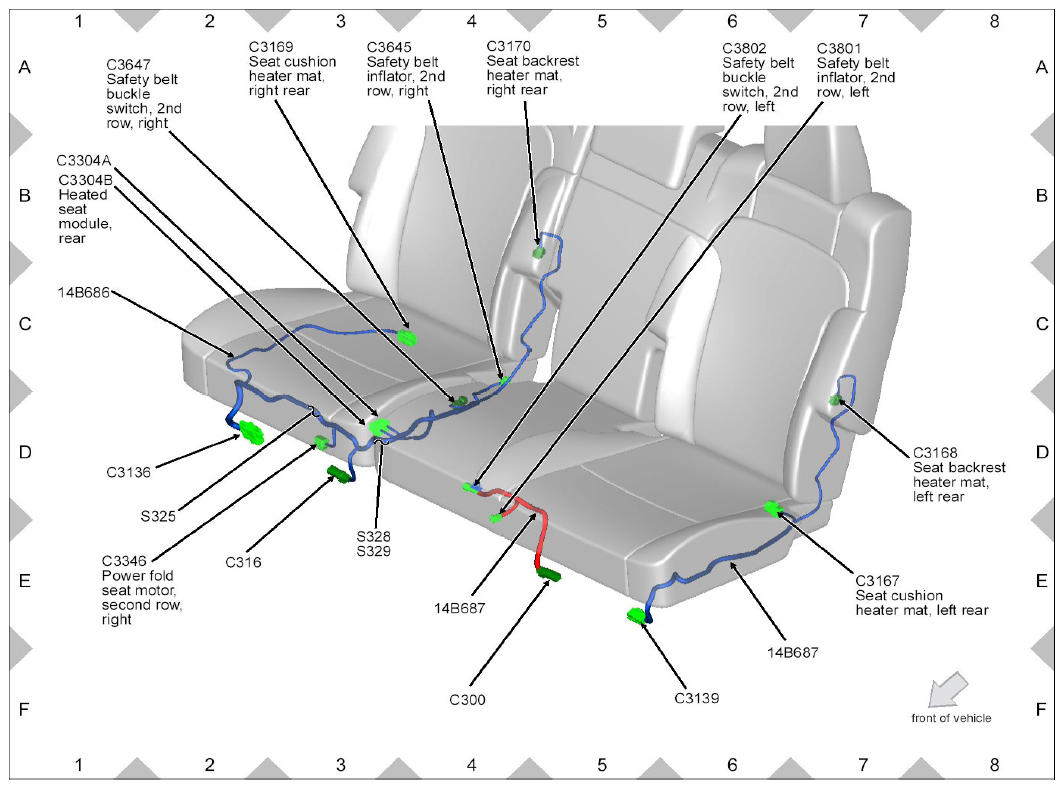

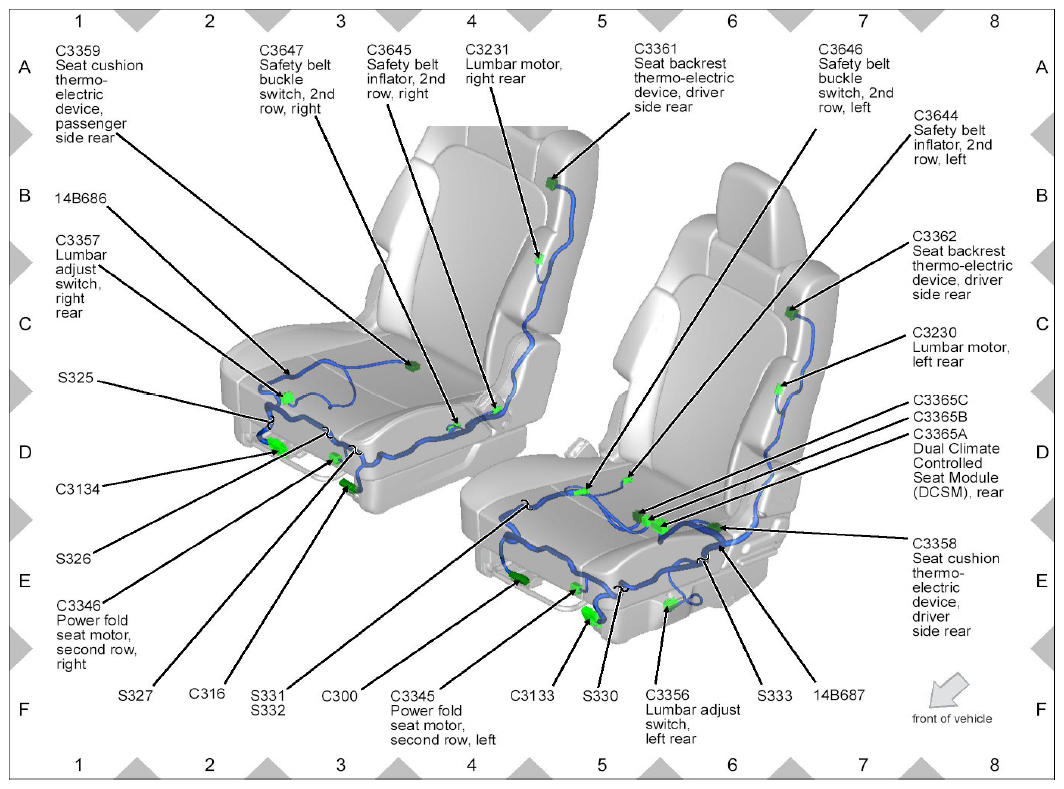

Fig 23: Rear Seat Wiring Harness Connectors Location (Bench Seat)
Courtesy of FORD MOTOR CO.
Fig 24: Rear Seat Wiring Harness Connectors Location (Seperate Seat)
Courtesy of FORD MOTOR CO.

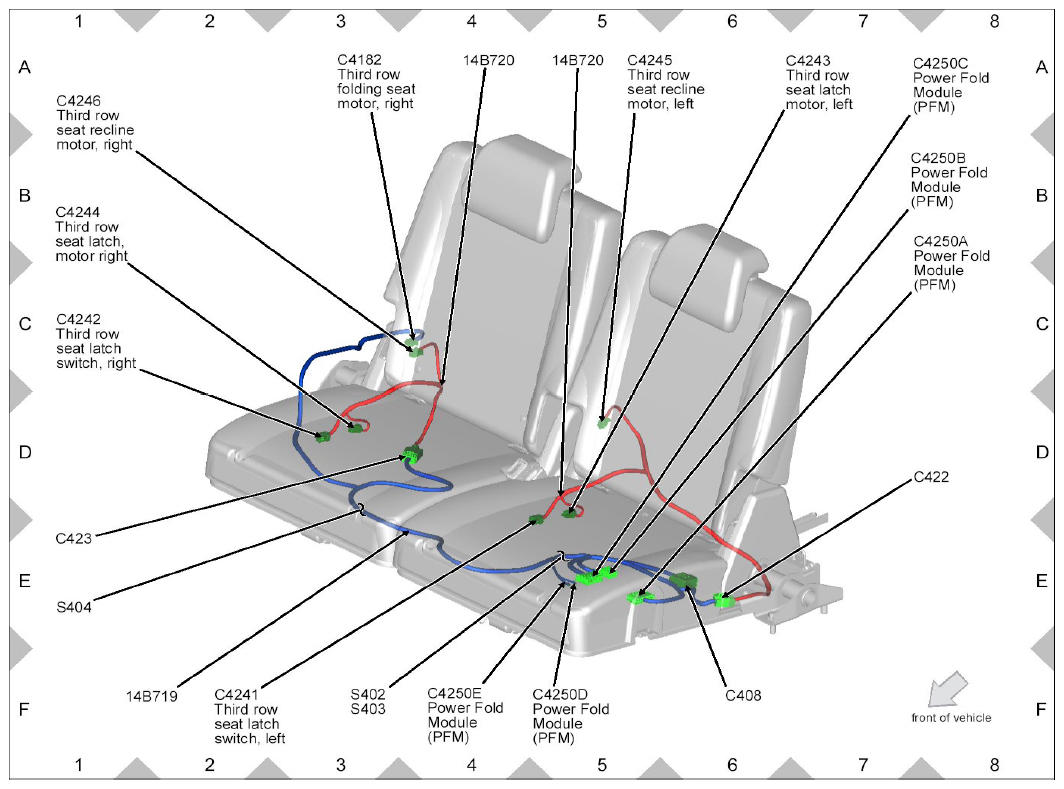

Fig 25: Third Row Rear Passenger Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

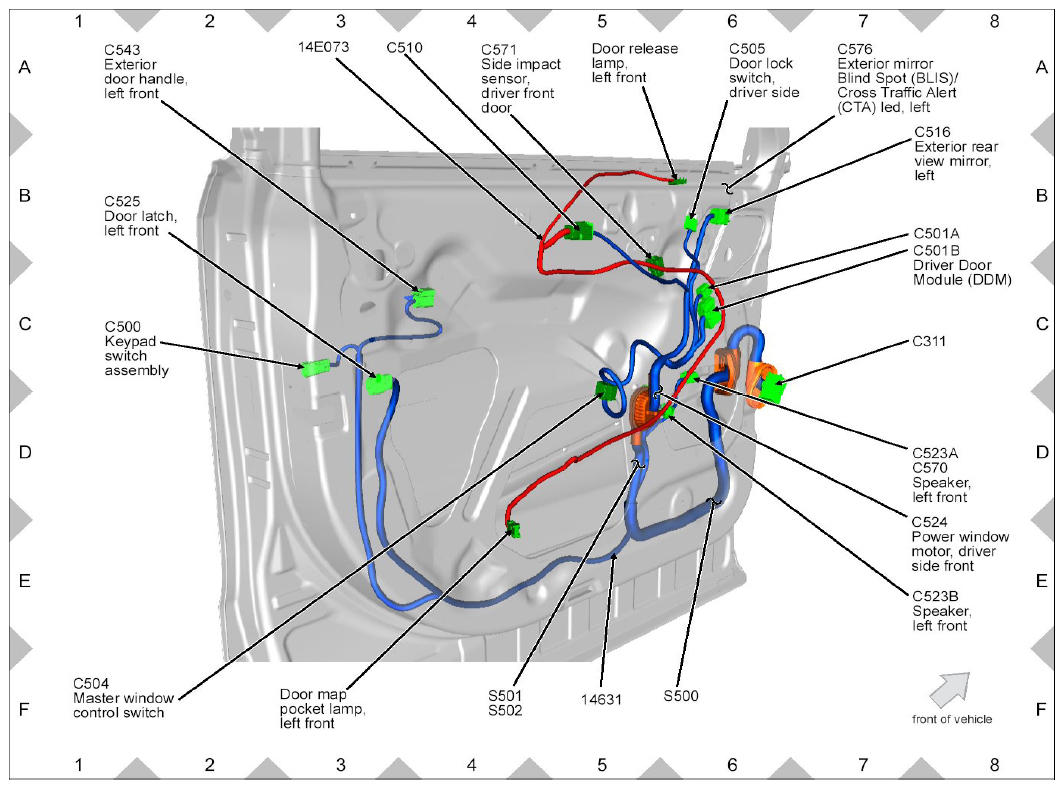

Fig 26: LH Front Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

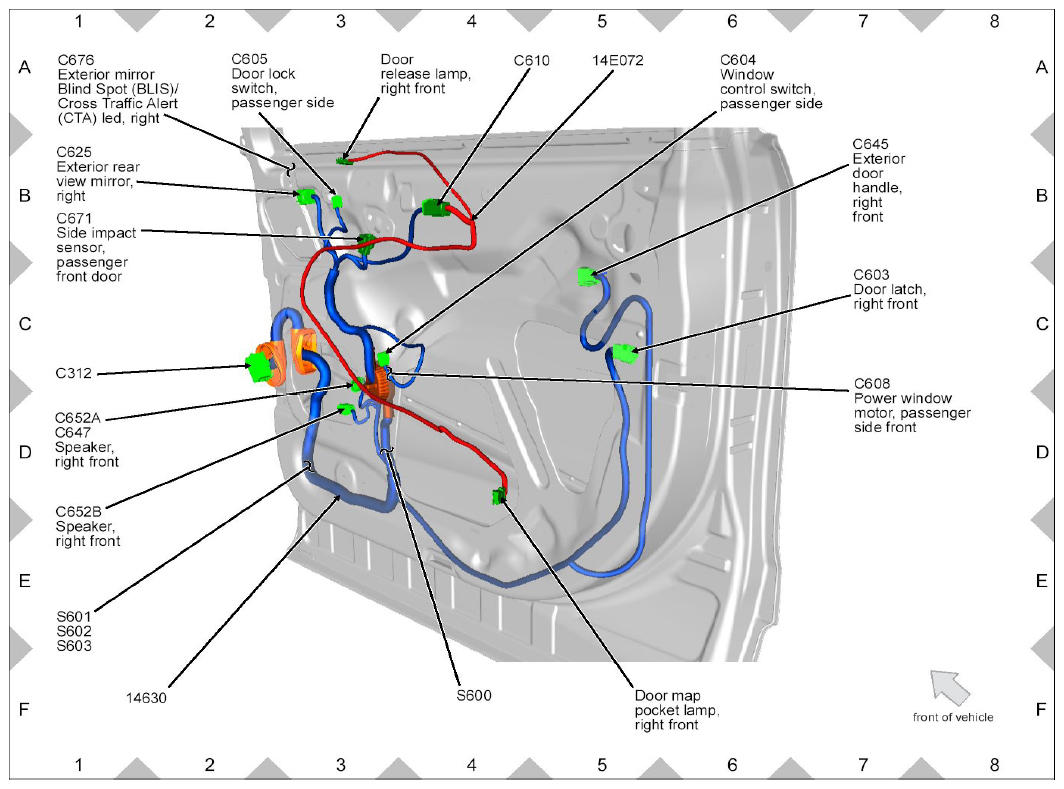

Fig 27: RH Front Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

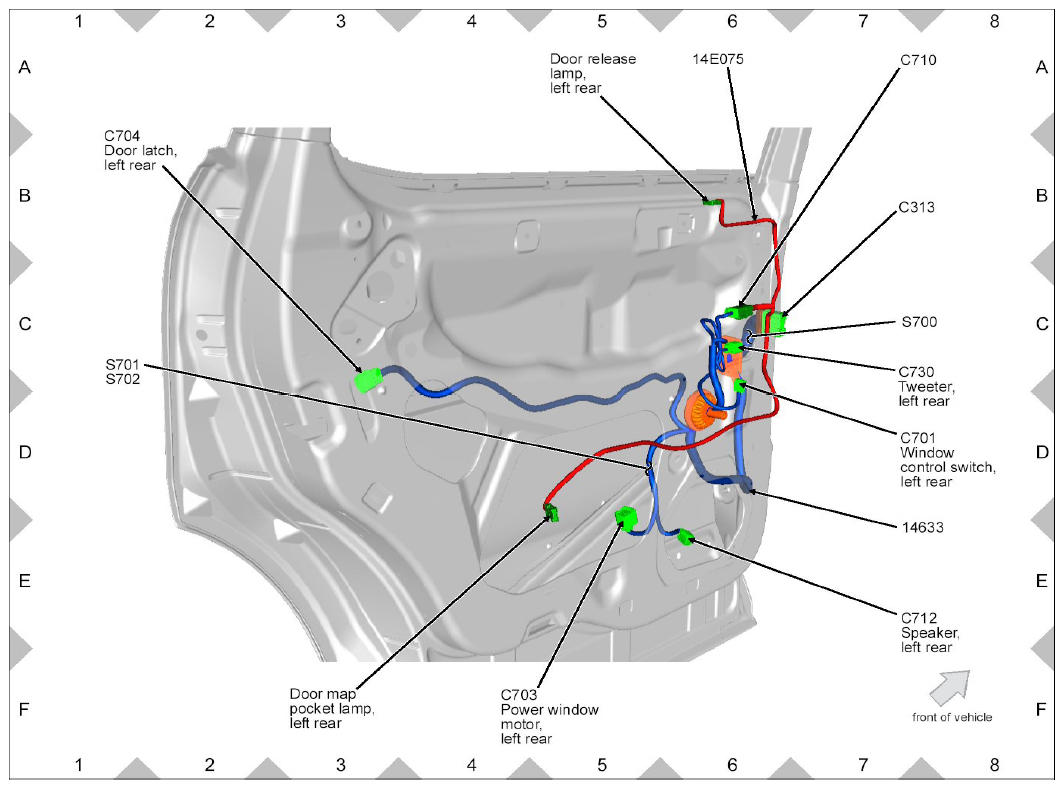

Fig 28: LH Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

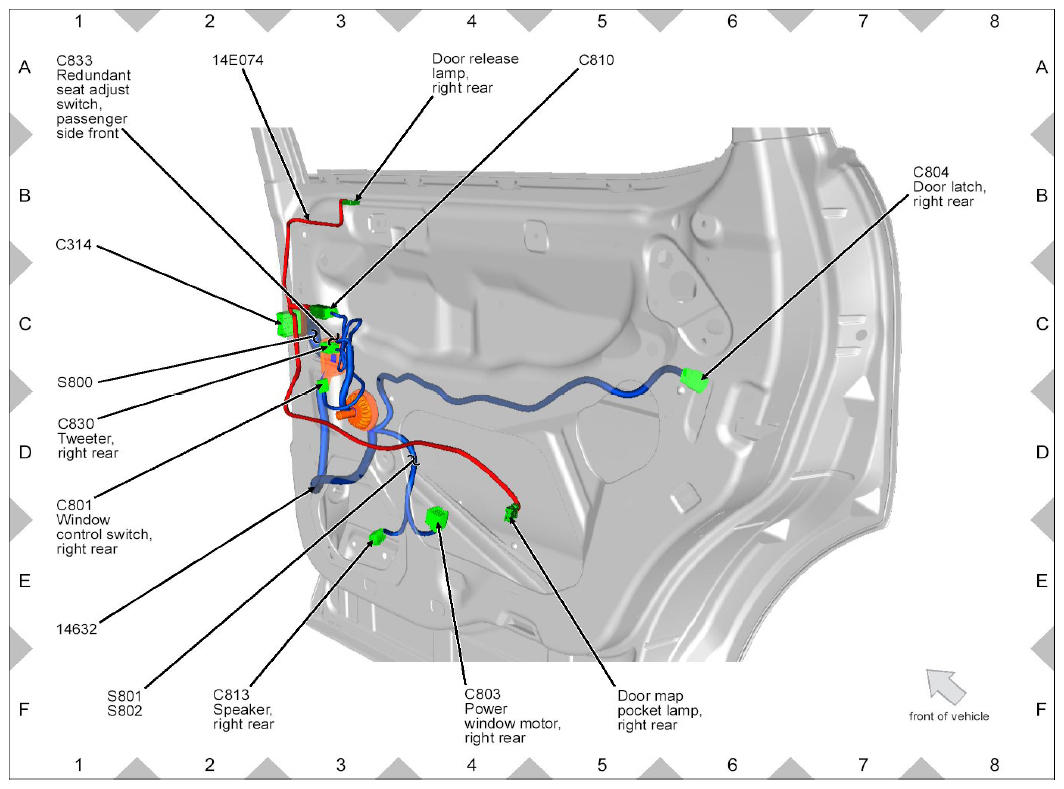

Fig 29: RH Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

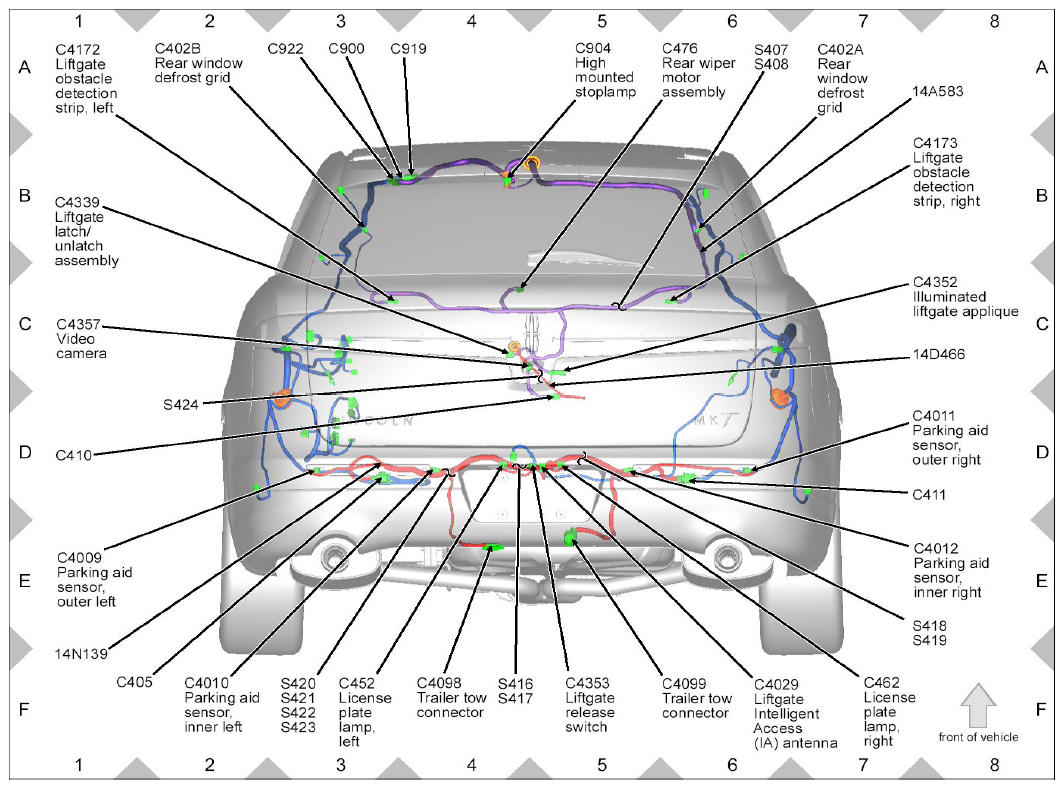

Fig 30: Liftgate Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

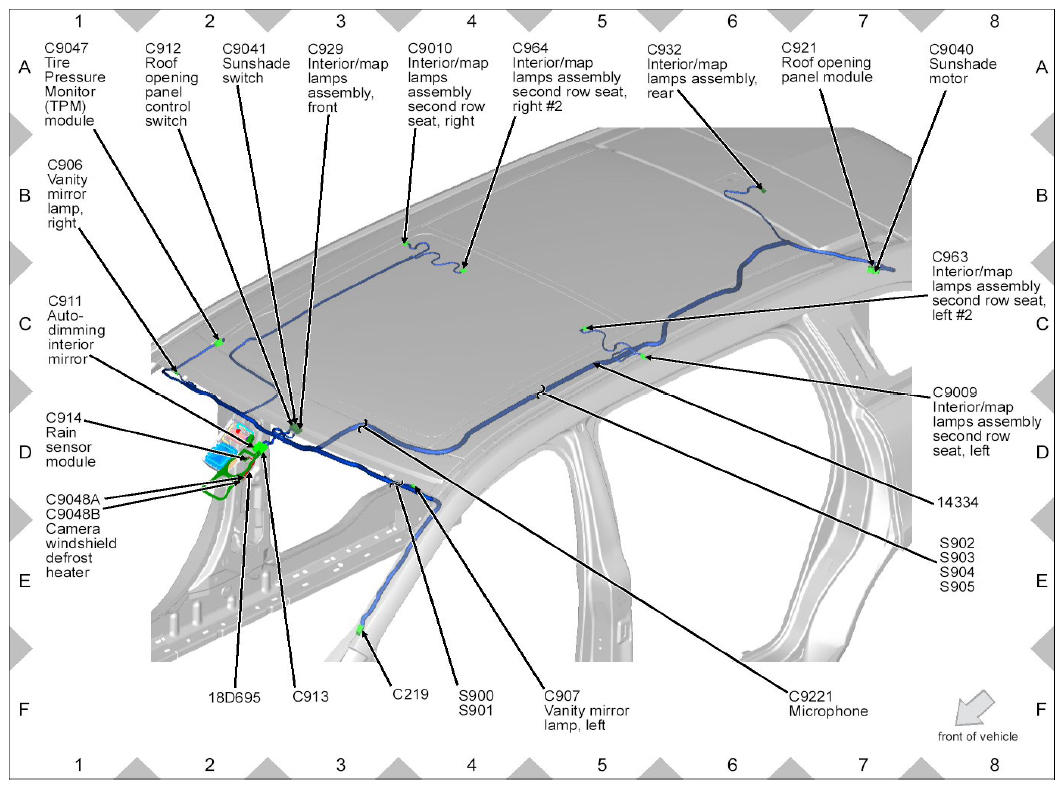

Fig 31: Roof Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
