OEM Ground Distribution: Grounds: G100

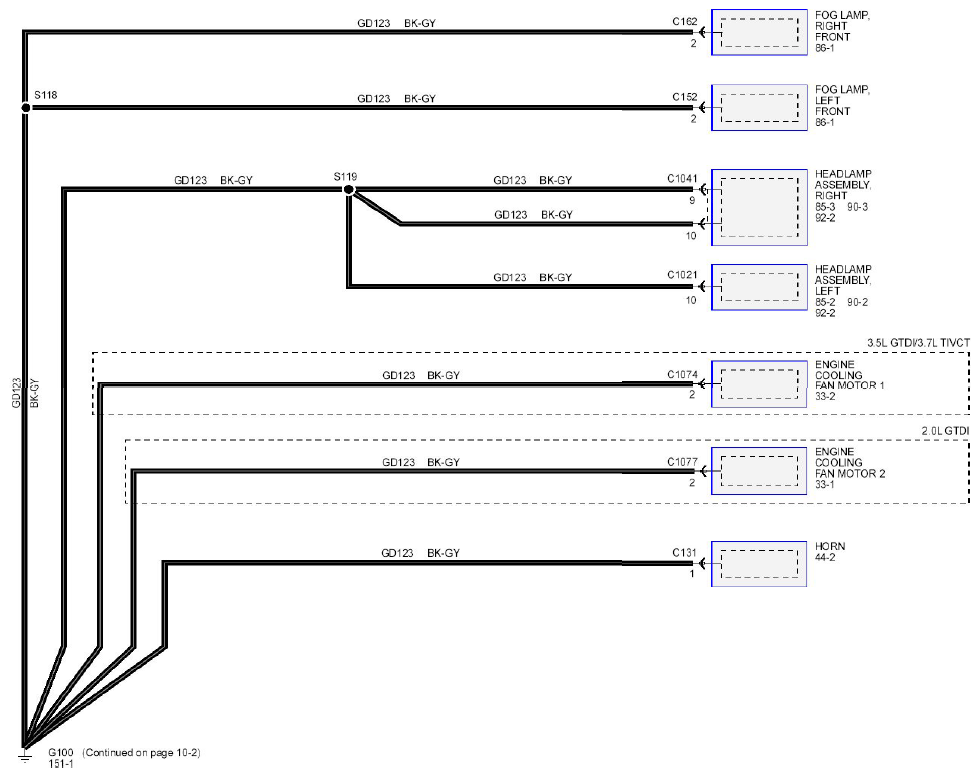

Fig 1: Ground System Wiring Diagram - G100 (1 Of 2)
G09081637Courtesy of FORD MOTOR CO.

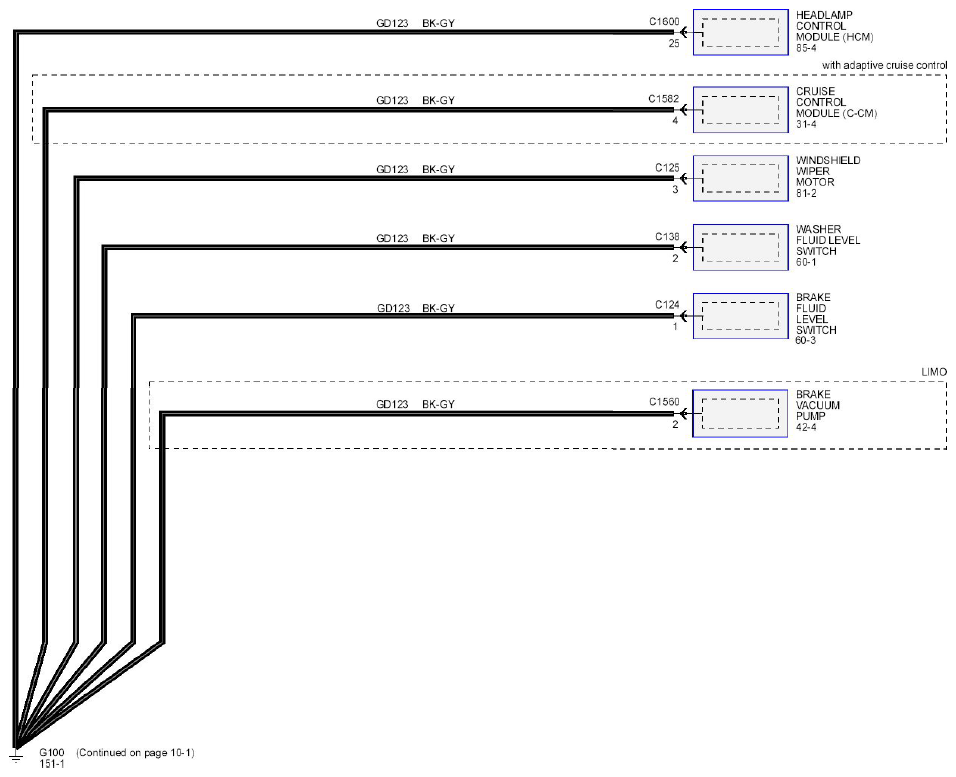

Fig 2: Ground System Wiring Diagram - G100 (2 Of 2)
G09081638Courtesy of FORD MOTOR CO.
