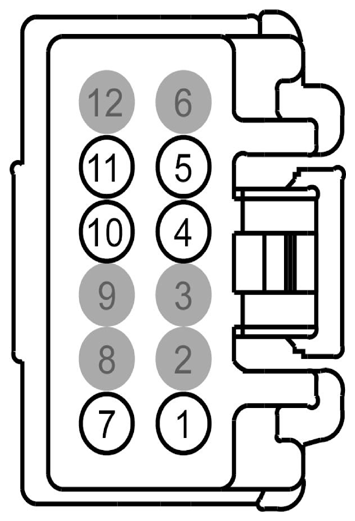

Joint Connector 16 Connector End View (C2424)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB04 (BU) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 5 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 6 | * | * | Not Used | |
| 7 | VDB05 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 11 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 12 | * | * | Not Used |
