Crankshaft Position (CKP) Sensor: Installation

All vehicles

  1. To install, reverse the removal procedure.
    • 2. Tighten to 10 Nm (89 lb-in).

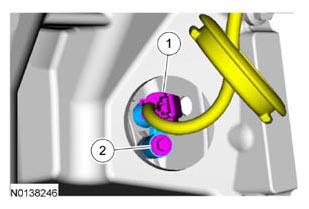

      G08616078

    3.5L GTDI

  3. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
