Seat - Front: Notes
NOTE:

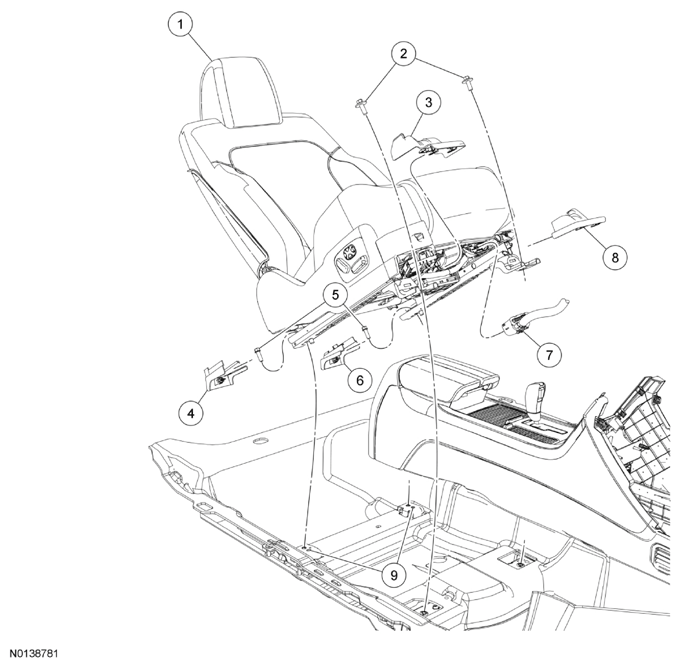

Passenger seat shown in illustration, driver seat similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Passenger seat assembly |
| 2 | W709428 | Front mounting bolts |
| 3 | 618D00 | Outboard front cover |
| 4 | 61748 | Outboard rear cover |
| 5 | W714018 | Rear mounting bolts |
| 6 | 61748 | Inboard rear cover |
| 7 | 14A005 | Electrical connector |
| 8 | 130A02 | Inboard front cover |
| 9 | - | Side Protection and Cabin Enhancement (SPACE®) tube locator pin holes |
