Manual Transmission

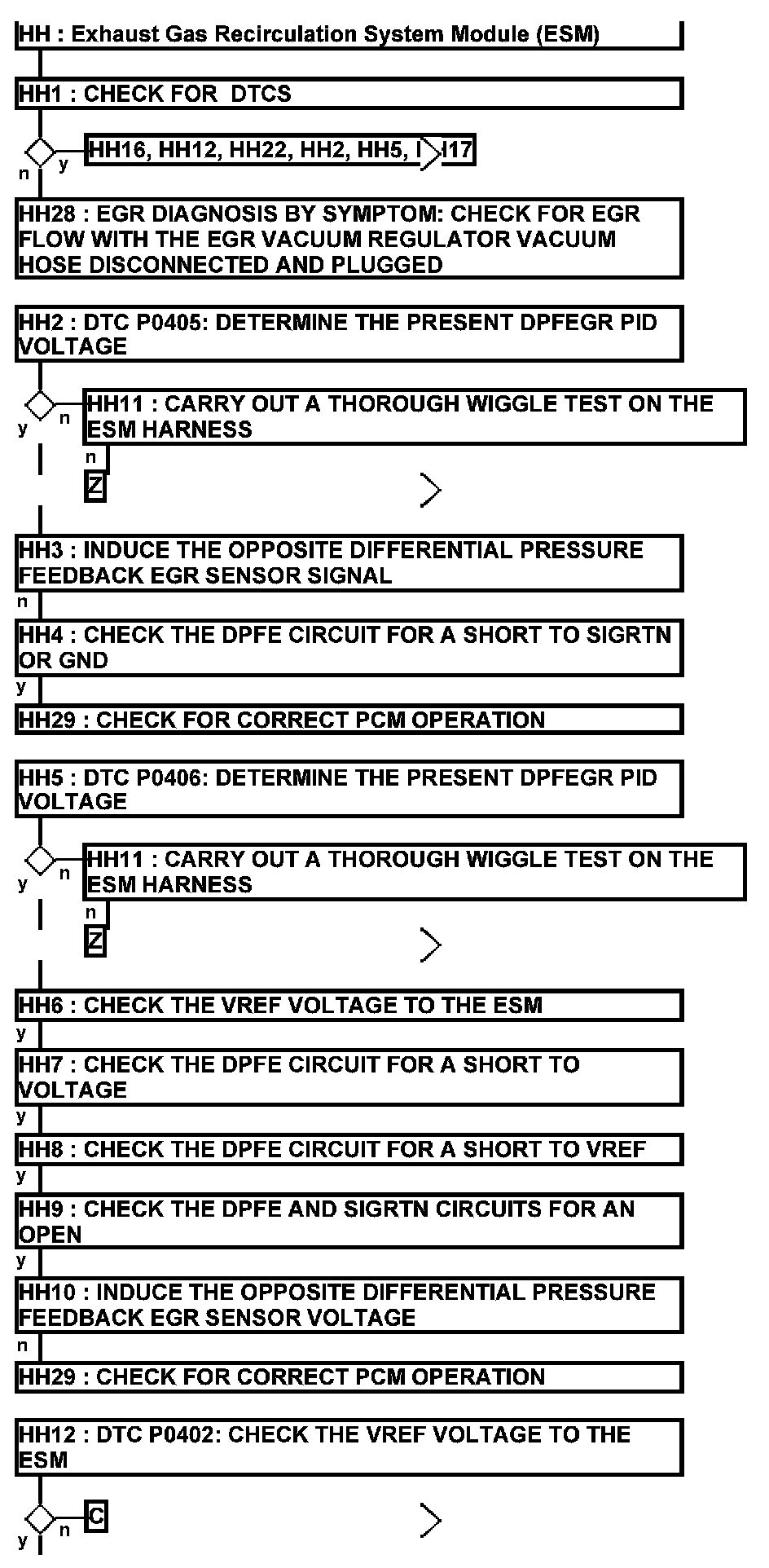

Exhaust Gas Recirculation System Module (ESM) - Manual Transmission

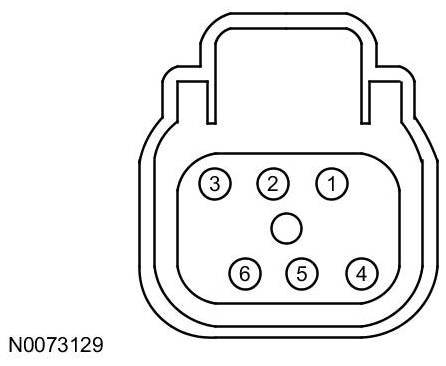

EGR System Module (ESM) Connector
Harness Side

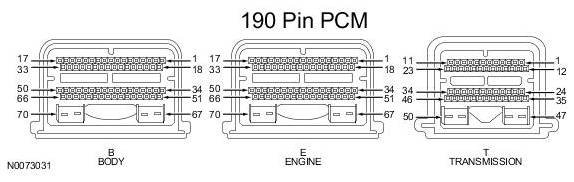

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
