A/C Compressor
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

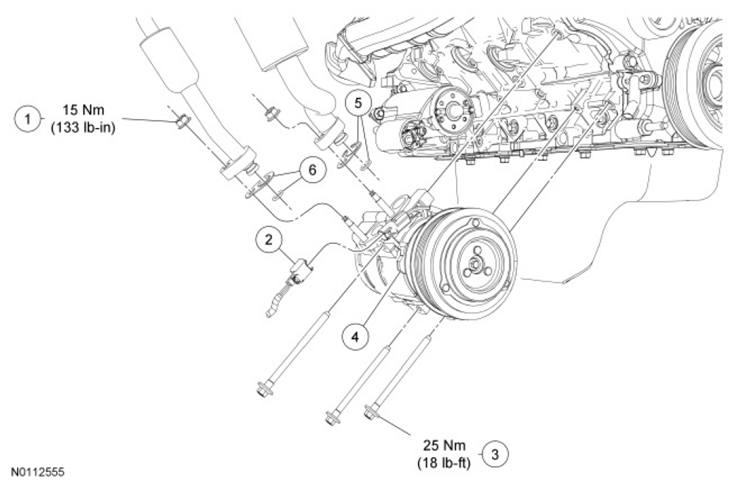

6.2L (2V) shown, 6.8L (3V) and 6.7L Diesel similar
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor fitting nut (2 required) |
| 2 | - | A/C clutch field coil electrical connector (part of 14305) |
| 3 | N506184 | A/C compressor bolt (3 required) |
| 4 | 19703 | A/C Compressor |
| 5 | 19B596 | O-ring seal and gasket seal kit |
| 6 | 19B596 | O-ring seal and gasket seal kit |
