C-CM Bracket

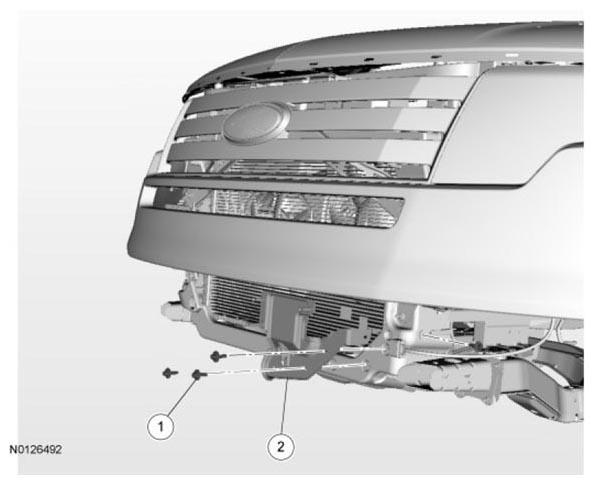

Fig 1: Identifying C-CM Bracket With Bolts
G07402619Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W710879 C-CM bracket bolts (4 required)
2 14C022 C-CM bracket
