Steering Column Control Switch




Steering Column Control Switch

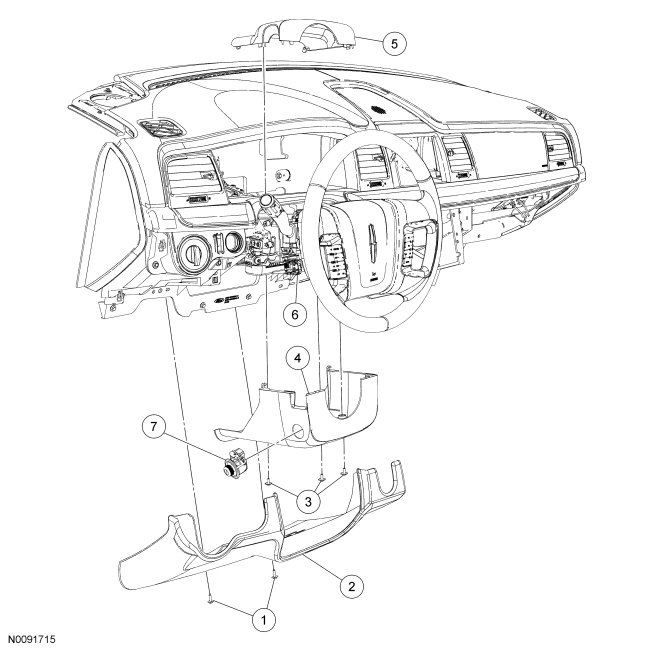

Removal and Installation

1. Remove the 2 screws and the lower opening trim panel.

2. Remove the 3 screws and separate the lower from the upper steering column shroud.

3. Disconnect the electrical connector and remove the steering column control switch.

4. To install, reverse the removal procedure.
