Test H: Fuel Control
PINPOINT TEST H: FUEL CONTROL

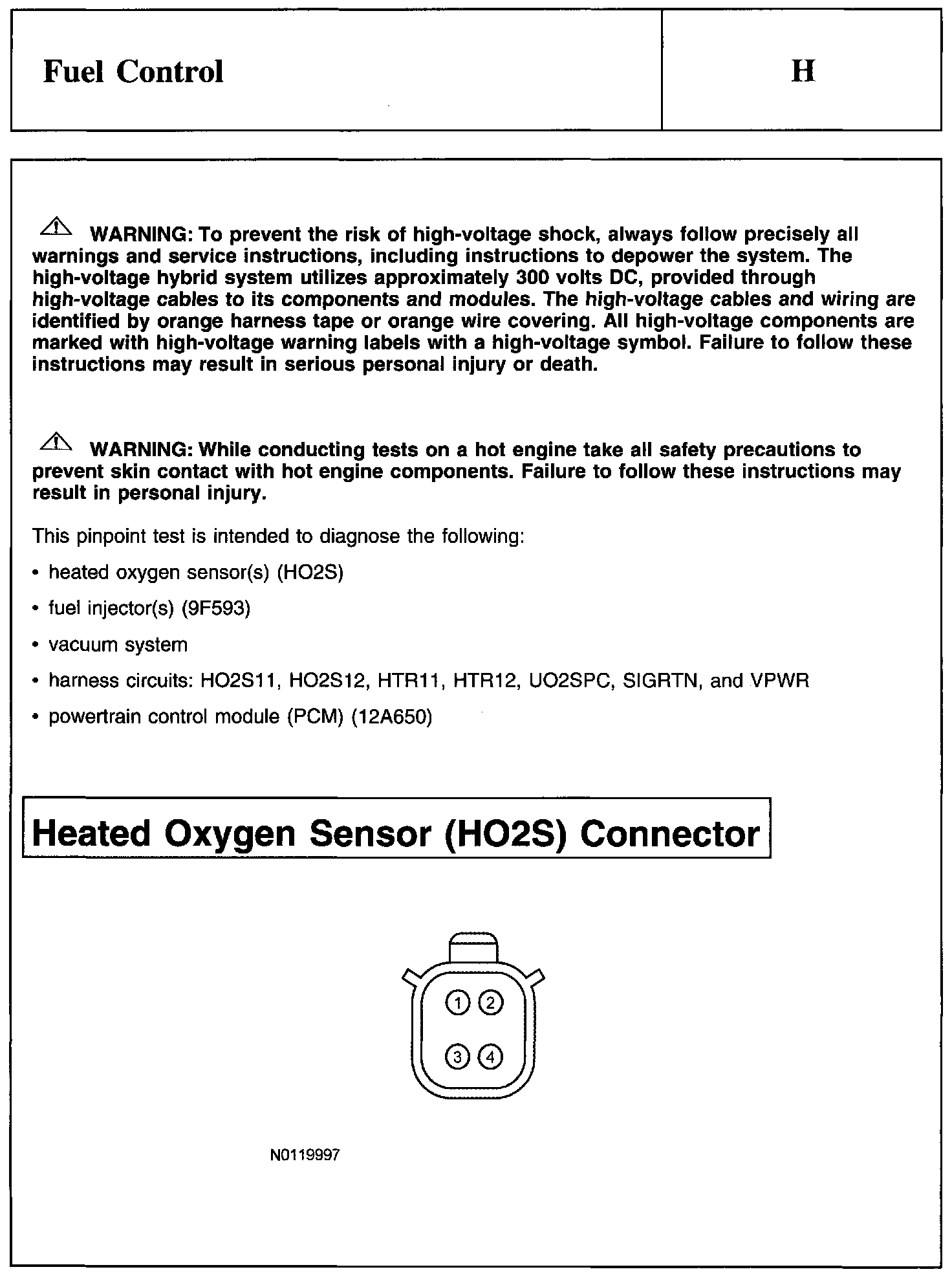

Warnings And Heated Oxygen Sensor (HO2S) Connector:

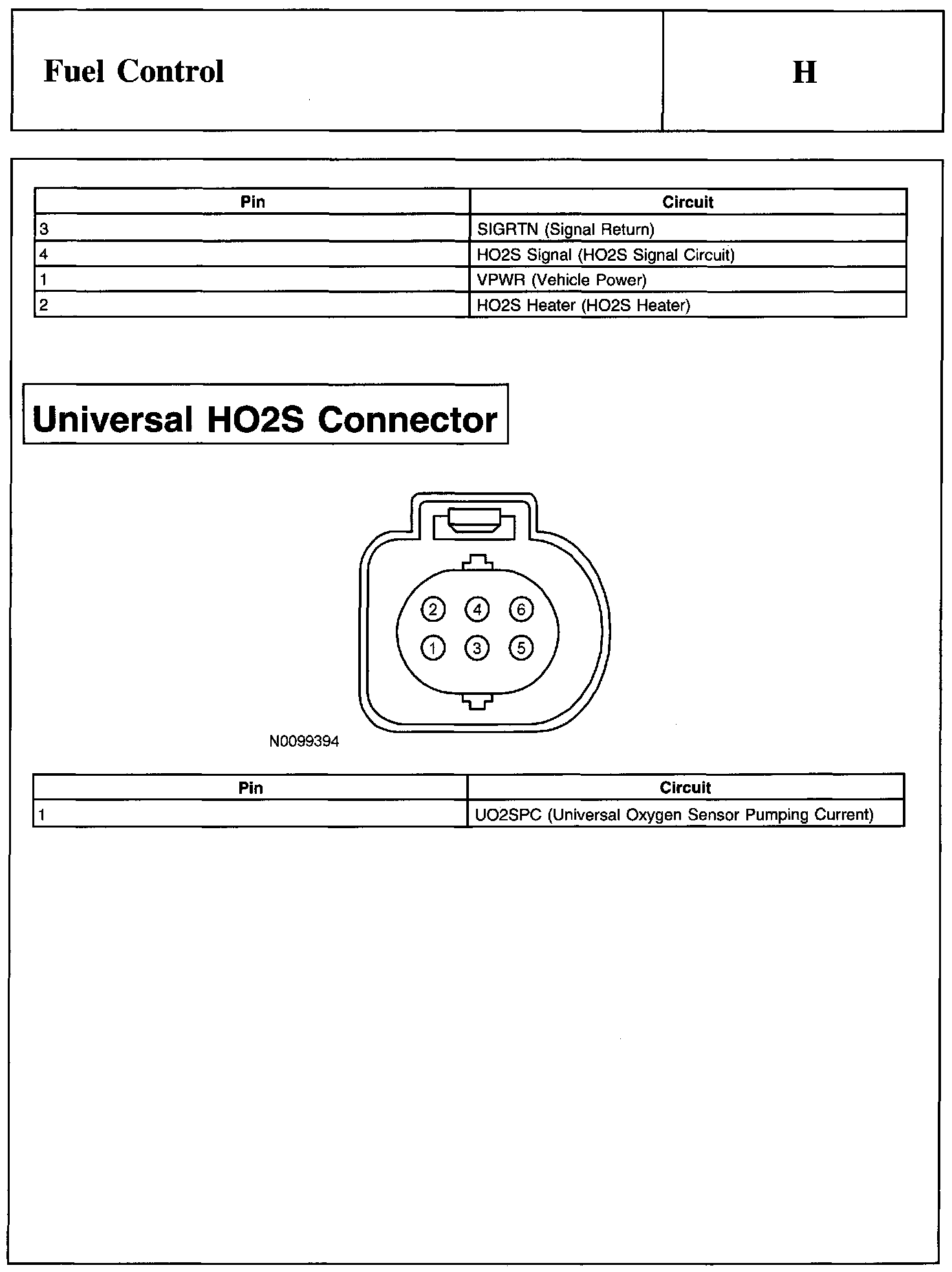

Heated Oxygen Sensor (HO2S) Connector And Universal HO2S Connector:

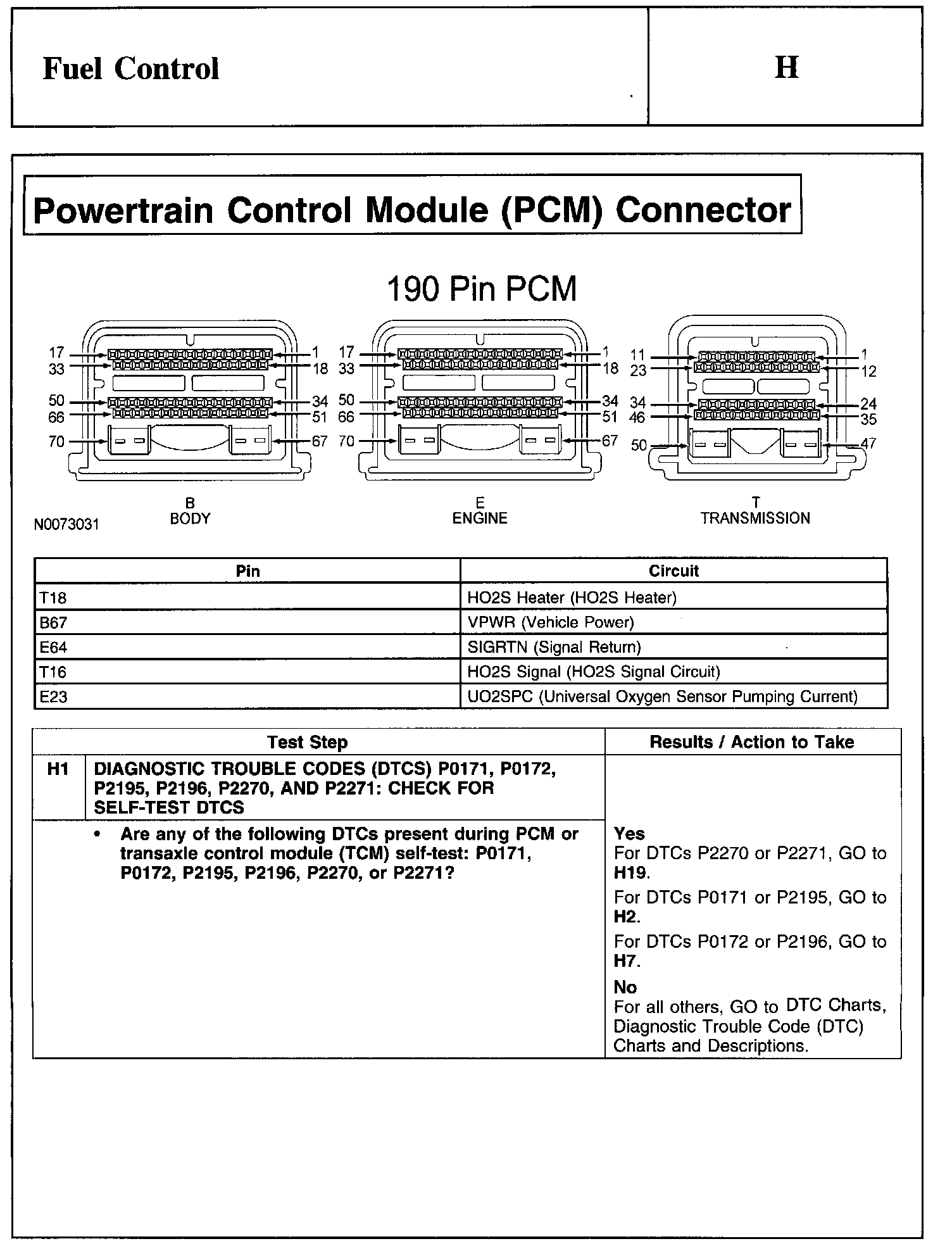

H1:

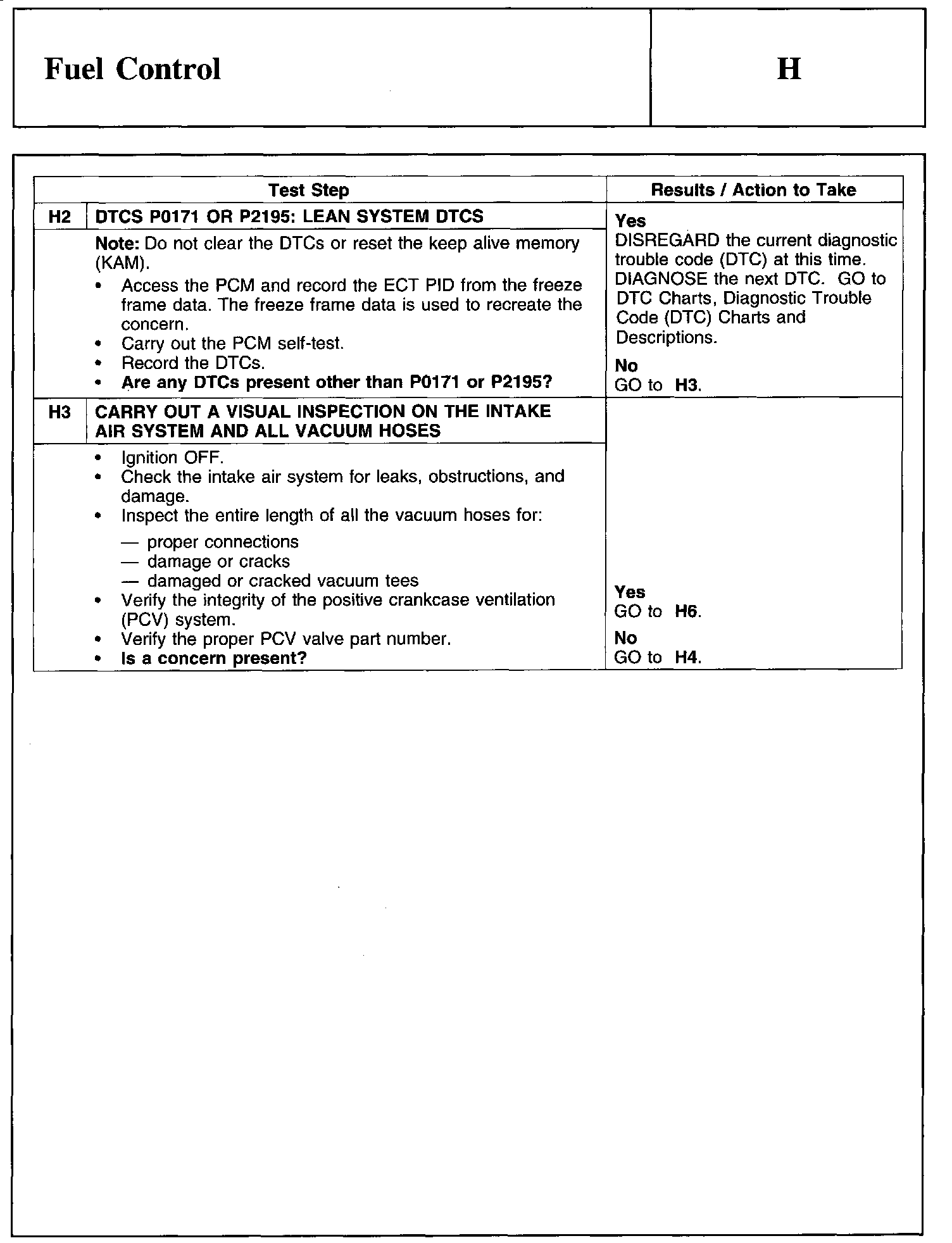

H2-H3:

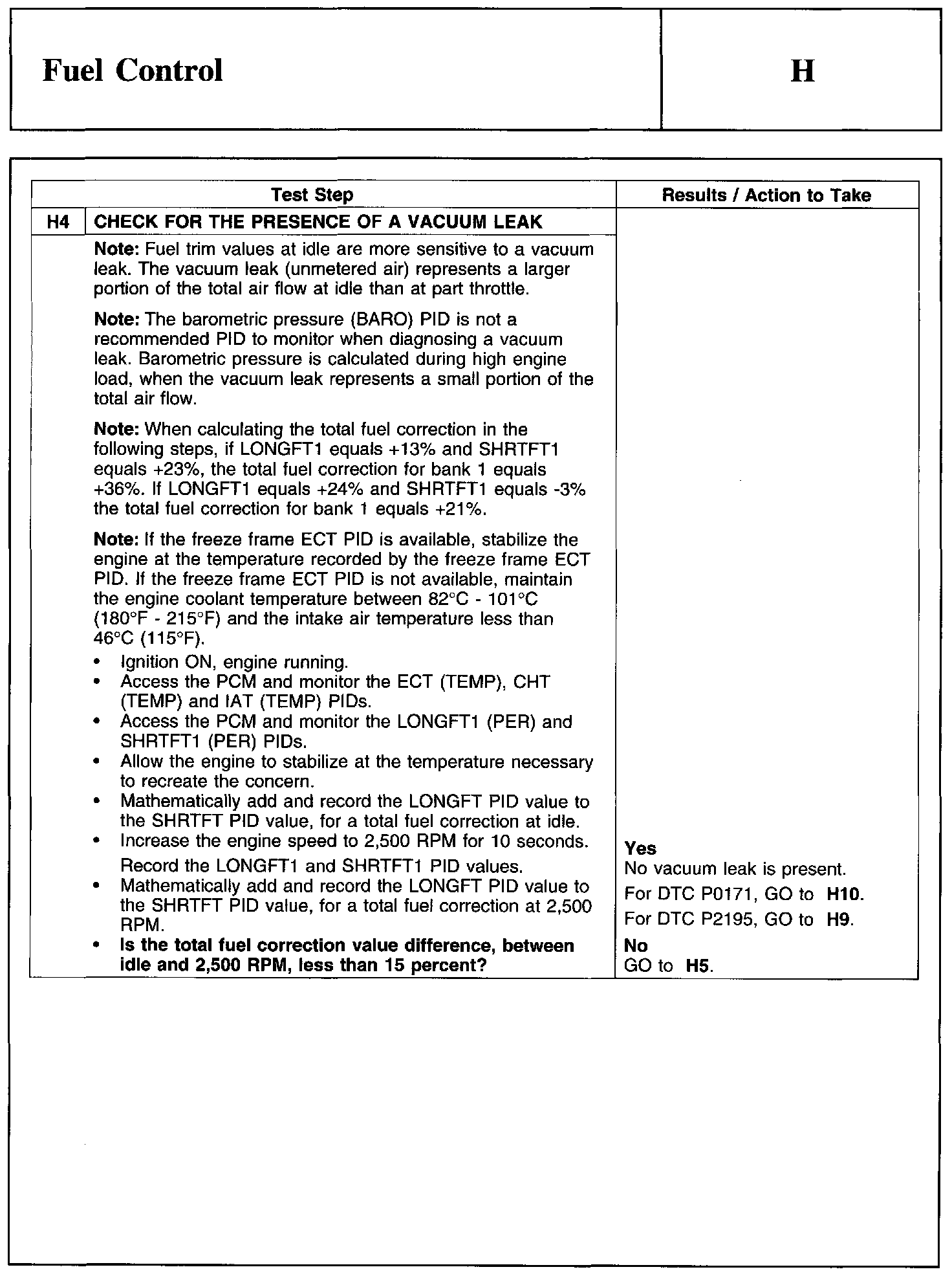

H4:

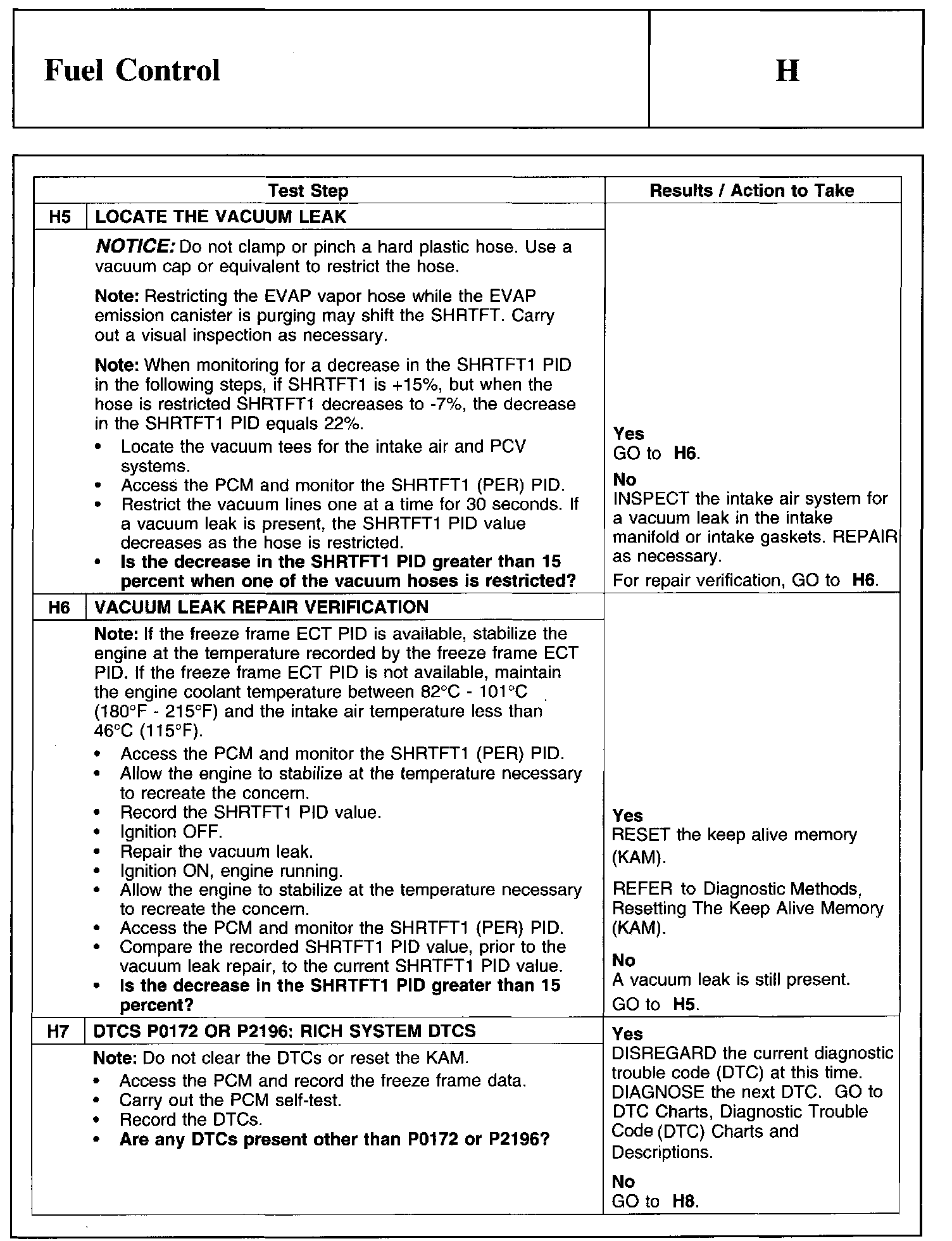

H5-H7:

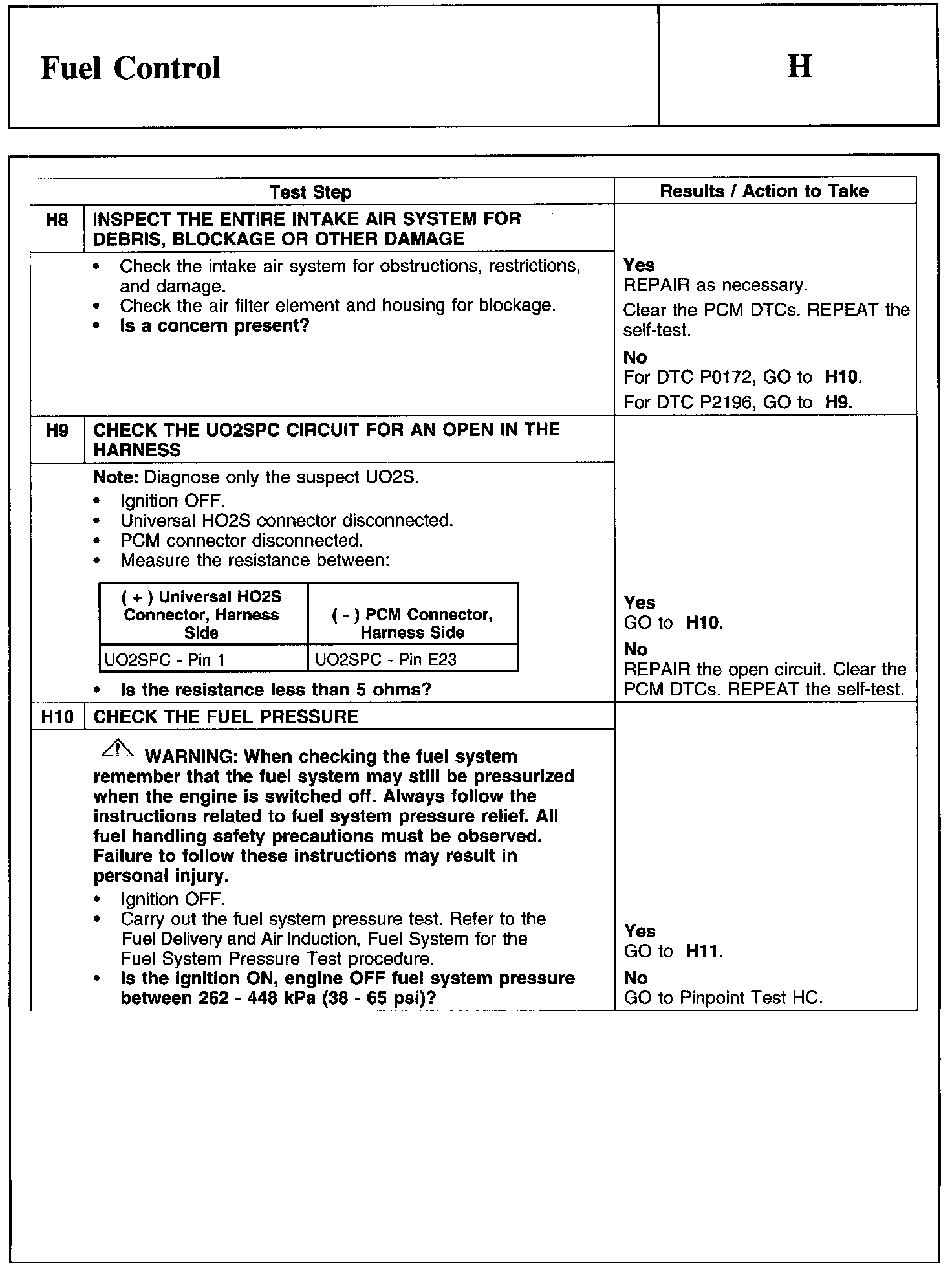

H8-H10:

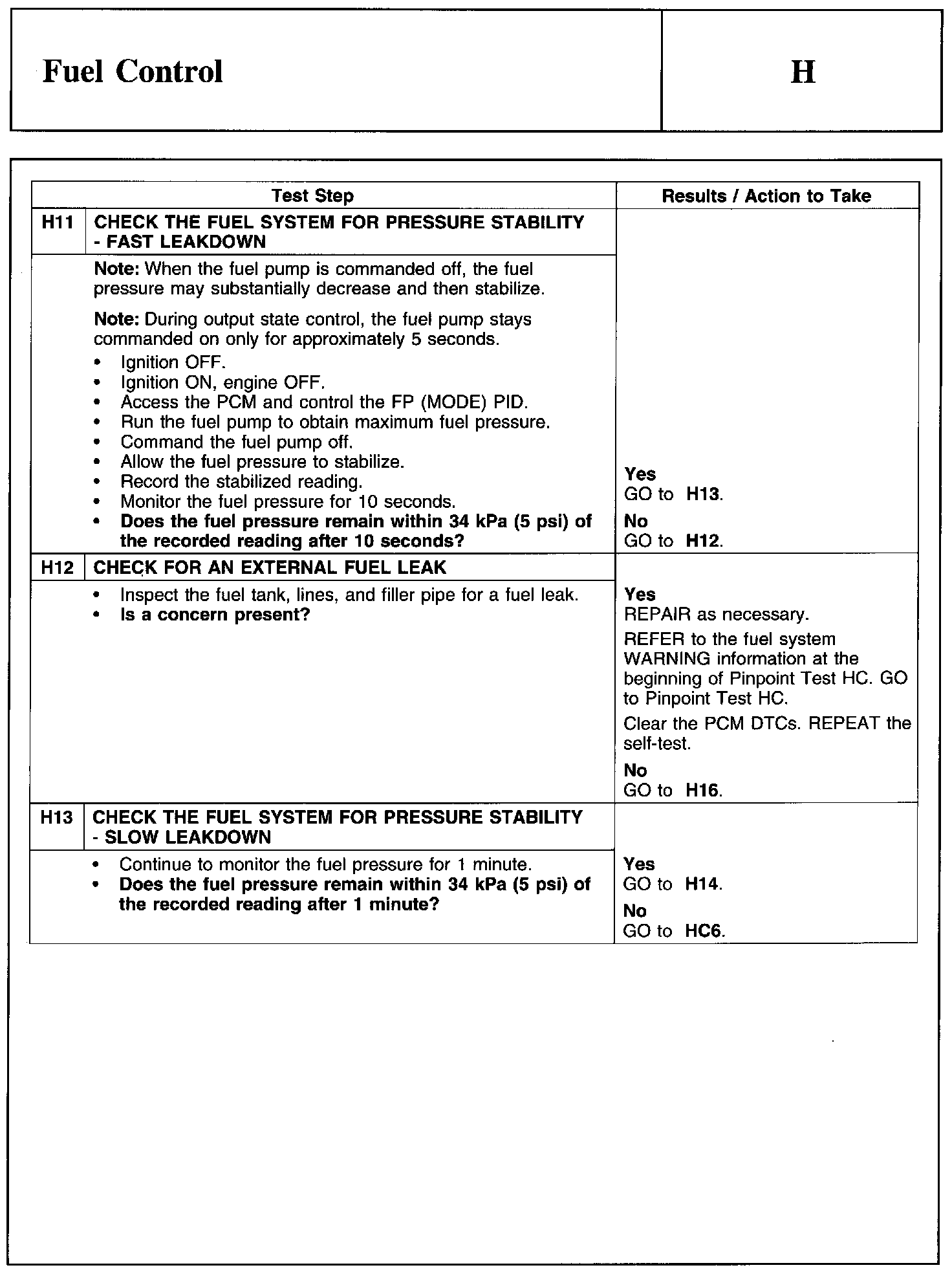

H11-H13:

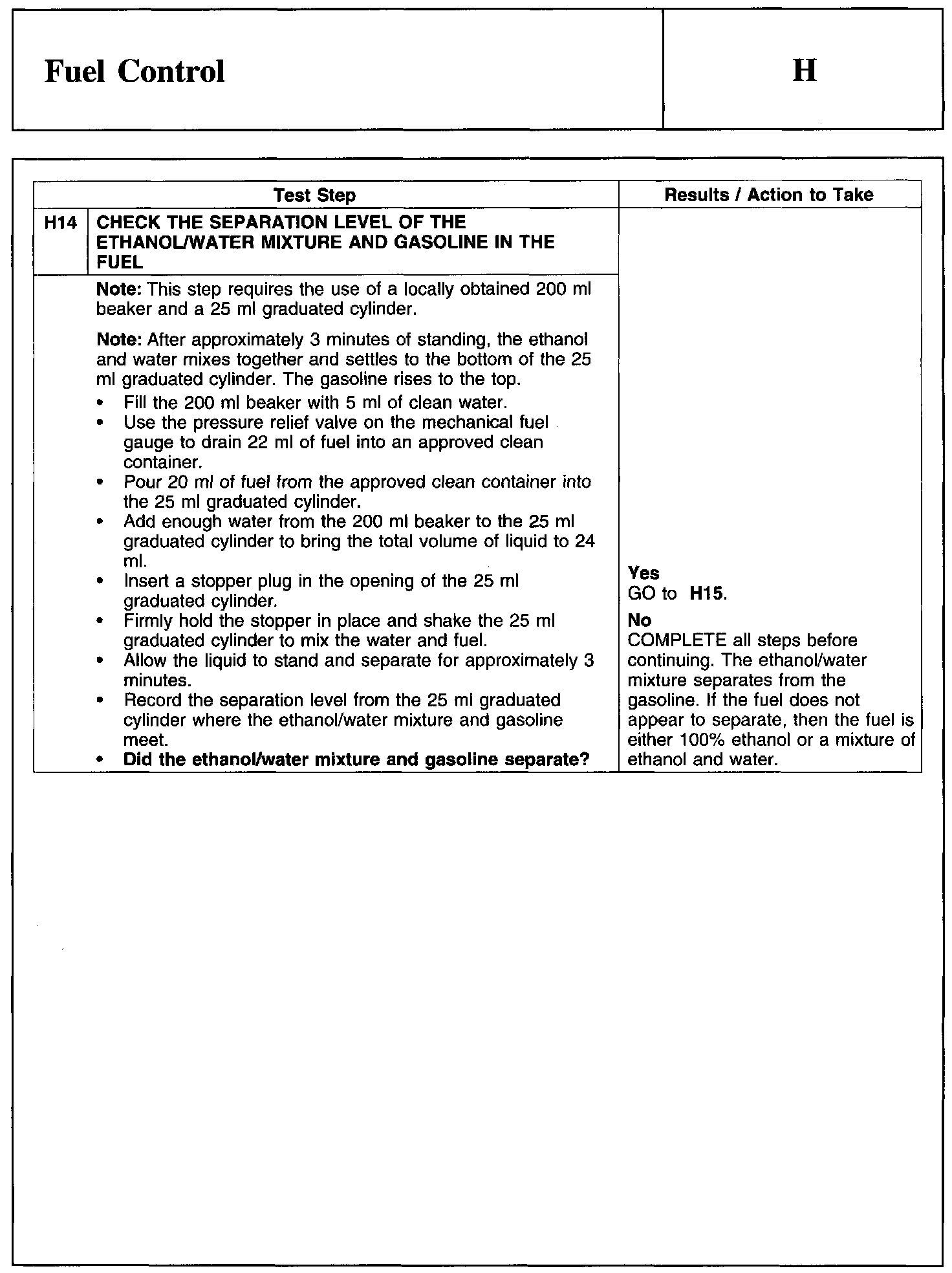

H14:

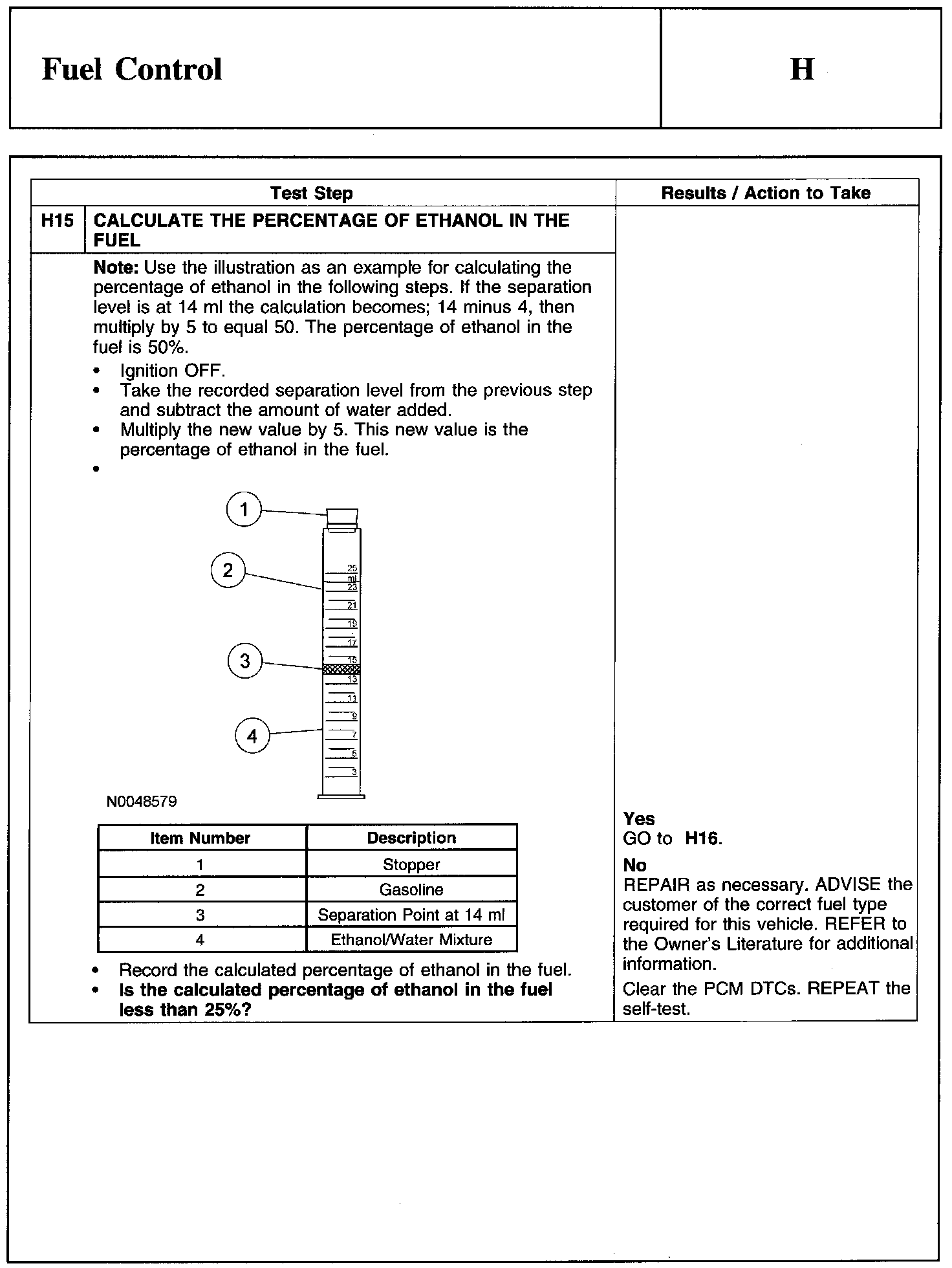

H15:

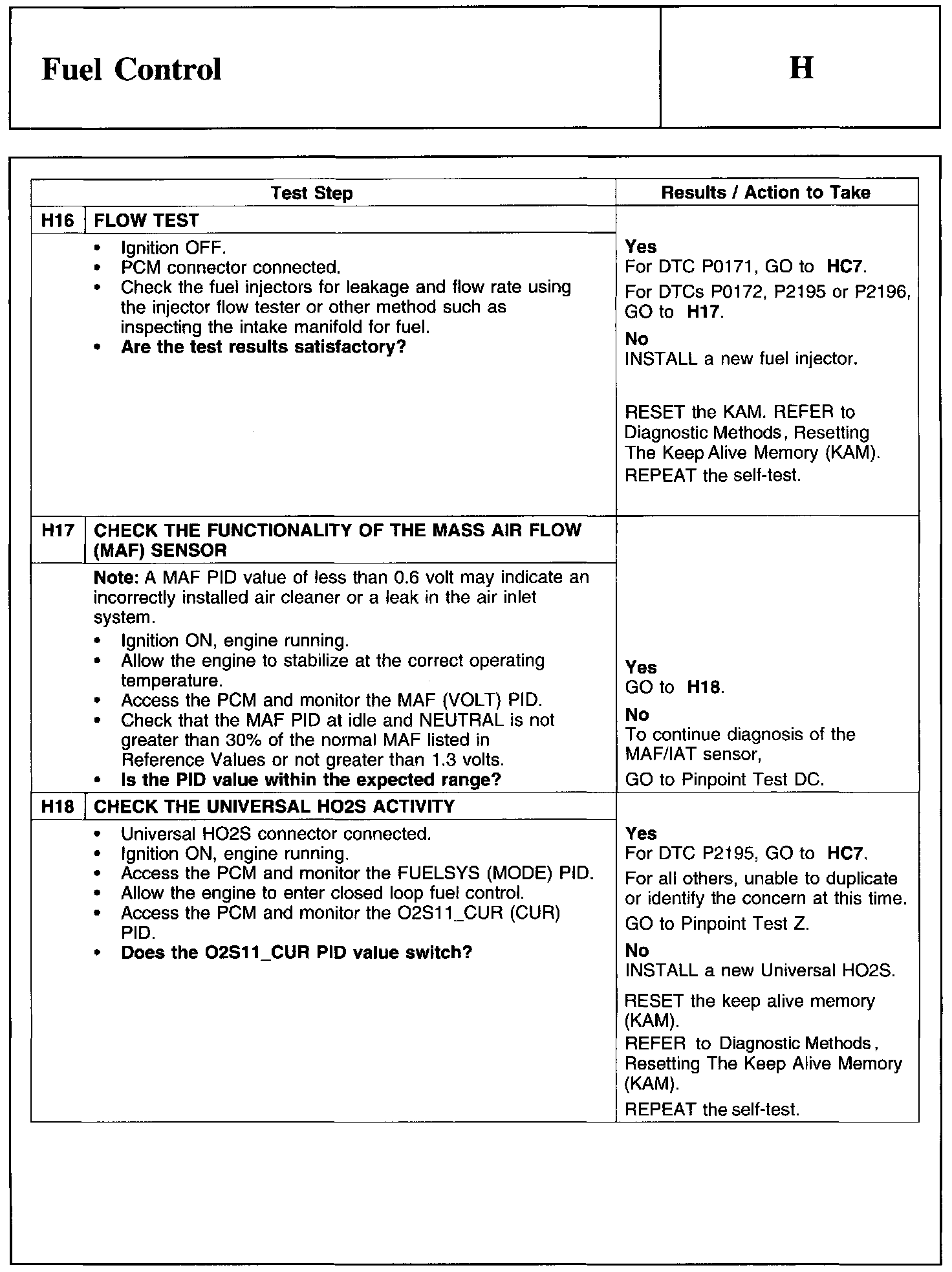

H16-H18:

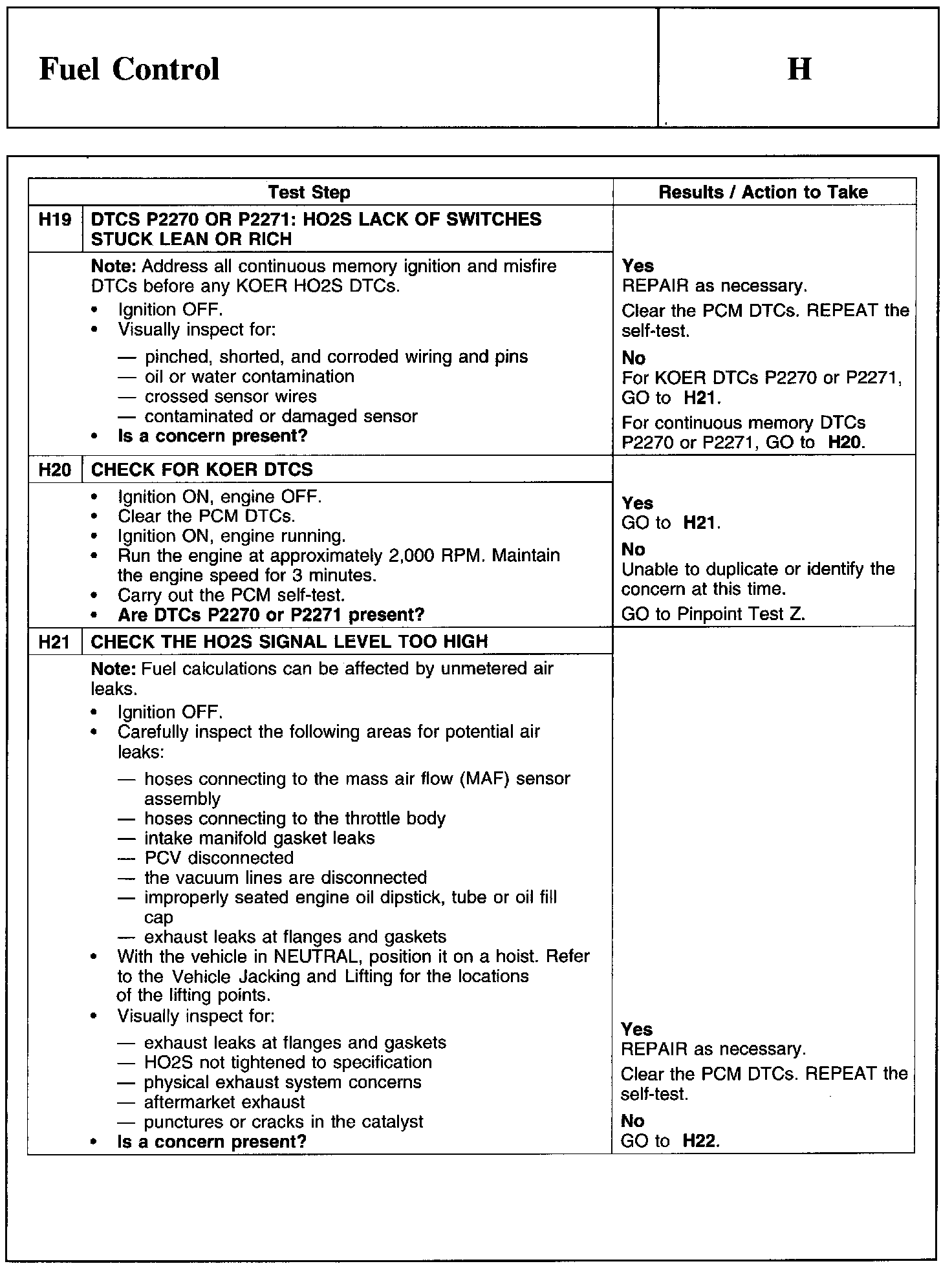

H19-H21:

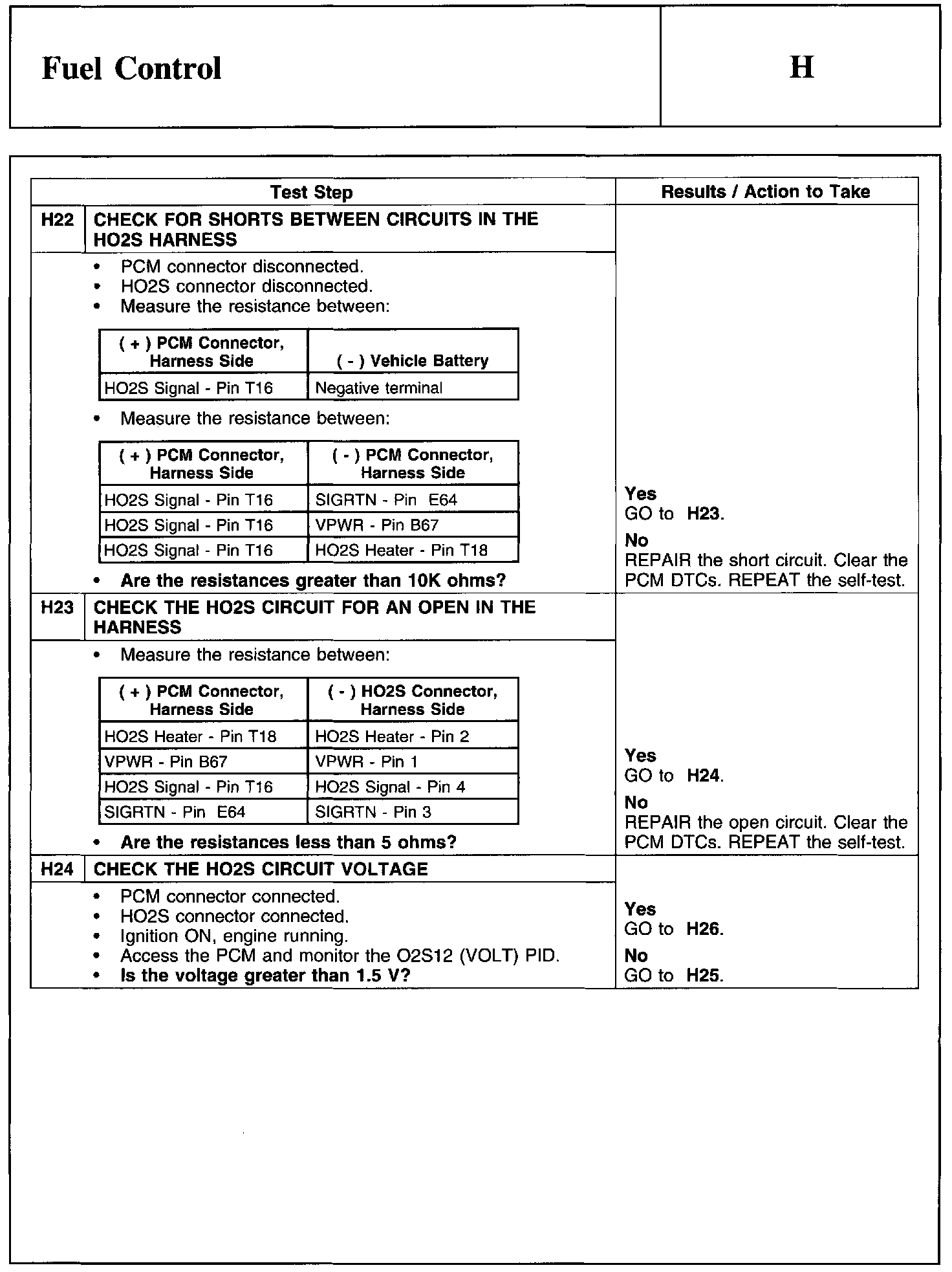

H22-H24:

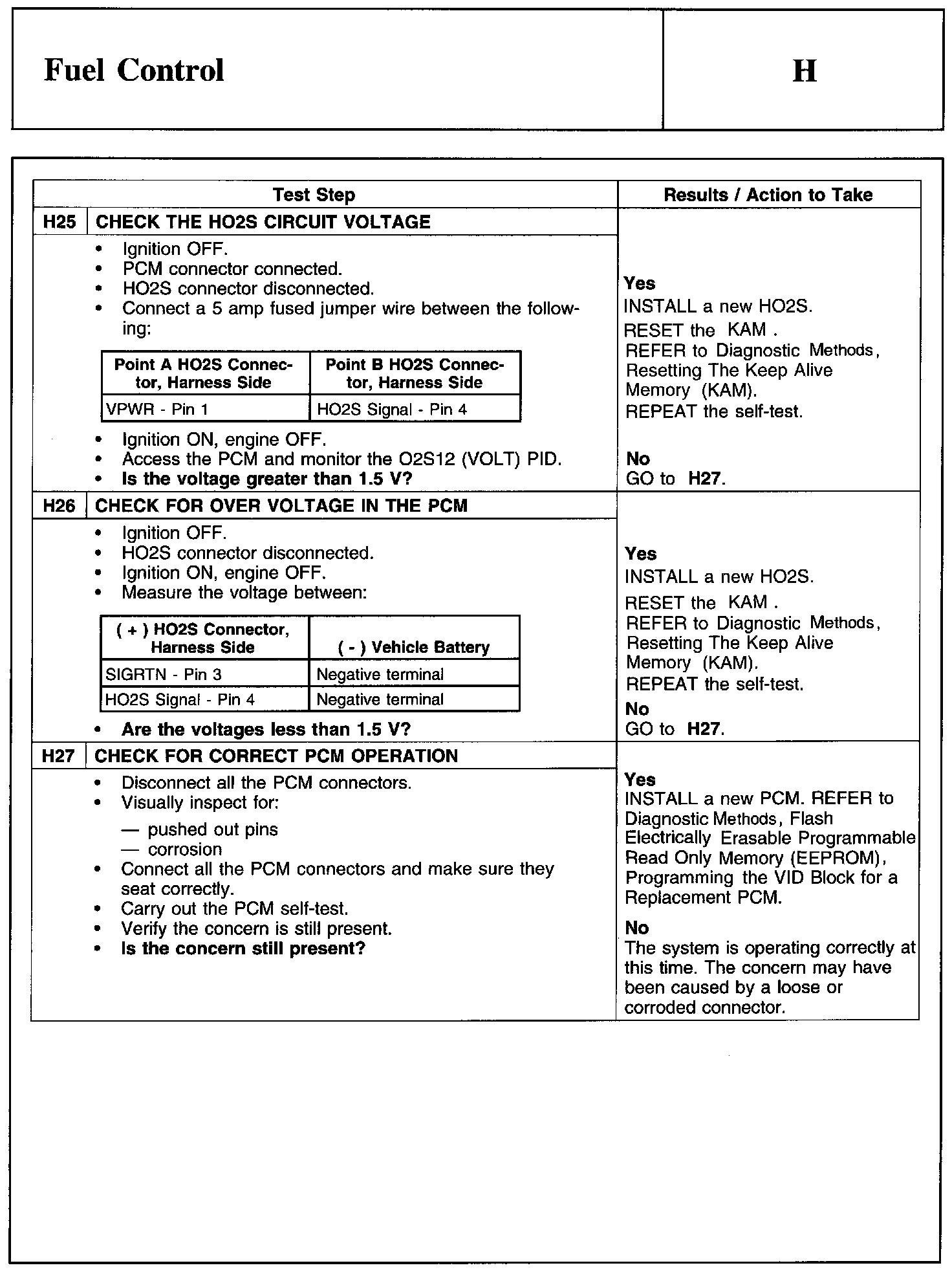

H25-H27:
