Generator Current Sensor: Notes

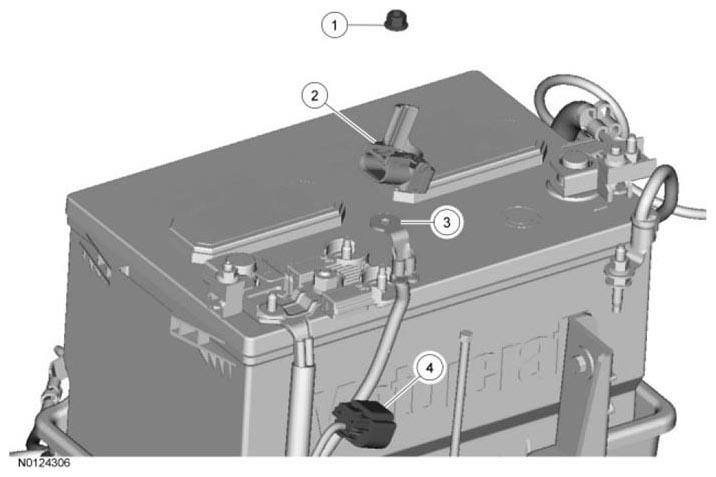

Fig 1: Identifying Generator Current Sensor Components Location
G07402525Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Battery terminal nut (part of 14300) - 9 Nm (80 lb-in)
2 14B357 Generator current sensor
3 - Positive battery cable terminal (part of 14300)
4 - Generator current sensor electrical connector (part of 14290)
