Test B: Powertrain Control Module (PCM) Power Relay

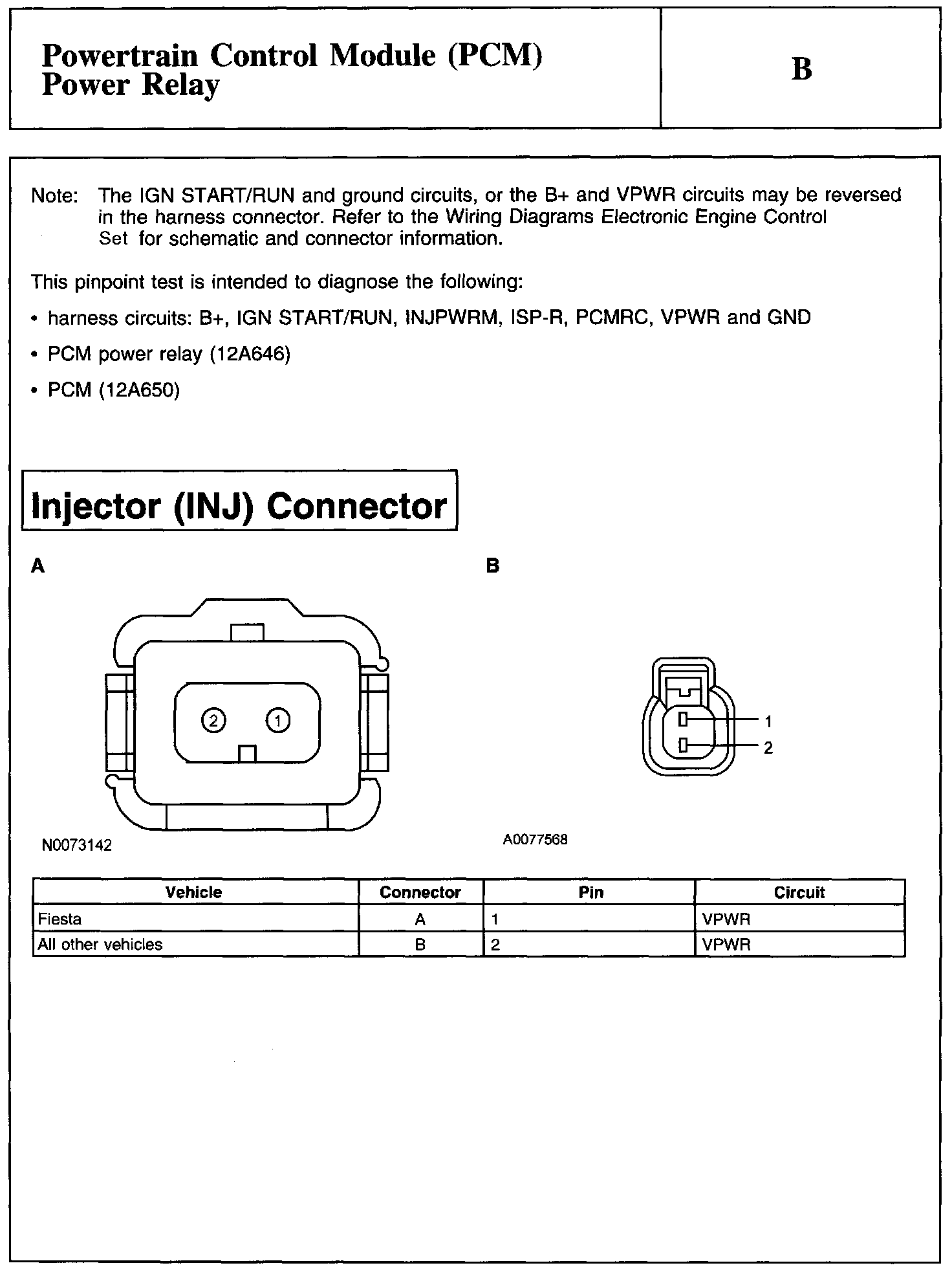

PINPOINT TEST B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAYNote And Injector (INJ) Connector:

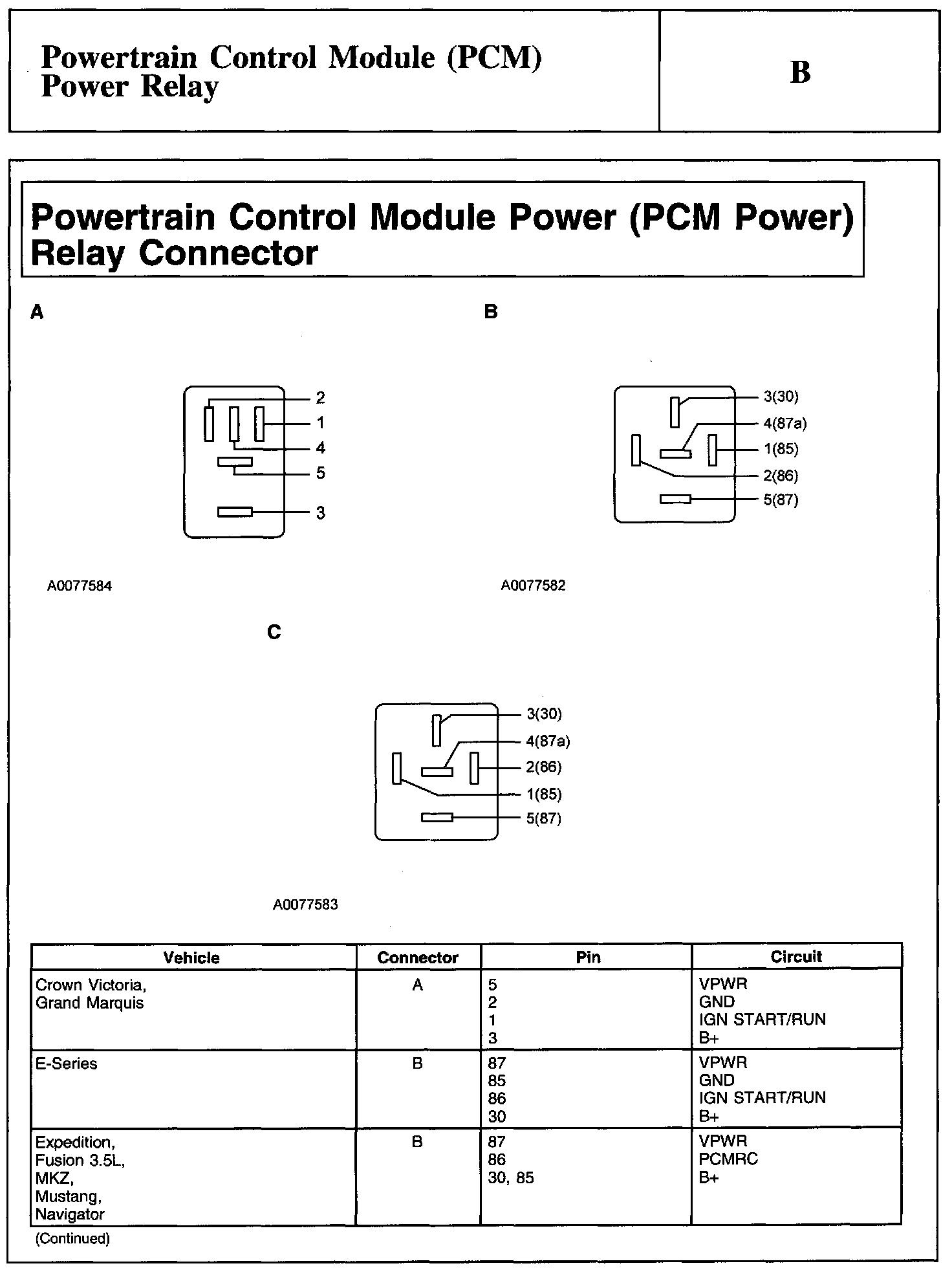

Powertrain Control Module Power (PCM Power) Relay Connector:

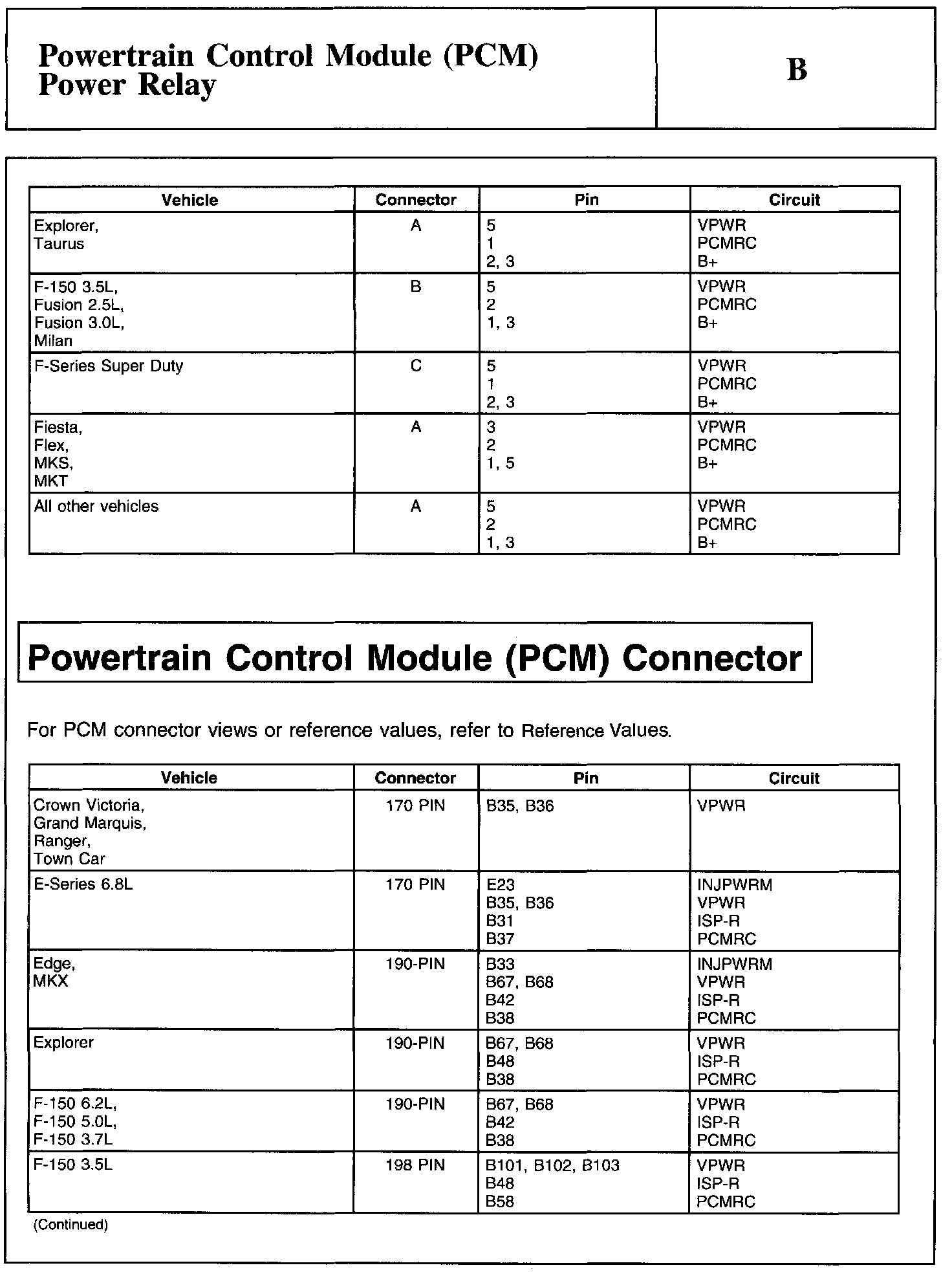

Powertrain Control Module Power (PCM Power) Relay Connector And Powertrain Control Module (PCM) Connector:

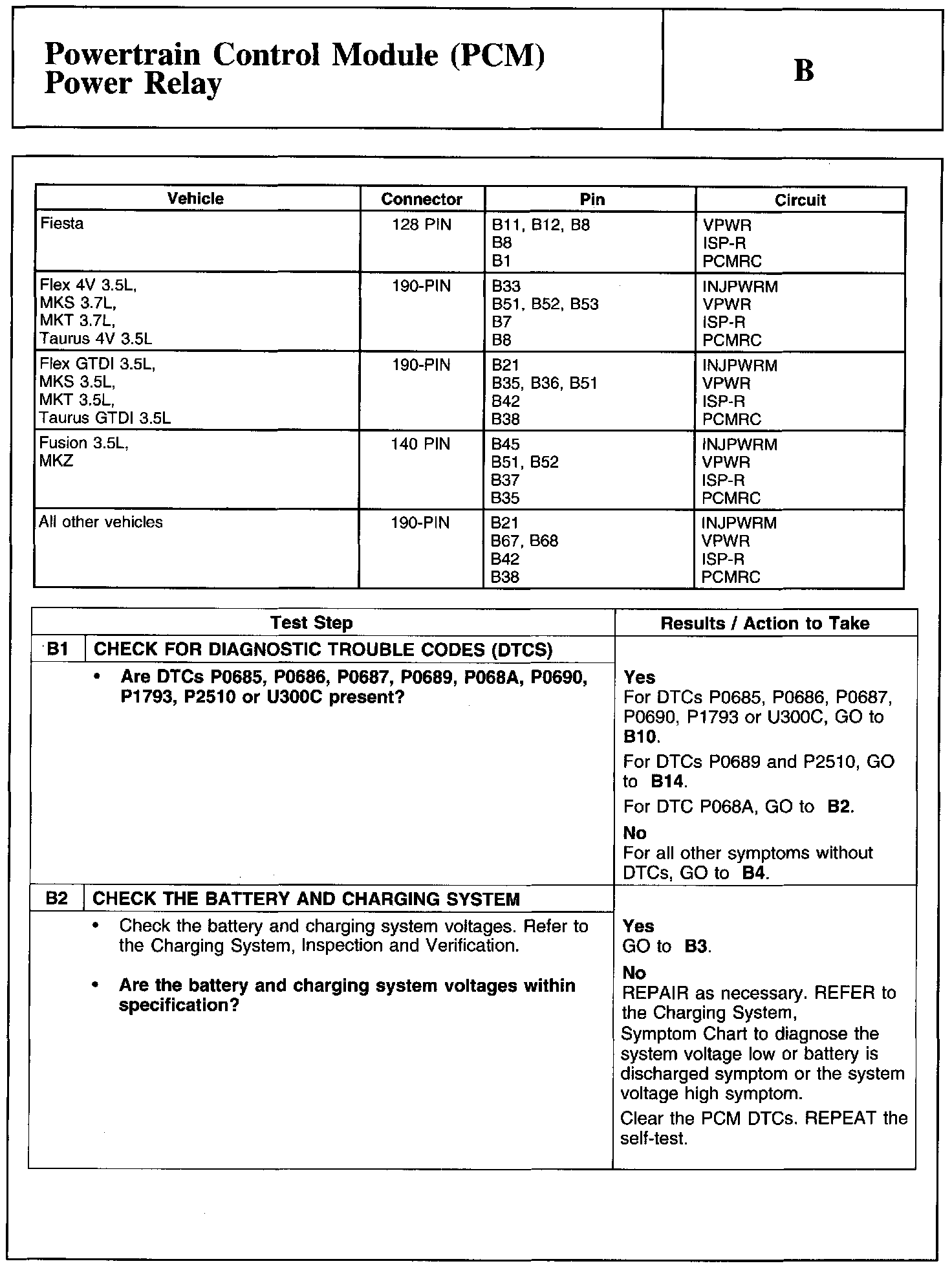

B1-B2:

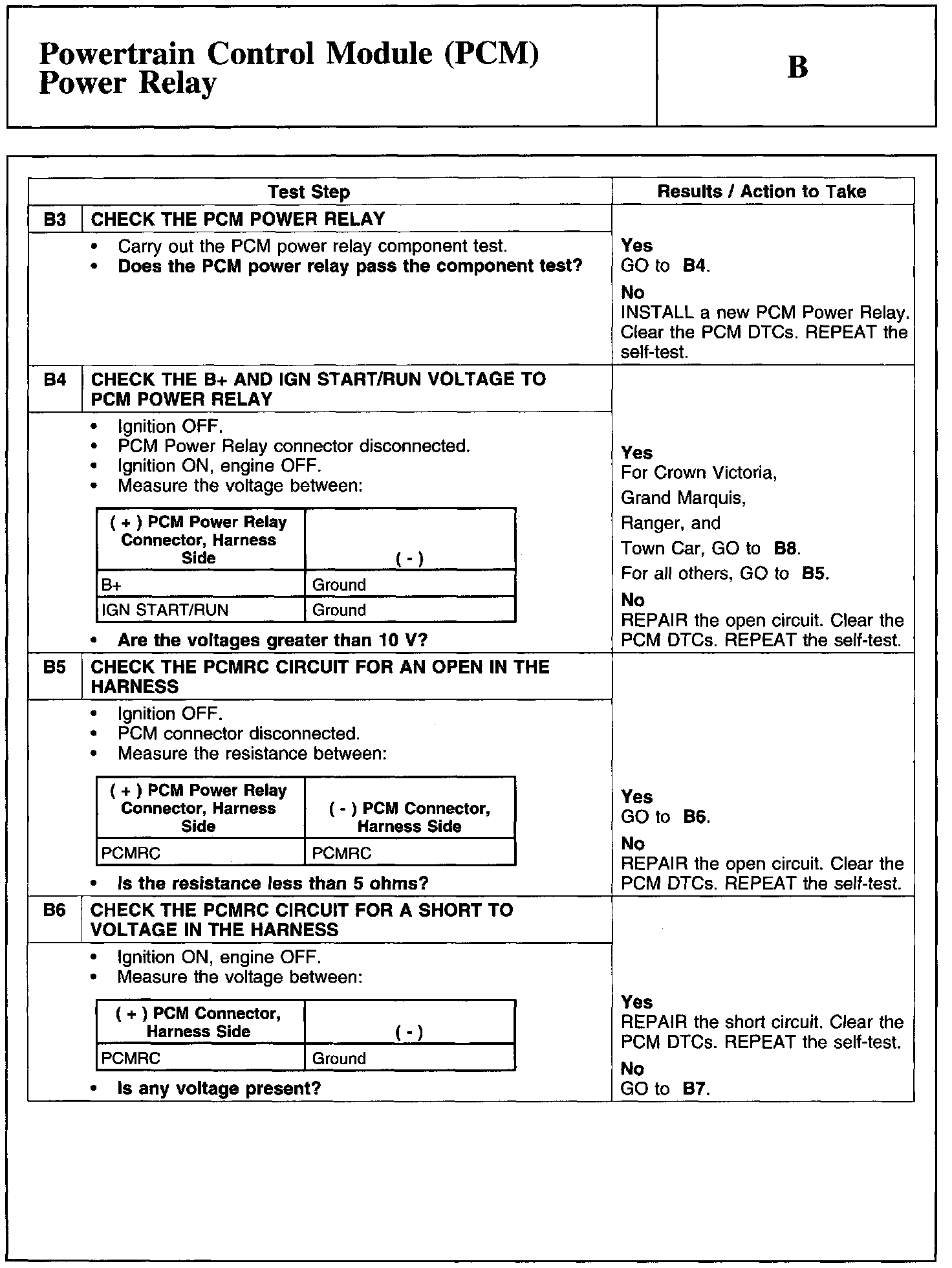

B3-B6:

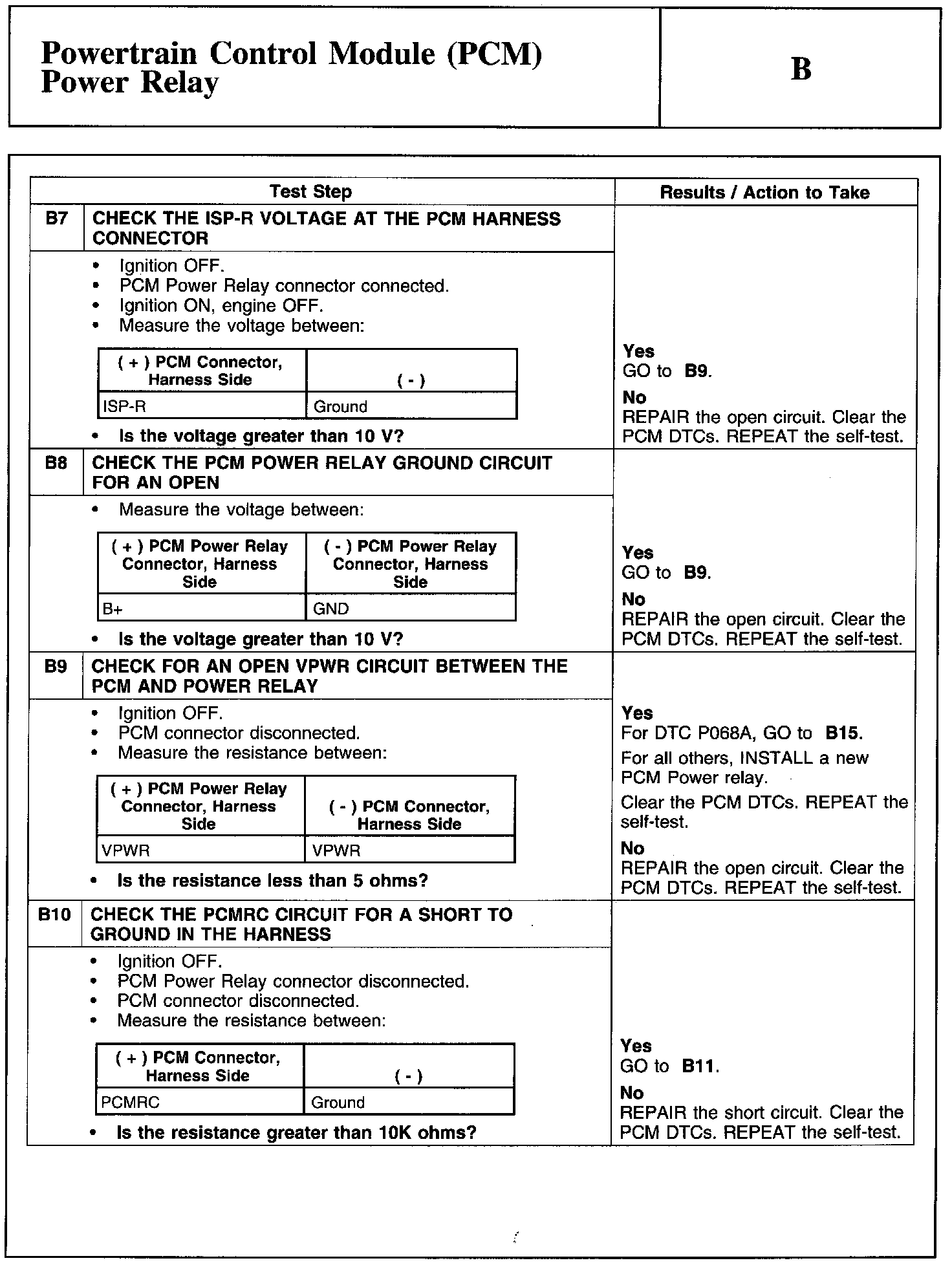

B7-B10:

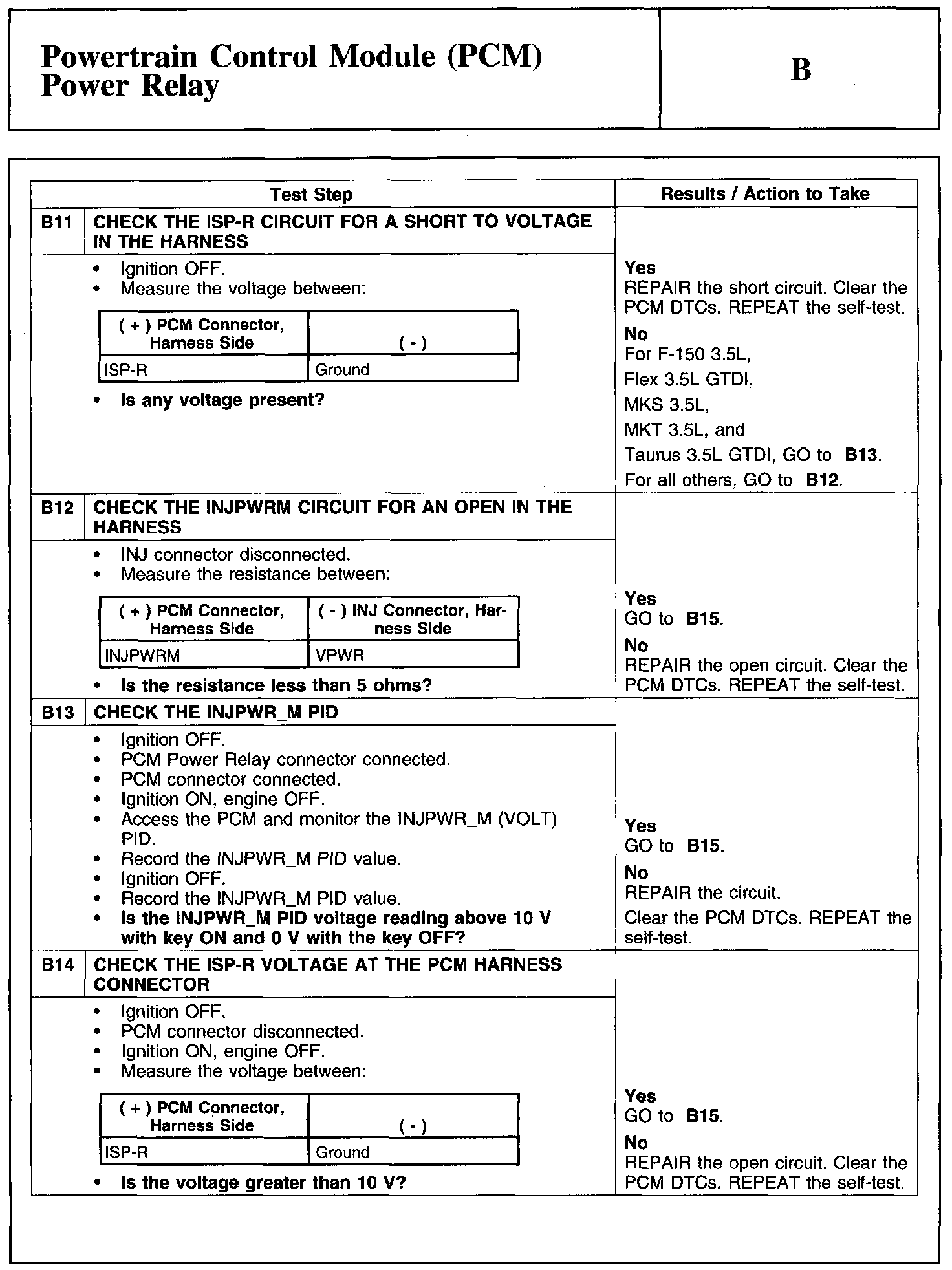

B11-B14:

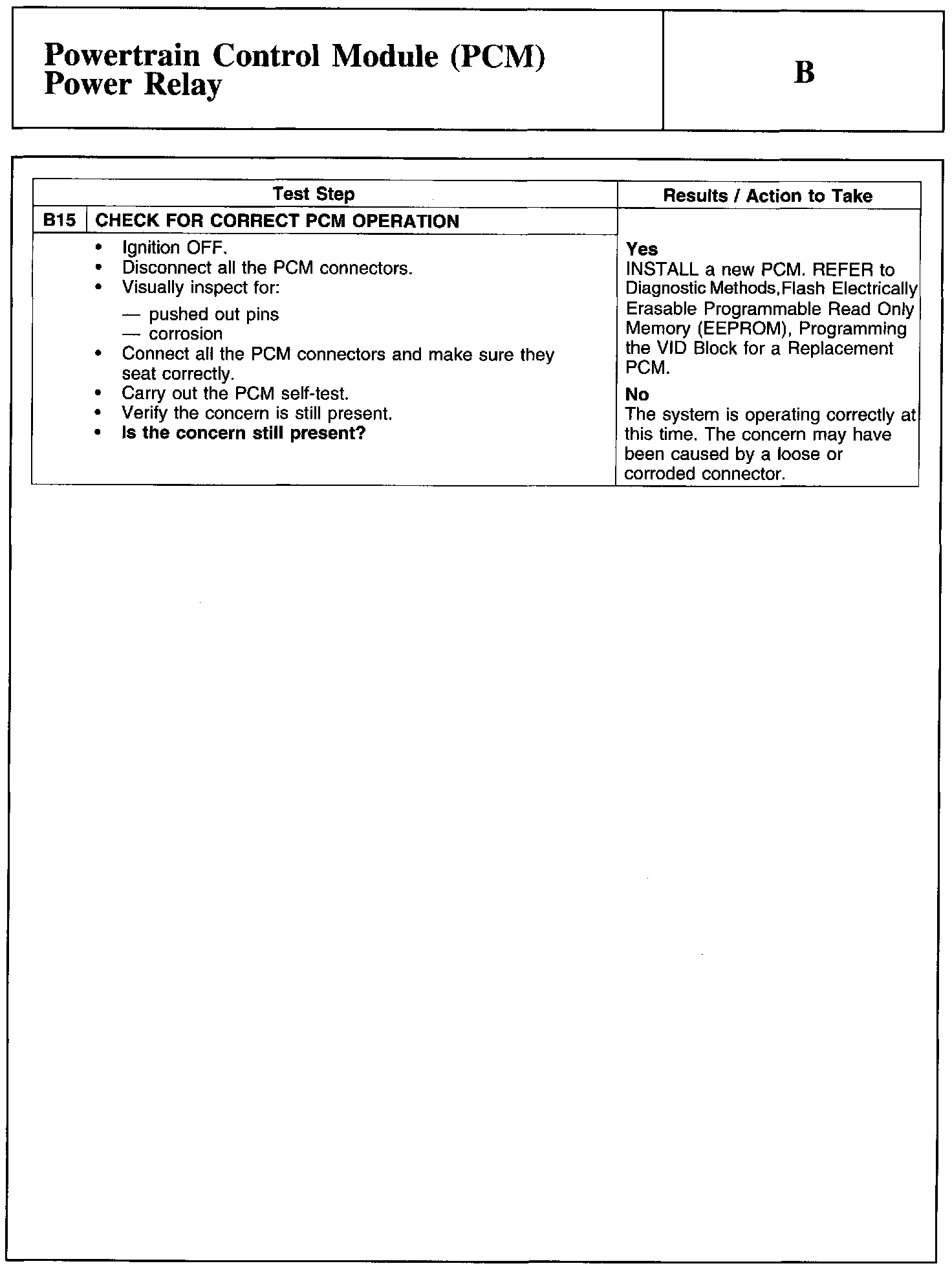

B15:
