Auxiliary In-Vehicle Temperature Sensor

Auxiliary In-Vehicle Temperature Sensor









Removal and Installation

1. Remove the LH quarter trim panel. For additional information, refer to Interior Trim and Ornamentation Quarter Trim Panel.

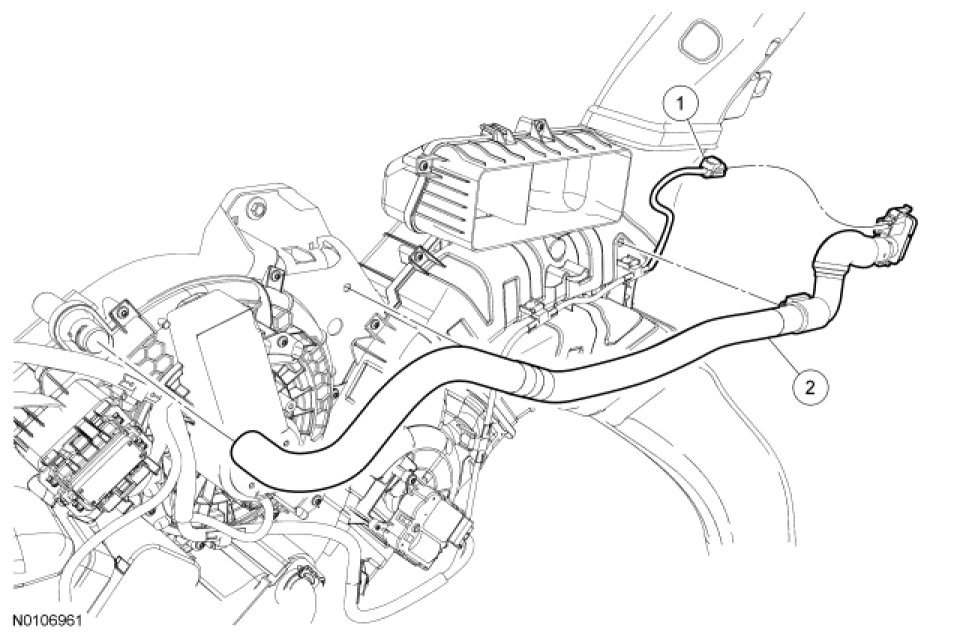

2. Disconnect the auxiliary in-vehicle temperature sensor electrical connector.

3. Detach the auxiliary in-vehicle temperature sensor and aspirator hose assembly from the heater core and evaporator core housing.

4. To install, reverse the removal procedure.
