Main Control Components

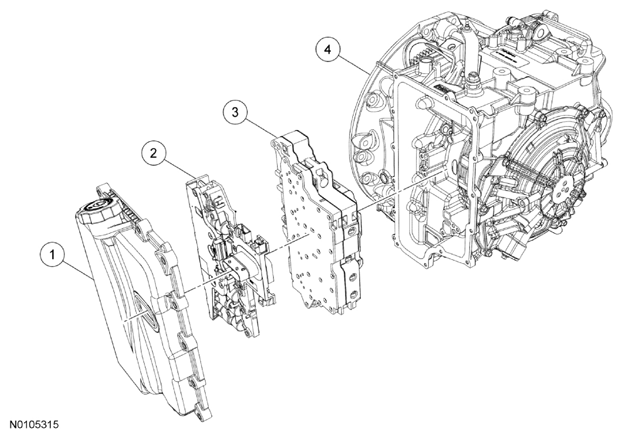

Fig 1: Exploded View Of Main Control Components
G07816877Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7G004 Main control cover assembly
2 7Z369 Solenoid body
3 7A100 Main control valve body
4 7005 Transaxle case
